NCP145-AEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207- )1NZFE..NCP145

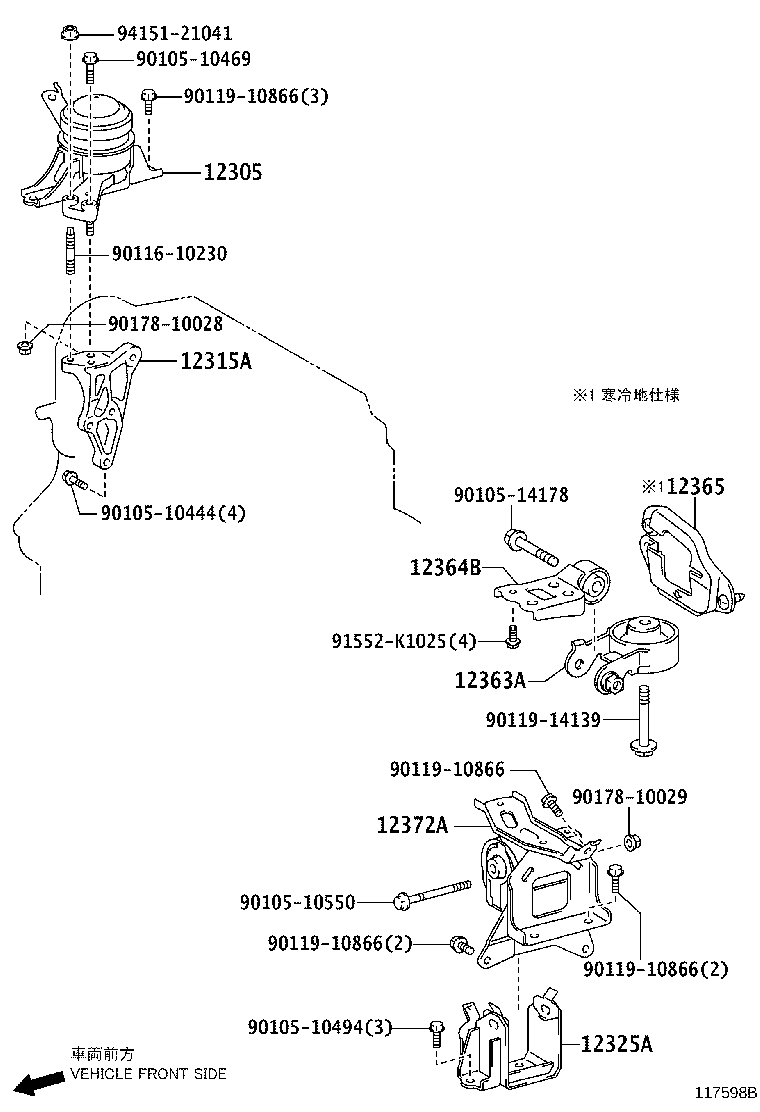

Click highlighted areas on diagram

diagram 12305 12315A 12325A 12363A 12364B 12365 12372A 9010510444 9010510469 9010510494 9010510550 9010514178 9011610230 9011910866 9011910866 9011910866 9011910866 9011914139 9017810028 9017810029 91552K1025 9415121041
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-21380

1NZFE..NCP145..CBU

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-21044

1NZFE..NCP14#..CBU

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-21170

1NZFE..NCP14#..CBU

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-21141

1NZFE..NCP145..CBU

 1
12363-21140

1NZFE..NCP145..CBU

 1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-21090

1NZFE..NCP145..CBU

 1
12365 - COVER, ENGINE MOVING CONTROL ROD
12365-40010

1N#..NCP14#,NSP140..CBU

寒冷地仕様

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-21300

1NZFE..NCP145..CBU

 1
Common parts
90105-10444
90105-10469
90105-10494
90105-10550
90105-14178
90116-10230
90119-10866
90119-14139
90178-10028
90178-10029
91552-K1025
94151-21041
