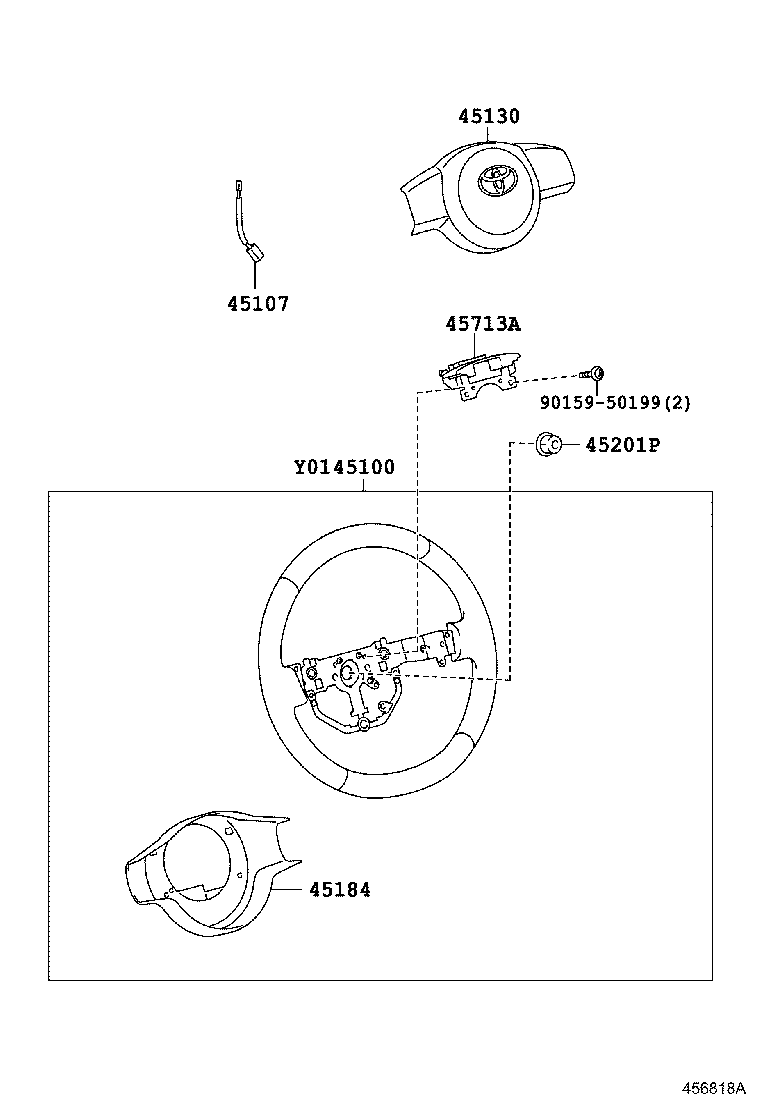

NCP145-AEXFK (2015)
Toyota Porte/Spade
(1507- )
2ﾎﾝｽﾎﾟｰｸ,ﾅｼ(ｵｰﾃﾞｨｵｽｲｯﾁ,ﾋｰﾀｰｽｲｯﾁ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-52591C0 |
NCP145,NSP141..PORTE..F..CBU 2本ｽﾎﾟｰｸ, ﾚｻﾞｰ,“Raffine”*(U),BLACK,TRIM2#,4# |
1 | ||
| 45100-52570C0 |
NCP145,NSP141..X..CBU 2本ｽﾎﾟｰｸ, ｳﾚﾀﾝ,BLACK,TRIM40 |
1 | ||
| 45100-52570C0 |
NCP145,NSP141..V,Y 2本ｽﾎﾟｰｸ, ｳﾚﾀﾝ,BLACK,TRIM4# |
1 | ||
| 45100-52570E0 |
NCP145,NSP141..F..CBU 2本ｽﾎﾟｰｸ, ｳﾚﾀﾝ,PLUM,TRIM0# |
1 | ||
| 45100-52570E0 |
NCP145,NSP141..X..CBU 2本ｽﾎﾟｰｸ, ｳﾚﾀﾝ,PLUM,TRIM0#,41 |
1 | ||
| 45100-52590C0 |
NCP145,NSP141..PORTE..F..CBU 2本ｽﾎﾟｰｸ, ﾚｻﾞｰ,“Raffine”*(U),BLACK,TRIM2#,4# |
1 | ||
| 45100-52570C0 |
NCP145,NSP141..F..CBU 2本ｽﾎﾟｰｸ, ｳﾚﾀﾝ,BLACK,TRIM2#,4# |
1 | ||
| 45100-52591C0 |
NCP145,NSP141..PORTE..F..CBU 2本ｽﾎﾟｰｸ, ﾚｻﾞｰ,“Raffine”*(W),BLACK,TRIM2#,4# |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-48010 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4SP(ﾌﾛﾝﾄ & ﾘｱ)ﾅﾋﾞﾚﾃﾞｨ |
1 | ||
| 45107-48010 |
NCP145,NSP141..(F,G,Y)..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ) |
1 | ||
| 45107-48010 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 45107-48010 |
NCP145,NSP141..CBU |
1 | ||
| 45107-48010 |
NCP145,NSP141..(F,G,Y)..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ(ﾌﾛﾝﾄ & ﾙｰﾌ) |
1 | ||
| 45107-48010 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 2ｽﾋﾟｰｶ |
1 | ||
| 45107-48010 |
NCP145,NSP141..(F,G,Y)..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ) |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-52690A0 |
NCP145,NSP141..F..CBU FROMAGE,TRIM0# |
1 | ||
| 45130-52690C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,4# |
1 | ||
| 45130-52690A0 |
NCP145,NSP141..(G,X)..CBU FROMAGE,TRIM0#,41 |
1 | ||
| 45130-52690C0 |
NCP145,NSP141..(G,X)..CBU BLACK,TRIM40 |
1 | ||
| 45130-52690C0 |
NCP145,NSP141..V,Y BLACK,TRIM4# |
1 | ||
| 45130-52700A0 |
NCP145,NSP141..F..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ),FROMAGE,TRIM0# |
1 | ||
| 45130-52700C0 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4SP(ﾌﾛﾝﾄ & ﾘｱ)ﾅﾋﾞﾚﾃﾞｨ,BLACK,TRIM40 |
1 | ||
| 45130-52700C0 |
NCP145,NSP141..F..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ),BLACK,TRIM2#,4# |
1 | ||
| 45130-52700A0 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4SP(ﾌﾛﾝﾄ & ﾘｱ)ﾅﾋﾞﾚﾃﾞｨ,FROMAGE,TRIM0#,41 |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-52170E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0# |
1 | ||
| 45184-52170C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,4# |
1 | ||
| 45184-52170C0 |
NCP145,NSP141..V,Y BLACK,TRIM4# |
1 | ||
| 45184-52170C0 |
NCP145,NSP141..(G,X)..CBU BLACK,TRIM40 |
1 | ||
| 45184-52170E0 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,41 |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
NCP145,NSP141..CBU |
1 | ||
| 45713A - DAMPER, STEERING SHAKE | ||||
| 45713-33210 |
NCP145,NSP141..CBU |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

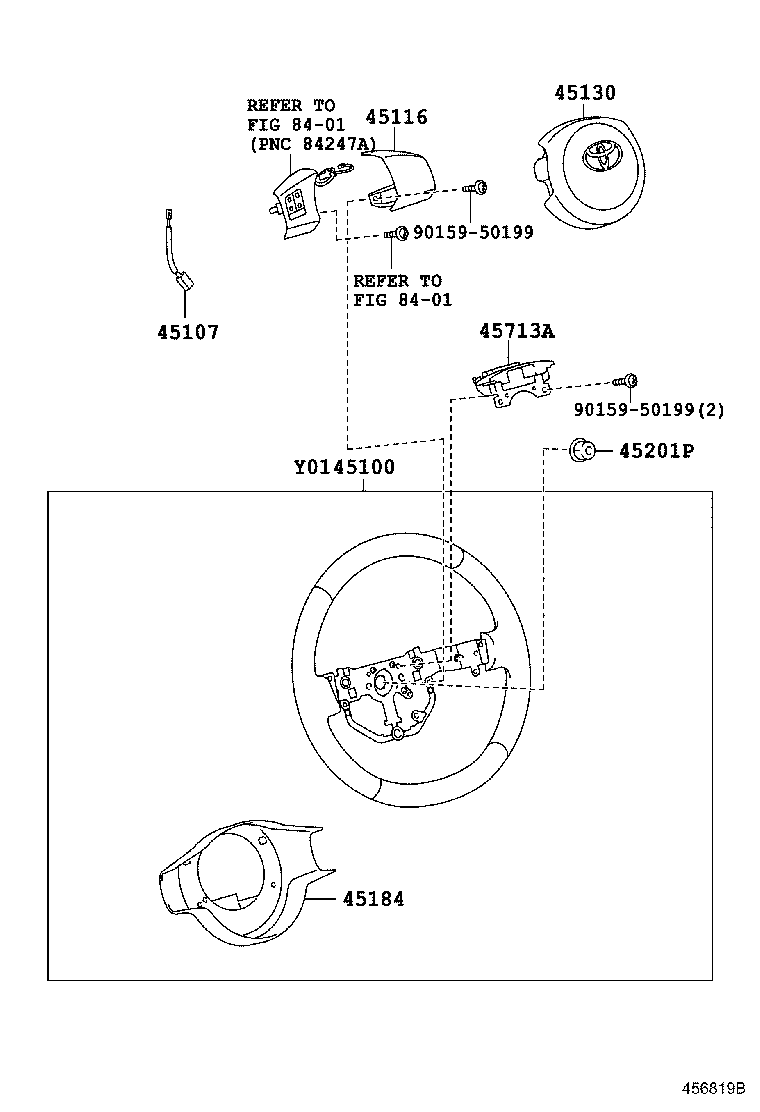

(1507- )NCP145..F,X,Y ; (1507- )NSP141..F,G,X,Y
2ﾎﾝｽﾎﾟｰｸ,ｱﾘ(ｵｰﾃﾞｨｵｽｲｯﾁ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-52591C0 |
NCP145,NSP141..PORTE..F..CBU 2本ｽﾎﾟｰｸ, ﾚｻﾞｰ,“Raffine”*(U),BLACK,TRIM2#,4# |
1 | ||
| 45100-52570C0 |
NCP145,NSP141..X..CBU 2本ｽﾎﾟｰｸ, ｳﾚﾀﾝ,BLACK,TRIM40 |
1 | ||
| 45100-52570C0 |
NCP145,NSP141..V,Y 2本ｽﾎﾟｰｸ, ｳﾚﾀﾝ,BLACK,TRIM4# |
1 | ||
| 45100-52570E0 |
NCP145,NSP141..F..CBU 2本ｽﾎﾟｰｸ, ｳﾚﾀﾝ,PLUM,TRIM0# |
1 | ||
| 45100-52570E0 |
NCP145,NSP141..X..CBU 2本ｽﾎﾟｰｸ, ｳﾚﾀﾝ,PLUM,TRIM0#,41 |
1 | ||
| 45100-52590C0 |
NCP145,NSP141..PORTE..F..CBU 2本ｽﾎﾟｰｸ, ﾚｻﾞｰ,“Raffine”*(U),BLACK,TRIM2#,4# |
1 | ||
| 45100-52570C0 |
NCP145,NSP141..F..CBU 2本ｽﾎﾟｰｸ, ｳﾚﾀﾝ,BLACK,TRIM2#,4# |
1 | ||
| 45100-52591C0 |
NCP145,NSP141..PORTE..F..CBU 2本ｽﾎﾟｰｸ, ﾚｻﾞｰ,“Raffine”*(W),BLACK,TRIM2#,4# |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-48010 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4SP(ﾌﾛﾝﾄ & ﾘｱ)ﾅﾋﾞﾚﾃﾞｨ |
1 | ||
| 45107-48010 |
NCP145,NSP141..(F,G,Y)..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ) |
1 | ||
| 45107-48010 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 45107-48010 |
NCP145,NSP141..CBU |
1 | ||
| 45107-48010 |
NCP145,NSP141..(F,G,Y)..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ(ﾌﾛﾝﾄ & ﾙｰﾌ) |
1 | ||
| 45107-48010 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 2ｽﾋﾟｰｶ |
1 | ||
| 45107-48010 |
NCP145,NSP141..(F,G,Y)..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ) |
1 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-52120A0 |
NCP145,NSP141..PORTE..F..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ),FROMAGE,TRIM00 |
1 | ||
| 45116-52120E0 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4SP(ﾌﾛﾝﾄ & ﾘｱ)ﾅﾋﾞﾚﾃﾞｨ,PLUM,TRIM0#,41 |
1 | ||
| 45116-52120C0 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4SP(ﾌﾛﾝﾄ & ﾘｱ)ﾅﾋﾞﾚﾃﾞｨ,BLACK,TRIM40 |
1 | ||
| 45116-52120E0 |
NCP145,NSP141..PORTE..F..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ),PLUM,TRIM00 |
1 | ||
| 45116-52120C0 |
NCP145,NSP141..F..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ),BLACK,TRIM2#,4# |
1 | ||
| 45116-52120E0 |
NCP145,NSP141..PORTE..F..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ),PLUM,TRIM0# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-52690A0 |
NCP145,NSP141..F..CBU FROMAGE,TRIM0# |
1 | ||
| 45130-52690C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,4# |
1 | ||
| 45130-52690A0 |
NCP145,NSP141..(G,X)..CBU FROMAGE,TRIM0#,41 |
1 | ||
| 45130-52690C0 |
NCP145,NSP141..(G,X)..CBU BLACK,TRIM40 |
1 | ||
| 45130-52690C0 |
NCP145,NSP141..V,Y BLACK,TRIM4# |
1 | ||
| 45130-52700A0 |
NCP145,NSP141..F..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ),FROMAGE,TRIM0# |
1 | ||
| 45130-52700C0 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4SP(ﾌﾛﾝﾄ & ﾘｱ)ﾅﾋﾞﾚﾃﾞｨ,BLACK,TRIM40 |
1 | ||
| 45130-52700C0 |
NCP145,NSP141..F..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ),BLACK,TRIM2#,4# |
1 | ||
| 45130-52700A0 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4SP(ﾌﾛﾝﾄ & ﾘｱ)ﾅﾋﾞﾚﾃﾞｨ,FROMAGE,TRIM0#,41 |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-52170E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0# |
1 | ||
| 45184-52170C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,4# |
1 | ||
| 45184-52170C0 |
NCP145,NSP141..V,Y BLACK,TRIM4# |
1 | ||
| 45184-52170C0 |
NCP145,NSP141..(G,X)..CBU BLACK,TRIM40 |
1 | ||
| 45184-52170E0 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,41 |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
NCP145,NSP141..CBU |
1 | ||
| 45713A - DAMPER, STEERING SHAKE | ||||
| 45713-33210 |
NCP145,NSP141..CBU |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| Linked diagrams | ||||
| 8401 | ||||
