NCP141-BEXYK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207-1507) ; (1507- )

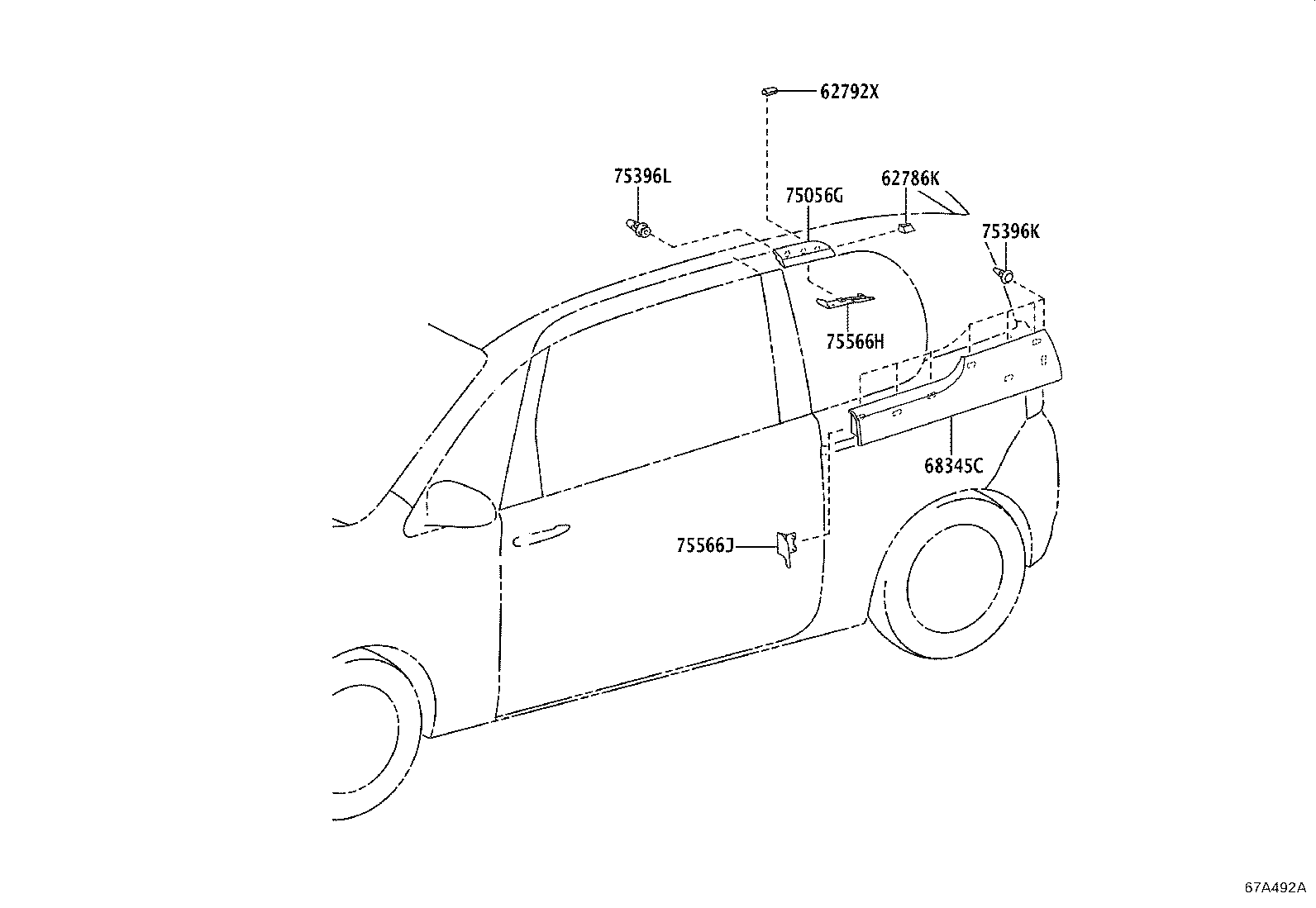

Click highlighted areas on diagram

diagram 62786K 62792X 68345C 75056G 75396K 75396L 75566H 75566J
Part # Description Qty Price
62786K - SPACER, QUARTER WINDOW GLASS, NO.2
62785-52060

NCP14#,NSP140..CBU

 1
62792X - STOPPER, SIDE WINDOW LOCK, REAR LH
62792-52060

NCP14#,NSP140..CBU

 1
68345C - COVER, SLIDE DOOR CENTER RAIL
60836-52030

NCP14#,NSP140..CBU

 1
75056G - GARNISH SUB-ASSY, ROOF SIDE, REAR LH
75056-52020

NCP14#,NSP140..CBU

 1
75396K - CLIP, OUTSIDE MOULDING, NO.2
75396-52010

NCP14#,NSP140..CBU

 7
75396L - CLIP, OUTSIDE MOULDING, NO.3
75396-52020

NCP14#,NSP140..CBU

 3
75566H - PROTECTOR, ROOF SIDE GARNISH, NO.2
75568-52010

NCP14#,NSP140..CBU

 1
75566J - PROTECTOR, ROOF SIDE GARNISH, FRONT LH
75566-52010

NCP14#,NSP140..CBU

 1
