NCP141-BEXFK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

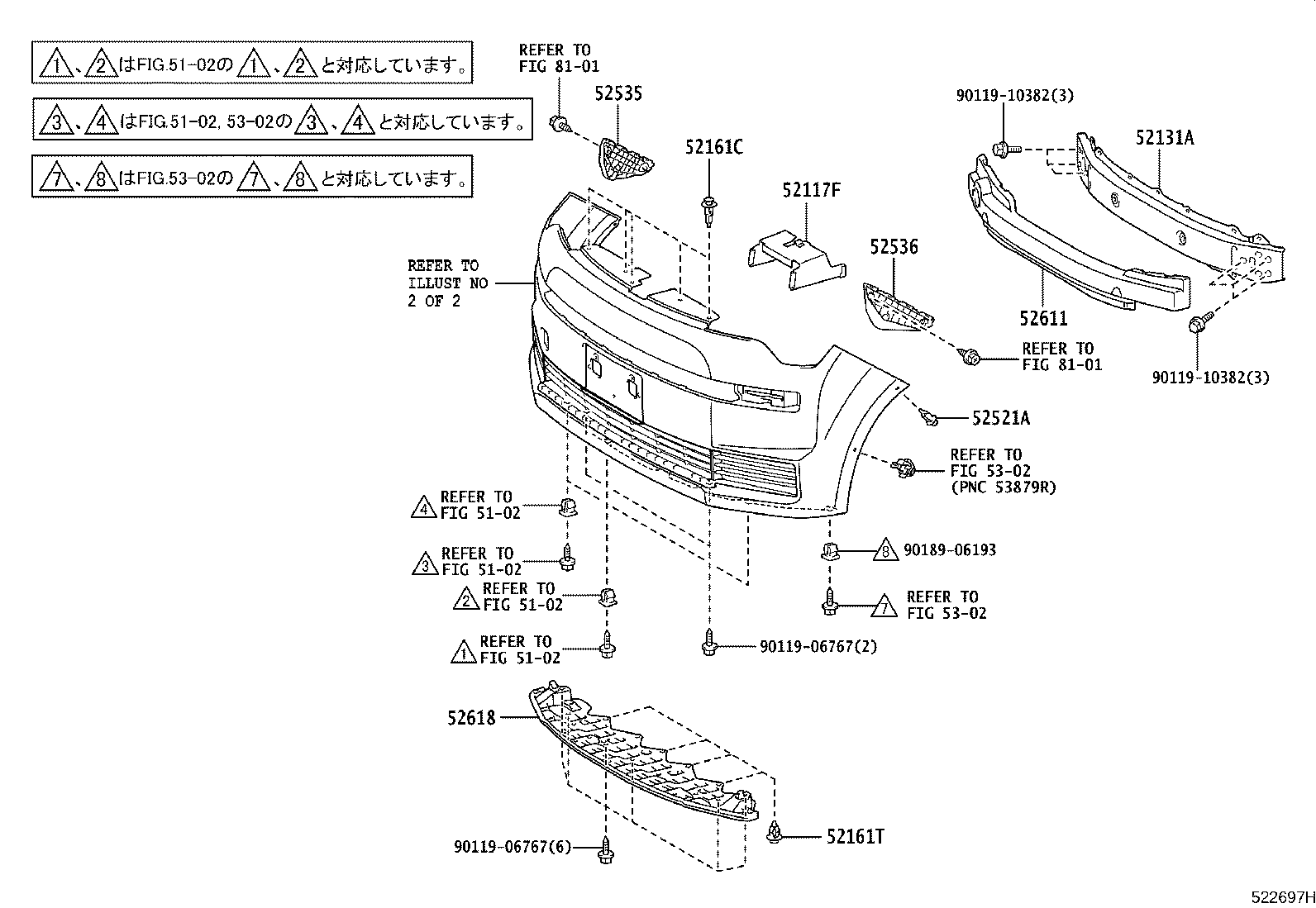

ILLUST NO. 1 OF 2(1207- )SPADE

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 52117F 52131A 52161C 52161T 52521A 52535 52536 52611 52618 5302 5302 8101 8101 9011906767 9011906767 9011910382 9011910382 9018906193
Part # Description Qty Price
52117F - SUPPORT, FRONT BUMPER, UPPER
52117-52020

NCP14#,NSP140..SPADE..CBU

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52250

NCP14#,NSP140..CBU

 1
52161C - PIECE, FRONT BUMPER
52161-16010

NCP14#,NSP140..CBU

 5
52161T - PIECE, FRONT BUMPER
90467-10216

NCP14#,NSP140..CBU

 4
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05090B1

NCP14#,NSP140..CBU

DK.GRAY

 2
90467-05170

NCP14#,NSP140..CBU

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52160

NCP14#,NSP140..SPADE..CBU

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52120

NCP14#,NSP140..SPADE..CBU

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-52091

NCP14#,NSP140..CBU

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-52070

NCP14#,NSP140..CBU

 1
Common parts
90119-06767
90119-10382
90189-06193
Linked diagrams
5102
5302
8101

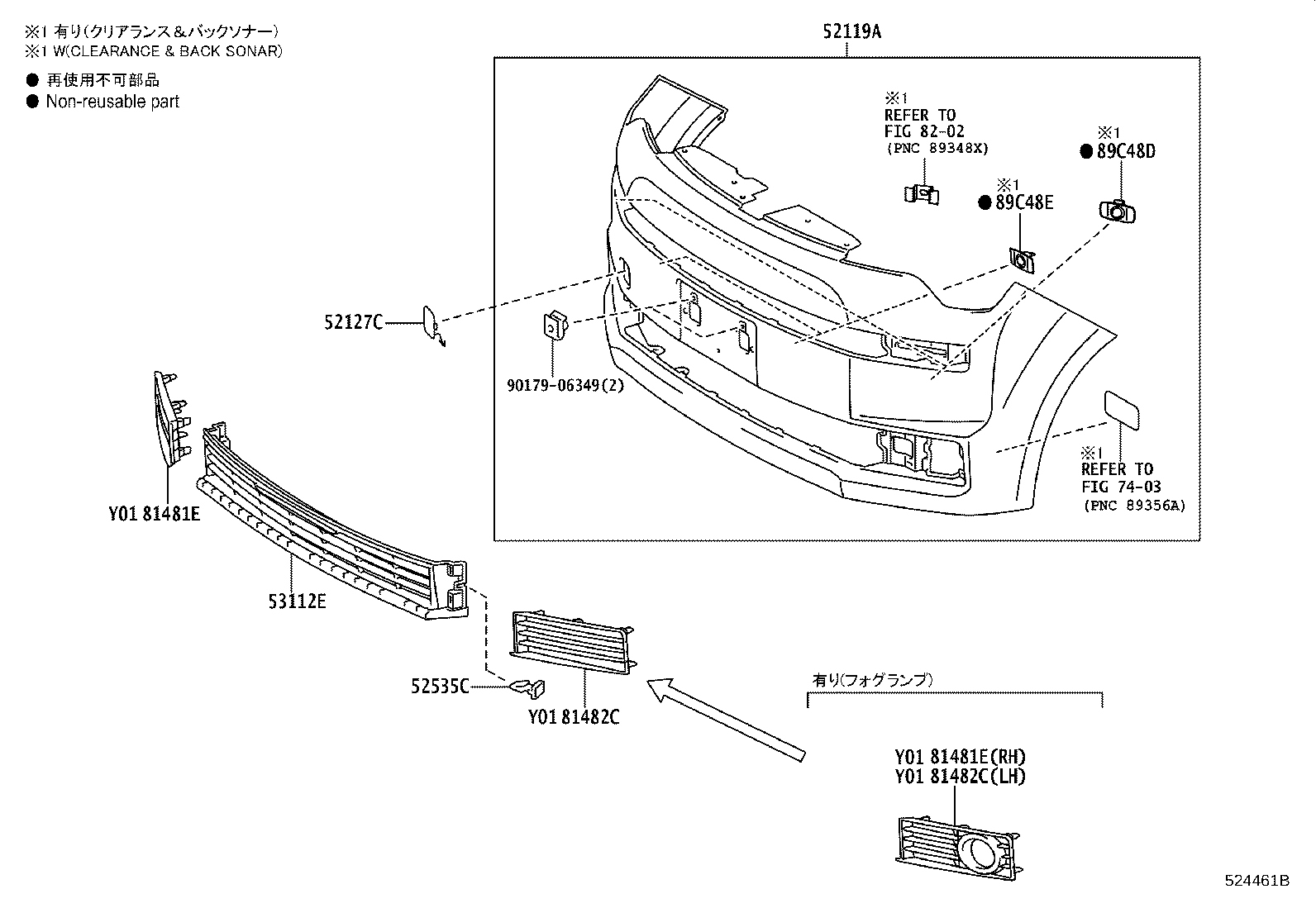

ILLUST NO. 2 OF 2(1207- )SPADE

Click highlighted areas on diagram

diagram 52119A 52127C 52535C 53112E 7403 81481E 81481E 81482C 81482C 8202 89C48D 89C48E 9017906349
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-52810C0

NCP14#,NSP140..SPADE..CBU

BLACK MC.,209

 1
52119-52810D0

NCP14#,NSP140..SPADE..CBU

SUPER RED 5,3P0

 1
52119-52810B0

NCP14#,NSP140..SPADE..CBU

SILVER ME.,1F7

 1
52119-52810E0

NCP14#,NSP140..SPADE..CBU

DK. BROWN M.M.,4U3

 1
52119-52810A0

NCP14#,NSP140..SPADE..CBU

WHITE PEARL CS.,070

 1
52119-52810G0

NCP14#,NSP140..SPADE..CBU

CITRUS M.M.,6W2

 1
52119-52810J1

NCP14#,NSP140..SPADE..CBU

LT.BLUE M.M.,8S1

 1
52119-52810K0

NCP14#,NSP140..SPADE..CBU

DK.VIOLET M.M.,9AF

 1
52119-52810D1

NCP14#..SPADE..F..CBU

DEEP RED M.M.,3R9

 1
52127C - COVER, FRONT BUMPER HOLE
52127-52550A0

NCP14#,NSP140..SPADE..CBU

WHITE PEARL CS.,070

 1
52127-52550C0

NCP14#,NSP140..SPADE..CBU

BLACK MC.,209

 1
52127-52550D0

NCP14#,NSP140..SPADE..CBU

SUPER RED 5,3P0

 1
52127-52550G0

NCP14#,NSP140..SPADE..CBU

CITRUS M.M.,6W2

 1
52127-52550J1

NCP14#,NSP140..SPADE..CBU

LT.BLUE M.M.,8S1

 1
52127-52550B0

NCP14#,NSP140..SPADE..CBU

SILVER ME.,1F7

 1
52127-52550E0

NCP14#,NSP140..SPADE..CBU

DK. BROWN M.M.,4U3

 1
52127-52550D1

NCP14#..SPADE..F..CBU

DEEP RED M.M.,3R9

 1
52127-52551B0

NCP14#,NSP140..SPADE..CBU

SILVER ME.,1F7

 1
52127-52551D0

NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU

SUPER RED 5,3P0

 1
52127-52551E0

NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU

DK. BROWN M.M.,4U3

 1
52127-52551D1

NCP14#..SPADE..F..CBU

DEEP RED M.M.,3R9

 1
52127-52551C0

NCP14#,NSP140..SPADE..CBU

BLACK MC.,209

 1
52127-52551G0

NCP14#,NSP140..SPADE..CBU

CITRUS M.M.,6W2

 1
52127-52550K0

NCP14#,NSP140..SPADE..CBU

DK.VIOLET M.M.,9AF

 1
52127-52551J1

NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU

LT.BLUE M.M.,8S1

 1
52127-52551A0

NCP14#,NSP140..SPADE..CBU

WHITE PEARL CS.,070

 1
52127-52551K0

NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU

DK.VIOLET M.M.,9AF

 1
52535C - RETAINER, FRONT BUMPER SIDE
52535-28020

NCP14#,NSP140..SPADE..CBU

 2
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-52380

NCP14#,NSP140..SPADE..CBU

塗装不要

 1
81481E - COVER, FOG LAMP, RH
81481-52510

NCP14#,NSP140..SPADE..CBU

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ(DOP)

 1
81481-52500

NCP14#,NSP140..SPADE..CBU

 1
81481E - COVER, FOG LAMP, RH
81481-52510

NCP14#,NSP140..SPADE..CBU

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ(DOP)

 1
81481-52500

NCP14#,NSP140..SPADE..CBU

 1
81482C - COVER, FOG LAMP, LH
81482-52410

NCP14#,NSP140..SPADE..CBU

 1
81482-52420

NCP14#,NSP140..SPADE..CBU

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ(DOP)

 1
81482C - COVER, FOG LAMP, LH
81482-52410

NCP14#,NSP140..SPADE..CBU

 1
81482-52420

NCP14#,NSP140..SPADE..CBU

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ(DOP)

 1
Common parts
90179-06349
Linked diagrams
7403
8202
