SCP11-BEPNK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005
Engine 1SZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0208)

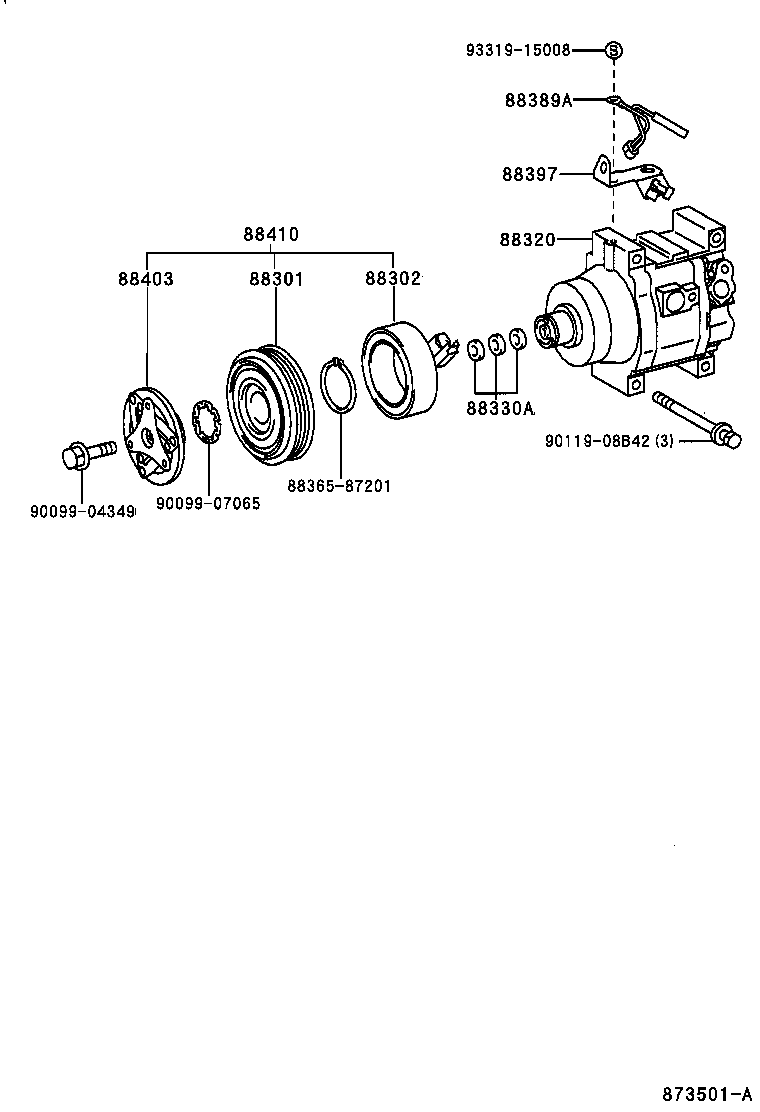

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 8836587201 88389A 88397 88403 88410 9009904349 9009907065 9011908B42 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-52060

SCP11

 1
88412-52010

SCP11

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ(ﾃﾞ-ﾗ-ｵﾌﾟｼﾖﾝ))

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-1A050

NCP1#,SCP11

 1
88411-16070

NCP1#,SCP11

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ(ﾃﾞ-ﾗ-ｵﾌﾟｼﾖﾝ))

 1
88411-16070

SCP11

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ(ﾃﾞ-ﾗ-ｵﾌﾟｼﾖﾝ))

 1
88320 - COMPRESSOR ASSY, COOLER
88320-52130

SCP11

 1
88320-52010

SCP11

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

SCP11

 1
88335-14020

NCP1#,SCP11

 1
88389A - WIRE, COMPRESSOR
88389-52010

SCP11

 1
88397 - CLIP, SENSOR
88397-52010

SCP11

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16020

NCP1#,SCP11

 1
88403-16020

SCP11

 1
88403-1A020

NCP1#,SCP11

 1
88410 - CLUTCH ASSY, MAGNET
88410-52010

SCP11

 1
88410-52070

SCP11

 1
88410-52260

SCP11

 1
88410-52150

SCP11

 1
Common parts
88365-87201
90099-04349
90099-07065
90119-08B42
93319-15008

(0208- )

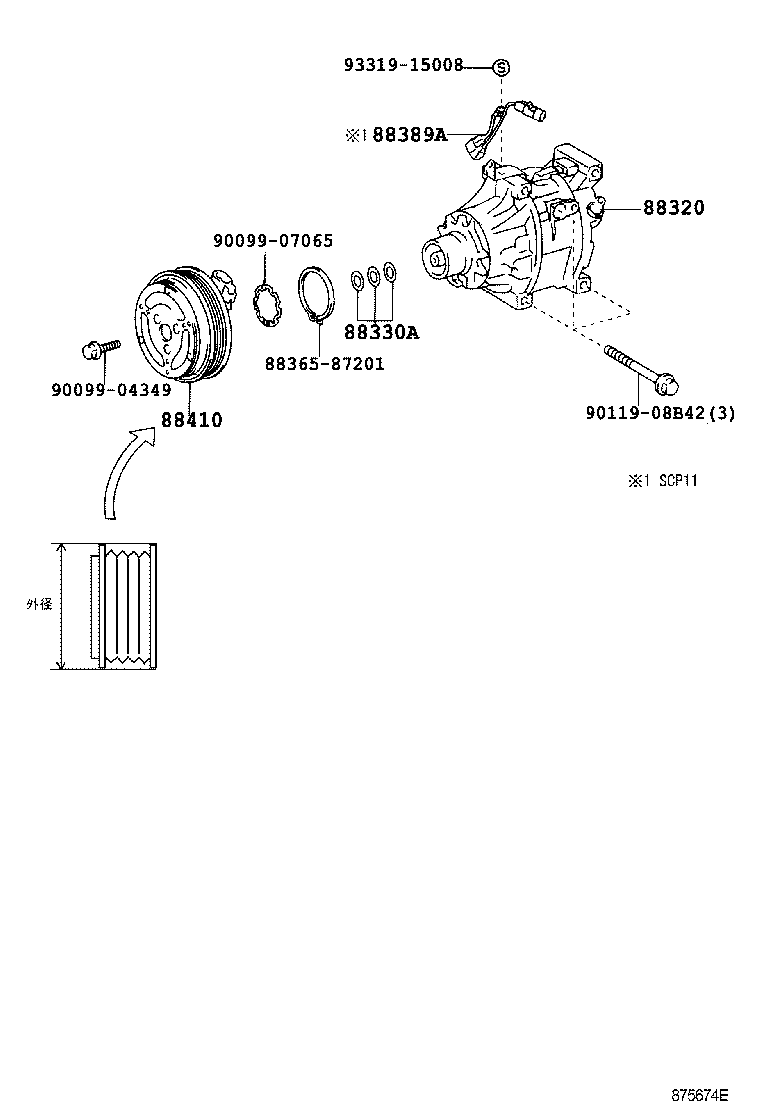

Click highlighted areas on diagram

diagram 88320 88330A 8836587201 88389A 88410 9009904349 9009907065 9011908B42 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-52130

SCP11

 1
88320-52010

SCP11

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

SCP11

 1
88335-14020

NCP1#,SCP11

 1
88389A - WIRE, COMPRESSOR
88389-52010

SCP11

 1
88410 - CLUTCH ASSY, MAGNET
88410-52010

SCP11

 1
88410-52070

SCP11

 1
88410-52260

SCP11

 1
88410-52150

SCP11

 1
Common parts
88365-87201
90099-04349
90099-07065
90119-08B42
93319-15008
