SCP11-BEPNK (1999)
Toyota Platz

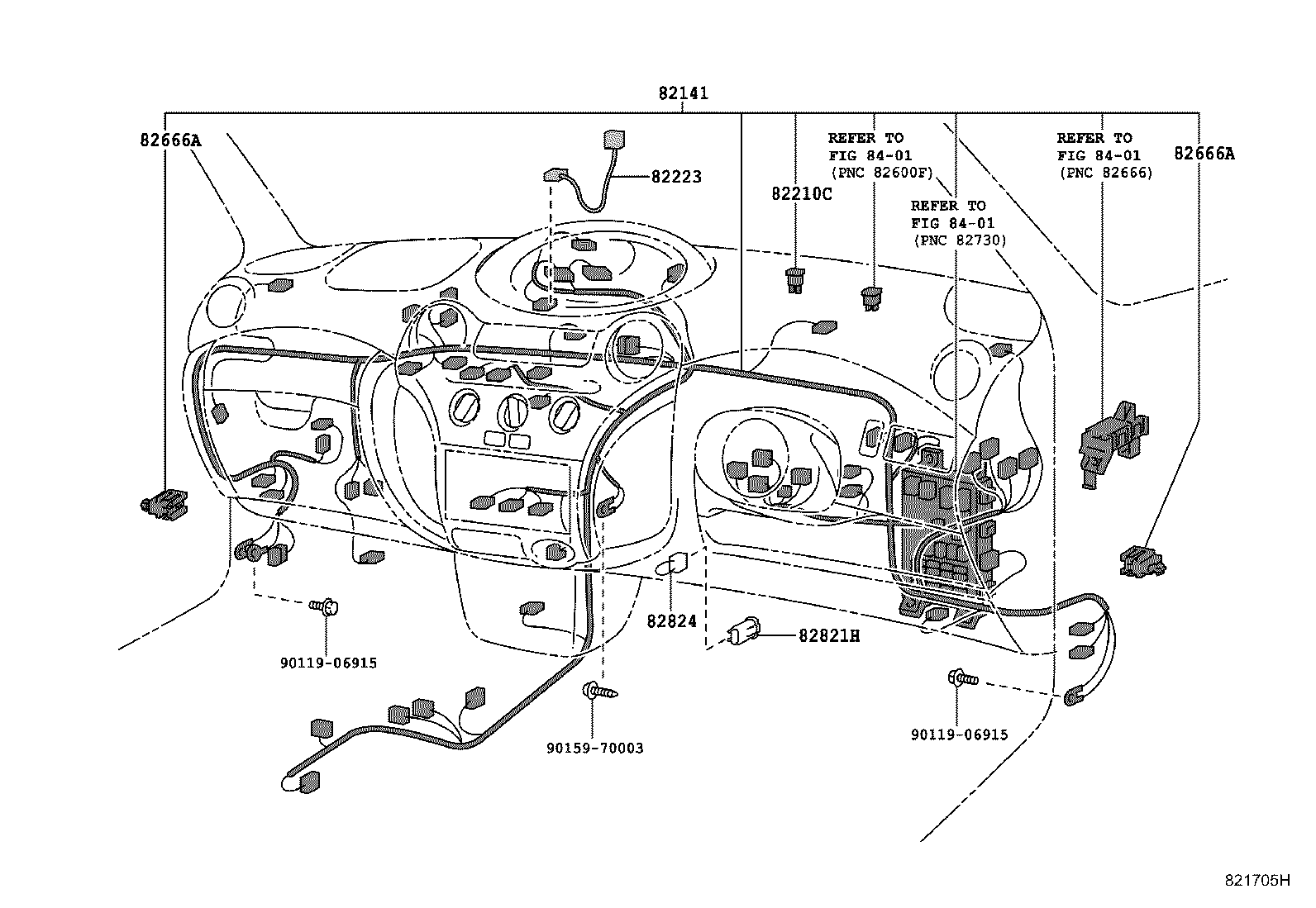

ILLUST NO. 3 OF 7(9908- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-52880 |
NCP1#,SCP11..F ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82141-52890 |
NCP16,SCP11..F ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ,KM/H) |
1 | ||
| 82141-52870 |
SCP11 ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ OR E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82145-52010 |
NCP16,SCP11..F ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82141-52881 |
NCP1#,SCP11..F ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82141-52861 |
NCP1#,SCP11..F |
1 | ||
| 82145-52020 |
NCP16,SCP11..F ｱﾘ(ｵ-ﾄｴｱｺﾝ & ﾃﾞｼﾞﾀﾙﾒ-ﾀ,KM/H) |
1 | ||
| 82145-52321 |
NCP16,SCP11..F ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ & ﾃﾞｼﾞﾀﾙﾒ-ﾀ,KM/H) |
1 | ||
| 82145-52320 |
NCP16,SCP11..F ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ & ﾃﾞｼﾞﾀﾙﾒ-ﾀ,KM/H) |
1 | ||
| 82145-52310 |
NCP16,SCP11..F ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82141-52891 |
NCP16,SCP11..F ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ,KM/H) |
1 | ||
| 82145-52011 |
NCP16,SCP11..F ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82141-52892 |
NCP16,SCP11..F ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ,KM/H) |
1 | ||
| 82145-52311 |
NCP16,SCP11..F ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82141-52871 |
SCP11 ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ OR E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82141-52860 |
NCP1#,SCP11..F |
1 | ||
| 82141-5C360 |
NCP16,SCP11..F ｱﾘ(ｱﾅﾛｸﾞ ﾒ-ﾀ & ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82146-52020 |
SCP11 ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ OR E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82145-52022 |
NCP12..X;NCP16,SCP11 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82146-52050 |
SCP11 ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ,KM/H,ﾀｺﾒ-ﾀﾅｼ) |
1 | ||
| 82141-52882 |
NCP1#,SCP11..F ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82141-5C350 |
SCP11 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱﾅﾛｸﾞ ﾒ-ﾀ) |
1 | ||
| 82146-52030 |
SCP11 |
1 | ||
| 82145-52021 |
NCP16,SCP11..F ｱﾘ(ｵ-ﾄｴｱｺﾝ & ﾃﾞｼﾞﾀﾙﾒ-ﾀ,KM/H) |
1 | ||
| 82141-5C370 |
NCP16,SCP11..F ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ) |
1 | ||
| 82141-5C410 |
NCP16,SCP11 ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82146-52060 |
SCP11 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82145-52012 |
NCP12..X;NCP16,SCP11 ｱﾘ(ｱﾅﾛｸﾞﾒ-ﾀ) |
1 | ||
| 82146-52040 |
SCP11 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82141-5C400 |
NCP16,SCP11 ｱﾘ(ｱﾅﾛｸﾞ ﾒ-ﾀ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82141-5C371 |
NCP16,SCP11..F ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ) |
1 | ||
| 82141-5C351 |
SCP11 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱﾅﾛｸﾞ ﾒ-ﾀ) |
1 | ||
| 82141-5C361 |
NCP16,SCP11..F ｱﾘ(ｱﾅﾛｸﾞ ﾒ-ﾀ & ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82141-5C411 |
NCP16,SCP11..F ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08283 |
NCP1#,SCP11 30A,ﾒｽ端子,桃,TAIHEIYO |
1 | ||
| 90982-08283 |
NCP1#,SCP11..F 30A,ﾒｽ端子,桃,TAIHEIYO |
1 | ||
| 90982-08280 |
NCP16;NCP12,SCP11..F 30A,ﾒｽ端子,桃,YAZAKI |
2 | ||
| 90982-08280 |
NCP1#,SCP11 30A,ﾒｽ端子,桃,YAZAKI |
2 | ||
| 90982-08280 |
NCP1#,SCP11 30A,ﾒｽ端子,桃,YAZAKI |
2 | ||
| 90982-08284 |
NCP1#,SCP11 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08284 |
NCP1#,SCP11..F 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08284 |
NCP1#,SCP11 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08283 |
NCP1#,SCP11 30A,ﾒｽ端子,桃,TAIHEIYO |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-52010 |
NCP1#,SCP11 |
1 | ||
| 82223-52010 |
NCP1#,SCP11..F |
1 | ||
| 82223-52010 |
NCP1#,SCP11 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52020 |
NCP1#,SCP11 |
2 | ||
| 82666-52030 |
NCP1#,SCP11..F |
2 | ||
| 82666-52030 |
NCP1#,SCP11 |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52020 |
NCP1#,SCP11 |
2 | ||
| 82666-52030 |
NCP1#,SCP11..F |
2 | ||
| 82666-52030 |
NCP1#,SCP11 |
2 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-12400 |
SCP11 |
1 | ||
| 82821-12400 |
SCP11 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-52100 |
SCP11 |
1 | ||
| 82824-52100 |
SCP11 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8401 | ||||

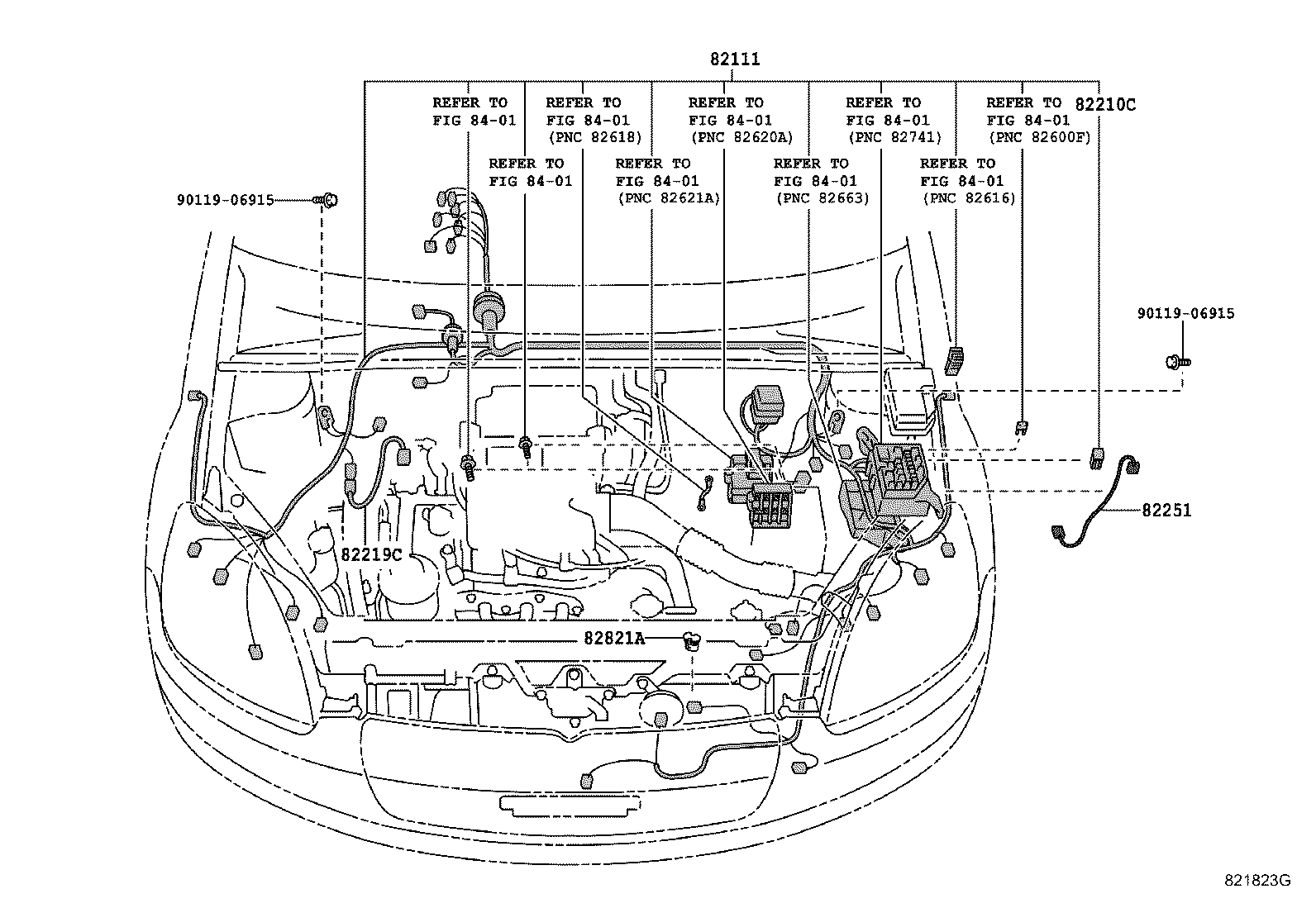

ILLUST NO. 1 OF 7(9908- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-52580 |
SCP11 ﾅｼ(ABS) |
1 | ||
| 82111-52560 |
SCP11..ATM |
1 | ||
| 82111-52590 |
SCP11;NCP12..X ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82111-52570 |
SCP11..ATM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82111-52561 |
SCP11..ATM |
1 | ||
| 82111-52571 |
SCP11..ATM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82111-52591 |
SCP11 ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82111-52581 |
SCP11 ﾅｼ(ABS) |
1 | ||
| 82111-52562 |
SCP11..ATM |
1 | ||
| 82111-52592 |
SCP11 ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82111-52582 |
SCP11 ﾅｼ(ABS) |
1 | ||
| 82111-52572 |
SCP11..ATM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82111-52563 |
SCP11..ATM |
1 | ||
| 82115-52430 |
SCP11..ATM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82111-5C170 |
NCP12,SCP11..F ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 82111-5C160 |
SCP11..ATM |
1 | ||
| 82115-52440 |
SCP11 ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82111-5C170 |
NCP12,SCP11 ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08283 |
NCP1#,SCP11 30A,ﾒｽ端子,桃,TAIHEIYO |
1 | ||
| 90982-08283 |
NCP1#,SCP11..F 30A,ﾒｽ端子,桃,TAIHEIYO |
1 | ||
| 90982-08280 |
NCP16;NCP12,SCP11..F 30A,ﾒｽ端子,桃,YAZAKI |
2 | ||
| 90982-08280 |
NCP1#,SCP11 30A,ﾒｽ端子,桃,YAZAKI |
2 | ||
| 90982-08280 |
NCP1#,SCP11 30A,ﾒｽ端子,桃,YAZAKI |
2 | ||
| 90982-08284 |
NCP1#,SCP11 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08284 |
NCP1#,SCP11..F 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08284 |
NCP1#,SCP11 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08283 |
NCP1#,SCP11 30A,ﾒｽ端子,桃,TAIHEIYO |
1 | ||
| 82251 - WIRE, SPEED SENSOR | ||||
| 82251-52010 |
SCP11 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-10050 |
SCP11 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||

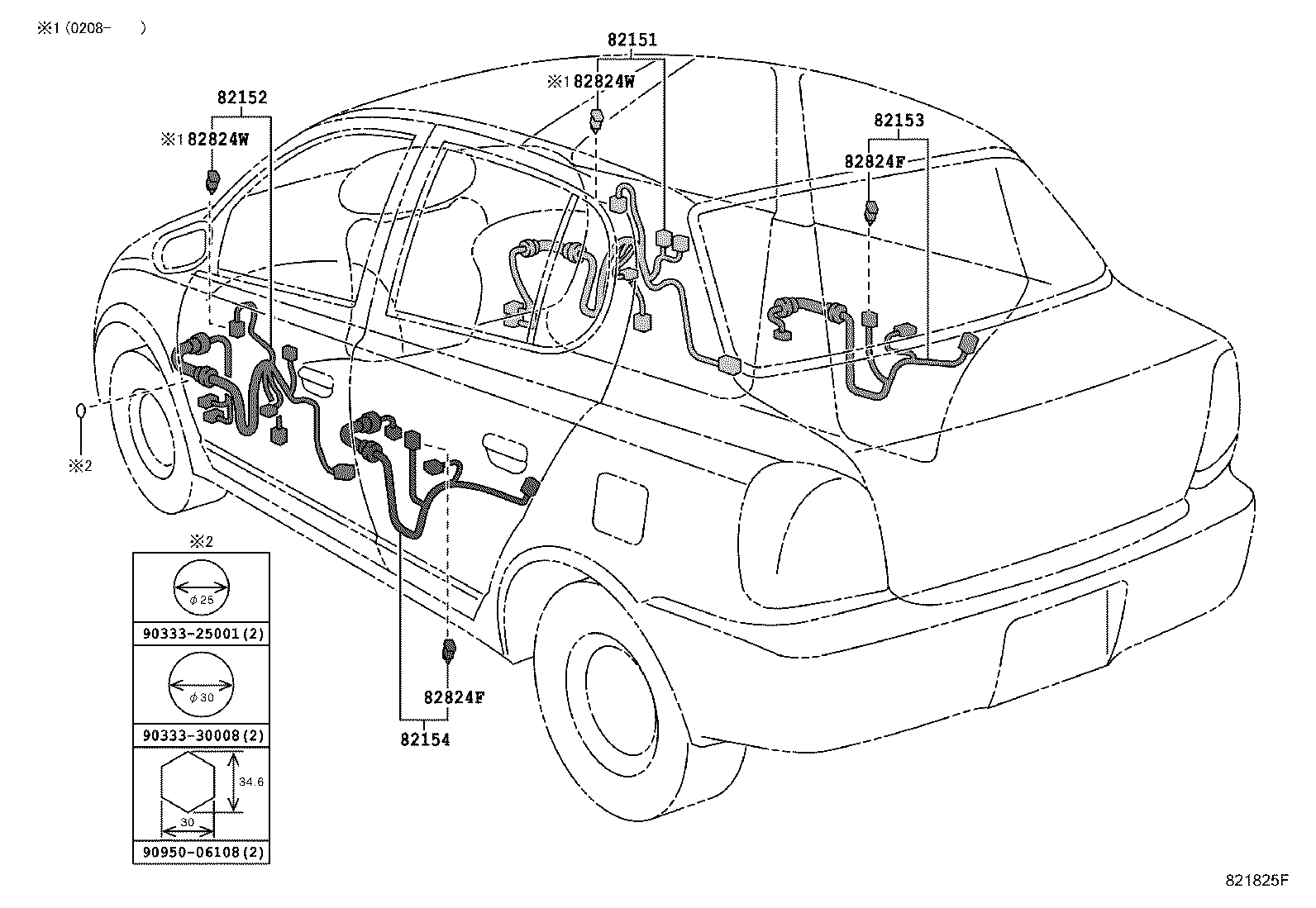

ILLUST NO. 4 OF 7(9908- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-52011 |
SCP11 ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82151-52083 |
NCP1#,SCP11 |
1 | ||
| 82151-52081 |
NCP1#,SCP11 |
1 | ||
| 82151-52083 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 82151-52082 |
NCP1#,SCP11 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-52081 |
NCP1#,SCP11 |
1 | ||
| 82152-52011 |
SCP11 ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82152-52081 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 82152-52081 |
NCP1#,SCP11 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-52020 |
NCP1#,SCP11 |
1 | ||
| 82153-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 82153-52020 |
NCP1#,SCP11 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-52020 |
NCP1#,SCP11 |
1 | ||
| 82154-52020 |
NCP1#,SCP11 |
1 | ||
| 82154-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-52050 |
NCP1#,SCP11 |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-52050 |
NCP1#,SCP11 |
2 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 82824-52050 |
NCP1#,SCP11 |
2 | ||
| 82824-52050 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 82824-52050 |
NCP1#,SCP11 |
2 | ||
| 82824-52050 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| Common parts | ||||
| 90333-25001 | ||||
| 90333-30008 | ||||
| 90950-06108 | ||||

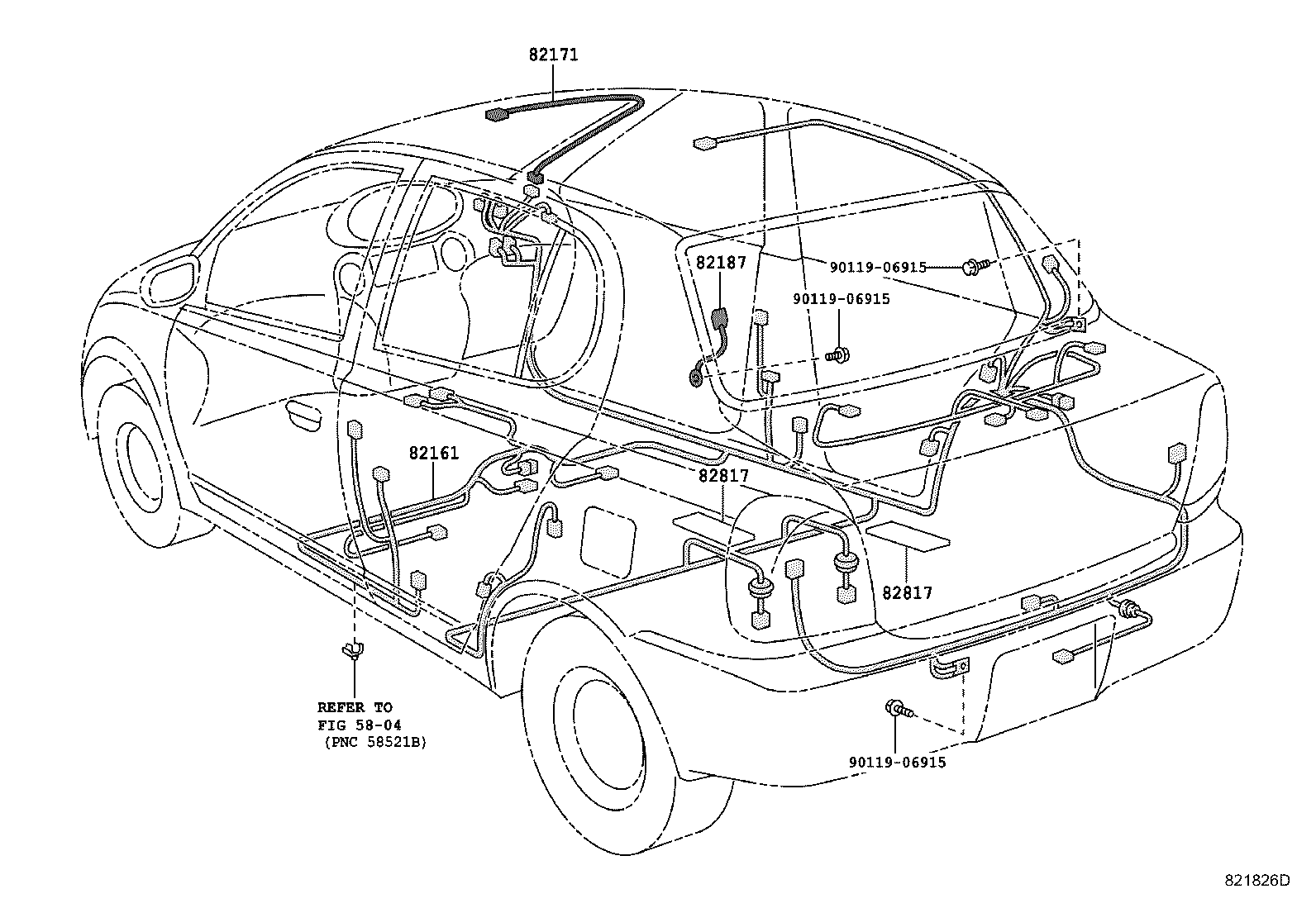

ILLUST NO. 5 OF 7(9908- )
ﾌﾛｱ & ﾙ-ﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-52361 |
SCP11 ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ OR E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82161-52371 |
NCP12,SCP11..F ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ OR ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82161-52350 |
NCP12,SCP11..F |
1 | ||
| 82161-52370 |
NCP12,SCP11..F ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) OR ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 82161-5C050 |
NCP12,SCP11 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82161-5C330 |
NCP12,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82161-52360 |
SCP11 ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ OR E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82161-5C350 |
SCP11 ｱﾘ(*80 & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82161-5C310 |
SCP11 ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82161-5C320 |
SCP11;NCP12..X ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82161-5C311 |
SCP11 ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82161-5C340 |
SCP11 ｱﾘ(*80) |
1 | ||
| 82161-5C341 |
SCP11 ｱﾘ(*80) |
1 | ||
| 82161-52351 |
NCP12,SCP11..F |
1 | ||
| 82161-5C302 |
NCP12,SCP11..F |
1 | ||
| 82161-5C312 |
SCP11 ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82161-5C300 |
NCP12,SCP11..F |
1 | ||
| 82161-5C332 |
SCP11;NCP12..ATM;NCP12..MTM..F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82161-5C351 |
SCP11 ｱﾘ(*80 & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82161-5C342 |
SCP11 ｱﾘ(*80) |
1 | ||
| 82161-5C331 |
NCP12,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82161-5C301 |
NCP12,SCP11..F |
1 | ||
| 82161-5C352 |
SCP11 ｱﾘ(*80 & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-52190 |
NCP1#,SCP11 |
1 | ||
| 82171-52190 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-52030 |
NCP1#,SCP11 |
1 | ||
| 82187-52030 |
NCP1#,SCP11 |
1 | ||
| 82187-52030 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-16100 |
NCP12,SCP11 |
1 | ||
| 82817-16100 |
NCP12,SCP11 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-16100 |
NCP12,SCP11 |
1 | ||
| 82817-16100 |
NCP12,SCP11 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 5804 | ||||

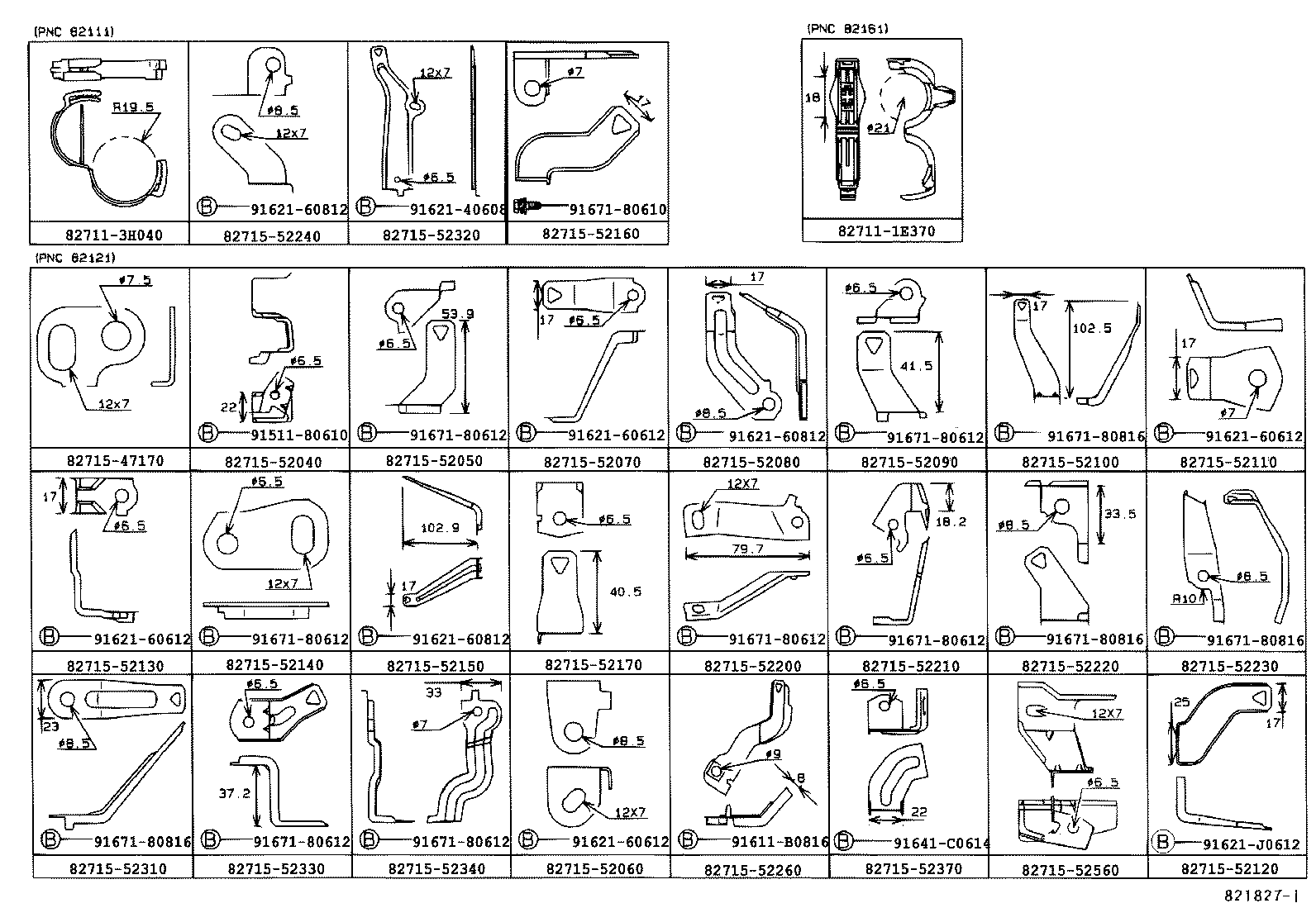

ILLUST NO. 6 OF 7(9908- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E370 | ||||
| 82711-3H040 | ||||
| 82715-47170 | ||||
| 82715-52040 | ||||
| 82715-52050 | ||||
| 82715-52060 | ||||
| 82715-52070 | ||||
| 82715-52080 | ||||
| 82715-52090 | ||||
| 82715-52100 | ||||
| 82715-52110 | ||||
| 82715-52120 | ||||
| 82715-52130 | ||||
| 82715-52140 | ||||
| 82715-52150 | ||||
| 82715-52160 | ||||
| 82715-52170 | ||||
| 82715-52200 | ||||
| 82715-52210 | ||||
| 82715-52220 | ||||
| 82715-52230 | ||||
| 82715-52240 | ||||
| 82715-52260 | ||||
| 82715-52310 | ||||
| 82715-52320 | ||||
| 82715-52330 | ||||
| 82715-52340 | ||||
| 82715-52370 | ||||
| 82715-52560 | ||||
| 91511-80610 | ||||
| 91611-B0816 | ||||
| 91621-40608 | ||||
| 91621-60612 | ||||
| 91621-60812 | ||||
| 91621-J0612 | ||||
| 91641-C0614 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80816 | ||||

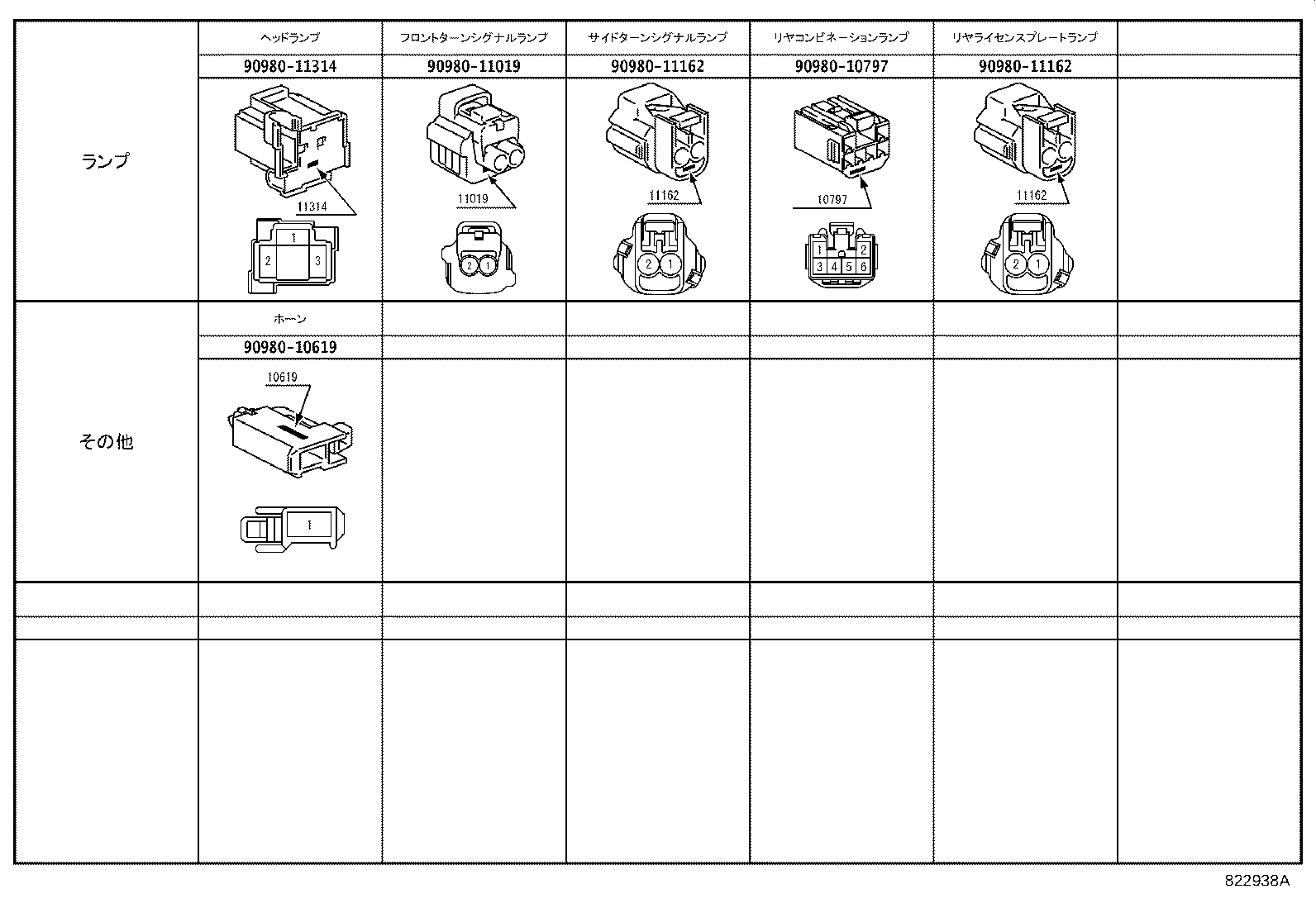

ILLUST NO. 7 OF 7(9908- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-11019 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||

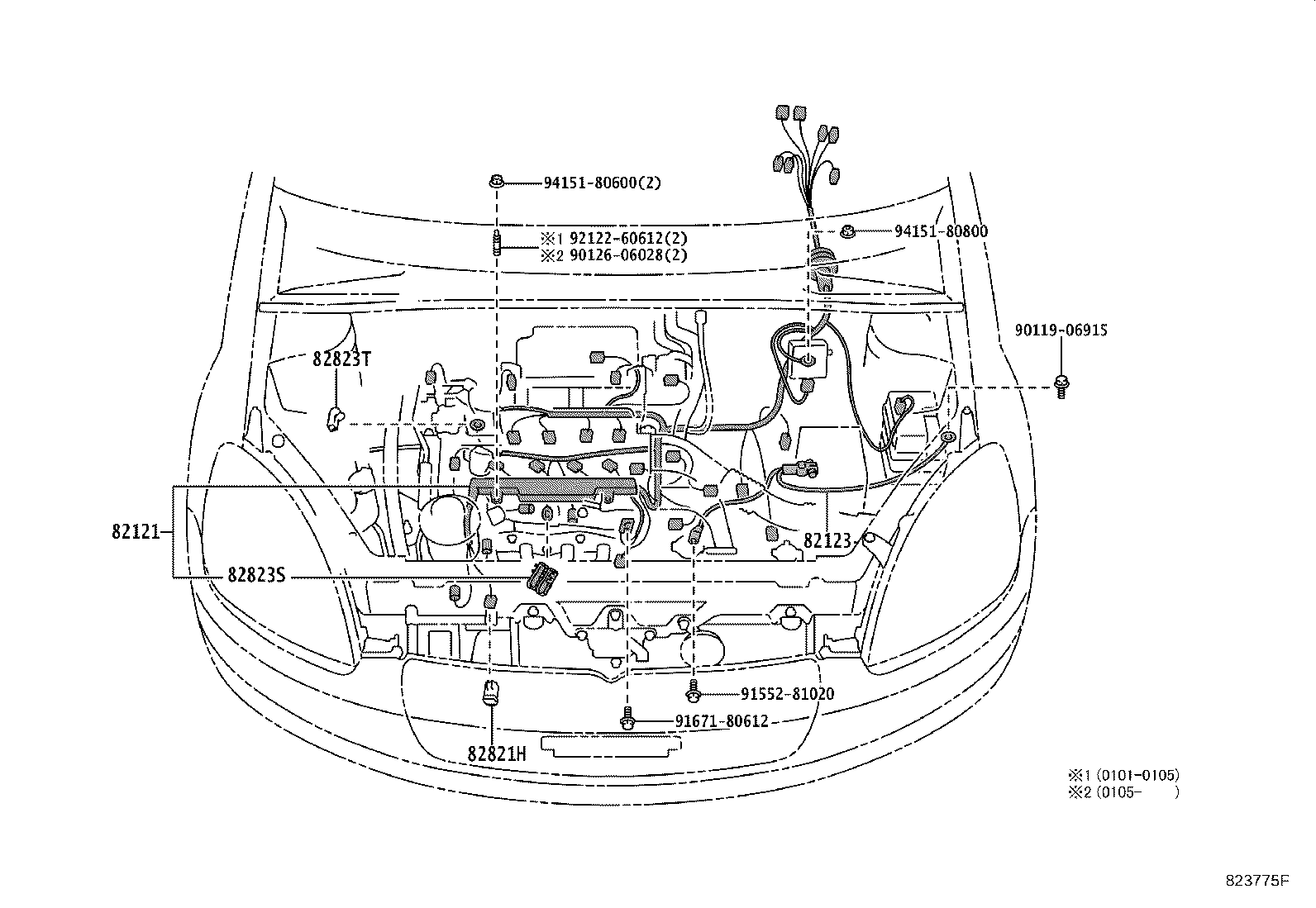

ILLUST NO. 2 OF 7(9908- )SCP11
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-52020 |
SCP11..ATM |
1 | ||
| 82121-52530 |
SCP11..ATM |
1 | ||
| 82121-52021 |
SCP11..ATM |
1 | ||
| 82121-52530 |
SCP11..ATM |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-52010 |
SCP11;NCP1#..MTM |
1 | ||
| 82123-52060 |
NCP1#,SCP11 |
1 | ||
| 82123-52061 |
NCP1#,SCP11 |
1 | ||
| 82123-52061 |
NCP1#,SCP11 |
1 | ||
| 82123-52061 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-12400 |
SCP11 |
1 | ||
| 82821-12400 |
SCP11 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
SCP11 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NCP1#,SCP11 |
1 | ||
| 82823-22050 |
SCP11 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90126-06028 | ||||
| 91552-81020 | ||||
| 91671-80612 | ||||
| 92122-60612 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
