SCP11-BEPNK (1999)
Toyota Platz

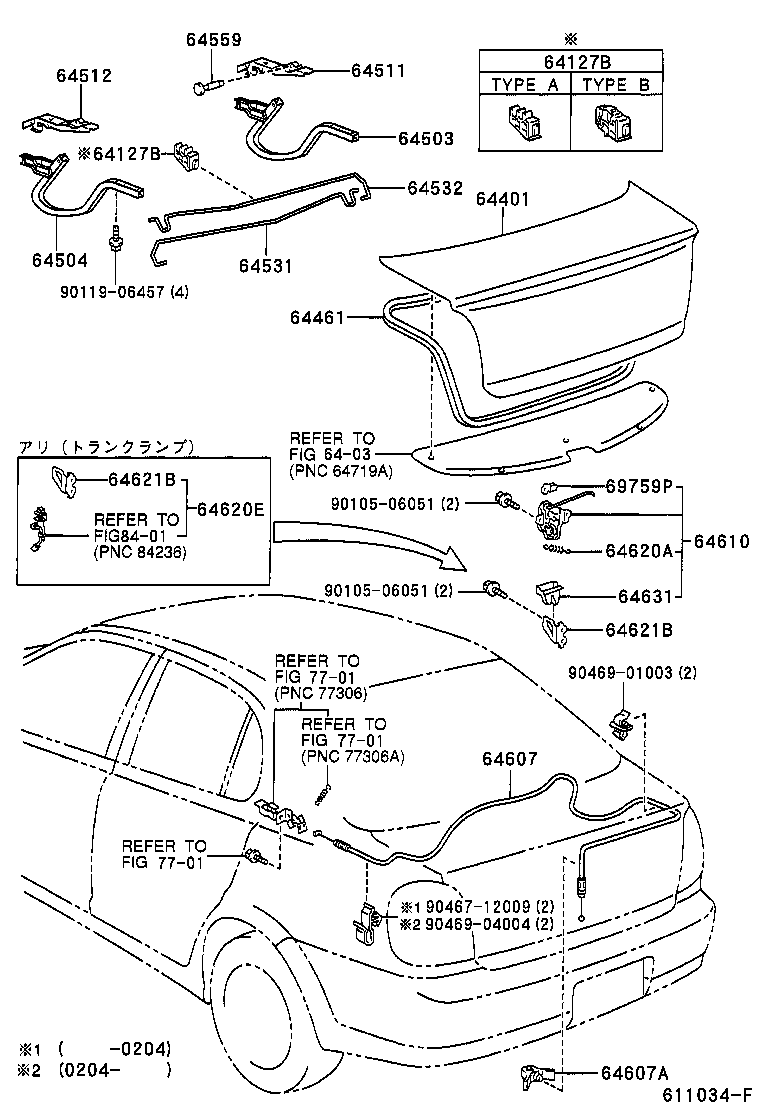

(9908-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-16070 |
NCP1#,SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64127-20120 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64127-20120 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-16070 |
NCP1#,SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64127-20120 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64127-20120 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-52010 |
NCP1#,SCP11 |
1 | ||
| 64401-52040 |
NCP1#,SCP11 |
1 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64461-52010 |
NCP1#,SCP11 |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-16040 |
NCP1#,SCP11 |
1 | ||
| 64503-16040 |
NCP1#,SCP11 |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-16040 |
NCP1#,SCP11 |
1 | ||
| 64503-16040 |
NCP1#,SCP11 |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-52010 |
NCP1#,SCP11 |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64511-52010 |
NCP1#,SCP11 |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-52010 |
NCP1#,SCP11 |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-52010 |
NCP1#,SCP11 |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-52010 |
NCP1#,SCP11 |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-52020 |
NCP1#,SCP11 |
1 | ||
| 64607-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90959-01369 |
NCP1#,SCP11 |
3 | ||
| 90959-01369 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-52050 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64610-52010 |
NCP1#,SCP11 |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90905-06021 |
NCP1#,SCP11 長さ=23.6 |
1 | ||
| 90905-06021 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 長さ=23.6 |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-47010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-16020 |
NCP1#,SCP11 |
1 | ||
| 64621-16020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-16020 |
NCP1#,SCP11 |
1 | ||
| 64621-16020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64631 - PROTECTOR, LUGGAGE DOOR LOCK | ||||
| 64631-16020 |
NCP1#,SCP11 |
1 | ||
| 64631-12050 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64631-12050 |
NCP1#,SCP11 |
1 | ||
| 69759P - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20040 |
NCP1#,SCP11 |
1 | ||
| 69759-20040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90119-06457 | ||||
| 90467-12009 | ||||
| 90469-01003 | ||||
| 90469-04004 | ||||
| Linked diagrams | ||||
| 6403 | ||||
| 7701 | ||||
| 8401 | ||||

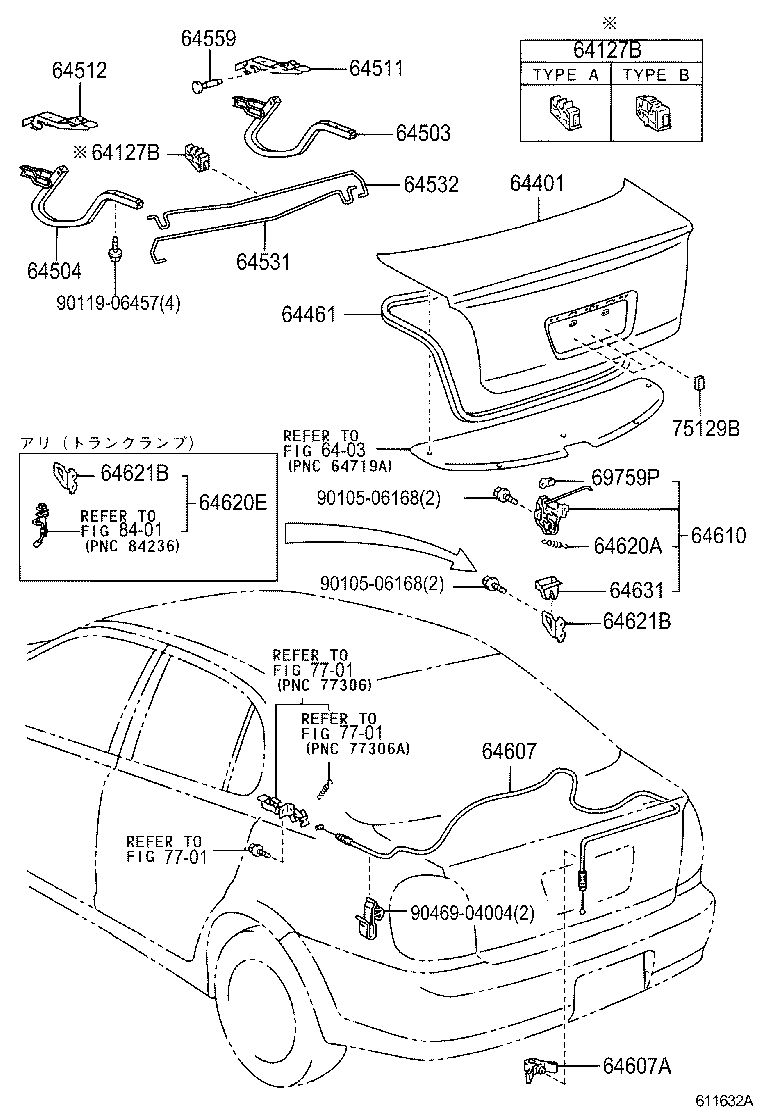

(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-16070 |
NCP1#,SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64127-20120 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64127-20120 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-16070 |
NCP1#,SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64127-20120 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64127-20120 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-52010 |
NCP1#,SCP11 |
1 | ||
| 64401-52040 |
NCP1#,SCP11 |
1 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64461-52010 |
NCP1#,SCP11 |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-16040 |
NCP1#,SCP11 |
1 | ||
| 64503-16040 |
NCP1#,SCP11 |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-16040 |
NCP1#,SCP11 |
1 | ||
| 64503-16040 |
NCP1#,SCP11 |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-52010 |
NCP1#,SCP11 |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64511-52010 |
NCP1#,SCP11 |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-52010 |
NCP1#,SCP11 |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-52010 |
NCP1#,SCP11 |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-52010 |
NCP1#,SCP11 |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-52020 |
NCP1#,SCP11 |
1 | ||
| 64607-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90959-01369 |
NCP1#,SCP11 |
3 | ||
| 90959-01369 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-52050 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64610-52010 |
NCP1#,SCP11 |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90905-06021 |
NCP1#,SCP11 長さ=23.6 |
1 | ||
| 90905-06021 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 長さ=23.6 |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-47010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-16020 |
NCP1#,SCP11 |
1 | ||
| 64621-16020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-16020 |
NCP1#,SCP11 |
1 | ||
| 64621-16020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64631 - PROTECTOR, LUGGAGE DOOR LOCK | ||||
| 64631-16020 |
NCP1#,SCP11 |
1 | ||
| 64631-12050 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 64631-12050 |
NCP1#,SCP11 |
1 | ||
| 69759P - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20040 |
NCP1#,SCP11 |
1 | ||
| 69759-20040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 75129B - CUSHION, REAR LICENCE PLATE | ||||
| 75129-13020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| Common parts | ||||
| 90105-06168 | ||||
| 90119-06457 | ||||
| 90469-04004 | ||||
| Linked diagrams | ||||
| 6403 | ||||
| 7701 | ||||
| 8401 | ||||
