SCP11-BEPNK (1999)
Toyota Platz

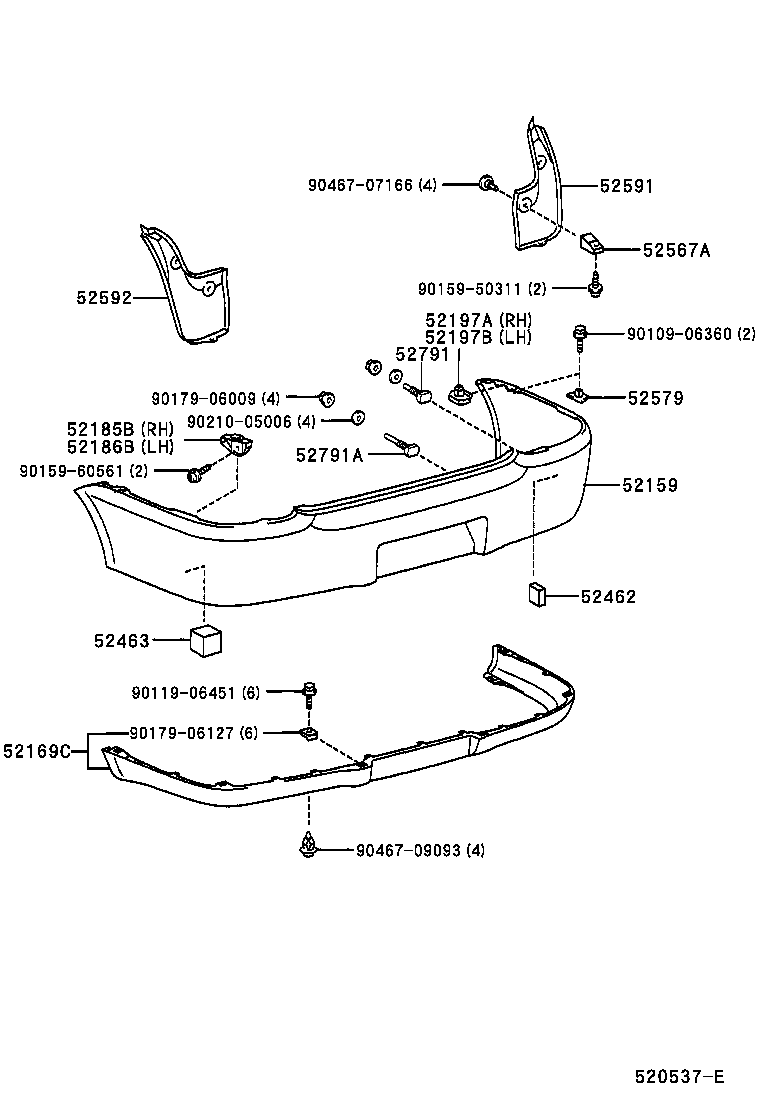

(9908-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-52080D0 |
NCP1#,SCP11 SUPER RED 5,3P0 |
1 | ||
| 52159-52080J0 |
NCP1#,SCP11 DK.BLUE MC.,8K8 |
1 | ||
| 52159-52080A2 |
NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(Q),WHITE PEARL MC,057 |
1 | ||
| 52159-52080F0 |
NCP1#,SCP11 CHAMPAGNE ME.,583 |
1 | ||
| 52159-52080A2 |
NCP16,SCP11..F L ﾊﾟﾂｹ-ｼﾞﾘﾐﾃﾂﾄﾞ *(A),WHITE PEARL MC,057 |
1 | ||
| 52159-52080A1 |
NCP1#,SCP11 WHITE,068 |
1 | ||
| 52159-52080J1 |
NCP1#,SCP11 DK.BLUE M.M.,8P4 |
1 | ||
| 52159-52080A0 |
NCP1#,SCP11 SUPER WHITE 2,040 |
1 | ||
| 52159-52080D1 |
NCP1#,SCP11 PALE ROSE ME.OP.,3N7 |
1 | ||
| 52159-52370G0 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),DARK GREEN MC.,6R4 |
1 | ||
| 52159-52080G0 |
NCP1#,SCP11 DK.GREEN MC.,6R4 |
1 | ||
| 52159-52340 |
SCP11 |
1 | ||
| 52159-52080B0 |
NCP1#,SCP11 SILVER ME,199 |
1 | ||
| 52159-52350H0 |
NCP1#,SCP11 LT.AQUA ME.OP.,761 |
1 | ||
| 52159-52070 |
SCP11 |
1 | ||
| 52159-52350E0 |
NCP1#,SCP11 BEIGE ME.,4R0 |
1 | ||
| 52159-52350D1 |
NCP1#,SCP11 RED M.M.,3P1 |
1 | ||
| 52159-52350A0 |
NCP1#,SCP11 WHITE,068 |
1 | ||
| 52159-52370A1 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),WHITE PM.,057 |
1 | ||
| 52159-52350G0 |
NCP1#,SCP11 DARK GREEN MC.,6R4 |
1 | ||
| 52159-52370E0 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),BEIGE ME.,4R0 |
1 | ||
| 52159-52350J0 |
NCP1#,SCP11 DK.BLUE M.M.,8P4 |
1 | ||
| 52159-52350B1 |
NCP1#,SCP11 SILVER M.M.,1E7 |
1 | ||
| 52159-52360 |
SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 52159-52370B1 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),GRAY M.M.,1E3 |
1 | ||
| 52159-52370H0 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),LT.AQUA ME.OP.,761 |
1 | ||
| 52159-52350B0 |
NCP1#,SCP11 GRAY M.M.,1E3 |
1 | ||
| 52159-52370D1 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),RED M.M.,3P1 |
1 | ||
| 52159-52370A0 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),WHITE,068 |
1 | ||
| 52159-52350A1 |
NCP1#,SCP11 WHITE PM.,057 |
1 | ||
| 52159-52370J0 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),DK.BLUE M.M.,8P4 |
1 | ||
| 52159-52370B0 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),SILVER M.M.,1E7 |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-52040F0 |
NCP1#,SCP11 YELLOW M.M,583 |
1 | ||
| 52169-52901A0 |
NCP1#,SCP11 SUPER WHITE 2,040 |
1 | ||
| 52169-52040B0 |
NCP1#,SCP11 SILVER ME,199 |
1 | ||
| 52169-52040D0 |
NCP1#,SCP11 SUPER RED 5,3P0 |
1 | ||
| 52169-52040J0 |
NCP1#,SCP11 DK.BLUE MC,8K8 |
1 | ||
| 52169-52901F0 |
NCP1#,SCP11 YELLOW M.M,583 |
1 | ||
| 52169-52040G0 |
NCP1#,SCP11 DK.GREEN MC,6R4 |
1 | ||
| 52169-52040A0 |
NCP1#,SCP11 SUPER WHITE 2,040 |
1 | ||
| 52169-52901J0 |
NCP1#,SCP11 DK.BLUE MC,8K8 |
1 | ||
| 52169-52901J1 |
NCP1#,SCP11 DK.BLUE M.M,8P4 |
1 | ||
| 52169-52901G0 |
NCP1#,SCP11 DK.GREEN MC,6R4 |
1 | ||
| 52169-52901D0 |
NCP1#,SCP11 SUPER RED 5,3P0 |
1 | ||
| 52169-52040A2 |
NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(Q),WHITE PEARL MC,057 |
1 | ||
| 52169-52040B0 |
NCP1#,SCP11 SILVER ME,199 |
1 | ||
| 52169-52901B0 |
NCP1#,SCP11 SILVER ME,199 |
1 | ||
| 52169-52010 |
SCP11 |
1 | ||
| 52169-52040F0 |
NCP1#,SCP11 YELLOW M.M,583 |
1 | ||
| 52169-52040D0 |
NCP1#,SCP11 SUPER RED 5,3P0 |
1 | ||
| 52169-52901A1 |
NCP1#,SCP11 WHITE,068 |
1 | ||
| 52169-52040J2 |
NCP1#,SCP11 DK.BLUE M.M.,8P4 |
1 | ||
| 52169-52040G0 |
NCP1#,SCP11 DK.GREEN MC,6R4 |
1 | ||
| 52169-52901D1 |
NCP1#,SCP11 PALE ROSE ME.OP.,3N7 |
1 | ||
| 52169-52040A2 |
NCP16,SCP11..F L ﾊﾟﾂｹ-ｼﾞﾘﾐﾃﾂﾄﾞ *(A),WHITE PEARL MC,057 |
1 | ||
| 52169-52040D1 |
NCP1#,SCP11 PALE ROSE ME.OP.,3N7 |
1 | ||
| 52169-52040A1 |
NCP1#,SCP11 WHITE,068 |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-52020 |
NCP1#,SCP11 |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52185-52020 |
NCP1#,SCP11 |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-52010 |
NCP1#,SCP11 |
1 | ||
| 52197B - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-52010 |
NCP1#,SCP11 |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-52010 |
NCP1#,SCP11 |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52463-52010 |
NCP1#,SCP11 |
1 | ||
| 52567A - RETAINER, REAR BUMPER, LOWER SIDE | ||||
| 52567-52010 |
NCP1#,SCP11 |
2 | ||
| 52567-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 52579 - RETAINER, REAR BUMPER SIDE, NO.3 | ||||
| 52579-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 52579-52010 |
NCP1#,SCP11 |
2 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52100 |
NCP1#,SCP11 |
1 | ||
| 52591-52040 |
NCP1#,SCP11 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52040 |
NCP1#,SCP11 |
1 | ||
| 52592-52090 |
NCP1#,SCP11 |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 90109-06354 |
NCP1#,SCP11 |
2 | ||
| 52791-12010 |
NCP1#,SCP11 |
2 | ||
| 52791-12040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 52791A - BOLT, BUMPER MOULDING SET, NO.2 | ||||
| 52791-12040 |
NCP1#,SCP11 |
2 | ||
| 52791-32010 |
NCP1#,SCP11 |
2 | ||
| Common parts | ||||
| 90109-06360 | ||||
| 90119-06451 | ||||
| 90159-50311 | ||||
| 90159-60561 | ||||
| 90179-06009 | ||||
| 90179-06127 | ||||
| 90210-05006 | ||||
| 90467-07166 | ||||
| 90467-09093 | ||||

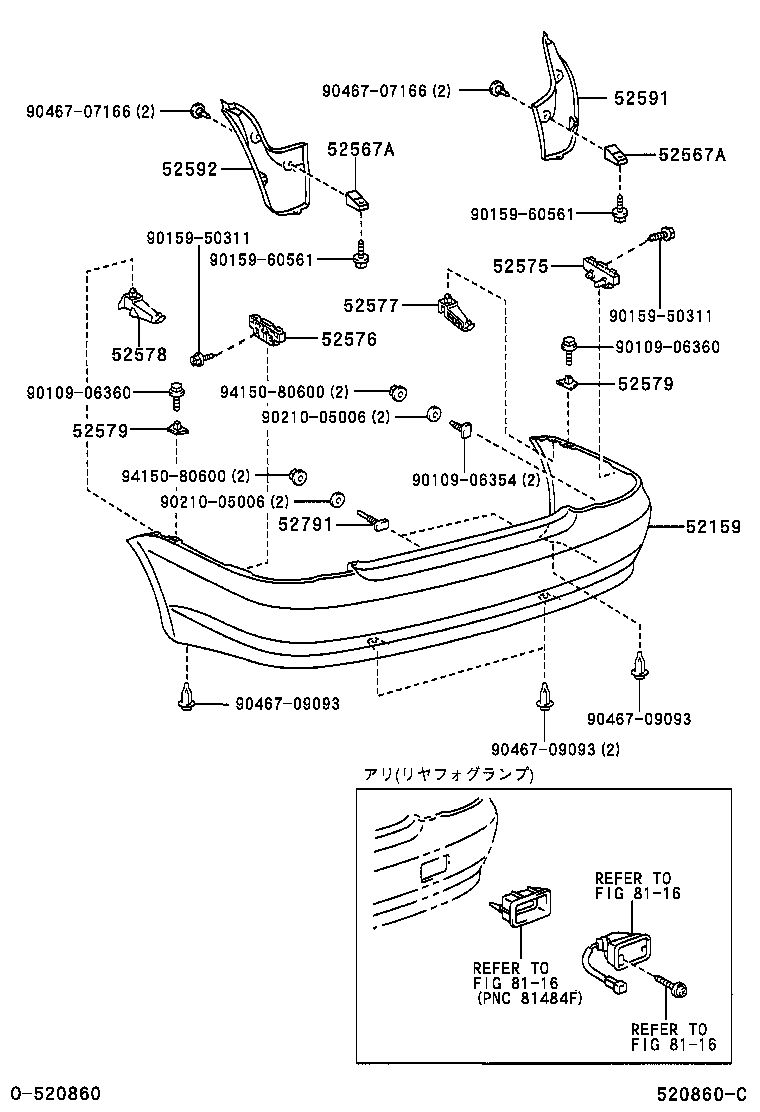

(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-52080D0 |
NCP1#,SCP11 SUPER RED 5,3P0 |
1 | ||
| 52159-52080J0 |
NCP1#,SCP11 DK.BLUE MC.,8K8 |
1 | ||
| 52159-52080A2 |
NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(Q),WHITE PEARL MC,057 |
1 | ||
| 52159-52080F0 |
NCP1#,SCP11 CHAMPAGNE ME.,583 |
1 | ||
| 52159-52080A2 |
NCP16,SCP11..F L ﾊﾟﾂｹ-ｼﾞﾘﾐﾃﾂﾄﾞ *(A),WHITE PEARL MC,057 |
1 | ||
| 52159-52080A1 |
NCP1#,SCP11 WHITE,068 |
1 | ||
| 52159-52080J1 |
NCP1#,SCP11 DK.BLUE M.M.,8P4 |
1 | ||
| 52159-52080A0 |
NCP1#,SCP11 SUPER WHITE 2,040 |
1 | ||
| 52159-52080D1 |
NCP1#,SCP11 PALE ROSE ME.OP.,3N7 |
1 | ||
| 52159-52370G0 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),DARK GREEN MC.,6R4 |
1 | ||
| 52159-52080G0 |
NCP1#,SCP11 DK.GREEN MC.,6R4 |
1 | ||
| 52159-52340 |
SCP11 |
1 | ||
| 52159-52080B0 |
NCP1#,SCP11 SILVER ME,199 |
1 | ||
| 52159-52350H0 |
NCP1#,SCP11 LT.AQUA ME.OP.,761 |
1 | ||
| 52159-52070 |
SCP11 |
1 | ||
| 52159-52350E0 |
NCP1#,SCP11 BEIGE ME.,4R0 |
1 | ||
| 52159-52350D1 |
NCP1#,SCP11 RED M.M.,3P1 |
1 | ||
| 52159-52350A0 |
NCP1#,SCP11 WHITE,068 |
1 | ||
| 52159-52370A1 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),WHITE PM.,057 |
1 | ||
| 52159-52350G0 |
NCP1#,SCP11 DARK GREEN MC.,6R4 |
1 | ||
| 52159-52370E0 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),BEIGE ME.,4R0 |
1 | ||
| 52159-52350J0 |
NCP1#,SCP11 DK.BLUE M.M.,8P4 |
1 | ||
| 52159-52350B1 |
NCP1#,SCP11 SILVER M.M.,1E7 |
1 | ||
| 52159-52360 |
SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 52159-52370B1 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),GRAY M.M.,1E3 |
1 | ||
| 52159-52370H0 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),LT.AQUA ME.OP.,761 |
1 | ||
| 52159-52350B0 |
NCP1#,SCP11 GRAY M.M.,1E3 |
1 | ||
| 52159-52370D1 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),RED M.M.,3P1 |
1 | ||
| 52159-52370A0 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),WHITE,068 |
1 | ||
| 52159-52350A1 |
NCP1#,SCP11 WHITE PM.,057 |
1 | ||
| 52159-52370J0 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),DK.BLUE M.M.,8P4 |
1 | ||
| 52159-52370B0 |
NCP1#,SCP11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),SILVER M.M.,1E7 |
1 | ||
| 52567A - RETAINER, REAR BUMPER, LOWER SIDE | ||||
| 52567-52010 |
NCP1#,SCP11 |
2 | ||
| 52567-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 52567A - RETAINER, REAR BUMPER, LOWER SIDE | ||||
| 52567-52010 |
NCP1#,SCP11 |
2 | ||
| 52567-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-52070 |
NCP1#,SCP11 |
1 | ||
| 52575-52071 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52575-52070 |
NCP1#,SCP11 |
1 | ||
| 52575-52071 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH | ||||
| 52577-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH | ||||
| 52578-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 52579 - RETAINER, REAR BUMPER SIDE, NO.3 | ||||
| 52579-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 52579-52010 |
NCP1#,SCP11 |
2 | ||
| 52579 - RETAINER, REAR BUMPER SIDE, NO.3 | ||||
| 52579-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 52579-52010 |
NCP1#,SCP11 |
2 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52100 |
NCP1#,SCP11 |
1 | ||
| 52591-52040 |
NCP1#,SCP11 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52040 |
NCP1#,SCP11 |
1 | ||
| 52592-52090 |
NCP1#,SCP11 |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 90109-06354 |
NCP1#,SCP11 |
2 | ||
| 52791-12010 |
NCP1#,SCP11 |
2 | ||
| 52791-12040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| Common parts | ||||
| 90109-06354 | ||||
| 90109-06360 | ||||
| 90159-50311 | ||||
| 90159-60561 | ||||
| 90210-05006 | ||||
| 90467-07166 | ||||
| 90467-09093 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8116 | ||||
