SCP11-BEMNK (1999)
Toyota Platz

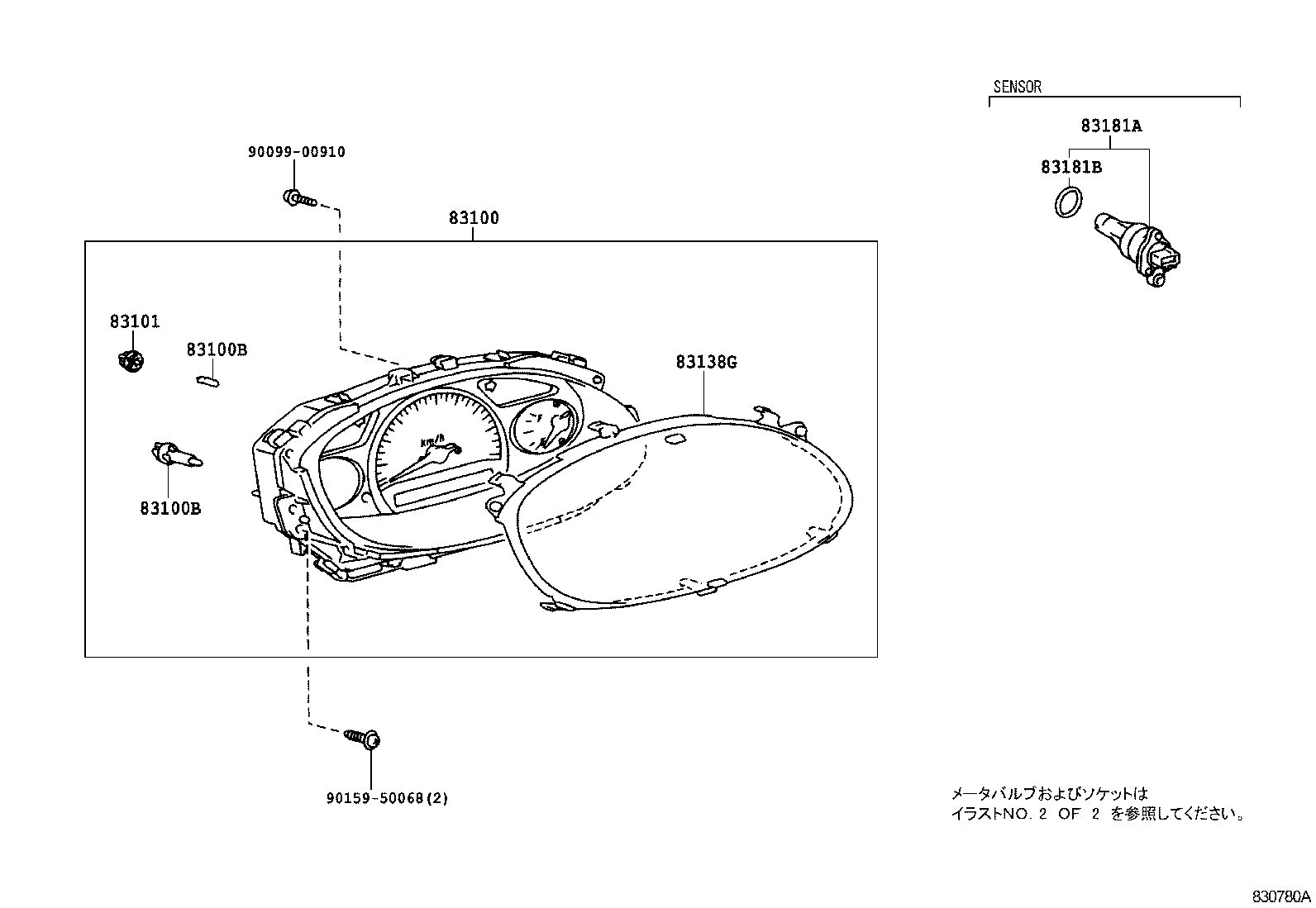

ILLUST NO. 1 OF 2(9908-0208)
ｱﾅﾛｸﾞﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-52740 |
NCP1#,SCP11..MTM DENSO |
1 | ||
| 83800-5C040 |
NCP1#,SCP11..MTM..F DENSO,ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83800-5C040 |
NCP1#,SCP11..MTM DENSO,ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83800-52391 |
NCP1#,SCP11..MTM DENSO |
1 | ||
| 83800-52410 |
SCP11..MTM DENSO,ﾅｼ(ABS) |
1 | ||
| 83800-52390 |
NCP1#,SCP11..MTM DENSO |
1 | ||

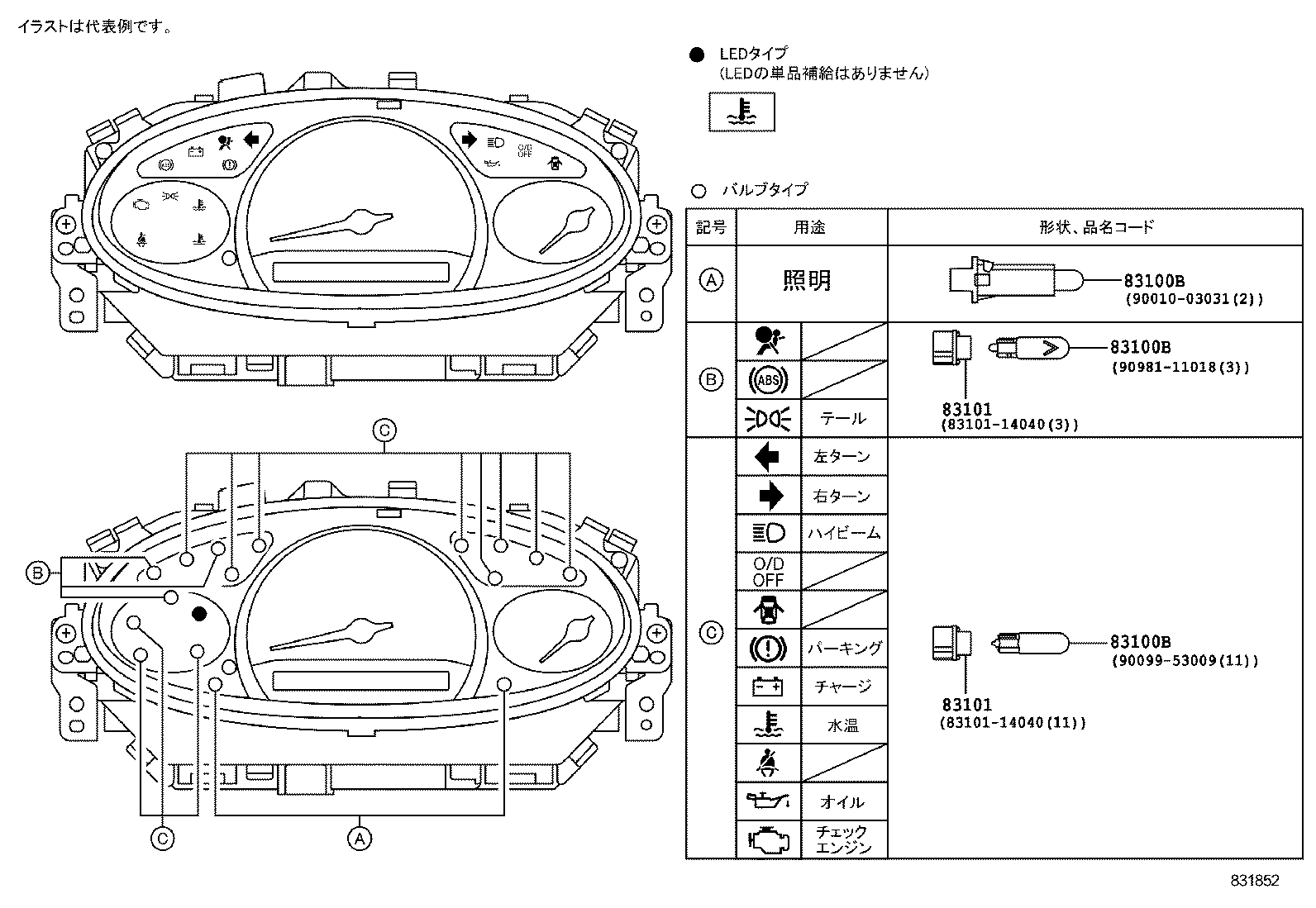

| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52100 |
NCP12..X;NCP16,SCP11 ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11 ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11 ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83852-52100 |
NCP12..X;NCP16,SCP11 ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-52100 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11..F ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11 ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP16,SCP11 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP16,SCP11 |
1 | ||
| Common parts | ||||
| 90099-00910 | ||||
| 90159-50068 | ||||

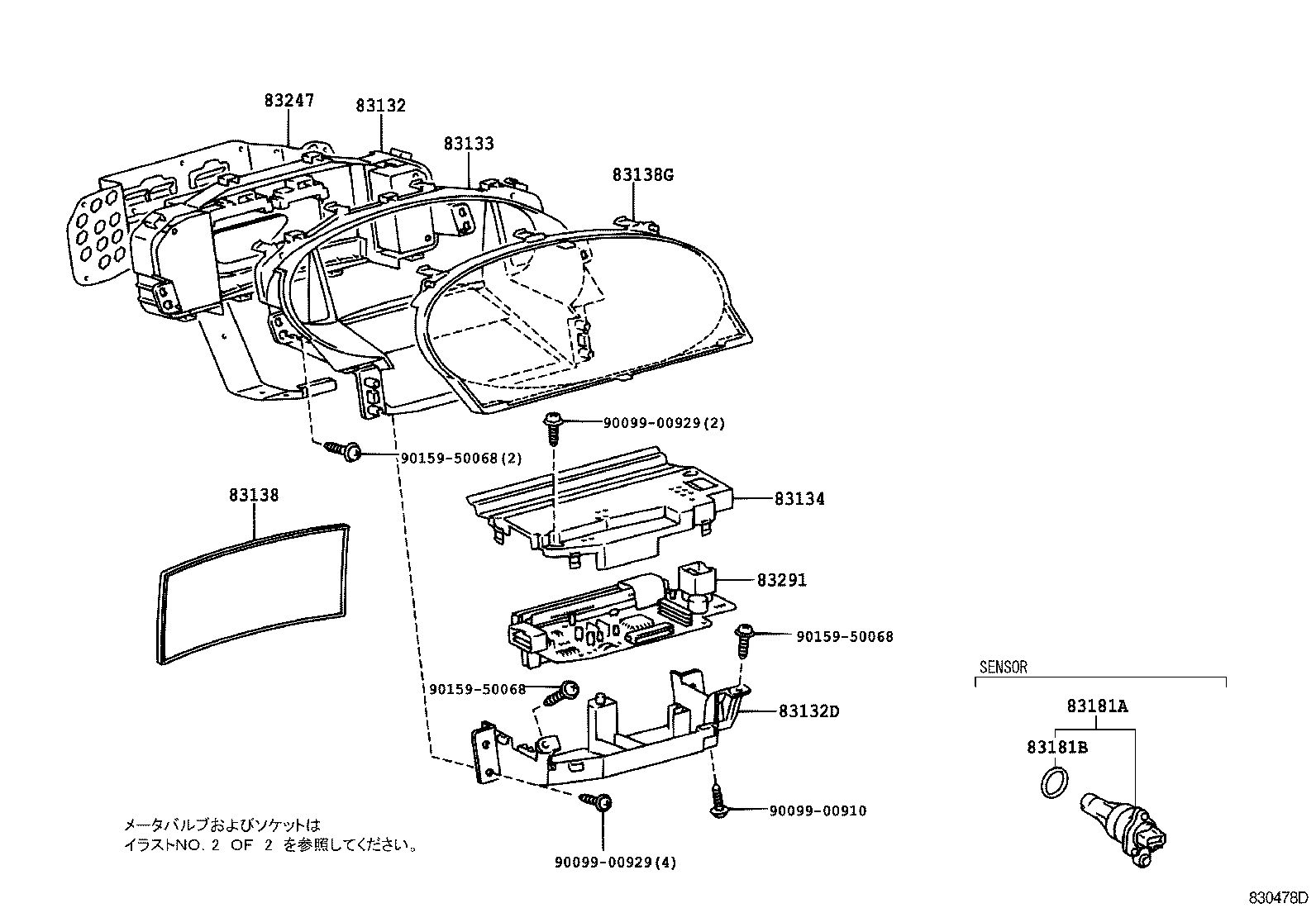

ILLUST NO. 1 OF 2(9908-0208)
ﾃﾞｼﾞﾀﾙﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83841-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83841-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83841-5C060 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83841-5C060 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F |
1 | ||
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83842-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83842-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83842-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83842-52100 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-5C060 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F |
1 | ||
| 83811-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83811-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83821-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83821-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83821-52100 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-52110 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F |
1 | ||
| 83852-52110 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83852-52110 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83852-52110 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52100 |
NCP12..X;NCP16,SCP11 ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11 ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11 ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83852-52100 |
NCP12..X;NCP16,SCP11 ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-52100 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11..F ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11 ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP16,SCP11 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP16,SCP11 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-52101 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83861-5C060 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83861-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83861-52101 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-52410 |
NCP12..MTM..X;NCP16,SCP11..MTM DENSO |
1 | ||
| 83291-52010 |
NCP12..MTM..X;NCP16,SCP11..MTM DENSO |
1 | ||
| 83291-52410 |
NCP16,SCP11..MTM..F DENSO |
1 | ||
| 83291-52011 |
NCP12..MTM..X;NCP16,SCP11..MTM DENSO |
1 | ||
| 83291-52880 |
NCP12..MTM..X;NCP16,SCP11..MTM DENSO,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83291-52350 |
NCP12..MTM..X;NCP16,SCP11..MTM DENSO,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83291-52880 |
NCP16,SCP11..MTM..F DENSO,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| Common parts | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90159-50068 | ||||
ILLUST NO. 1 OF 2(0208- )
ｱﾅﾛｸﾞﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-52740 |
NCP1#,SCP11..MTM DENSO |
1 | ||
| 83800-5C040 |
NCP1#,SCP11..MTM..F DENSO,ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83800-5C040 |
NCP1#,SCP11..MTM DENSO,ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83800-52391 |
NCP1#,SCP11..MTM DENSO |
1 | ||
| 83800-52410 |
SCP11..MTM DENSO,ﾅｼ(ABS) |
1 | ||
| 83800-52390 |
NCP1#,SCP11..MTM DENSO |
1 | ||

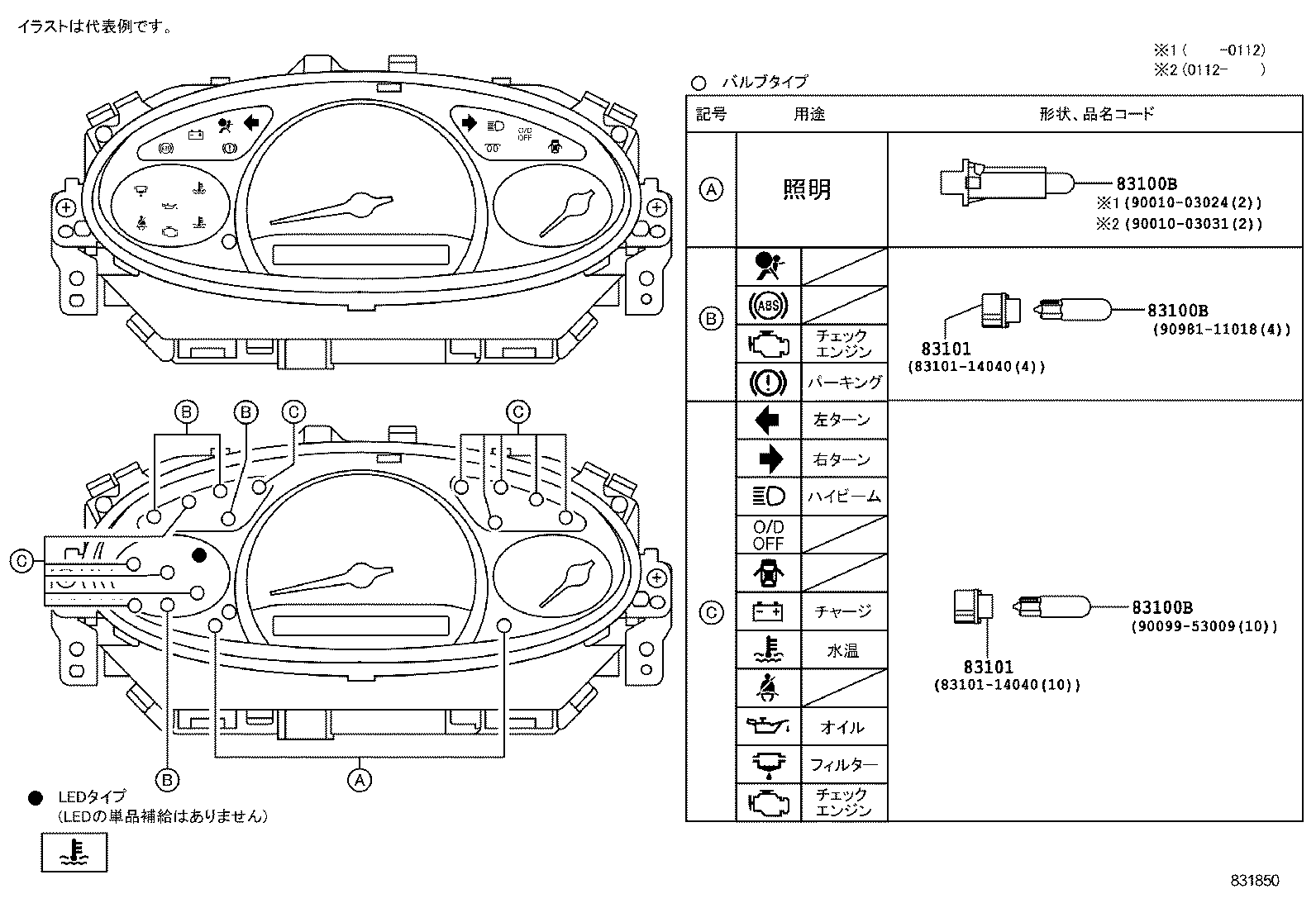

| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52100 |
NCP12..X;NCP16,SCP11 ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11 ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11 ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83852-52100 |
NCP12..X;NCP16,SCP11 ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-52100 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11..F ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11 ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP16,SCP11 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP16,SCP11 |
1 | ||
| 83855 - BRACKET, COMBINATION METER, NO.1 | ||||
| 83855-5C040 |
NCP1#,SCP11..F |
1 | ||
| 83855-5C040 |
NCP1#,SCP11 |
1 | ||
| 83856 - BRACKET, COMBINATION METER, NO.2 | ||||
| 83856-5C040 |
NCP1#,SCP11..F |
1 | ||
| 83856-5C040 |
NCP1#,SCP11 |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 2(0208- )
ﾃﾞｼﾞﾀﾙﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83841-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83841-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83841-5C060 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83841-5C060 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F |
1 | ||
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83842-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83842-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83842-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83842-52100 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-5C060 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F |
1 | ||
| 83811-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83811-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83821-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83821-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83821-52100 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-52110 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F |
1 | ||
| 83852-52110 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83852-52110 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83852-52110 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52100 |
NCP12..X;NCP16,SCP11 ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11 ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11 ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83852-52100 |
NCP12..X;NCP16,SCP11 ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-52100 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11..F ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83852-52010 |
NCP1#,SCP11 ｱﾅﾛｸﾞ ﾒ-ﾀ |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP16,SCP11 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP16,SCP11 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-52101 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83861-5C060 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83861-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83861-52101 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83275-52880 |
NCP12..MTM..X;NCP16,SCP11..MTM DENSO,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83275-52410 |
NCP12..MTM..X;NCP16,SCP11..MTM DENSO |
1 | ||
| 83275-52410 |
NCP16,SCP11..MTM..F DENSO |
1 | ||
| 83275-52880 |
NCP16,SCP11..MTM..F DENSO,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83276 - PLATE,COMPUTER METER CIRCUIT NO.2 | ||||
| 83276-52490 |
NCP12..MTM..X;NCP16,SCP11..MTM DENSO,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83276-52490 |
NCP16,SCP11..MTM..F DENSO,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83276-52410 |
NCP12..X;NCP16,SCP11 DENSO,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83276-52410 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F DENSO,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-52410 |
NCP12..MTM..X;NCP16,SCP11..MTM DENSO |
1 | ||
| 83291-52010 |
NCP12..MTM..X;NCP16,SCP11..MTM DENSO |
1 | ||
| 83291-52410 |
NCP16,SCP11..MTM..F DENSO |
1 | ||
| 83291-52011 |
NCP12..MTM..X;NCP16,SCP11..MTM DENSO |
1 | ||
| 83291-52880 |
NCP12..MTM..X;NCP16,SCP11..MTM DENSO,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83291-52350 |
NCP12..MTM..X;NCP16,SCP11..MTM DENSO,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83291-52880 |
NCP16,SCP11..MTM..F DENSO,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| Common parts | ||||
| 90099-00929 | ||||
| 90159-50068 | ||||

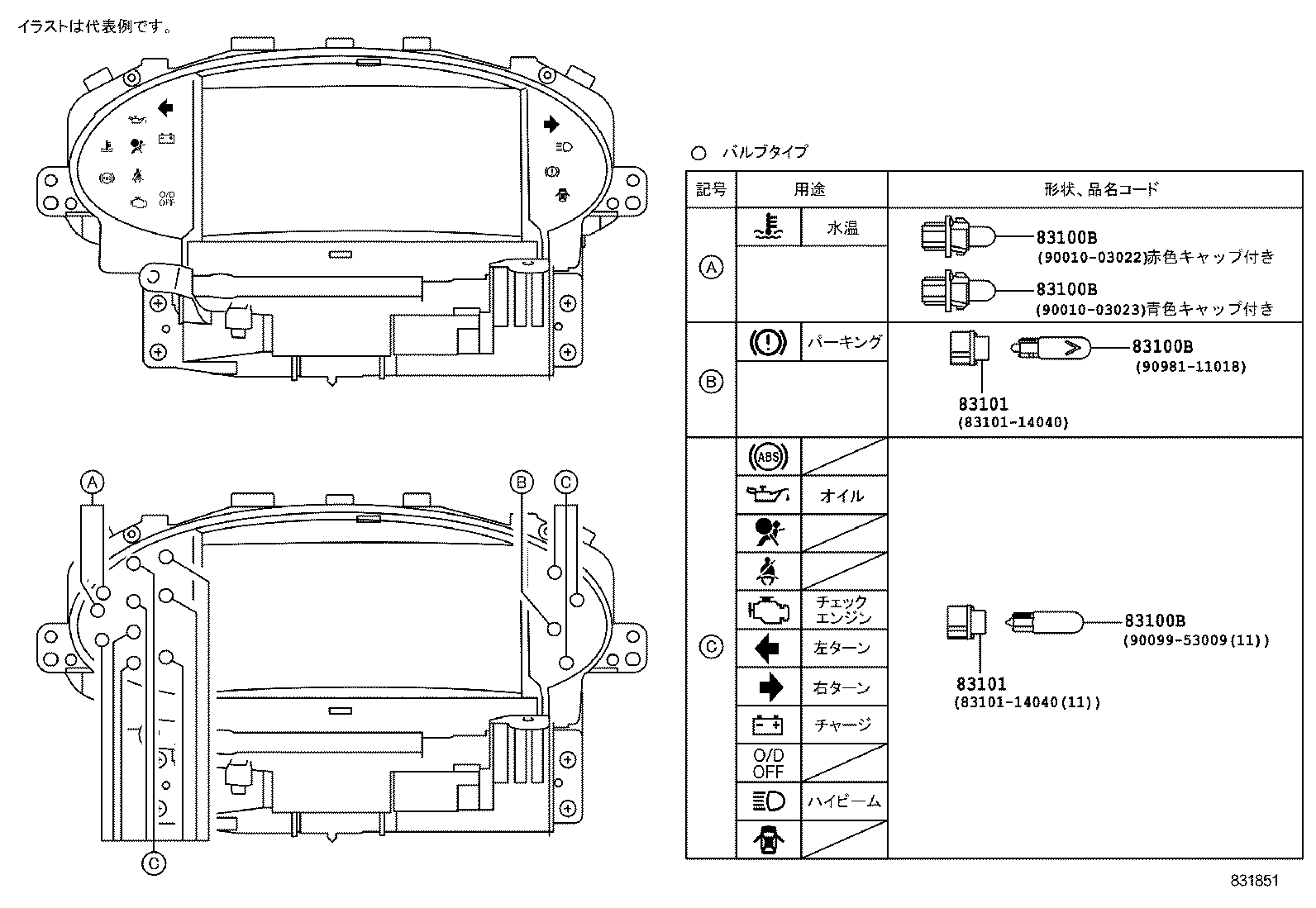

ILLUST NO. 2 OF 2(9908-0208)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||

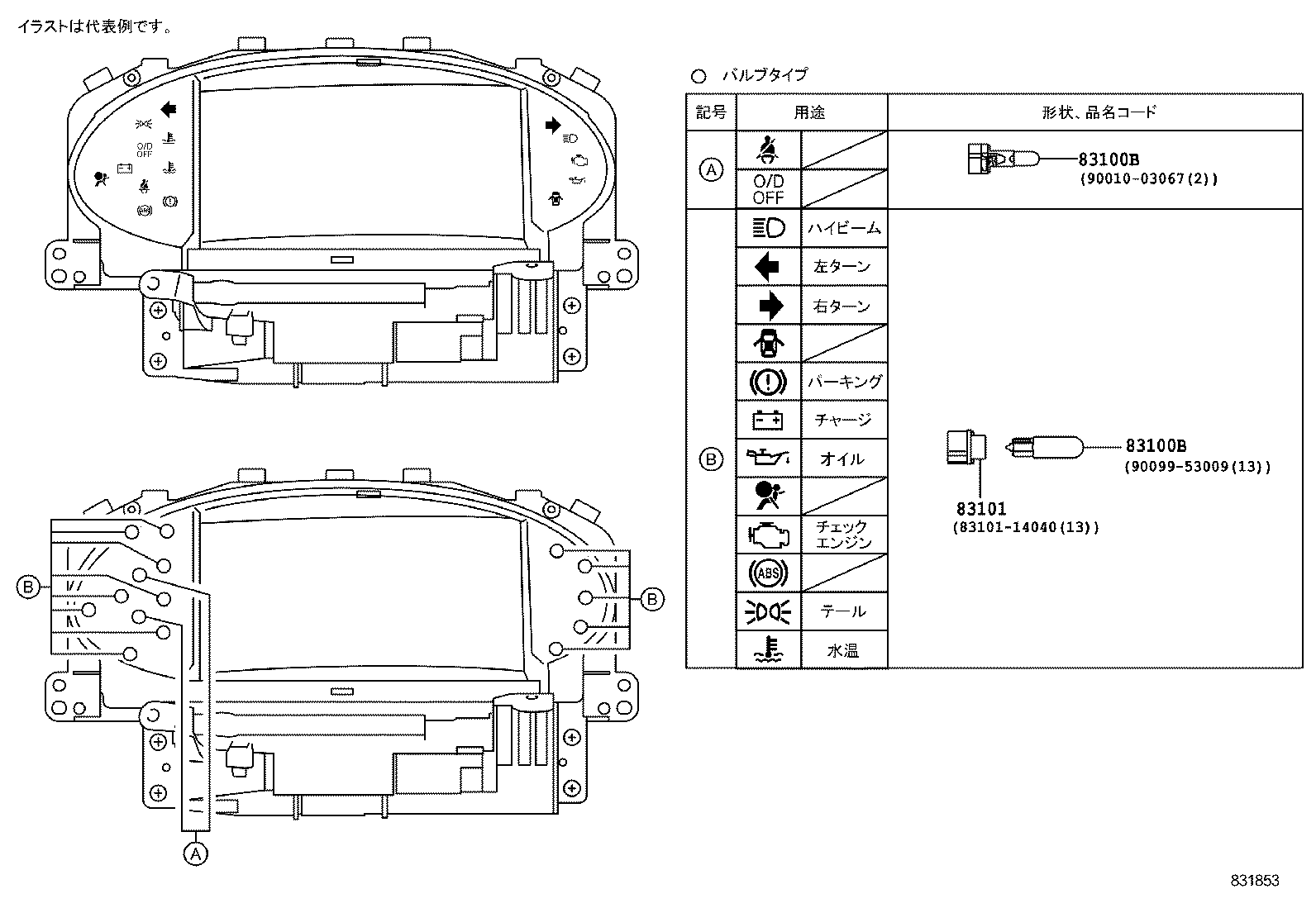

ILLUST NO. 2 OF 2(9908-0208)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ﾃﾞｼﾞﾀﾙﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
ILLUST NO. 2 OF 2(0208- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
ILLUST NO. 2 OF 2(0208- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ﾃﾞｼﾞﾀﾙﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03024 |
NCP1#,SCP11 14V 1.4W |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90010-03031 |
NCP1#,SCP11..F 14V 2.0W |
1 | ||
| 90981-11018 |
NCP1#,SCP11 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03031 |
NCP1#,SCP11 14V 2.0W |
1 | ||
| 90010-03023 |
NCP1#,SCP11 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
NCP1#,SCP11..F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90010-03067 |
NCP12..MTM..X;NCP16,SCP11..MTM 14V 1.12W |
1 | ||
| 90010-03022 |
NCP1#,SCP11 14V 1.4W,ﾚｯﾄﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 90099-53009 |
NCP1#,SCP11 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
| 83101-14040 |
NCP1#,SCP11 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
