SCP11-BEMNK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005
Engine 1SZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

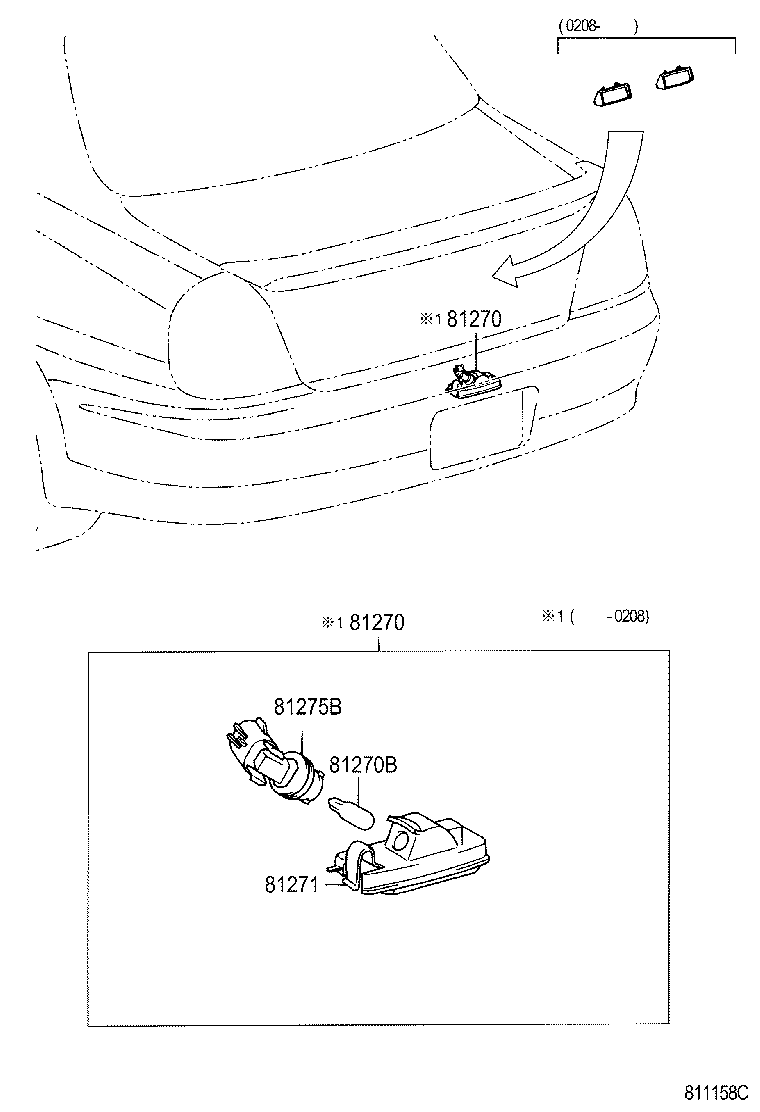

Click highlighted areas on diagram

diagram 81270 81270 81270B 81271 81275B
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-52010

NCP1#,SCP11

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-52010

NCP1#,SCP11

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

NCP1#,SCP11

12V 5W

 1
99132-12050

NCP1#,SCP11

12V 5W

 2
99132-12050

SCP11;NCP1#..ATM;NCP1#..MTM..F

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-52010

NCP1#,SCP11

 1
81271-30290

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
81271-30290

NCP1#,SCP11

 2
81275B - SOCKET PLUG, LICENSE PLATE LAMP
90075-60005

NCP1#,SCP11

 1
90075-99005

NCP1#,SCP11

 2
90075-99005

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
