Toyota Platz NCP16 WIRELESS DOOR LOCK

NCP16-BEPNK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005

Engine 2NZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

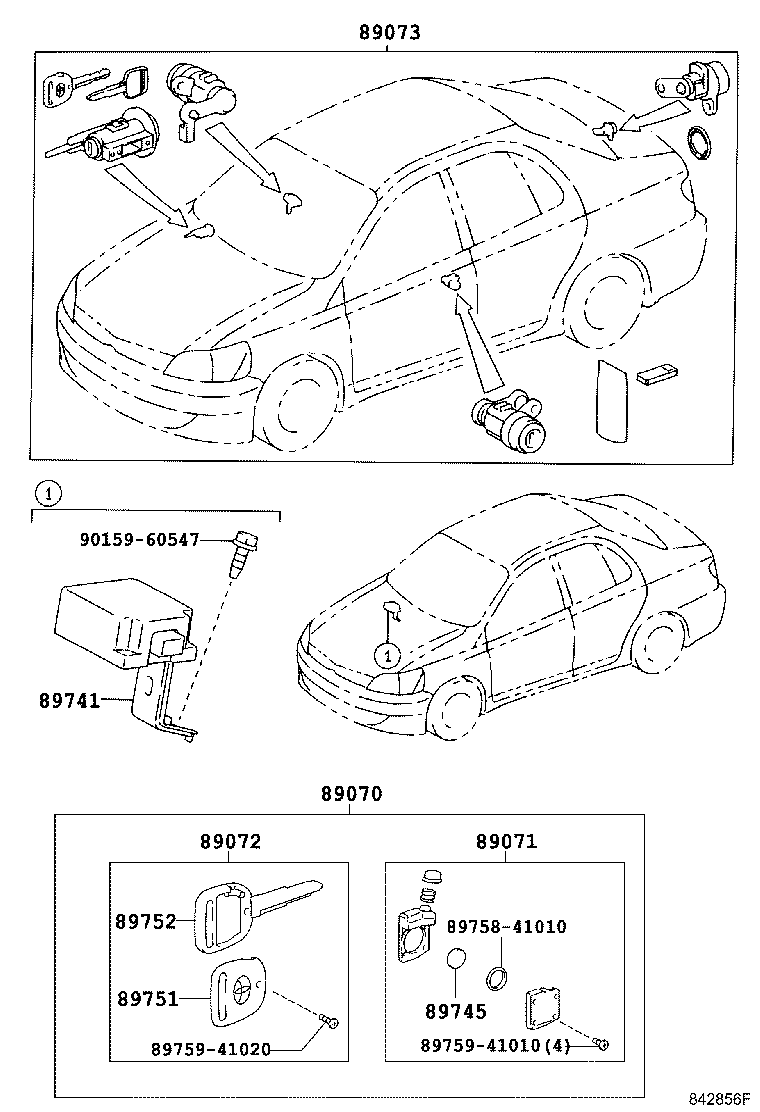

Click highlighted areas on diagram

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-52070	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-52010	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89071-52010	NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P)	08/2001 - 08/2002	2
89071-32030	SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F	08/2002 - 12/2999	1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-47020	NCP12..X;NCP16,SCP11	08/2002 - 11/2005	1
89072-52070	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
69005-52480	SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F	08/2002 - 12/2999	1
89073-52230	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89741 - RECEIVER, DOOR CONTROL
89741-52210	NCP12..X;NCP16,SCP11	08/2002 - 11/2005	1
89741-52010	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89745 - BATTERY, TRANSMITTER
89745-41010	NCP12..X;NCP16,SCP11	08/2002 - 11/2005	1
89745-41010	NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P)	08/2001 - 08/2002	2
89745-41010	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89751 - COVER, TRANSMITTER HOUSING
89751-52060	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89751-52060	NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P)	08/1999 - 08/2002	2
89751-44010	SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F	08/2002 - 12/2999	1
89752 - CASE, TRANSMITTER HOUSING
89752-52240	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89752-46020	NCP12..X;NCP16,SCP11	08/2002 - 11/2005	1
Common parts
89758-41010
89759-41010
89759-41020
90159-60547

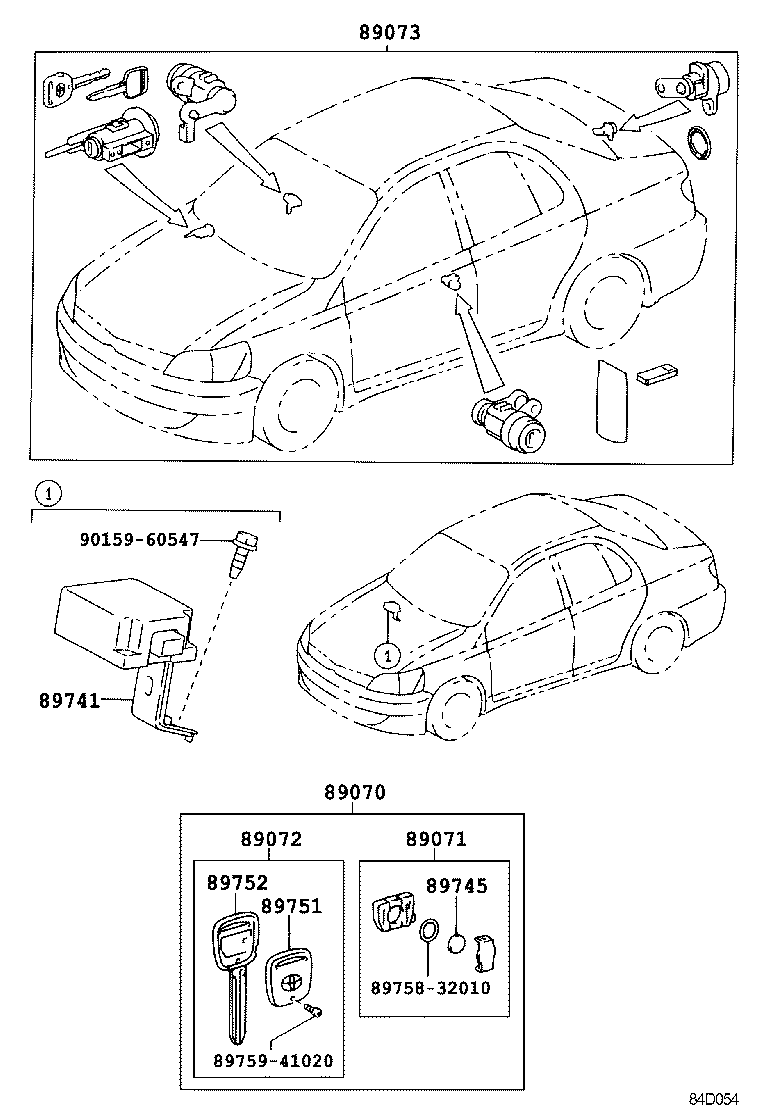

Click highlighted areas on diagram

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-52070	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-52010	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89071-52010	NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P)	08/2001 - 08/2002	2
89071-32030	SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F	08/2002 - 12/2999	1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-47020	NCP12..X;NCP16,SCP11	08/2002 - 11/2005	1
89072-52070	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
69005-52480	SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F	08/2002 - 12/2999	1
89073-52230	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89741 - RECEIVER, DOOR CONTROL
89741-52210	NCP12..X;NCP16,SCP11	08/2002 - 11/2005	1
89741-52010	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89745 - BATTERY, TRANSMITTER
89745-41010	NCP12..X;NCP16,SCP11	08/2002 - 11/2005	1
89745-41010	NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P)	08/2001 - 08/2002	2
89745-41010	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89751 - COVER, TRANSMITTER HOUSING
89751-52060	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89751-52060	NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P)	08/1999 - 08/2002	2
89751-44010	SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F	08/2002 - 12/2999	1
89752 - CASE, TRANSMITTER HOUSING
89752-52240	NCP12..X;NCP16,SCP11	08/1999 - 08/2002	1
89752-46020	NCP12..X;NCP16,SCP11	08/2002 - 11/2005	1
Common parts
89758-32010
89759-41020
90159-60547
