NCP16-BEPEK (1999)
Toyota Platz

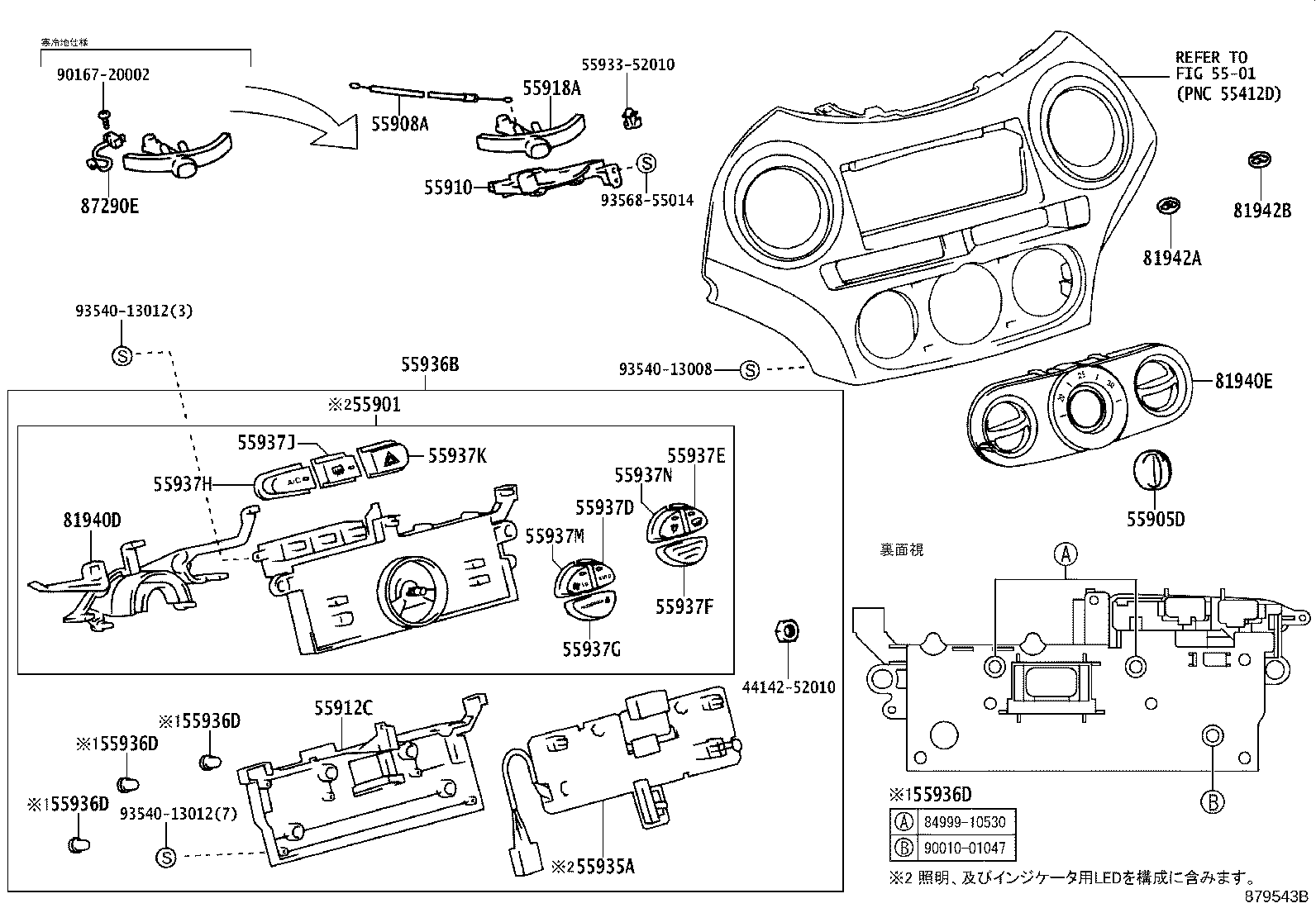

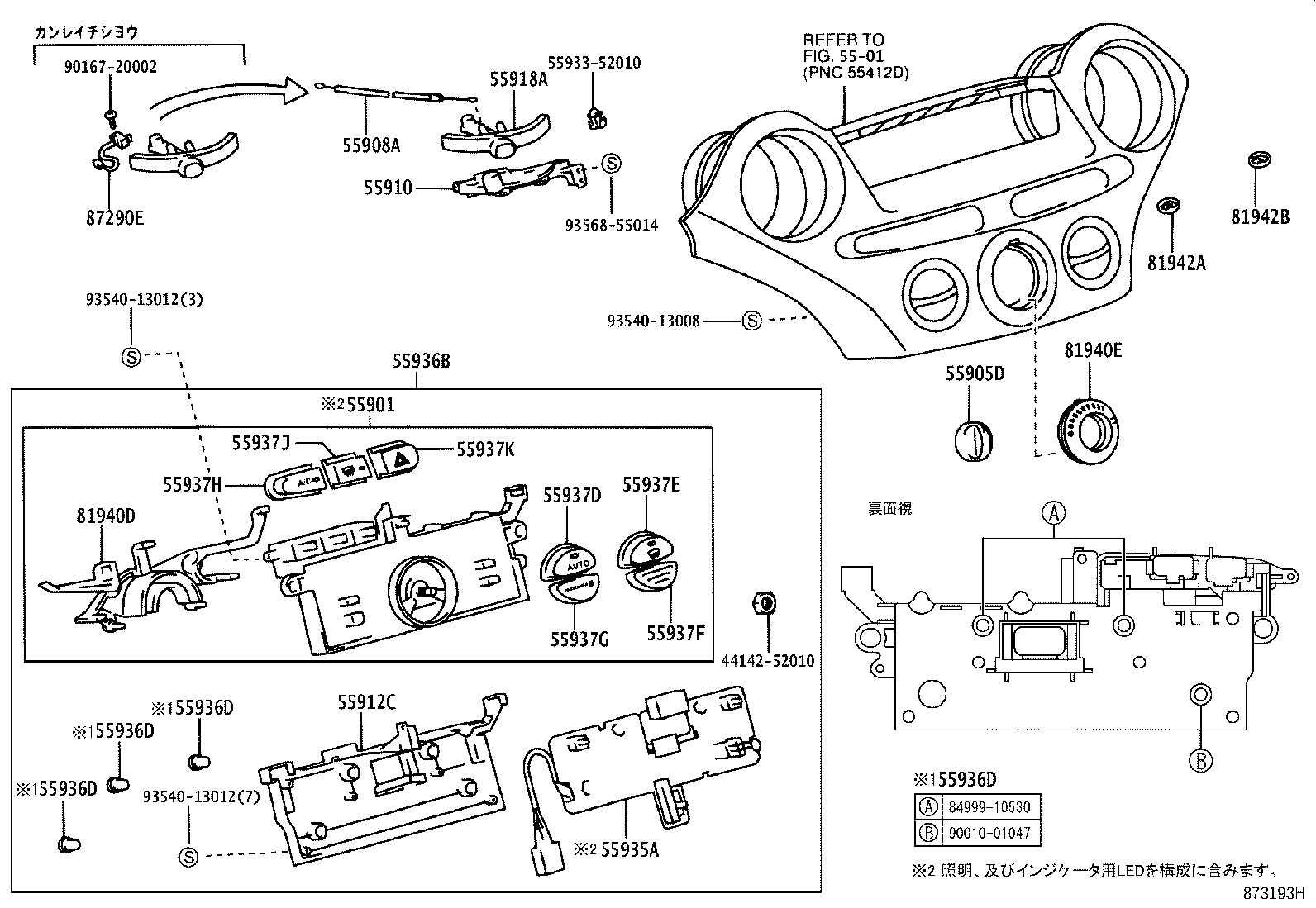

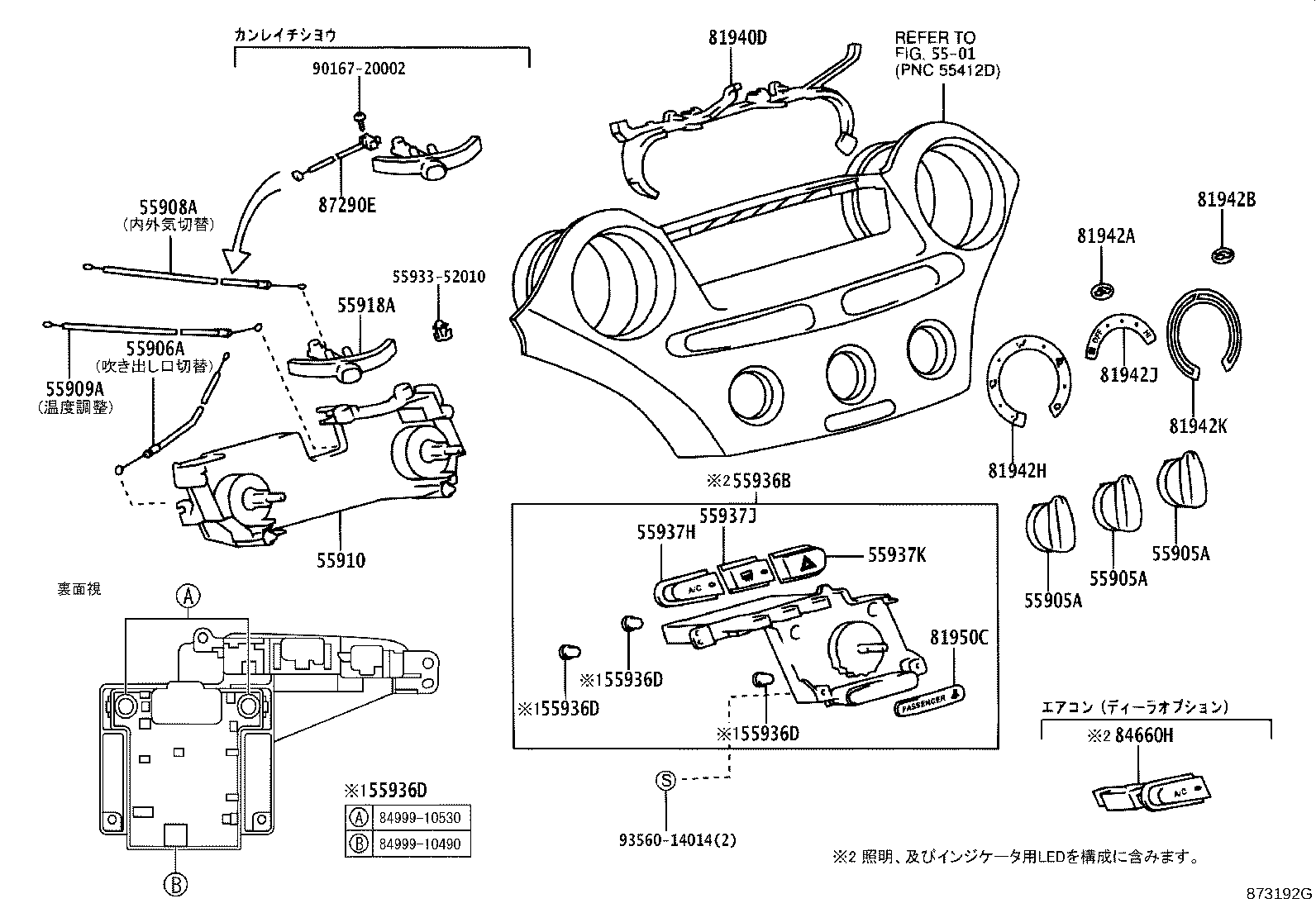

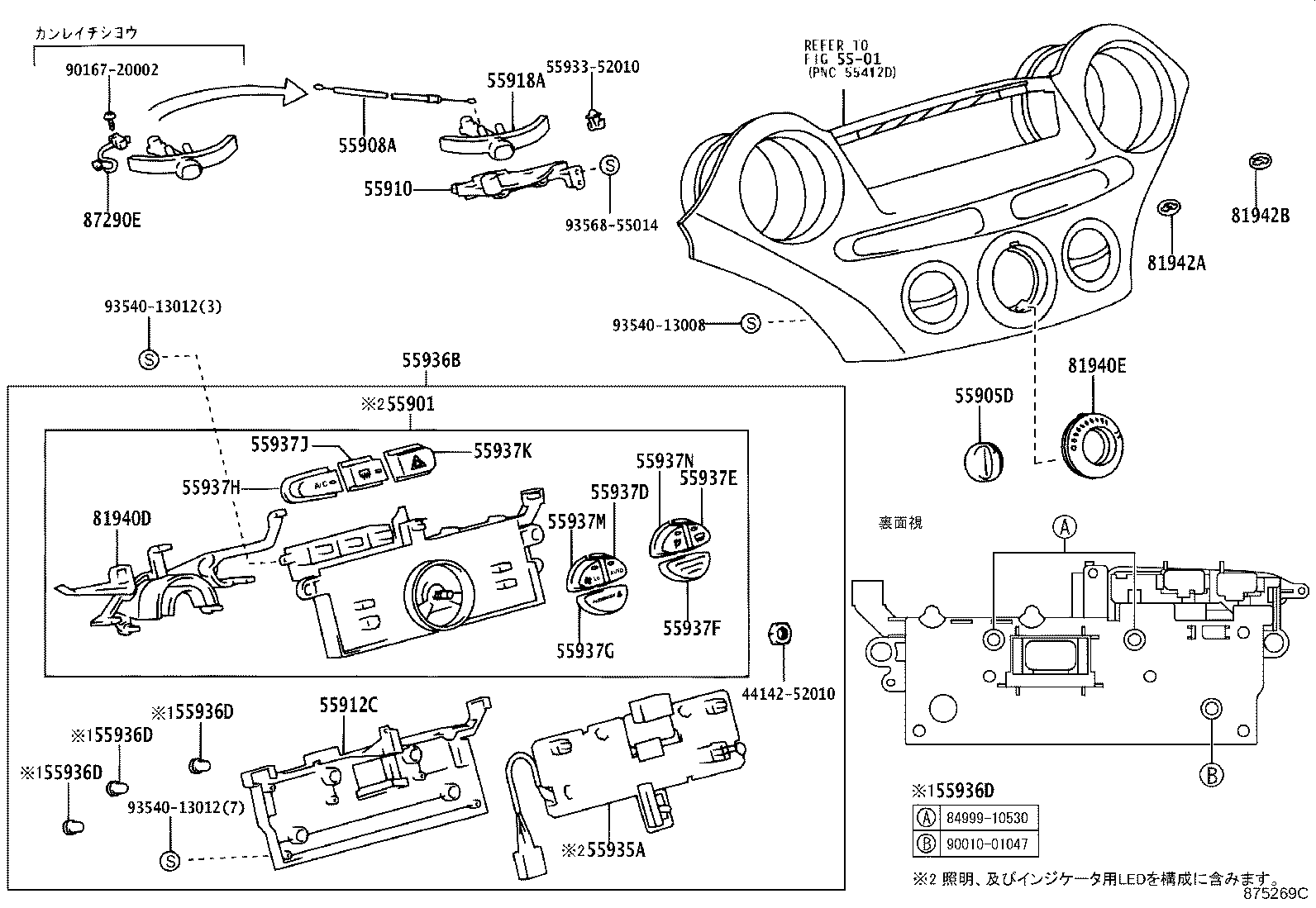

ILLUST NO. 1 OF 3(9908-0208)
ｺﾝﾄﾛ-ﾙ---ﾏﾆﾕｱﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP1#,SCP11..F |
3 | ||
| 55905-52010 |
NCP1#,SCP11 |
3 | ||
| 55905-52090 |
NCP1#..ATM..X ｼﾙﾊﾞｰ塗装 |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP1#,SCP11..F |
3 | ||
| 55905-52010 |
NCP1#,SCP11 |
3 | ||
| 55905-52090 |
NCP1#..ATM..X ｼﾙﾊﾞｰ塗装 |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP1#,SCP11..F |
3 | ||
| 55905-52010 |
NCP1#,SCP11 |
3 | ||
| 55905-52090 |
NCP1#..ATM..X ｼﾙﾊﾞｰ塗装 |
3 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52010 |
NCP1#,SCP11..F |
1 | ||
| 55906-52010 |
NCP1#,SCP11 |
1 | ||
| 55906-52010 |
NCP1#,SCP11..F |
1 | ||
| 55906-52010 |
NCP1#..X |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55908-52020 |
NCP1#,SCP11 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52020 |
NCP1#,SCP11 |
1 | ||
| 55909-52020 |
NCP1#,SCP11..F |
1 | ||
| 55909-52020 |
NCP1#..X |
1 | ||
| 55909-52020 |
NCP1#,SCP11..F |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-52050 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55910-52030 |
NCP1#,SCP11..F |
1 | ||
| 55910-52030 |
NCP1#,SCP11..F |
1 | ||
| 55910-52030 |
NCP1#,SCP11 |
1 | ||
| 55910-52050 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55910-52030 |
NCP1#..X |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52010 |
NCP1#,SCP11 |
1 | ||
| 55918-52070 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55918-52060 |
NCP1#,SCP11 |
1 | ||
| 55918-52020 |
NCP1#,SCP11 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 55936-52040 |
NCP1#..X |
1 | ||
| 55936-52010 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 84010-52360 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 84010-52010 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 84010-52010 |
NCP1#,SCP11..F |
1 | ||
| 84010-52360 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55936-52040 |
NCP16,SCP11..F ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55936-52070 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55937H - KNOB, CENTER CLUSTER MODULE, NO.5 | ||||
| 55937-52260 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55937-52010 |
NCP1#,SCP11 ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 55937J - KNOB, CENTER CLUSTER MODULE, NO.6 | ||||
| 55937-52040 |
NCP1#,SCP11..F |
1 | ||
| 55937-52110 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52230 |
NCP16,SCP11..F ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52230 |
NCP1#..X |
1 | ||
| 55937-52290 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937-52040 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937-52280 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52290 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937K - KNOB, CENTER CLUSTER MODULE, NO.7 | ||||
| 55937-52270 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55937-52060 |
NCP1#,SCP11 |
1 | ||
| 81940D - LENS ASSY, HEATER CONTROL | ||||
| 81940-52020 |
NCP1#,SCP11..F |
1 | ||
| 55938-52020 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 81940-52020 |
NCP1#,SCP11..F |
1 | ||
| 81940-52080 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55938-52010 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55938-52020 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 81940-52080 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 81940-52020 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-52020B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 81942H - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81942-52030B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 81942-52080B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 81942-52030B1 |
NCP1#,SCP11..F AMETHYST,TRIM9# |
1 | ||
| 81942J - SHEET, HEATER CONTROL NAME, NO.4 | ||||
| 81942-52040B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 81942-52040B1 |
NCP1#,SCP11..F AMETHYST,TRIM9# |
1 | ||
| 81942K - SHEET, HEATER CONTROL NAME, NO.5 | ||||
| 81942-52050B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 81942-52050B1 |
NCP1#,SCP11..F AMETHYST,TRIM9# |
1 | ||
| 81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR | ||||
| 81950-52060 |
NCP1#..X |
1 | ||
| 81950-52060 |
NCP1#,SCP11..F |
1 | ||
| 81950-52010 |
NCP1#,SCP11 |
1 | ||
| 87290E - SWITCH ASSY, HEATER | ||||
| 87290-52010 |
NCP1#,SCP11 |
1 | ||
| 87290-52010 |
NCP1#,SCP11..F |
1 | ||
| 87290-52010 |
NCP1#..ATM..X |
1 | ||
| 87290-52020 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 55933-52010 | ||||
| 90167-20002 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 5501 | ||||

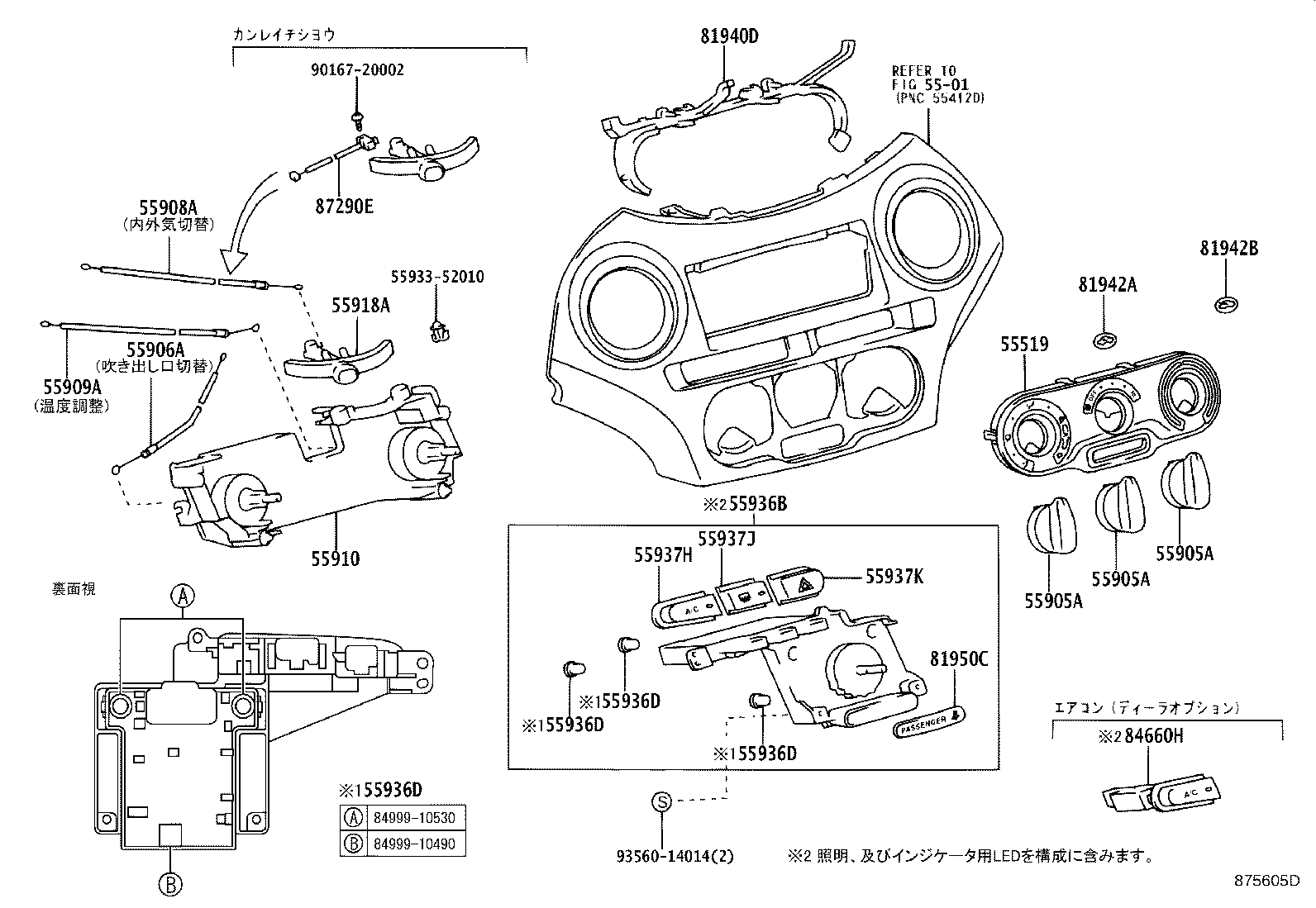

ILLUST NO. 1 OF 3(9908-0112)
ｺﾝﾄﾛ-ﾙ---ｵ-ﾄ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55901-52040 |
NCP1#..ATM..X |
1 | ||
| 55901-52030 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-52020 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55905-52100 |
NCP1#..ATM..X |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55908-52020 |
NCP1#,SCP11 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-52030 |
NCP1#,SCP11..F |
1 | ||
| 55910-52030 |
NCP1#,SCP11..F |
1 | ||
| 55910-52030 |
NCP1#,SCP11 |
1 | ||
| 55910-52050 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55910-52030 |
NCP1#..X |
1 | ||
| 55910-52050 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55912C - HOUSING, HEATER CONTROL | ||||
| 55912-52050 |
NCP1#..ATM..X |
1 | ||
| 55912-52020 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55912-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52010 |
NCP1#,SCP11 |
1 | ||
| 55918-52070 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55918-52060 |
NCP1#,SCP11 |
1 | ||
| 55918-52020 |
NCP1#,SCP11 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 55935A - CIRCUIT, CENTER CLUSTER MODULE | ||||
| 55935-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55935-52020 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55935-52030 |
NCP1#..ATM..X |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 55936-52040 |
NCP1#..X |
1 | ||
| 55936-52010 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 84010-52360 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 84010-52010 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 84010-52010 |
NCP1#,SCP11..F |
1 | ||
| 84010-52360 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55936-52040 |
NCP16,SCP11..F ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55936-52070 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55937D - KNOB, CENTER CLUSTER MODULE, NO.1 | ||||
| 55937-52070 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52210 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52460 |
NCP1#..ATM..X |
1 | ||
| 55937E - KNOB, CENTER CLUSTER MODULE, NO.2 | ||||
| 55937-52220 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52470 |
NCP1#..ATM..X |
1 | ||
| 55937-52080 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937F - KNOB, CENTER CLUSTER MODULE, NO.3 | ||||
| 55937-52090 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52440 |
NCP1#..ATM..X |
1 | ||
| 55937G - KNOB, CENTER CLUSTER MODULE, NO.4 | ||||
| 55937-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52450 |
NCP1#..ATM..X |
1 | ||
| 55937H - KNOB, CENTER CLUSTER MODULE, NO.5 | ||||
| 55937-52260 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55937-52010 |
NCP1#,SCP11 ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 55937J - KNOB, CENTER CLUSTER MODULE, NO.6 | ||||
| 55937-52040 |
NCP1#,SCP11..F |
1 | ||
| 55937-52110 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52230 |
NCP16,SCP11..F ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52230 |
NCP1#..X |
1 | ||
| 55937-52290 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937-52040 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937-52280 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52290 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937K - KNOB, CENTER CLUSTER MODULE, NO.7 | ||||
| 55937-52270 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55937-52060 |
NCP1#,SCP11 |
1 | ||
| 81940D - LENS ASSY, HEATER CONTROL | ||||
| 81940-52020 |
NCP1#,SCP11..F |
1 | ||
| 55938-52020 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 81940-52020 |
NCP1#,SCP11..F |
1 | ||
| 81940-52080 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55938-52010 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55938-52020 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 81940-52080 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 81940-52020 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 81940E - LENS ASSY, HEATER CONTROL | ||||
| 81940-52090 |
NCP1#..ATM..X |
1 | ||
| 81940-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-52020B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 87290E - SWITCH ASSY, HEATER | ||||
| 87290-52010 |
NCP1#,SCP11 |
1 | ||
| 87290-52010 |
NCP1#,SCP11..F |
1 | ||
| 87290-52010 |
NCP1#..ATM..X |
1 | ||
| 87290-52020 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 44142-52010 | ||||
| 55933-52010 | ||||
| 90167-20002 | ||||
| 93540-13008 | ||||
| 93540-13012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||

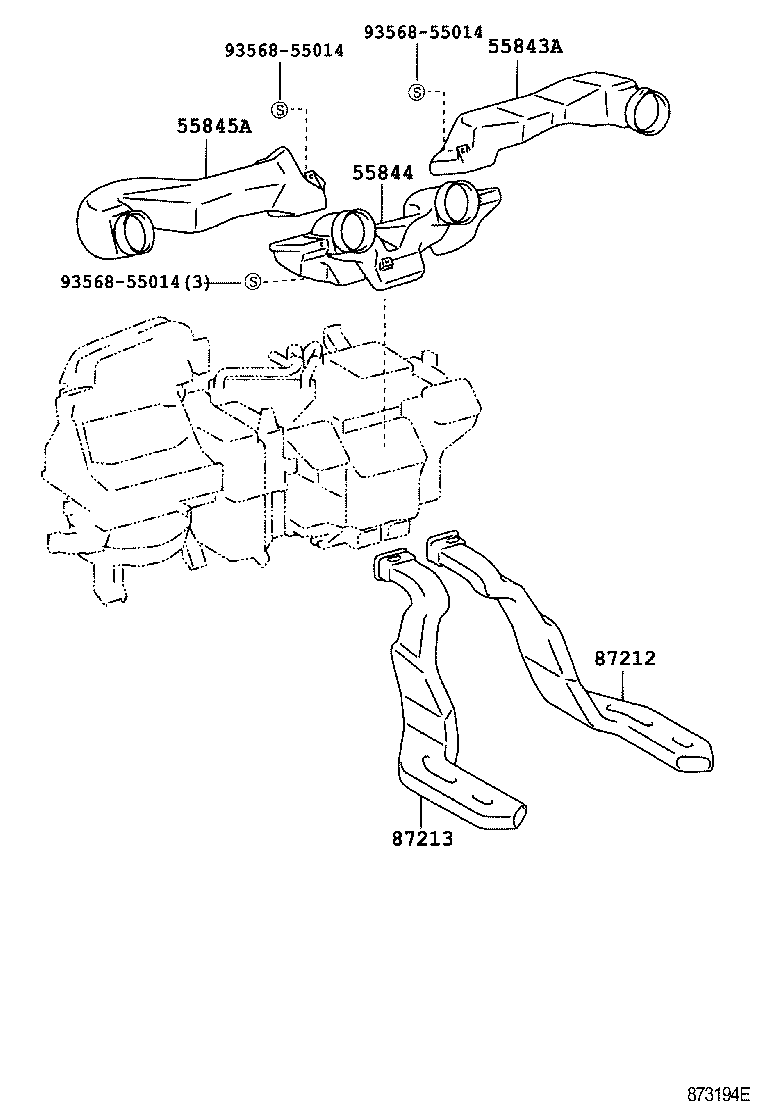

ILLUST NO. 2 OF 3(9908- )
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-52110 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55843-52020 |
NCP1#,SCP11 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-52110 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55844-52020 |
NCP1#,SCP11 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-52020 |
NCP1#,SCP11 |
1 | ||
| 55845-52090 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-52020 |
NCP16 |
1 | ||
| 87212-52020 |
NCP16..ATM;NCP16..MTM..F |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-52010 |
NCP1#,SCP11 |
1 | ||
| 87213-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
ILLUST NO. 3 OF 3(9908- )

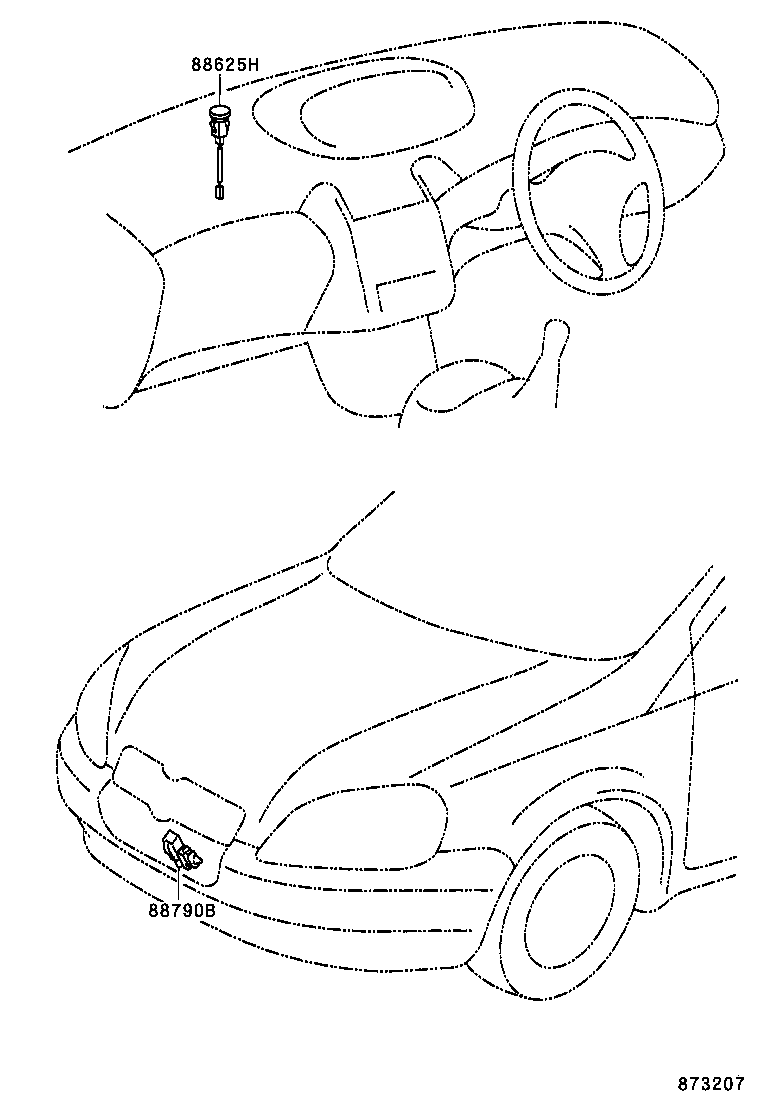

ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-52010 |
NCP1#..ATM..X |
1 | ||
| 88625-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22130 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 88790-22131 |
NCP1#..ATM..X |
1 | ||
ILLUST NO. 1 OF 3(0112-0208)
ｺﾝﾄﾛ-ﾙ---ｵ-ﾄ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55901-52040 |
NCP1#..ATM..X |
1 | ||
| 55901-52030 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-52020 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55905-52100 |
NCP1#..ATM..X |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55908-52020 |
NCP1#,SCP11 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-52030 |
NCP1#,SCP11..F |
1 | ||
| 55910-52030 |
NCP1#,SCP11..F |
1 | ||
| 55910-52030 |
NCP1#,SCP11 |
1 | ||
| 55910-52050 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55910-52030 |
NCP1#..X |
1 | ||
| 55910-52050 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55912C - HOUSING, HEATER CONTROL | ||||
| 55912-52050 |
NCP1#..ATM..X |
1 | ||
| 55912-52020 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55912-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52010 |
NCP1#,SCP11 |
1 | ||
| 55918-52070 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55918-52060 |
NCP1#,SCP11 |
1 | ||
| 55918-52020 |
NCP1#,SCP11 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 55935A - CIRCUIT, CENTER CLUSTER MODULE | ||||
| 55935-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55935-52020 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55935-52030 |
NCP1#..ATM..X |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 55936-52040 |
NCP1#..X |
1 | ||
| 55936-52010 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 84010-52360 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 84010-52010 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 84010-52010 |
NCP1#,SCP11..F |
1 | ||
| 84010-52360 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55936-52040 |
NCP16,SCP11..F ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55936-52070 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55937D - KNOB, CENTER CLUSTER MODULE, NO.1 | ||||
| 55937-52070 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52210 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52460 |
NCP1#..ATM..X |
1 | ||
| 55937E - KNOB, CENTER CLUSTER MODULE, NO.2 | ||||
| 55937-52220 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52470 |
NCP1#..ATM..X |
1 | ||
| 55937-52080 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937F - KNOB, CENTER CLUSTER MODULE, NO.3 | ||||
| 55937-52090 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52440 |
NCP1#..ATM..X |
1 | ||
| 55937G - KNOB, CENTER CLUSTER MODULE, NO.4 | ||||
| 55937-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52450 |
NCP1#..ATM..X |
1 | ||
| 55937H - KNOB, CENTER CLUSTER MODULE, NO.5 | ||||
| 55937-52260 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55937-52010 |
NCP1#,SCP11 ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 55937J - KNOB, CENTER CLUSTER MODULE, NO.6 | ||||
| 55937-52040 |
NCP1#,SCP11..F |
1 | ||
| 55937-52110 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52230 |
NCP16,SCP11..F ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52230 |
NCP1#..X |
1 | ||
| 55937-52290 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937-52040 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937-52280 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52290 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937K - KNOB, CENTER CLUSTER MODULE, NO.7 | ||||
| 55937-52270 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55937-52060 |
NCP1#,SCP11 |
1 | ||
| 55937M - KNOB, CENTER CLUSTER MODULE, NO.8 | ||||
| 55937-52240 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52480 |
NCP1#..ATM..X |
1 | ||
| 55937N - KNOB, CENTER CLUSTER MODULE, NO.9 | ||||
| 55937-52250 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52490 |
NCP1#..ATM..X |
1 | ||
| 81940D - LENS ASSY, HEATER CONTROL | ||||
| 81940-52020 |
NCP1#,SCP11..F |
1 | ||
| 55938-52020 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 81940-52020 |
NCP1#,SCP11..F |
1 | ||
| 81940-52080 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55938-52010 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55938-52020 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 81940-52080 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 81940-52020 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 81940E - LENS ASSY, HEATER CONTROL | ||||
| 81940-52090 |
NCP1#..ATM..X |
1 | ||
| 81940-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-52020B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 87290E - SWITCH ASSY, HEATER | ||||
| 87290-52010 |
NCP1#,SCP11 |
1 | ||
| 87290-52010 |
NCP1#,SCP11..F |
1 | ||
| 87290-52010 |
NCP1#..ATM..X |
1 | ||
| 87290-52020 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 44142-52010 | ||||
| 55933-52010 | ||||
| 90167-20002 | ||||
| 93540-13008 | ||||
| 93540-13012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 1 OF 3(0208- )
ｺﾝﾄﾛ-ﾙ---ﾏﾆﾕｱﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-52010 |
NCP1#..ATM..X |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP1#,SCP11..F |
3 | ||
| 55905-52010 |
NCP1#,SCP11 |
3 | ||
| 55905-52090 |
NCP1#..ATM..X ｼﾙﾊﾞｰ塗装 |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP1#,SCP11..F |
3 | ||
| 55905-52010 |
NCP1#,SCP11 |
3 | ||
| 55905-52090 |
NCP1#..ATM..X ｼﾙﾊﾞｰ塗装 |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP1#,SCP11..F |
3 | ||
| 55905-52010 |
NCP1#,SCP11 |
3 | ||
| 55905-52090 |
NCP1#..ATM..X ｼﾙﾊﾞｰ塗装 |
3 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52010 |
NCP1#,SCP11..F |
1 | ||
| 55906-52010 |
NCP1#,SCP11 |
1 | ||
| 55906-52010 |
NCP1#,SCP11..F |
1 | ||
| 55906-52010 |
NCP1#..X |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55908-52020 |
NCP1#,SCP11 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52020 |
NCP1#,SCP11 |
1 | ||
| 55909-52020 |
NCP1#,SCP11..F |
1 | ||
| 55909-52020 |
NCP1#..X |
1 | ||
| 55909-52020 |
NCP1#,SCP11..F |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-52030 |
NCP1#,SCP11..F |
1 | ||
| 55910-52030 |
NCP1#,SCP11..F |
1 | ||
| 55910-52030 |
NCP1#,SCP11 |
1 | ||
| 55910-52050 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55910-52030 |
NCP1#..X |
1 | ||
| 55910-52050 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52010 |
NCP1#,SCP11 |
1 | ||
| 55918-52070 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55918-52060 |
NCP1#,SCP11 |
1 | ||
| 55918-52020 |
NCP1#,SCP11 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 55936-52040 |
NCP1#..X |
1 | ||
| 55936-52010 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 84010-52360 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 84010-52010 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 84010-52010 |
NCP1#,SCP11..F |
1 | ||
| 84010-52360 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55936-52040 |
NCP16,SCP11..F ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55936-52070 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55937H - KNOB, CENTER CLUSTER MODULE, NO.5 | ||||
| 55937-52260 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55937-52010 |
NCP1#,SCP11 ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 55937J - KNOB, CENTER CLUSTER MODULE, NO.6 | ||||
| 55937-52040 |
NCP1#,SCP11..F |
1 | ||
| 55937-52110 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52230 |
NCP16,SCP11..F ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52230 |
NCP1#..X |
1 | ||
| 55937-52290 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937-52040 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937-52280 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52290 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937K - KNOB, CENTER CLUSTER MODULE, NO.7 | ||||
| 55937-52270 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55937-52060 |
NCP1#,SCP11 |
1 | ||
| 81940D - LENS ASSY, HEATER CONTROL | ||||
| 81940-52020 |
NCP1#,SCP11..F |
1 | ||
| 55938-52020 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 81940-52020 |
NCP1#,SCP11..F |
1 | ||
| 81940-52080 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55938-52010 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55938-52020 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 81940-52080 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 81940-52020 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-52020B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR | ||||
| 81950-52060 |
NCP1#..X |
1 | ||
| 81950-52060 |
NCP1#,SCP11..F |
1 | ||
| 81950-52010 |
NCP1#,SCP11 |
1 | ||
| 87290E - SWITCH ASSY, HEATER | ||||
| 87290-52010 |
NCP1#,SCP11 |
1 | ||
| 87290-52010 |
NCP1#,SCP11..F |
1 | ||
| 87290-52010 |
NCP1#..ATM..X |
1 | ||
| 87290-52020 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 55933-52010 | ||||
| 90167-20002 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 1 OF 3(0208- )
ｺﾝﾄﾛｰﾙｰｰｰｵｰﾄ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55901-52040 |
NCP1#..ATM..X |
1 | ||
| 55901-52030 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-52020 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55905-52100 |
NCP1#..ATM..X |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55908-52020 |
NCP1#,SCP11 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-52030 |
NCP1#,SCP11..F |
1 | ||
| 55910-52030 |
NCP1#,SCP11..F |
1 | ||
| 55910-52030 |
NCP1#,SCP11 |
1 | ||
| 55910-52050 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55910-52030 |
NCP1#..X |
1 | ||
| 55910-52050 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55912C - HOUSING, HEATER CONTROL | ||||
| 55912-52050 |
NCP1#..ATM..X |
1 | ||
| 55912-52020 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55912-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52010 |
NCP1#,SCP11 |
1 | ||
| 55918-52070 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55918-52060 |
NCP1#,SCP11 |
1 | ||
| 55918-52020 |
NCP1#,SCP11 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 55935A - CIRCUIT, CENTER CLUSTER MODULE | ||||
| 55935-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55935-52020 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55935-52030 |
NCP1#..ATM..X |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 55936-52040 |
NCP1#..X |
1 | ||
| 55936-52010 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 84010-52360 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 84010-52010 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 84010-52010 |
NCP1#,SCP11..F |
1 | ||
| 84010-52360 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55936-52040 |
NCP16,SCP11..F ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55936-52070 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP12..X;NCP16,SCP11 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#,SCP11 14V 0.84W |
1 | ||
| 84999-10530 |
NCP1#,SCP11 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#,SCP11 14V,1.4W |
1 | ||
| 84999-10530 |
NCP12..X;NCP16,SCP11 14V 1.8W |
2 | ||
| 84999-10490 |
NCP1#,SCP11..F 14V 0.84W |
1 | ||
| 84999-10530 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 14V 1.8W |
2 | ||
| 90010-01047 |
NCP1#..ATM..X 14V,1.4W |
1 | ||
| 84999-10490 |
NCP1#..X 14V 0.84W |
1 | ||
| 55937D - KNOB, CENTER CLUSTER MODULE, NO.1 | ||||
| 55937-52070 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52210 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52460 |
NCP1#..ATM..X |
1 | ||
| 55937E - KNOB, CENTER CLUSTER MODULE, NO.2 | ||||
| 55937-52220 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52470 |
NCP1#..ATM..X |
1 | ||
| 55937-52080 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937F - KNOB, CENTER CLUSTER MODULE, NO.3 | ||||
| 55937-52090 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52440 |
NCP1#..ATM..X |
1 | ||
| 55937G - KNOB, CENTER CLUSTER MODULE, NO.4 | ||||
| 55937-52100 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52450 |
NCP1#..ATM..X |
1 | ||
| 55937H - KNOB, CENTER CLUSTER MODULE, NO.5 | ||||
| 55937-52260 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55937-52010 |
NCP1#,SCP11 ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 55937J - KNOB, CENTER CLUSTER MODULE, NO.6 | ||||
| 55937-52040 |
NCP1#,SCP11..F |
1 | ||
| 55937-52110 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52230 |
NCP16,SCP11..F ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52230 |
NCP1#..X |
1 | ||
| 55937-52290 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937-52040 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937-52280 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55937-52290 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55937K - KNOB, CENTER CLUSTER MODULE, NO.7 | ||||
| 55937-52270 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 55937-52060 |
NCP1#,SCP11 |
1 | ||
| 55937M - KNOB, CENTER CLUSTER MODULE, NO.8 | ||||
| 55937-52240 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52480 |
NCP1#..ATM..X |
1 | ||
| 55937N - KNOB, CENTER CLUSTER MODULE, NO.9 | ||||
| 55937-52250 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 55937-52490 |
NCP1#..ATM..X |
1 | ||
| 81940D - LENS ASSY, HEATER CONTROL | ||||
| 81940-52020 |
NCP1#,SCP11..F |
1 | ||
| 55938-52020 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 81940-52020 |
NCP1#,SCP11..F |
1 | ||
| 81940-52080 |
NCP1#,SCP11..F ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 55938-52010 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 55938-52020 |
NCP1#..ATM..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 81940-52080 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 81940-52020 |
NCP1#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 81940E - LENS ASSY, HEATER CONTROL | ||||
| 81940-52090 |
NCP1#..ATM..X |
1 | ||
| 81940-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-52020B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 87290E - SWITCH ASSY, HEATER | ||||
| 87290-52010 |
NCP1#,SCP11 |
1 | ||
| 87290-52010 |
NCP1#,SCP11..F |
1 | ||
| 87290-52010 |
NCP1#..ATM..X |
1 | ||
| 87290-52020 |
NCP12..X;NCP16,SCP11 ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 44142-52010 | ||||
| 55933-52010 | ||||
| 90167-20002 | ||||
| 93540-13008 | ||||
| 93540-13012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
