NCP12-BEPNK (1999)
Toyota Platz
Production
Aug 1999
-
Nov 2005
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908-0208)

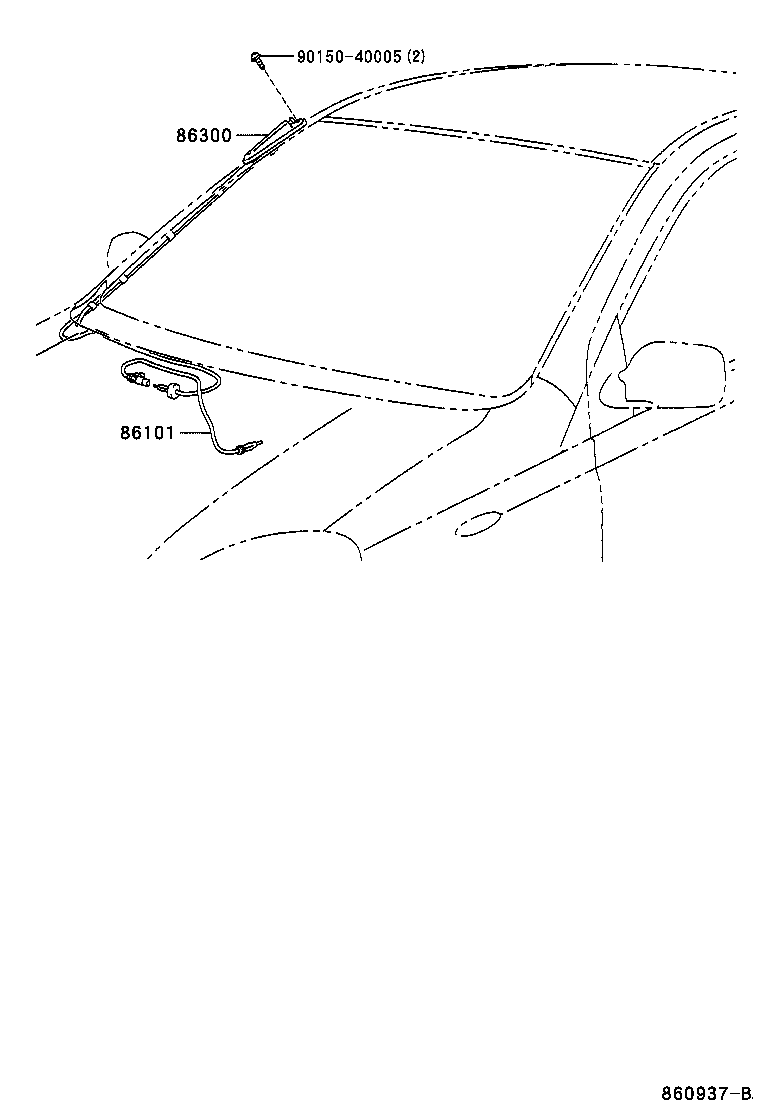

Click highlighted areas on diagram
ﾋﾟﾗ- ｱﾝﾃﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-52030 |
NCP1#,SCP11 |
1 | ||
| 86101-52120 |
NCP1#,SCP11 |
1 | ||
| 86101-52120 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-52030 |
NCP1#,SCP11 |
1 | ||
| 86300-52090 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 86300-52090 |
NCP1#,SCP11 |
1 | ||
| Common parts | ||||
| 90150-40005 | ||||
(0112- )

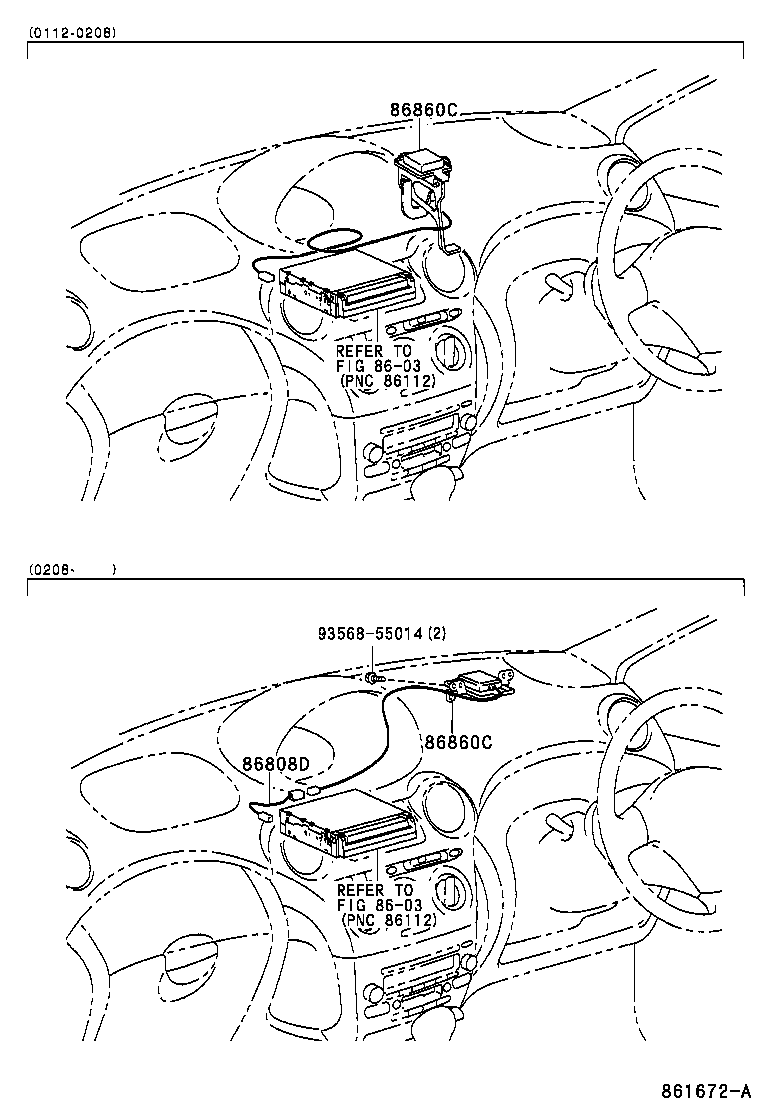

Click highlighted areas on diagram
ﾅﾋﾞｹﾞ-ｼﾖﾝ ｱﾝﾃﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86860C - ANTENNA ASSY, NAVIGATION | ||||
| 86860-52100 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 86860-52100 |
NCP1#,SCP11 |
1 | ||
| 86860-52040 |
NCP1#,SCP11 |
1 | ||
| 86860C - ANTENNA ASSY, NAVIGATION | ||||
| 86860-52100 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 86860-52100 |
NCP1#,SCP11 |
1 | ||
| 86860-52040 |
NCP1#,SCP11 |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8603 | ||||
(0208- )

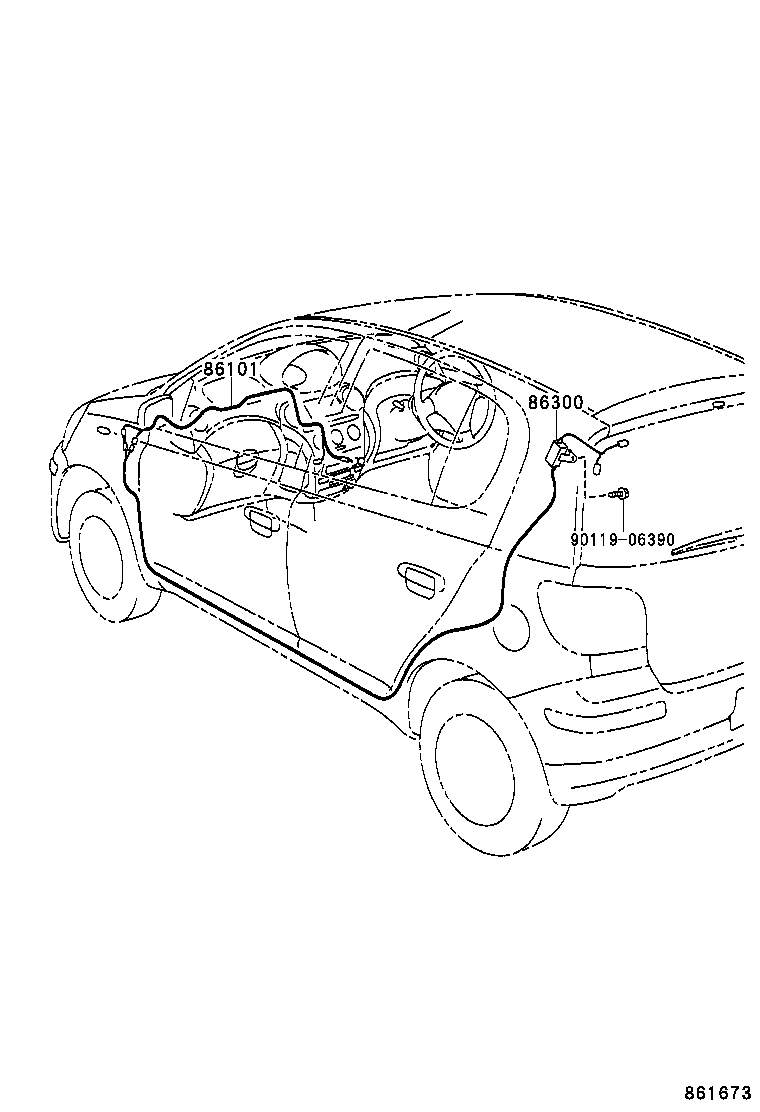

Click highlighted areas on diagram
ｶﾞﾗｽ ｱﾝﾃﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-52030 |
NCP1#,SCP11 |
1 | ||
| 86101-52120 |
NCP1#,SCP11 |
1 | ||
| 86101-52120 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-52030 |
NCP1#,SCP11 |
1 | ||
| 86300-52090 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 86300-52090 |
NCP1#,SCP11 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
