NCP12-BEPNK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )NCP12..ATM

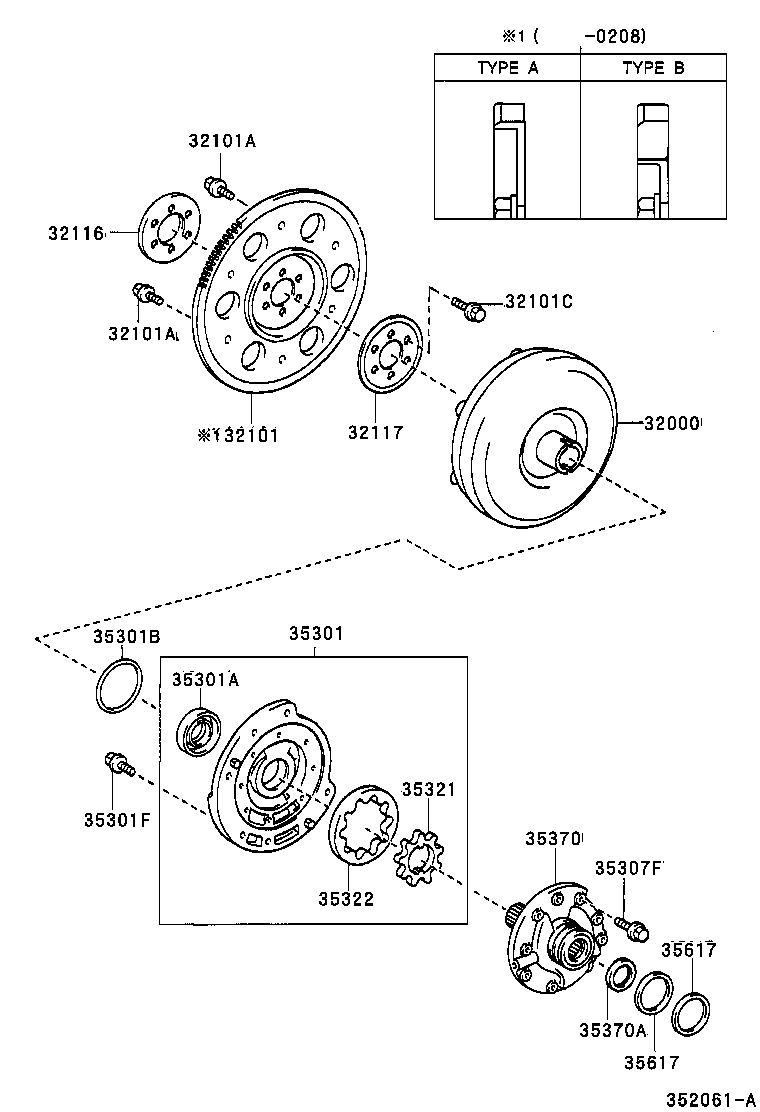

Click highlighted areas on diagram

U340E

diagram 32000 32101 32101A 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35307F 35321 35322 35370 35370A 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-52040

NCP12..ATM

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-52021

NCP1#..ATM

 1
32101-52020

NCP12..ATM

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
32111-52040

NCP12..ATM

TYPE A:ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08269

NCP1#,SCP11..ATM

*8−1.25PX12−8,ﾌﾞﾗｯｸ

 5
90109-08107

NCP1#,SCP11..ATM

*8−1.25PX12−8.4,ｵﾘｰﾌﾞ ｸﾞﾘｰﾝ

 1
90109-08107

NCP1#..ATM

*8−1.25PX12−8.4,ｵﾘｰﾌﾞ ｸﾞﾘｰﾝ

 1
90119-08269

NCP1#..ATM

*8−1.25PX12−8,ﾌﾞﾗｯｸ

 5
90119-08498

NCP1#..ATM

*8−1.25PX12−8,ﾌﾞﾗｯｸ

 5
90109-08113

NCP1#..ATM

*8−1.25PX12−8.4,ｵﾘｰﾌﾞ ｸﾞﾘｰﾝ

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08269

NCP1#,SCP11..ATM

*8−1.25PX12−8,ﾌﾞﾗｯｸ

 5
90109-08107

NCP1#,SCP11..ATM

*8−1.25PX12−8.4,ｵﾘｰﾌﾞ ｸﾞﾘｰﾝ

 1
90109-08107

NCP1#..ATM

*8−1.25PX12−8.4,ｵﾘｰﾌﾞ ｸﾞﾘｰﾝ

 1
90119-08269

NCP1#..ATM

*8−1.25PX12−8,ﾌﾞﾗｯｸ

 5
90119-08498

NCP1#..ATM

*8−1.25PX12−8,ﾌﾞﾗｯｸ

 5
90109-08113

NCP1#..ATM

*8−1.25PX12−8.4,ｵﾘｰﾌﾞ ｸﾞﾘｰﾝ

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

NCP1#,SCP11..ATM

*10−1.25PX18−13

 6
90105-10048

NCP1#,SCP11..ATM

*10−1.25PX18−13

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-52030

NCP1#..ATM

 1
32116-52030

NCP1#..ATM

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-52030

NCP1#..ATM

 1
32117-52030

NCP1#..ATM

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35035-52040

NCP12..ATM

 1
35035-52040

NCP12..ATM

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38064

NCP12..ATM

ﾌﾞﾗｳﾝ

 1
90311-38077

NCP12..ATM

ﾌﾞﾗｯｸ

 1
90311-38064

NCP12..ATM

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99124

NCP12..ATM

 1
90301-99124

NCP12..ATM

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08301

NCP12..ATM

*8−1.25PX22−20

 7
90105-08301

NCP12..ATM

*8−1.25PX22−20

 7
35307F - BOLT (FOR STATOR SHAFT)
90148-60027

NCP12..ATM

 10
90148-60027

NCP12..ATM

 10
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-52060

NCP12..ATM

厚さ=9.44−9.449,ﾏｰｸ 1

 1
35321-52090

NCP12..ATM

厚さ=9.471−9.48,ﾏｰｸ 4

 1
35321-52070

NCP12..ATM

厚さ=9.45−9.459,ﾏｰｸ 2

 1
35321-52090

NCP12..ATM

厚さ=9.471−9.48,ﾏｰｸ 4

 1
35321-52080

NCP12..ATM

厚さ=9.46−9.47,ﾏｰｸ 3

 1
35321-52060

NCP12..ATM

厚さ=9.44−9.449,ﾏｰｸ 1

 1
35321-52100

NCP12..ATM

厚さ=9.481−9.49,ﾏｰｸ 5

 1
35321-52070

NCP12..ATM

厚さ=9.45−9.459,ﾏｰｸ 2

 1
35321-52100

NCP12..ATM

厚さ=9.481−9.49,ﾏｰｸ 5

 1
35321-52080

NCP12..ATM

厚さ=9.46−9.47,ﾏｰｸ 3

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-52060

NCP12..ATM

厚さ=9.44−9.449,ﾏｰｸ 1

 1
35322-52080

NCP12..ATM

厚さ=9.46−9.47,ﾏｰｸ 3

 1
35322-52070

NCP12..ATM

厚さ=9.45−9.459,ﾏｰｸ 2

 1
35322-52080

NCP12..ATM

厚さ=9.46−9.47,ﾏｰｸ 3

 1
35322-52100

NCP12..ATM

厚さ=9.481−9.49 ﾏｰｸ 5

 1
35322-52060

NCP12..ATM

厚さ=9.44−9.449,ﾏｰｸ 1

 1
35322-52070

NCP12..ATM

厚さ=9.45−9.459,ﾏｰｸ 2

 1
35322-52100

NCP12..ATM

厚さ=9.481−9.49 ﾏｰｸ 5

 1
35322-52090

NCP12..ATM

厚さ=9.471−9.48,ﾏｰｸ 4

 1
35322-52090

NCP12..ATM

厚さ=9.471−9.48,ﾏｰｸ 4

 1
35370 - SHAFT ASSY, STATOR
35370-52030

NCP12..ATM

 1
35370A - BEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)
90374-26003

NCP12..ATM

 1
90374-26003

NCP12..ATM

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35613-52010

NCP12..ATM

 2
35613-52010

NCP12..ATM

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35613-52010

NCP12..ATM

 2
35613-52010

NCP12..ATM

 2
