NCP12-BEPEK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0208)NCP1#

Click highlighted areas on diagram

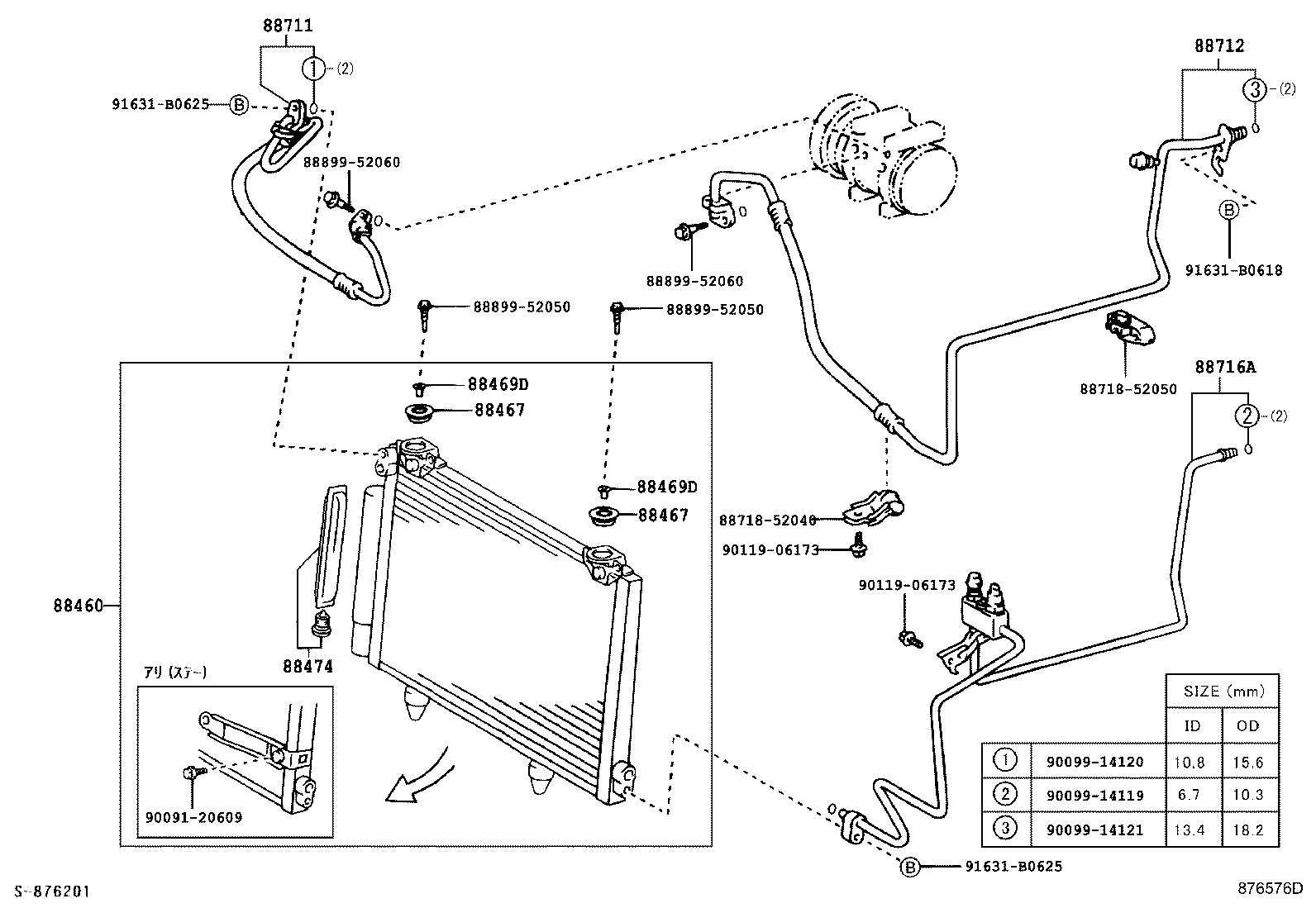

diagram 88374B 88374C 88375A 88375B 88460 88467 88467 88467A 88467A 88469D 88469D 88474 88645H 8868852030 88711 88712 88716A 8871852040 8871852050 8889952050 8889952050 8889952060 8889952060 9009914119 9009914120 9009914121 9011906173 9011906173 91633B0620 91633B0628 91633B0628 9338115008
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

NCP1#,SCP11

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NCP1#,SCP11

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

NCP1#,SCP11

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

NCP1#,SCP11

 1
88460 - CONDENSER ASSY, COOLER
88460-52010

NCP1#,SCP11

 1
88460-52050

NCP1#,SCP11

ｱﾘ(ｽﾃ-)

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
88467-52010

NCP1#,SCP11

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
88467-52010

NCP1#,SCP11

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-52020

NCP1#,SCP11

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-52020

NCP1#,SCP11

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
88469-52010

NCP1#,SCP11

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
88469-52010

NCP1#,SCP11

 2
88474 - DRYER, COOLER
88474-47010

NCP1#,SCP11

 1
88474-17010

NCP1#,SCP11

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

NCP1#,SCP11

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-52020

NCP1#

 1
88711-52021

NCP1#

 1
88711-52021

NCP1#..ATM;NCP1#..MTM..F

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-52030

NCP1#

 1
88712-52030

NCP1#..ATM;NCP1#..MTM..F

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-52040

NCP1#

 1
88706-52040

NCP1#..ATM;NCP1#..MTM..F

 1
Common parts
88688-52030
88718-52040
88718-52050
88899-52050
88899-52060
90099-14119
90099-14120
90099-14121
90119-06173
91633-B0620
91633-B0628
93381-15008

(0208-0303)NCP1#

Click highlighted areas on diagram

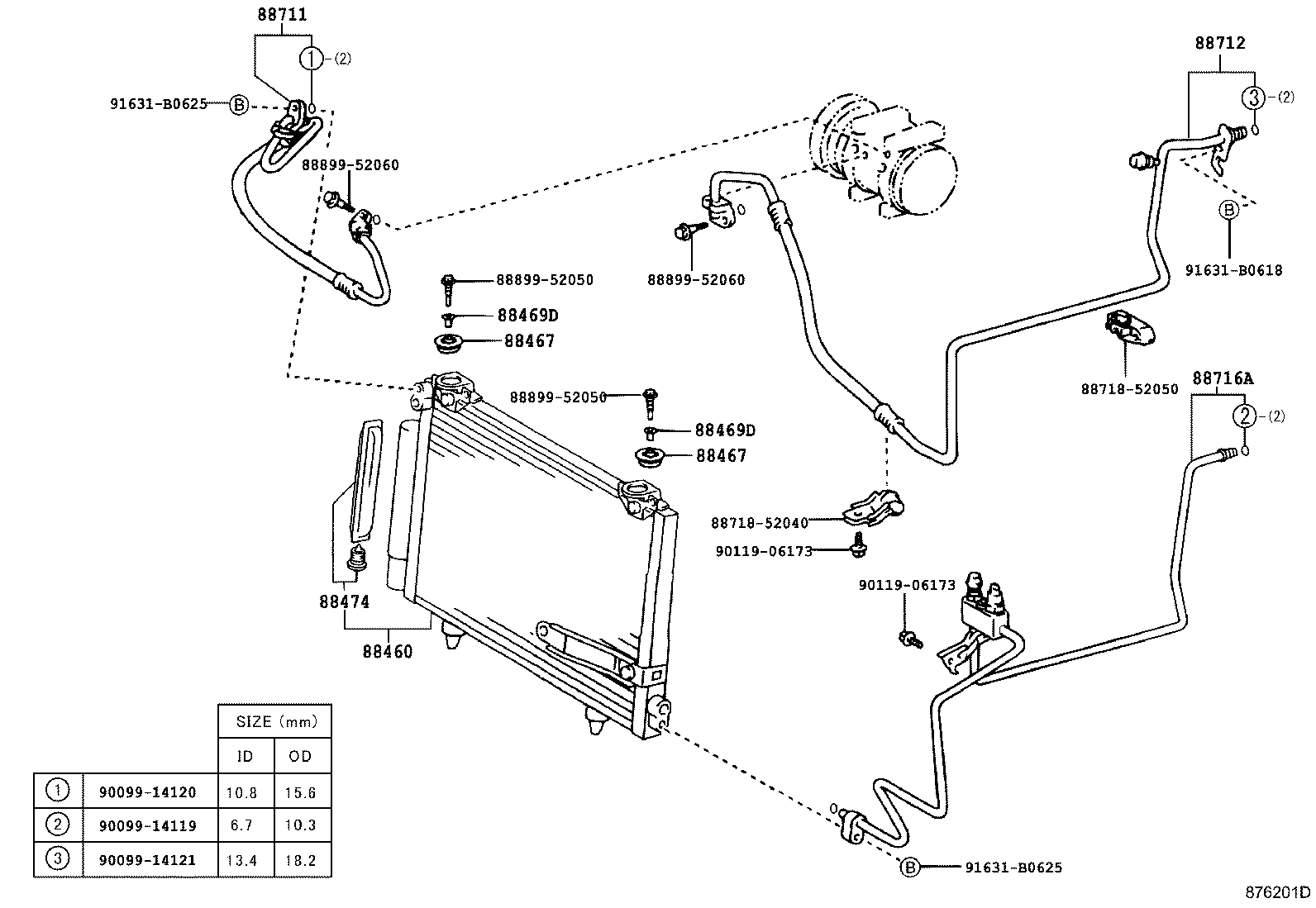

diagram 88460 88467 88467 88469D 88469D 88474 88711 88712 88716A 8871852040 8871852050 8889952050 8889952050 8889952060 8889952060 9009914119 9009914120 9009914121 9011906173 9011906173 91631B0618 91631B0625 91631B0625
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-52010

NCP1#,SCP11

 1
88460-52050

NCP1#,SCP11

ｱﾘ(ｽﾃ-)

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
88467-52010

NCP1#,SCP11

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
88467-52010

NCP1#,SCP11

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
88469-52010

NCP1#,SCP11

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
88469-52010

NCP1#,SCP11

 2
88474 - DRYER, COOLER
88474-47010

NCP1#,SCP11

 1
88474-17010

NCP1#,SCP11

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-52020

NCP1#

 1
88711-52021

NCP1#

 1
88711-52021

NCP1#..ATM;NCP1#..MTM..F

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-52030

NCP1#

 1
88712-52030

NCP1#..ATM;NCP1#..MTM..F

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-52040

NCP1#

 1
88706-52040

NCP1#..ATM;NCP1#..MTM..F

 1
Common parts
88718-52040
88718-52050
88899-52050
88899-52060
90099-14119
90099-14120
90099-14121
90119-06173
91631-B0618
91631-B0625

(0303- )NCP1#

Click highlighted areas on diagram

diagram 88460 88467 88467 88469D 88469D 88474 88711 88712 88716A 8871852040 8871852050 8889952050 8889952050 8889952060 8889952060 9009120609 9009914119 9009914120 9009914121 9011906173 9011906173 91631B0618 91631B0625 91631B0625
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-52010

NCP1#,SCP11

 1
88460-52050

NCP1#,SCP11

ｱﾘ(ｽﾃ-)

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
88467-52010

NCP1#,SCP11

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
88467-52010

NCP1#,SCP11

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
88469-52010

NCP1#,SCP11

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
88469-52010

NCP1#,SCP11

 2
88474 - DRYER, COOLER
88474-47010

NCP1#,SCP11

 1
88474-17010

NCP1#,SCP11

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-52020

NCP1#

 1
88711-52021

NCP1#

 1
88711-52021

NCP1#..ATM;NCP1#..MTM..F

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-52030

NCP1#

 1
88712-52030

NCP1#..ATM;NCP1#..MTM..F

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-52040

NCP1#

 1
88706-52040

NCP1#..ATM;NCP1#..MTM..F

 1
Common parts
88718-52040
88718-52050
88899-52050
88899-52060
90091-20609
90099-14119
90099-14120
90099-14121
90119-06173
91631-B0618
91631-B0625
