NCP12-BEPEK (1999)
Toyota Platz

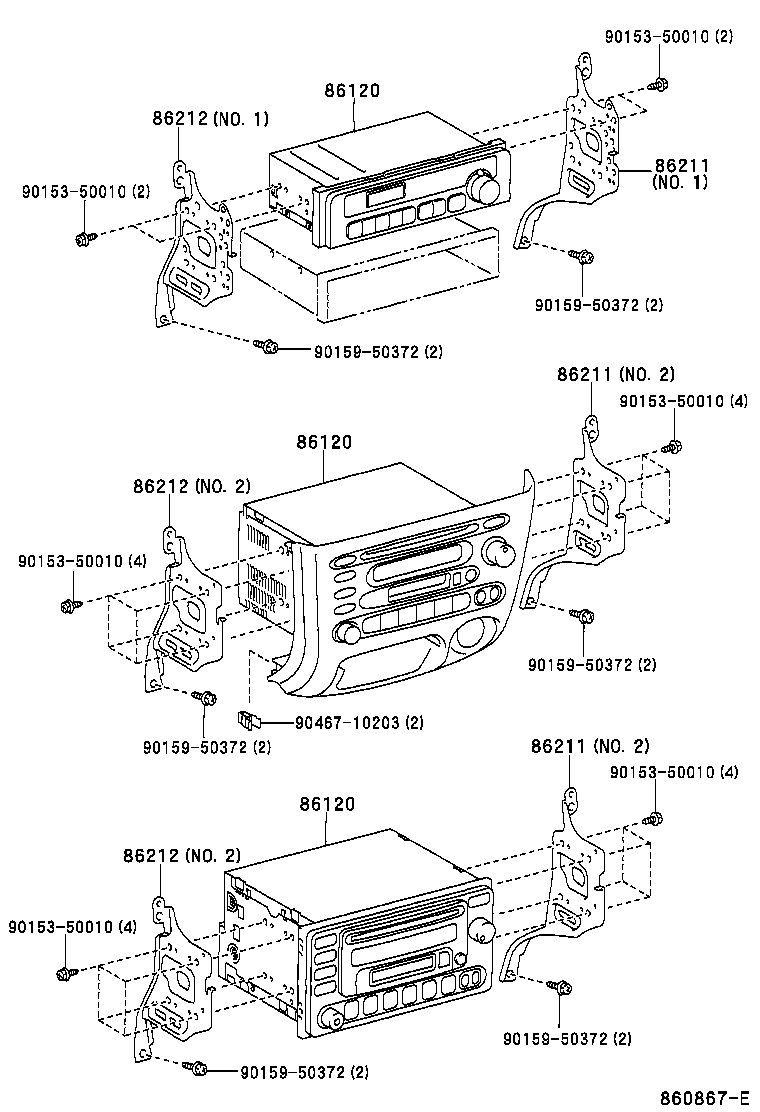

ILLUST NO. 1 OF 3(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

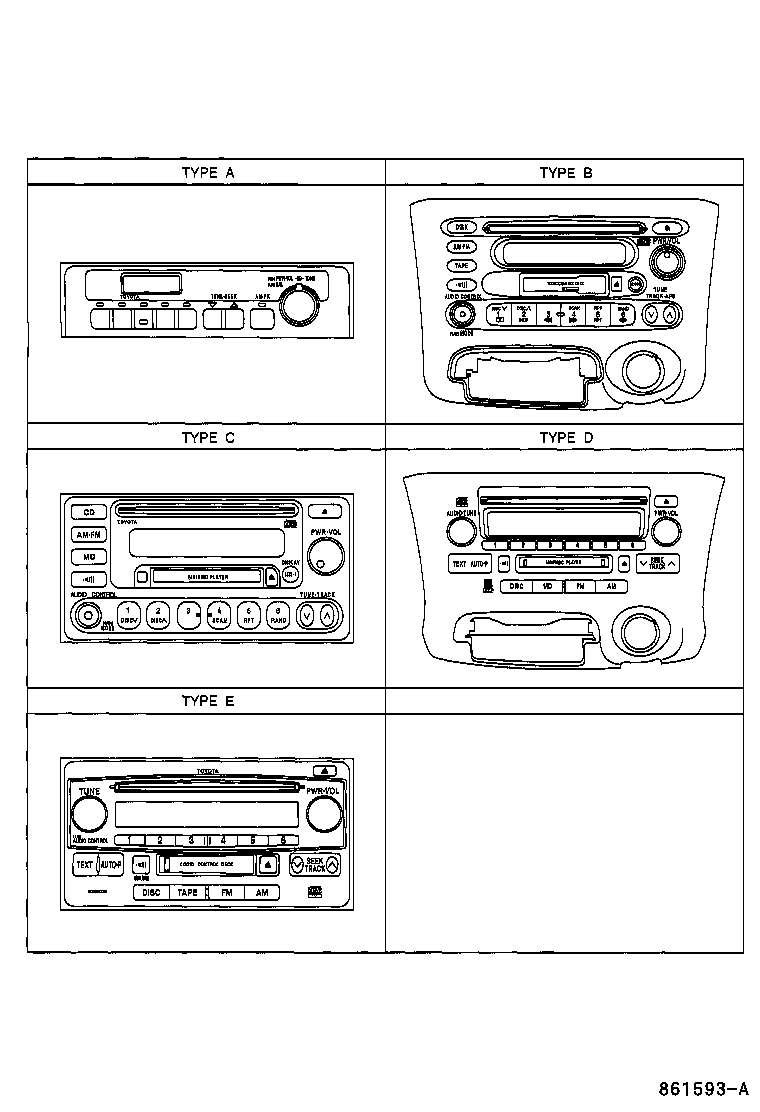

| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-63021 |
NCP12..X;NCP16,SCP11 FUJITSU TEN,ID=15863,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-52080B1 |
NCP12..X;NCP16,SCP11 PIONEER､ID=P5803,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,AMETHYST,TRIM9# |
1 | ||
| 86120-52221E0 |
NCP12..X;NCP16,SCP11 PIONEER,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM4# |
1 | ||
| 86120-52110 |
NCP1#,SCP11 MATSUSHITA,ID=50300,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-52222E0 |
NCP12..X;NCP16,SCP11 PIONEER,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM4# |
1 | ||
| 86120-63020 |
NCP12..X;NCP16,SCP11 FUJITSU TEN,ID=15861,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-52041 |
NCP1#,SCP11..F MATSUSHITA,ID=50207,TYPE A:ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 86120-52220E0 |
NCP12..X;NCP16,SCP11 PIONEER,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM4# |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-63021 |
NCP12..X;NCP16,SCP11 FUJITSU TEN,ID=15863,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-52080B1 |
NCP12..X;NCP16,SCP11 PIONEER､ID=P5803,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,AMETHYST,TRIM9# |
1 | ||
| 86120-52221E0 |
NCP12..X;NCP16,SCP11 PIONEER,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM4# |
1 | ||
| 86120-52110 |
NCP1#,SCP11 MATSUSHITA,ID=50300,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-52222E0 |
NCP12..X;NCP16,SCP11 PIONEER,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM4# |
1 | ||
| 86120-63020 |
NCP12..X;NCP16,SCP11 FUJITSU TEN,ID=15861,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-52041 |
NCP1#,SCP11..F MATSUSHITA,ID=50207,TYPE A:ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 86120-52220E0 |
NCP12..X;NCP16,SCP11 PIONEER,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM4# |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-63021 |
NCP12..X;NCP16,SCP11 FUJITSU TEN,ID=15863,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-52080B1 |
NCP12..X;NCP16,SCP11 PIONEER､ID=P5803,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,AMETHYST,TRIM9# |
1 | ||
| 86120-52221E0 |
NCP12..X;NCP16,SCP11 PIONEER,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM4# |
1 | ||
| 86120-52110 |
NCP1#,SCP11 MATSUSHITA,ID=50300,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-52222E0 |
NCP12..X;NCP16,SCP11 PIONEER,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM4# |
1 | ||
| 86120-63020 |
NCP12..X;NCP16,SCP11 FUJITSU TEN,ID=15861,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-52041 |
NCP1#,SCP11..F MATSUSHITA,ID=50207,TYPE A:ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 86120-52220E0 |
NCP12..X;NCP16,SCP11 PIONEER,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM4# |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-52160 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| 86211-52161 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| 86211-52020 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| 86211-52140 |
NCP1#,SCP11 NO.1 |
1 | ||
| 86211-52010 |
NCP1#,SCP11 NO.1 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-52160 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| 86211-52161 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| 86211-52020 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| 86211-52140 |
NCP1#,SCP11 NO.1 |
1 | ||
| 86211-52010 |
NCP1#,SCP11 NO.1 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-52160 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| 86211-52161 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| 86211-52020 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| 86211-52140 |
NCP1#,SCP11 NO.1 |
1 | ||
| 86211-52010 |
NCP1#,SCP11 NO.1 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-52010 |
NCP1#,SCP11 NO.1 |
1 | ||
| 86212-52020 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| 86212-52130 |
NCP1#,SCP11 NO.1 |
1 | ||
| 86212-52160 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-52010 |
NCP1#,SCP11 NO.1 |
1 | ||
| 86212-52020 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| 86212-52130 |
NCP1#,SCP11 NO.1 |
1 | ||
| 86212-52160 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-52010 |
NCP1#,SCP11 NO.1 |
1 | ||
| 86212-52020 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| 86212-52130 |
NCP1#,SCP11 NO.1 |
1 | ||
| 86212-52160 |
NCP12..X;NCP16,SCP11 NO.2 |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50372 | ||||
| 90467-10203 | ||||

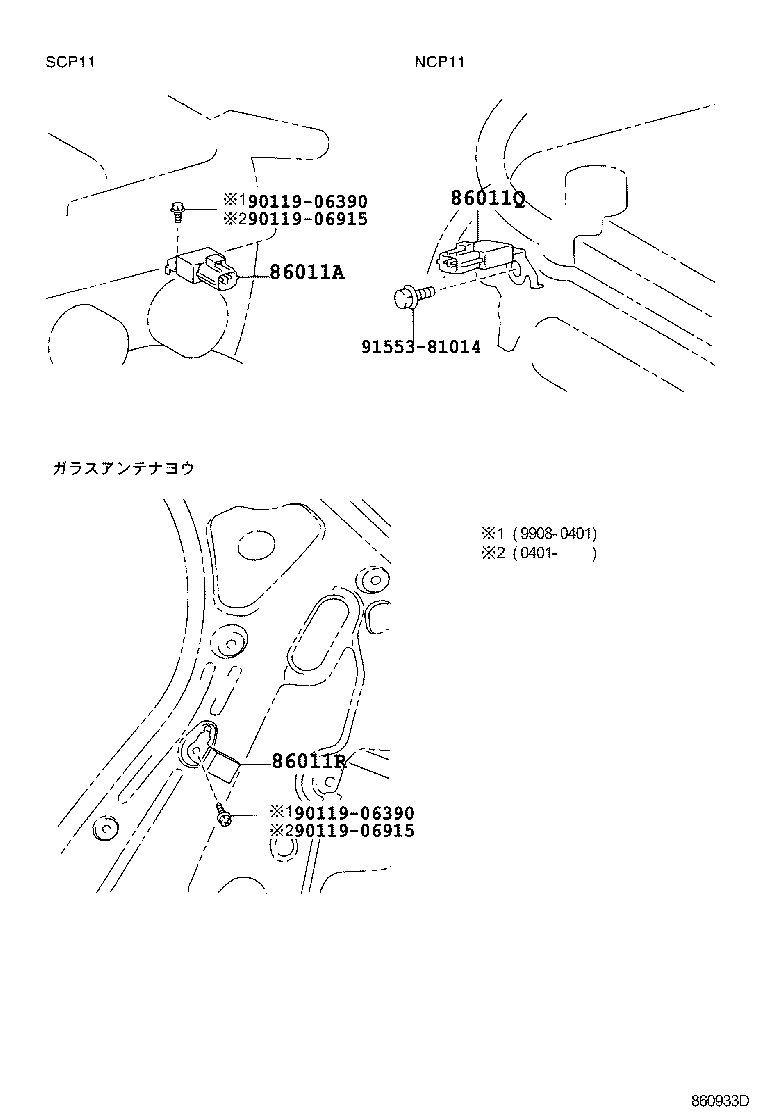

ILLUST NO. 3 OF 3(9908- )
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04141 |
NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 90980-04141 |
NCP1# |
1 | ||
| 90980-04141 |
NCP1# |
1 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04171 |
NCP1#,SCP11 |
1 | ||
| 90980-04171 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06915 | ||||
| 91553-81014 | ||||
ILLUST NO. 2 OF 3(9908- )
