NCP12-BEPEK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )NCP12..F

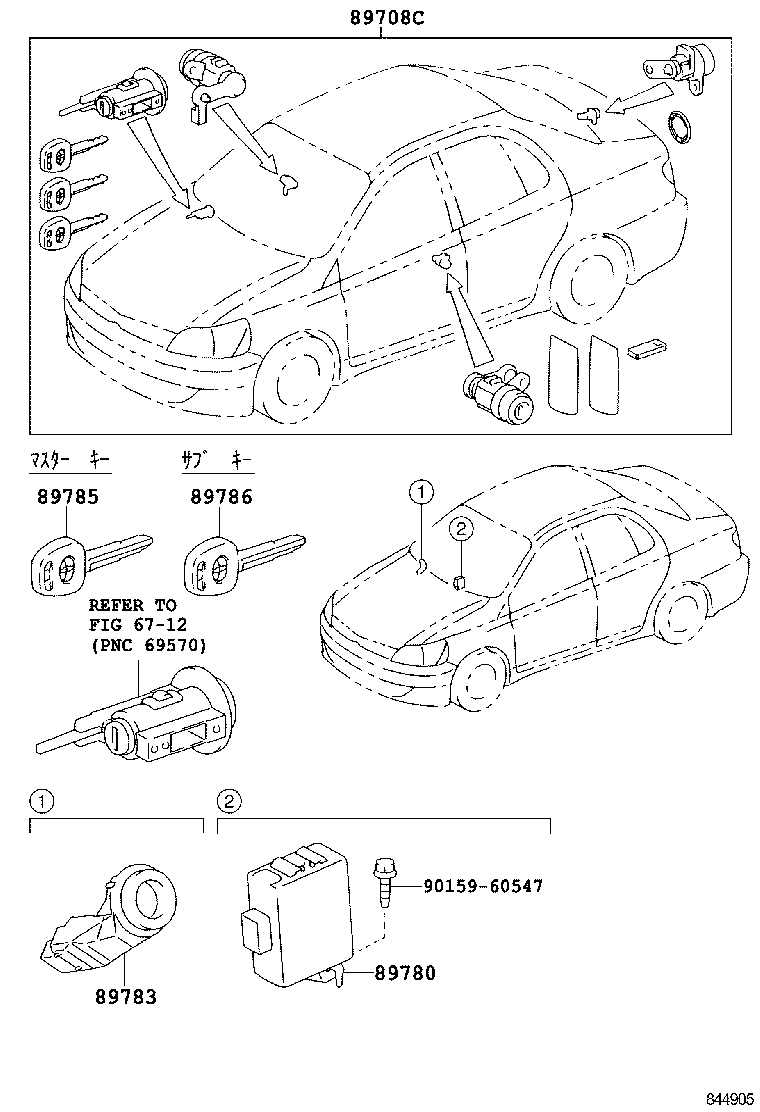

Click highlighted areas on diagram

ﾅｼ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)

diagram 6712 89708C 89780 89783 89785 89786 9015960547
Part # Description Qty Price
89708C - CYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER
69005-52790

NCP12..F

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-52030

NCP12..ATM;NCP12..MTM..F

 1
89780-52030

NCP12

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-52030

NCP12

 1
89783-52030

NCP12..ATM;NCP12..MTM..F

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60160

NCP12..ATM;NCP12..MTM..F

 1
89785-60160

NCP12

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

NCP12

 1
89786-60170

NCP12..ATM;NCP12..MTM..F

 1
Common parts
90159-60547
Linked diagrams
6712

(0208- )NCP12..X ; (0208- )NCP16,SCP11

Click highlighted areas on diagram

ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)

diagram 6712 8420 8420 8420 8420 8420 8420 8420 8420 8420 89780 89783 89785 89786 9015960547
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-52030

NCP12..ATM;NCP12..MTM..F

 1
89780-52030

NCP12

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-52030

NCP12

 1
89783-52030

NCP12..ATM;NCP12..MTM..F

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60160

NCP12..ATM;NCP12..MTM..F

 1
89785-60160

NCP12

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

NCP12

 1
89786-60170

NCP12..ATM;NCP12..MTM..F

 1
Common parts
90159-60547
Linked diagrams
6712
8420
