NCP12-BEPEK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )NCP12..ATM

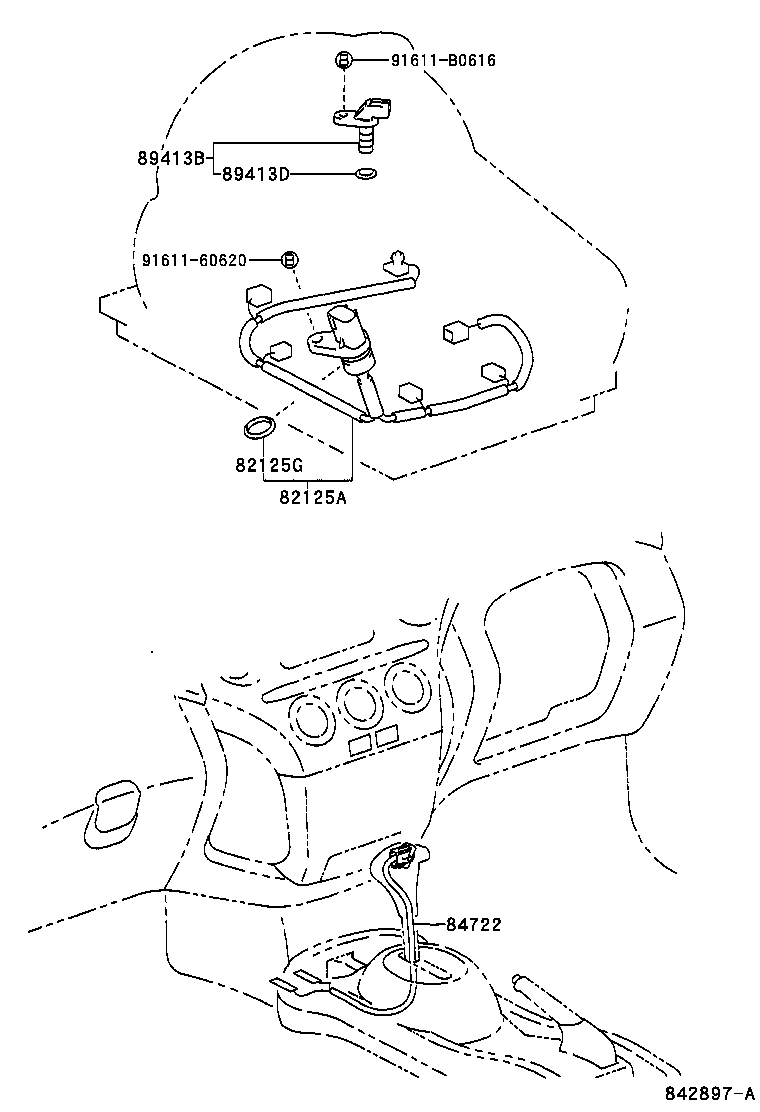

Click highlighted areas on diagram

diagram 82125A 82125G 84722 89413B 89413D 9161160620 91611B0616
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-20260

NCP12..ATM

 1
82125-20260

NCP12..ATM

 1
82125G - RING, O(FOR TRANSMISSION WIRE)
90301-21009

NCP12..ATM

 1
90301-21009

NCP1#,SCP11..ATM

 1
90301-21009

NCP12..ATM

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-52010B1

NCP1#,SCP11..ATM

MD. CHARCOAL,TRIM9#

 1
84722-52070B3

NCP1#,SCP11..ATM

MD.CHARCOAL,TRIM9#

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010

NCP1#,SCP11..ATM

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NCP1#,SCP11..ATM

 1
90301-11008

NCP1#,SCP11..ATM

 1
Common parts
91611-60620
91611-B0616
