NCP12-BEPEK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )

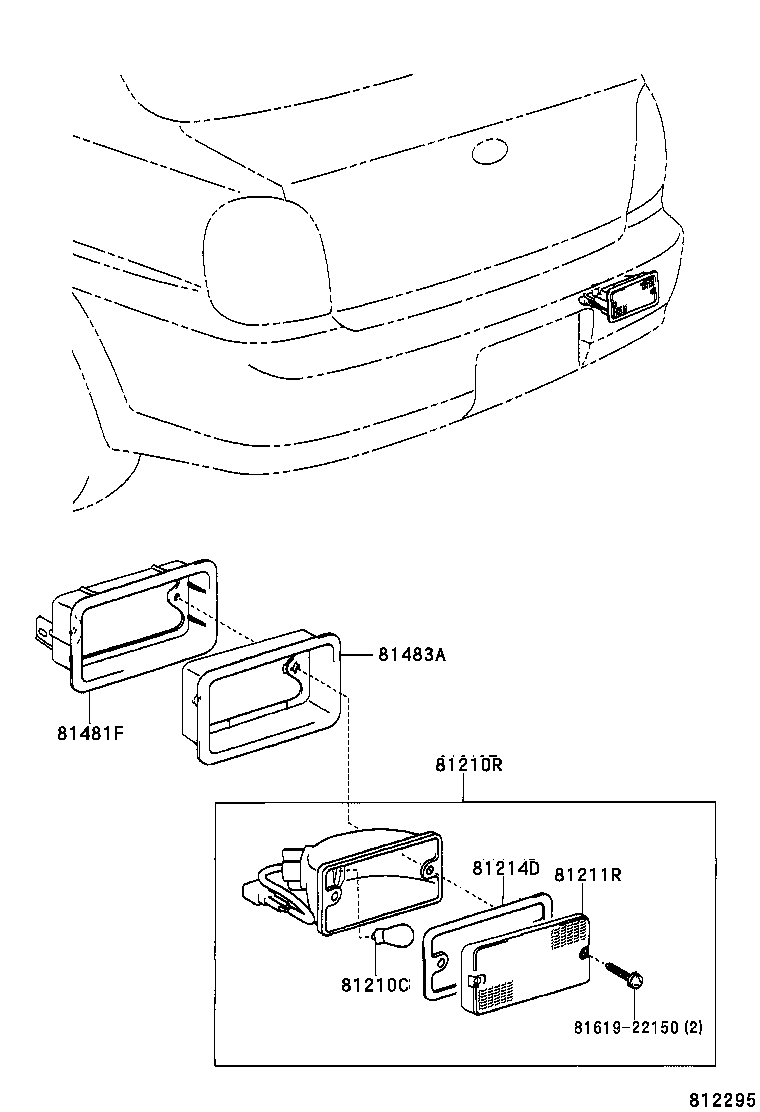

Click highlighted areas on diagram

diagram 81210C 81210R 81211R 81214D 81481F 81483A 8161922150
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
99132-11210

SCP11;NCP1#..ATM;NCP1#..MTM..F

12V 21W

 1
81210R - LAMP ASSY, REAR FOG
81480-52020

SCP11;NCP1#..ATM;NCP1#..MTM..F

 1
81480-52020

NCP1#,SCP11

 1
81211R - LENS, REAR FOG LAMP
81581-52060

NCP1#,SCP11

 1
81214D - GASKET, REAR FOG LAMP BODY
81584-20250

NCP1#,SCP11

 1
81584-20250

SCP11;NCP1#..ATM;NCP1#..MTM..F

 1
81481F - BRACKET, FOG LAMP, RH
81481-52050

SCP11;NCP1#..ATM;NCP1#..MTM..F

 1
81483A - PROTECTOR, FOG LAMP
81483-52040

NCP1#,SCP11

 1
81483-52040

SCP11;NCP1#..ATM;NCP1#..MTM..F

 1
Common parts
81619-22150
