NCP12-BEPEK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )

Click highlighted areas on diagram

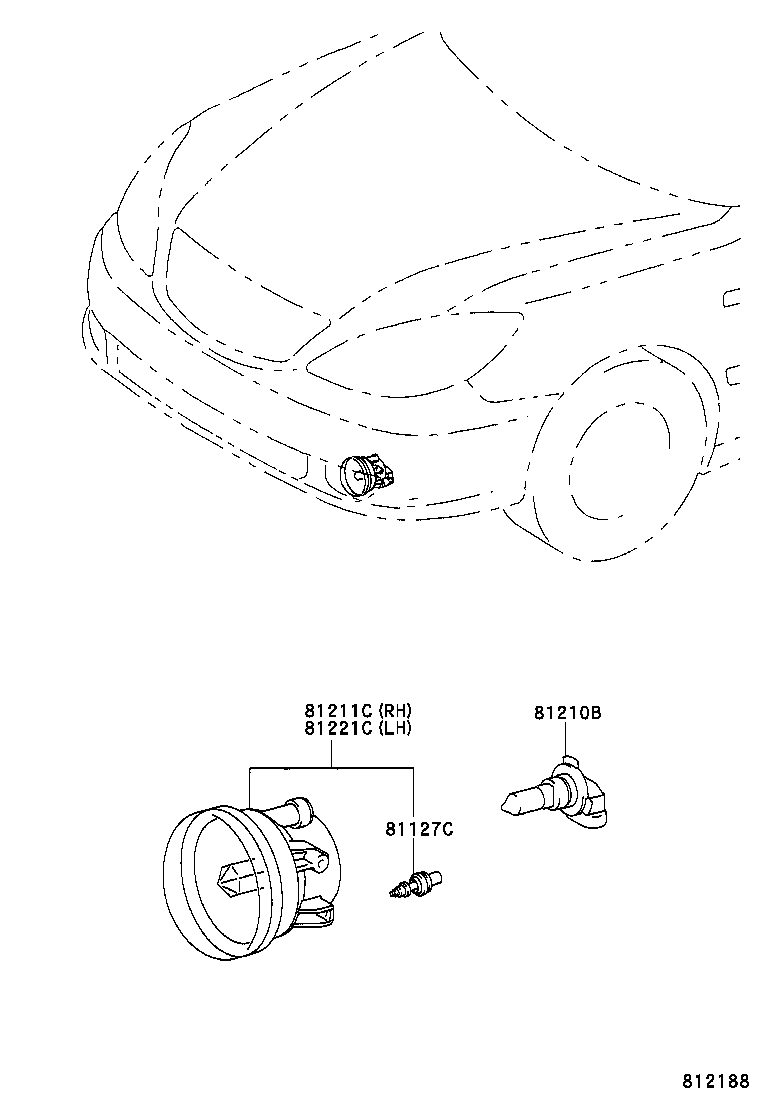

diagram 81127C 81210B 81211C 81221C
Part # Description Qty Price
81127C - BEARING FOG LAMP
90075-10811

NCP1#,SCP11

 2
90075-10811

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
81210B - BULB, FOG LAMP
90981-13047

NCP1#,SCP11

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13047

SCP11;NCP1#..ATM;NCP1#..MTM..F

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-52060

SCP11;NCP1#..ATM;NCP1#..MTM..F

 1
81211-52060

NCP1#,SCP11

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-52060

NCP1#,SCP11

 1
81221-52060

SCP11;NCP1#..ATM;NCP1#..MTM..F

 1
