NCP12-BEPEK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

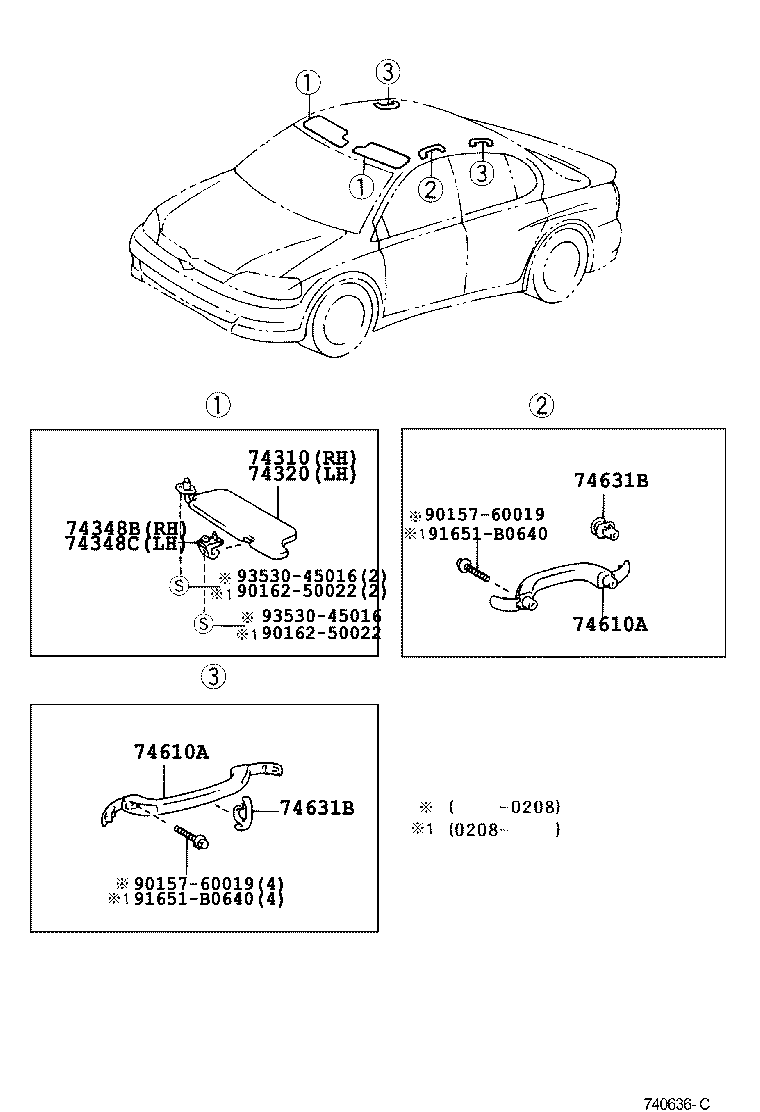

ILLUST NO. 2 OF 2(9908- )

Click highlighted areas on diagram

diagram 74310 74320 74348B 74348C 74610A 74610A 74631B 74631B 9015760019 9015760019 9016250022 9016250022 91651B0640 91651B0640 9353045016 9353045016
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-52022B0

NCP1#,SCP11

ｱﾘ(ﾊﾞﾆﾃｲ ﾐﾗ-),LT. GRAY,TRIM9#

 1
74320 - VISOR ASSY, LH
74320-52011B0

NCP12,SCP11..F

LT. GRAY,TRIM9#

 1
74320-52042B0

NCP1#..X

ｱﾘ(*80,ｼﾞﾖｼﾕｾｷ),LT. GRAY,TRIM9#

 1
74320-52031B0

NCP12..X

LT. GRAY,TRIM9#

 1
74320-52022B0

NCP1#,SCP11..F

ｱﾘ(*80,ｼﾞﾖｼﾕｾｷ),LT. GRAY,TRIM9#

 1
74348B - HOLDER, VISOR, RH
74348-12030B5

NCP1#,SCP11

LT.GRAY,TRIM9#

 1
74348C - HOLDER, VISOR, LH
74348-12030B5

NCP1#,SCP11

LT.GRAY,TRIM9#

 1
74610A - GRIP SUB-ASSY, ASSIST
74611-52010B0

SCP11;NCP1#..X

ｱﾘ(ｱｼｽﾄ ｸﾞﾘﾂﾌﾟ FR-1,RR-2),LT.GRAY,TRIM9#

 3
74611-52010B0

NCP1#,SCP11..F

LT.GRAY,TRIM9#

 1
74610A - GRIP SUB-ASSY, ASSIST
74611-52010B0

SCP11;NCP1#..X

ｱﾘ(ｱｼｽﾄ ｸﾞﾘﾂﾌﾟ FR-1,RR-2),LT.GRAY,TRIM9#

 3
74611-52010B0

NCP1#,SCP11..F

LT.GRAY,TRIM9#

 1
74631B - HOOK, COAT
74631-28010B1

SCP11;NCP1#..X

LT.GRAY,TRIM9#

 1
74631B - HOOK, COAT
74631-28010B1

SCP11;NCP1#..X

LT.GRAY,TRIM9#

 1
Common parts
90157-60019
90162-50022
91651-B0640
93530-45016

ILLUST NO. 1 OF 2(9908- )

Click highlighted areas on diagram

diagram 74231 74232 74813B 74814C 9016450032 9046805047 9046805047
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-52010

NCP1#,SCP11

 1
74230-52010

NCP12..X;NCP16,SCP11

ﾌﾟﾚﾐｱﾑ ﾊﾟﾂｹ-ｼﾞ

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-52030

NCP1#,SCP11

 1
74240-52010

NCP12..X;NCP16,SCP11

ﾌﾟﾚﾐｱﾑ ﾊﾟﾂｹ-ｼﾞ

 1
74813B - HANDLE, FRONT DOOR PULL, RH
74813-52010B1

NCP1#,SCP11

AMETHYST,TRIM9#

 2
74814C - HANDLE, FRONT DOOR PULL, LH
74814-52010B1

NCP1#,SCP11

AMETHYST,TRIM9#

 2
Common parts
90164-50032
90468-05047
