NCP12-BEPEK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

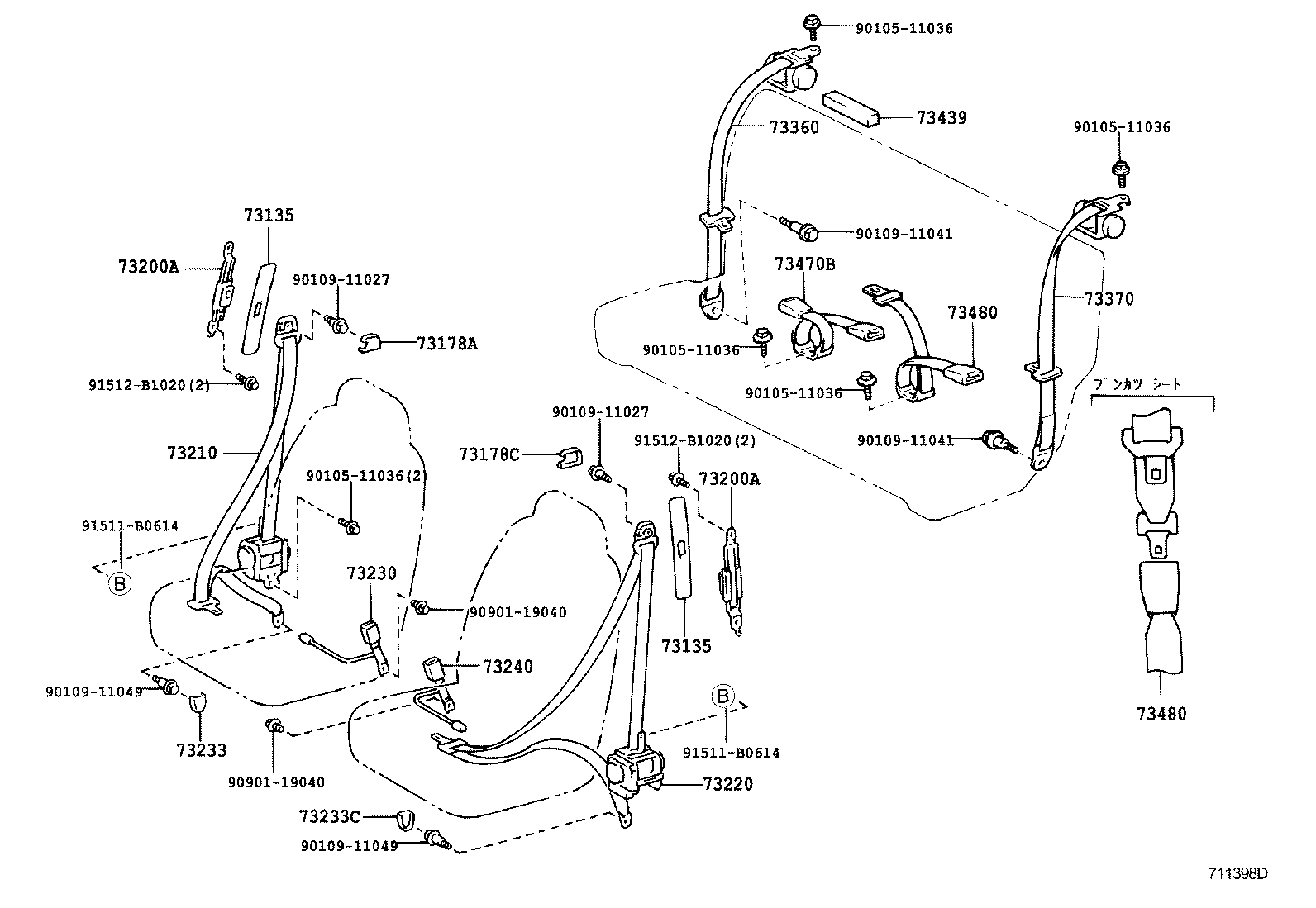

Click highlighted areas on diagram

diagram 73135 73135 73178A 73178C 73200A 73200A 73210 73220 73230 73233 73233C 73240 73360 73370 73439 73470B 73480 73480 9010511036 9010511036 9010511036 9010511036 9010511036 9010911027 9010911027 9010911041 9010911041 9010911049 9010911049 9090119040 9090119040 91511B0614 91511B0614 91512B1020 91512B1020
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-12030B3

NCP1#,SCP11

MD.CHARCOAL,TRIM9#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-12030B3

NCP1#,SCP11

MD.CHARCOAL,TRIM9#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-12040B4

NCP1#,SCP11

MD.CHARCOAL,TRIM9#

 1
73178-33020B1

NCP1#,SCP11

MD.CHARCOAL,TRIM9#

 1
73178C - CAP, SEAT BELT ANCHOR COVER
73178-33020B1

NCP1#,SCP11

MD.CHARCOAL,TRIM9#

 1
73178-12040B4

NCP1#,SCP11

MD.CHARCOAL,TRIM9#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-60020B0

NCP1#,SCP11

MD.CHARCOAL,TRIM9#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-60020B0

NCP1#,SCP11

MD.CHARCOAL,TRIM9#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52200B0

NCP1#,SCP11

GRAY,TRIM9#

 1
73210-52061B1

NCP1#,SCP11

GRAY,TRIM9#

 1
73210-52320B0

NCP1#,SCP11

GRAY,TRIM9#

 1
73210-52320A0

NCP1#,SCP11

IVORY,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52071B1

NCP1#,SCP11

GRAY,TRIM9#

 1
73220-52350A0

NCP1#,SCP11

IVORY,TRIM4#

 1
73220-52230B0

NCP12,SCP11

ﾅｼ(*80,ｼﾞﾖｼﾕｾｷ),GRAY,TRIM9#

 1
73220-52350B0

NCP1#,SCP11

GRAY,TRIM9#

 1
73220-52081B1

NCP12,SCP11

ﾅｼ(*80,ｼﾞﾖｼﾕｾｷ),GRAY,TRIM9#

 1
73220-52340B0

NCP12,SCP11

ﾅｼ(*80,ｼﾞﾖｼﾕｾｷ),GRAY,TRIM9#

 1
73220-52233B1

NCP12,SCP11

ﾅｼ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM9#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52010B1

NCP1#,SCP11

AMETHYST,TRIM9#

 1
73230-52180B1

NCP1#,SCP11

AMETHYST,TRIM9#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010B8

NCP1#,SCP11

DK.GRAY,TRIM9#

 1
73233-33010B3

NCP1#,SCP11

SHADOW GRAY,TRIM9#

 1
73233C - COVER, LAP BELT OUTER ANCHOR, LH
73233-33010B3

NCP1#,SCP11

SHADOW GRAY,TRIM9#

 1
73233-33010B8

NCP12,SCP11

DK.GRAY,TRIM9#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52021B1

NCP1#,SCP11

AMETHYST,TRIM9#

 1
73230-52190B1

NCP1#,SCP11

AMETHYST,TRIM9#

 1
73230-52190A0

NCP1#,SCP11

IVORY,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52060B0

NCP12..X

GRAY,TRIM9#

 1
73360-52040B0

NCP16;NCP12,SCP11..F

GRAY,TRIM9#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-52060B0

NCP12..X

GRAY,TRIM9#

 1
73360-52040B0

NCP16;NCP12,SCP11..F

ｱﾘ(ALR/ELR),GRAY,TRIM9#

 1
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-52010

NCP1#,SCP11

 2
73439-52010

NCP1#,SCP11

 2
73439-52010

SCP11;NCP1#..ATM;NCP1#..MTM..F

 2
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52050B0

NCP12,SCP11

GRAY,TRIM9#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52070B0

NCP12,SCP11

GRAY,TRIM9#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52070B0

NCP12,SCP11

GRAY,TRIM9#

 1
Common parts
90105-11036
90109-11027
90109-11041
90109-11049
90901-19040
91511-B0614
91512-B1020
