NCP12-BEPEK (1999)
Toyota Platz
(9908-0208)

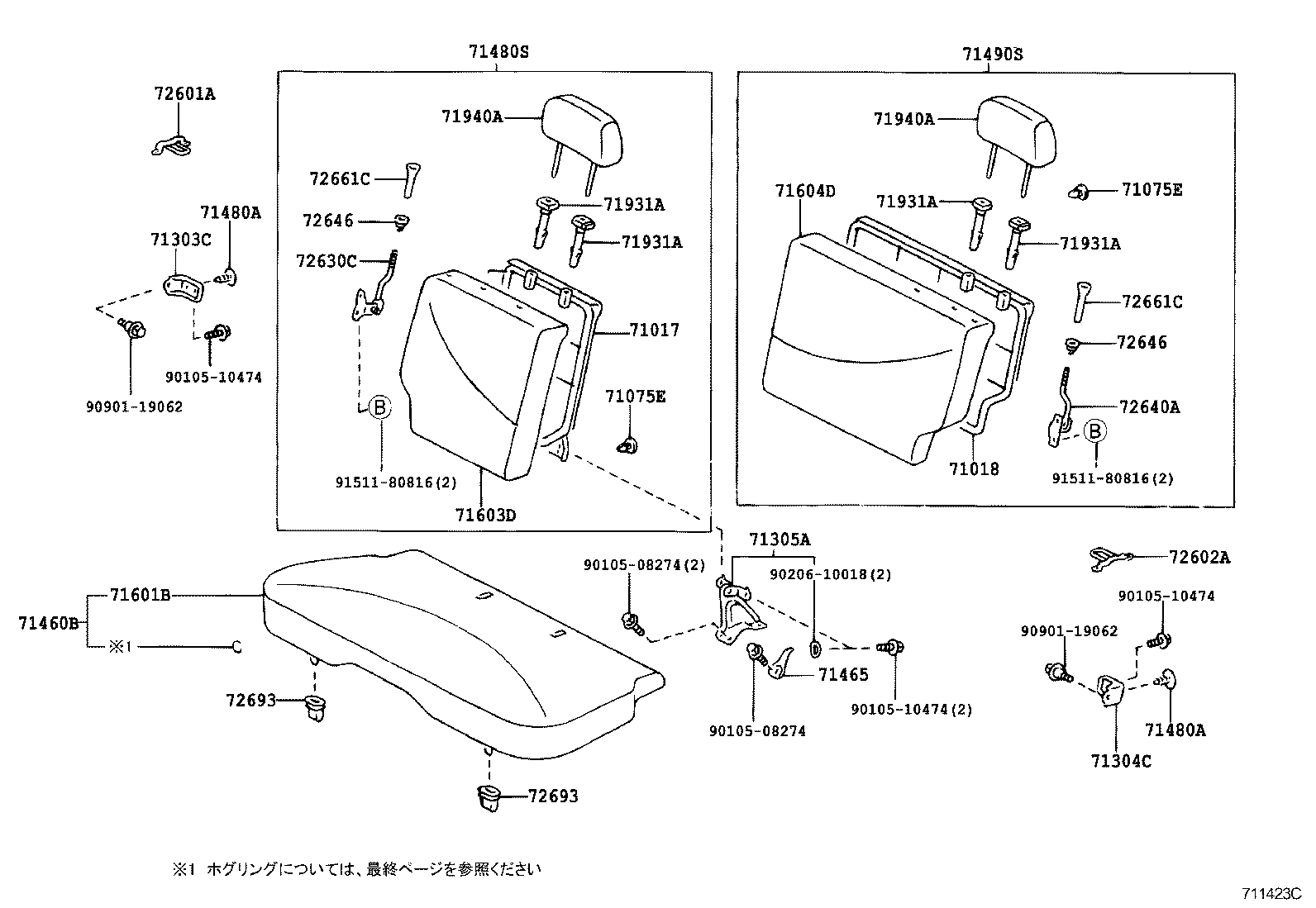

6:4ﾌﾞﾝｶﾂｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52100 |
SCP11;NCP12..X |
1 | ||
| 71017-52100 |
NCP12..X |
1 | ||
| 71017-52100 |
NCP12..ATM..X |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52040 |
SCP11;NCP12..X |
1 | ||
| 71018-52190 |
NCP12..ATM..X |
1 | ||
| 71018-52040 |
NCP12..X |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-09118 |
NCP12..X |
10 | ||
| 90467-09118 |
SCP11;NCP12..X |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-09118 |
NCP12..X |
10 | ||
| 90467-09118 |
SCP11;NCP12..X |
10 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71345-52010 |
NCP12..ATM..X |
1 | ||
| 71345-52010 |
NCP12..X |
1 | ||
| 71345-52010 |
NCP12..X |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71345-52010 |
NCP12..ATM..X |
1 | ||
| 71345-52010 |
NCP12..X |
1 | ||
| 71345-52010 |
NCP12..X |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-52011 |
NCP12..X |
1 | ||
| 71305-52010 |
NCP12..X |
1 | ||
| 71305-52011 |
NCP12..ATM..X |
1 | ||
| 71305-52011 |
NCP12..X |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-52150B1 |
NCP12..X ***,ｱﾘ(ﾘﾔ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),LT. AMETHYST,TRIM9# |
1 | ||
| 71460-52390B0 |
SCP11;NCP12..X ***,ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
1 | ||
| 71460-52391B0 |
SCP11;NCP12..X ***,ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
1 | ||
| 71460-52160B0 |
NCP12,SCP11..F ***,LT. AMETHYST,TRIM9# |
1 | ||
| 71460-52550B0 |
NCP12,SCP11..F ***,LT. AMETHYST,TRIM9# |
1 | ||
| 71460-52392B1 |
SCP11;NCP12..X ***,ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
1 | ||
| 71460-52560B0 |
NCP12..X ***,LT. AMETHYST,TRIM9# |
1 | ||
| 71465 - SPRING, REAR SEAT CUSHION, NO.5 | ||||
| 71465-52010 |
NCP12..X |
1 | ||
| 71465-52010 |
NCP12..ATM..X |
1 | ||
| 71465-52010 |
NCP12..X |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-06070P0 |
NCP12..X SHADOW GRAY,TRIM9# |
2 | ||
| 90467-06070P0 |
SCP11;NCP12..X SHADOW GRAY,TRIM9# |
2 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-06070P0 |
NCP12..X SHADOW GRAY,TRIM9# |
2 | ||
| 90467-06070P0 |
SCP11;NCP12..X SHADOW GRAY,TRIM9# |
2 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-52620B0 |
SCP11;NCP12..X ***,ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
1 | ||
| 71480-52310B0 |
NCP12..X ***,LT.AMETHYST,TRIM9# |
1 | ||
| 71480-52621B1 |
SCP11;NCP12..X ***,ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-52130B0 |
NCP12..X ***,LT.AMETHYST,TRIM9# |
1 | ||
| 71490-52311B1 |
SCP11;NCP12..X ***,ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
1 | ||
| 71490-52310B0 |
SCP11;NCP12..X ***,ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
1 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52450B1 |
NCP12..X LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-52400B0 |
NCP12,SCP11..F LT. AMETHYST,TRIM9# |
1 | ||
| 71601-52390B1 |
NCP12..X LT. AMETHYST,TRIM9# |
1 | ||
| 71601-52651B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52460B0 |
NCP12,SCP11..F LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-52650B0 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52661B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-5C080K0 |
NCP12,SCP11..F ｼ-ﾄ = TYPE B-*104,AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52652B2 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52660B0 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-5C420E0 |
NCP12,SCP11..F ｼ-ﾄ = TYPE B-*104,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71601-5C100B1 |
NCP12..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52662B2 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-5C430E1 |
SCP11;NCP12..X ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM40 |
1 | ||
| 71601-5C110B1 |
NCP12..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52851B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71603-52850B0 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
1 | ||
| 71603-5C730 |
NCP12..X TACHIESU |
1 | ||
| 71603-52570B1 |
NCP12..X LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71603-5C730E1 |
NCP12..X NEUTRAL BONE,TRIM40 |
1 | ||
| 71603-52600B1 |
NCP12..X LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71603-52861B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52330B0 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
1 | ||
| 71604-52331B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71604-52300B1 |
NCP12..X LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71604-52260B1 |
NCP12..X LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71604-52401B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71604-52880 |
NCP12..X TACHIESU |
1 | ||
| 71604-52880E1 |
NCP12..X NEUTRAL BONE,TRIM40 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52120E0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52050E0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71910-52100B2 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52050B0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52060B0 |
SCP11;NCP1#..X ｼ-ﾄ = TYPE C-*104 & ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
2 | ||
| 71940-52061B1 |
SCP11;NCP12..X ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52020B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52120E0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52050E0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71910-52100B2 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52050B0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52060B0 |
SCP11;NCP1#..X ｼ-ﾄ = TYPE C-*104 & ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
2 | ||
| 71940-52061B1 |
SCP11;NCP12..X ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52020B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
2 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-52050 |
NCP12..X |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-52050 |
NCP12..X |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52030 |
NCP12..X |
1 | ||
| 72630-52030 |
SCP11;NCP12..X |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72630-52030 |
NCP12..X |
1 | ||
| 72630-52030 |
SCP11;NCP12..X |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010B2 |
SCP11;NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72646-33010B2 |
NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010B2 |
SCP11;NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72646-33010B2 |
NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B1 |
SCP11;NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72661-32030B1 |
NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72661-32030E0 |
NCP12..X FAWN,TRIM4# |
2 | ||
| 72661-32030E0 |
NCP12..X FAWN,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B1 |
SCP11;NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72661-32030B1 |
NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72661-32030E0 |
NCP12..X FAWN,TRIM4# |
2 | ||
| 72661-32030E0 |
NCP12..X FAWN,TRIM4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| 72693-10040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| 72693-10040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| Common parts | ||||
| 90105-08274 | ||||
| 90105-10474 | ||||
| 90206-10018 | ||||
| 90901-19062 | ||||
| 91511-80816 | ||||
(9908-0208)

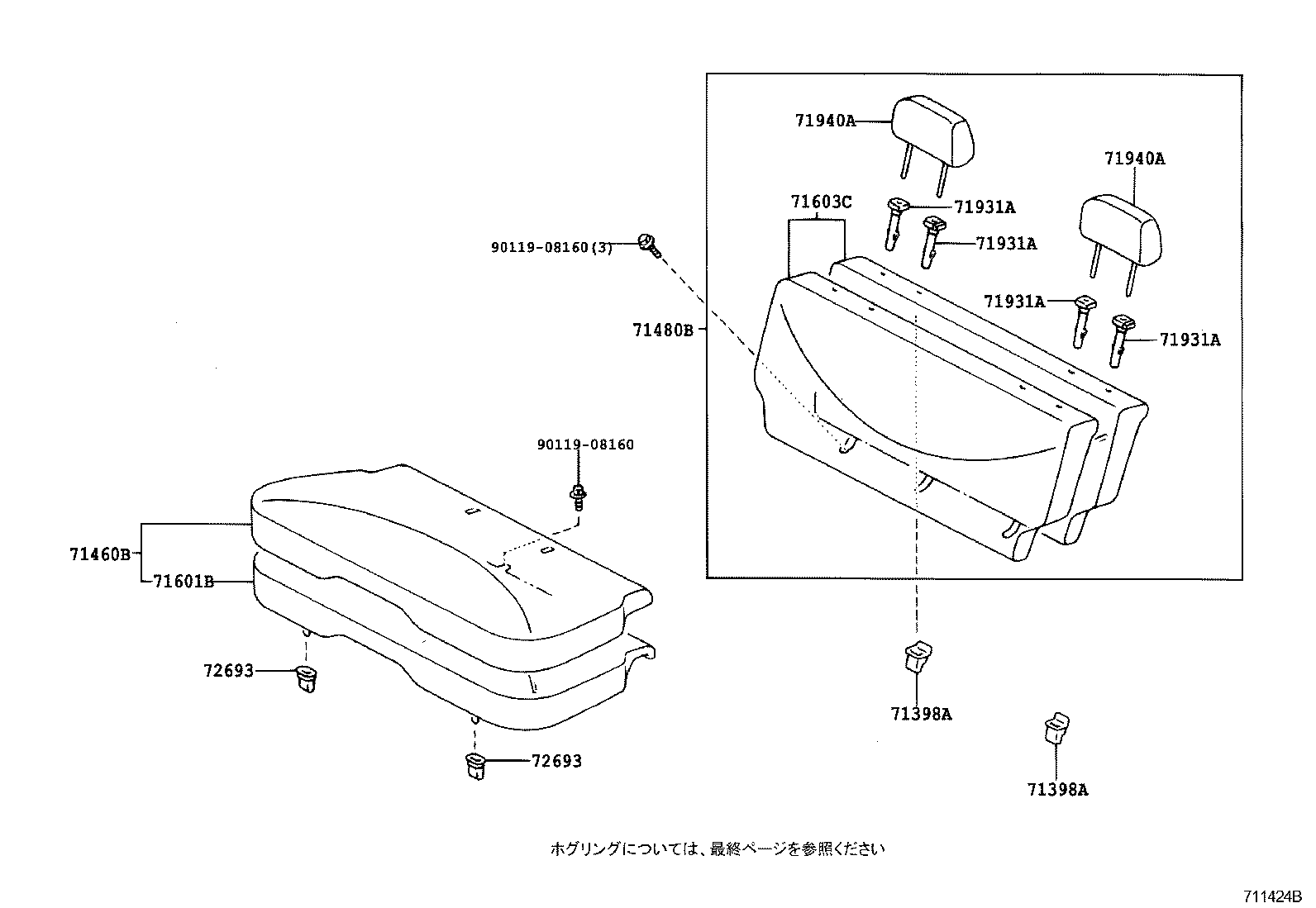

ｺﾃｲｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010 |
NCP16;NCP12,SCP11..F |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010 |
NCP16;NCP12,SCP11..F |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-52150B1 |
NCP12..X ***,ｱﾘ(ﾘﾔ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),LT. AMETHYST,TRIM9# |
1 | ||
| 71460-52390B0 |
SCP11;NCP12..X ***,ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
1 | ||
| 71460-52391B0 |
SCP11;NCP12..X ***,ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
1 | ||
| 71460-52160B0 |
NCP12,SCP11..F ***,LT. AMETHYST,TRIM9# |
1 | ||
| 71460-52550B0 |
NCP12,SCP11..F ***,LT. AMETHYST,TRIM9# |
1 | ||
| 71460-52392B1 |
SCP11;NCP12..X ***,ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
1 | ||
| 71460-52560B0 |
NCP12..X ***,LT. AMETHYST,TRIM9# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-52270B0 |
NCP12,SCP11..F ***,LT. AMETHYST,TRIM9# |
1 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52450B1 |
NCP12..X LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-52400B0 |
NCP12,SCP11..F LT. AMETHYST,TRIM9# |
1 | ||
| 71601-52390B1 |
NCP12..X LT. AMETHYST,TRIM9# |
1 | ||
| 71601-52651B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52460B0 |
NCP12,SCP11..F LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-52650B0 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52661B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-5C080K0 |
NCP12,SCP11..F ｼ-ﾄ = TYPE B-*104,AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52652B2 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52660B0 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-5C420E0 |
NCP12,SCP11..F ｼ-ﾄ = TYPE B-*104,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71601-5C100B1 |
NCP12..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52662B2 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-5C430E1 |
SCP11;NCP12..X ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM40 |
1 | ||
| 71601-5C110B1 |
NCP12..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71603C - PAD SUB-ASSY, REAR SEAT BACK W/COVER | ||||
| 71603-52390B0 |
NCP12,SCP11..F ｼ-ﾄ = TYPE B-*104,LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71603-52470B0 |
NCP12,SCP11..F ｼ-ﾄ = TYPE B-*104,LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52120E0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52050E0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71910-52100B2 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52050B0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52060B0 |
SCP11;NCP1#..X ｼ-ﾄ = TYPE C-*104 & ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
2 | ||
| 71940-52061B1 |
SCP11;NCP12..X ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52020B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52120E0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52050E0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71910-52100B2 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52050B0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52060B0 |
SCP11;NCP1#..X ｼ-ﾄ = TYPE C-*104 & ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
2 | ||
| 71940-52061B1 |
SCP11;NCP12..X ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52020B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| 72693-10040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| 72693-10040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| Common parts | ||||
| 90119-08160 | ||||
(0208- )NCP16 ; (0208- )NCP12,SCP11..F
ｺﾃｲｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-52010 |
NCP12..ATM..X |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010 |
NCP16;NCP12,SCP11..F |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010 |
NCP16;NCP12,SCP11..F |
2 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52450B1 |
NCP12..X LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-52400B0 |
NCP12,SCP11..F LT. AMETHYST,TRIM9# |
1 | ||
| 71601-52390B1 |
NCP12..X LT. AMETHYST,TRIM9# |
1 | ||
| 71601-52651B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52460B0 |
NCP12,SCP11..F LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-52650B0 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52661B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-5C080K0 |
NCP12,SCP11..F ｼ-ﾄ = TYPE B-*104,AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52652B2 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52660B0 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-5C420E0 |
NCP12,SCP11..F ｼ-ﾄ = TYPE B-*104,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71601-5C100B1 |
NCP12..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52662B2 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-5C430E1 |
SCP11;NCP12..X ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM40 |
1 | ||
| 71601-5C110B1 |
NCP12..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71603C - PAD SUB-ASSY, REAR SEAT BACK W/COVER | ||||
| 71603-52390B0 |
NCP12,SCP11..F ｼ-ﾄ = TYPE B-*104,LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71603-52470B0 |
NCP12,SCP11..F ｼ-ﾄ = TYPE B-*104,LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52120E0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52050E0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71910-52100B2 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52050B0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52060B0 |
SCP11;NCP1#..X ｼ-ﾄ = TYPE C-*104 & ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
2 | ||
| 71940-52061B1 |
SCP11;NCP12..X ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52020B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52120E0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52050E0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71910-52100B2 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52050B0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52060B0 |
SCP11;NCP1#..X ｼ-ﾄ = TYPE C-*104 & ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
2 | ||
| 71940-52061B1 |
SCP11;NCP12..X ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52020B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| 72693-10040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| 72693-10040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| Common parts | ||||
| 90109-06023 | ||||
| 90119-08160 | ||||
| 94150-80600 | ||||
(0208- )NCP12..X
6:4ﾌﾞﾝｶﾂｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

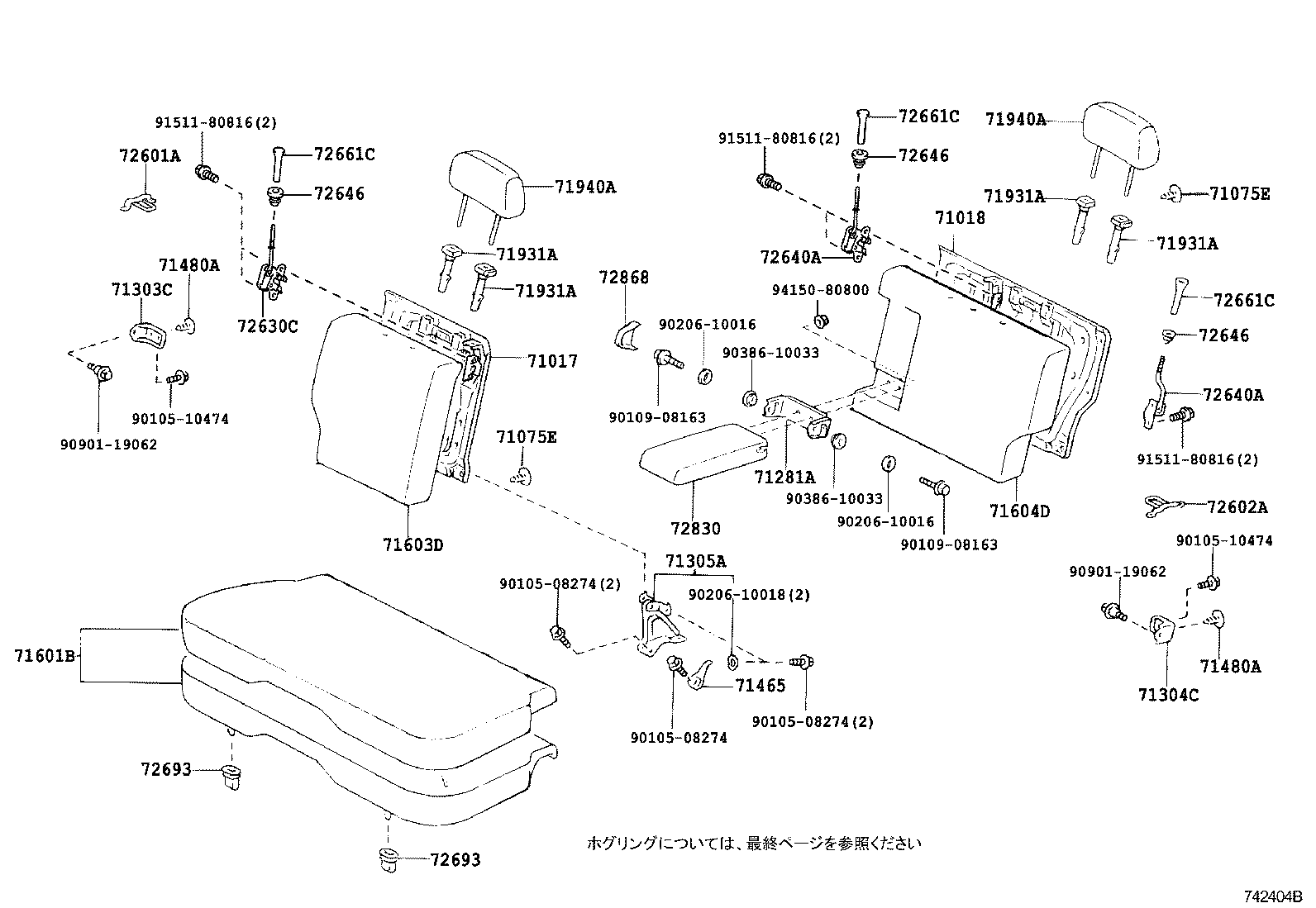

| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52100 |
SCP11;NCP12..X |
1 | ||
| 71017-52100 |
NCP12..X |
1 | ||
| 71017-52100 |
NCP12..ATM..X |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52040 |
SCP11;NCP12..X |
1 | ||
| 71018-52190 |
NCP12..ATM..X |
1 | ||
| 71018-52040 |
NCP12..X |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-09118 |
NCP12..X |
10 | ||
| 90467-09118 |
SCP11;NCP12..X |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-09118 |
NCP12..X |
10 | ||
| 90467-09118 |
SCP11;NCP12..X |
10 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-52010 |
NCP12..ATM..X |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71345-52010 |
NCP12..ATM..X |
1 | ||
| 71345-52010 |
NCP12..X |
1 | ||
| 71345-52010 |
NCP12..X |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71345-52010 |
NCP12..ATM..X |
1 | ||
| 71345-52010 |
NCP12..X |
1 | ||
| 71345-52010 |
NCP12..X |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-52011 |
NCP12..X |
1 | ||
| 71305-52010 |
NCP12..X |
1 | ||
| 71305-52011 |
NCP12..ATM..X |
1 | ||
| 71305-52011 |
NCP12..X |
1 | ||
| 71465 - SPRING, REAR SEAT CUSHION, NO.5 | ||||
| 71465-52010 |
NCP12..X |
1 | ||
| 71465-52010 |
NCP12..ATM..X |
1 | ||
| 71465-52010 |
NCP12..X |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-06070P0 |
NCP12..X SHADOW GRAY,TRIM9# |
2 | ||
| 90467-06070P0 |
SCP11;NCP12..X SHADOW GRAY,TRIM9# |
2 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-06070P0 |
NCP12..X SHADOW GRAY,TRIM9# |
2 | ||
| 90467-06070P0 |
SCP11;NCP12..X SHADOW GRAY,TRIM9# |
2 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52450B1 |
NCP12..X LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-52400B0 |
NCP12,SCP11..F LT. AMETHYST,TRIM9# |
1 | ||
| 71601-52390B1 |
NCP12..X LT. AMETHYST,TRIM9# |
1 | ||
| 71601-52651B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52460B0 |
NCP12,SCP11..F LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-52650B0 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52661B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-5C080K0 |
NCP12,SCP11..F ｼ-ﾄ = TYPE B-*104,AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52652B2 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52660B0 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-5C420E0 |
NCP12,SCP11..F ｼ-ﾄ = TYPE B-*104,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71601-5C100B1 |
NCP12..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71601-52662B2 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71601-5C430E1 |
SCP11;NCP12..X ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM40 |
1 | ||
| 71601-5C110B1 |
NCP12..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52851B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71603-52850B0 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
1 | ||
| 71603-5C730 |
NCP12..X TACHIESU |
1 | ||
| 71603-52570B1 |
NCP12..X LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71603-5C730E1 |
NCP12..X NEUTRAL BONE,TRIM40 |
1 | ||
| 71603-52600B1 |
NCP12..X LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71603-52861B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52330B0 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
1 | ||
| 71604-52331B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,ARACO |
1 | ||
| 71604-52300B1 |
NCP12..X LT. AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71604-52260B1 |
NCP12..X LT. AMETHYST,TRIM9#,ARACO |
1 | ||
| 71604-52401B1 |
SCP11;NCP12..X ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71604-52880 |
NCP12..X TACHIESU |
1 | ||
| 71604-52880E1 |
NCP12..X NEUTRAL BONE,TRIM40 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP12..X;NCP16..ATM..F ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP1# ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71930-52010B2 |
NCP16..F;NCP12,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
2 | ||
| 71931-52010B2 |
NCP1# ﾛｯｸ無,AMETHYST,TRIM9# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52120E0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52050E0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71910-52100B2 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52050B0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52060B0 |
SCP11;NCP1#..X ｼ-ﾄ = TYPE C-*104 & ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
2 | ||
| 71940-52061B1 |
SCP11;NCP12..X ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52020B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52120E0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
2 | ||
| 71940-52050E0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 71910-52100B2 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52050B0 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52060B0 |
SCP11;NCP1#..X ｼ-ﾄ = TYPE C-*104 & ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
2 | ||
| 71940-52061B1 |
SCP11;NCP12..X ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
2 | ||
| 71940-52020B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
2 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-52050 |
NCP12..X |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-52050 |
NCP12..X |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52030 |
NCP12..X |
1 | ||
| 72630-52030 |
SCP11;NCP12..X |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72630-52030 |
NCP12..X |
1 | ||
| 72630-52030 |
SCP11;NCP12..X |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72630-52030 |
NCP12..X |
1 | ||
| 72630-52030 |
SCP11;NCP12..X |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010B2 |
SCP11;NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72646-33010B2 |
NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010B2 |
SCP11;NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72646-33010B2 |
NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010B2 |
SCP11;NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72646-33010B2 |
NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B1 |
SCP11;NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72661-32030B1 |
NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72661-32030E0 |
NCP12..X FAWN,TRIM4# |
2 | ||
| 72661-32030E0 |
NCP12..X FAWN,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B1 |
SCP11;NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72661-32030B1 |
NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72661-32030E0 |
NCP12..X FAWN,TRIM4# |
2 | ||
| 72661-32030E0 |
NCP12..X FAWN,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B1 |
SCP11;NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72661-32030B1 |
NCP12..X AMETHYST,TRIM9# |
2 | ||
| 72661-32030E0 |
NCP12..X FAWN,TRIM4# |
2 | ||
| 72661-32030E0 |
NCP12..X FAWN,TRIM4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| 72693-10040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| 72693-10040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72693-10040 |
NCP1#,SCP11 |
2 | ||
| Common parts | ||||
| 90105-08274 | ||||
| 90105-10474 | ||||
| 90109-08163 | ||||
| 90206-10016 | ||||
| 90206-10018 | ||||
| 90386-10033 | ||||
| 90901-19062 | ||||
| 91511-80816 | ||||
| 94150-80800 | ||||
(9908- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
