NCP12-BEPEK (1999)
Toyota Platz

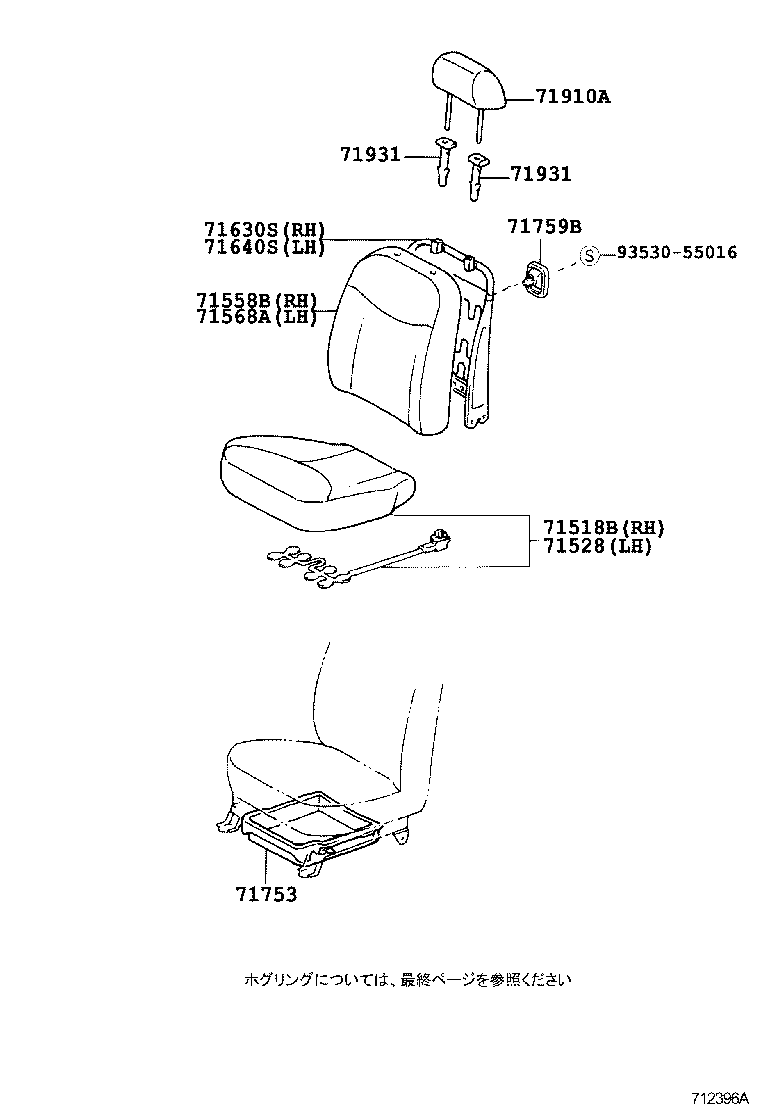

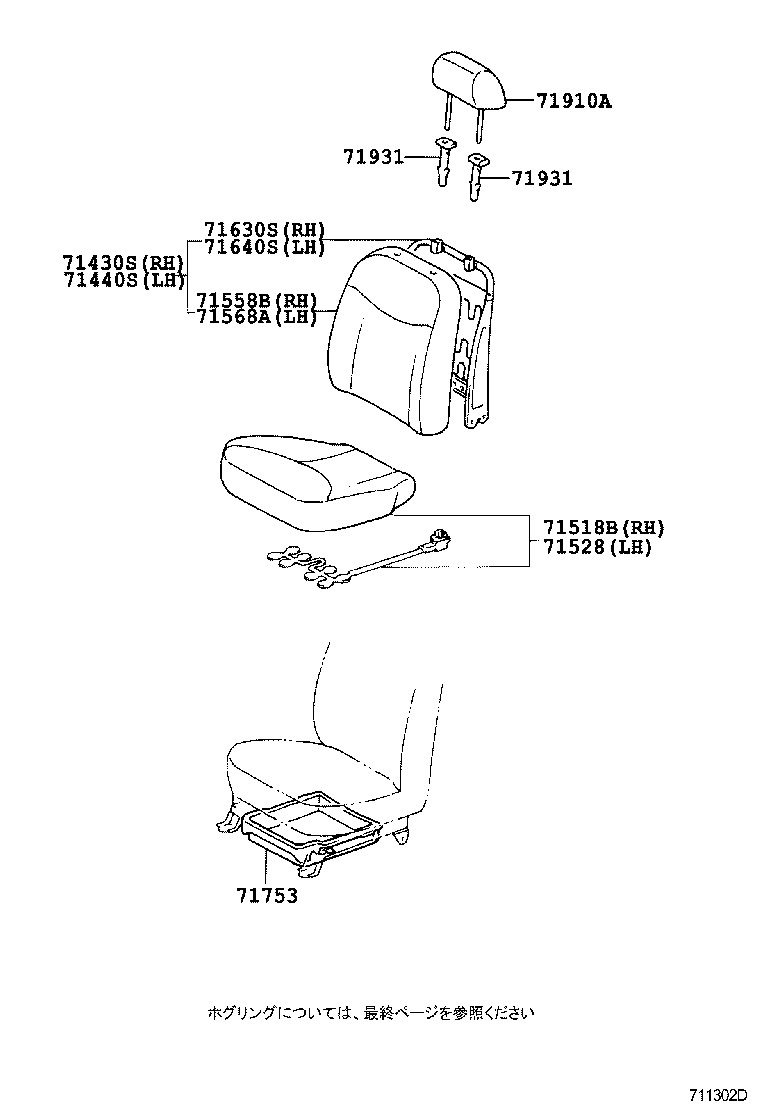

ILLUST NO. 1 OF 2(9908-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-52411B1 |
NCP12..X;NCP16,SCP11 ***,ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71430-52110B0 |
NCP1#..X ***,ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71430-52120B1 |
NCP1#,SCP11..F ***,ｼ-ﾄ = TYPE B-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71430-52410B0 |
NCP12..X;NCP16,SCP11 ***,ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-52130B0 |
NCP1#..X ***,ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71440-52140B1 |
NCP1#,SCP11..F ***,ｼ-ﾄ = TYPE B-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71440-52531B1 |
NCP12..X;NCP16,SCP11 ***,ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71440-52530B0 |
NCP12..X;NCP16,SCP11 ***,ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52620B0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71518-52230B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71518-5C180E1 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
1 | ||
| 71518-52621B1 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71518-52240B1 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52820B0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71528-52810B0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9#,ARACO |
1 | ||
| 71528-5C470E1 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
1 | ||
| 71528-52291B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71528-52811B1 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71528-52301B1 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52640B0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71558-52120B1 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71558-5C070E1 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
1 | ||
| 71558-52110B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71558-52641B1 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52170B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71568-52180B1 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71568-52860E1 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
1 | ||
| 71568-52640B0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71568-52641B1 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52010 |
NCP1#,SCP11 |
1 | ||
| 71630-52250 |
NCP1#,SCP11 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-52020 |
NCP1#,SCP11 |
1 | ||
| 71630-52240 |
NCP1#,SCP11 |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52030 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F |
1 | ||
| 71753-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 71753-52010 |
NCP1#..X |
1 | ||
| 71753-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52050B0 |
NCP1#..X LT. AMETHYST,TRIM9# |
2 | ||
| 71910-52100B2 |
NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
2 | ||
| 71910-52010B3 |
NCP1#,SCP11..F AMETHYST,TRIM9# |
2 | ||
| 71910-52050B0 |
NCP12..ATM..X ｳｴﾙｷﾔﾌﾞ,LT. AMETHYST,TRIM9# |
2 | ||
| 71910-52290E0 |
NCP12..X;NCP16,SCP11 NEUTRAL BONE,TRIM4# |
2 | ||
| 71910-52010B3 |
NCP1#,SCP11..ATM..F ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
2 | ||
| 71910-52290E0 |
NCP12..ATM..X;NCP16,SCP11..ATM..F ｳｴﾙｷﾔﾌﾞ,NEUTRAL BONE,TRIM4# |
1 | ||
| 71910-52230B0 |
NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
2 | ||
| 71910-52011E0 |
NCP12,SCP11..F MD.NEUTRAL BONE,TRIM40 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52010B2 |
NCP1#,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
4 | ||
| 71931-52010B2 |
NCP12,SCP11..ATM ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
4 | ||
| 71931-52010B2 |
NCP1#,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
4 | ||
| 71930-52010B2 |
NCP12,SCP11..ATM ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52010B2 |
NCP1#,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
4 | ||
| 71931-52010B2 |
NCP12,SCP11..ATM ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
4 | ||
| 71931-52010B2 |
NCP1#,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
4 | ||
| 71930-52010B2 |
NCP12,SCP11..ATM ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
4 | ||

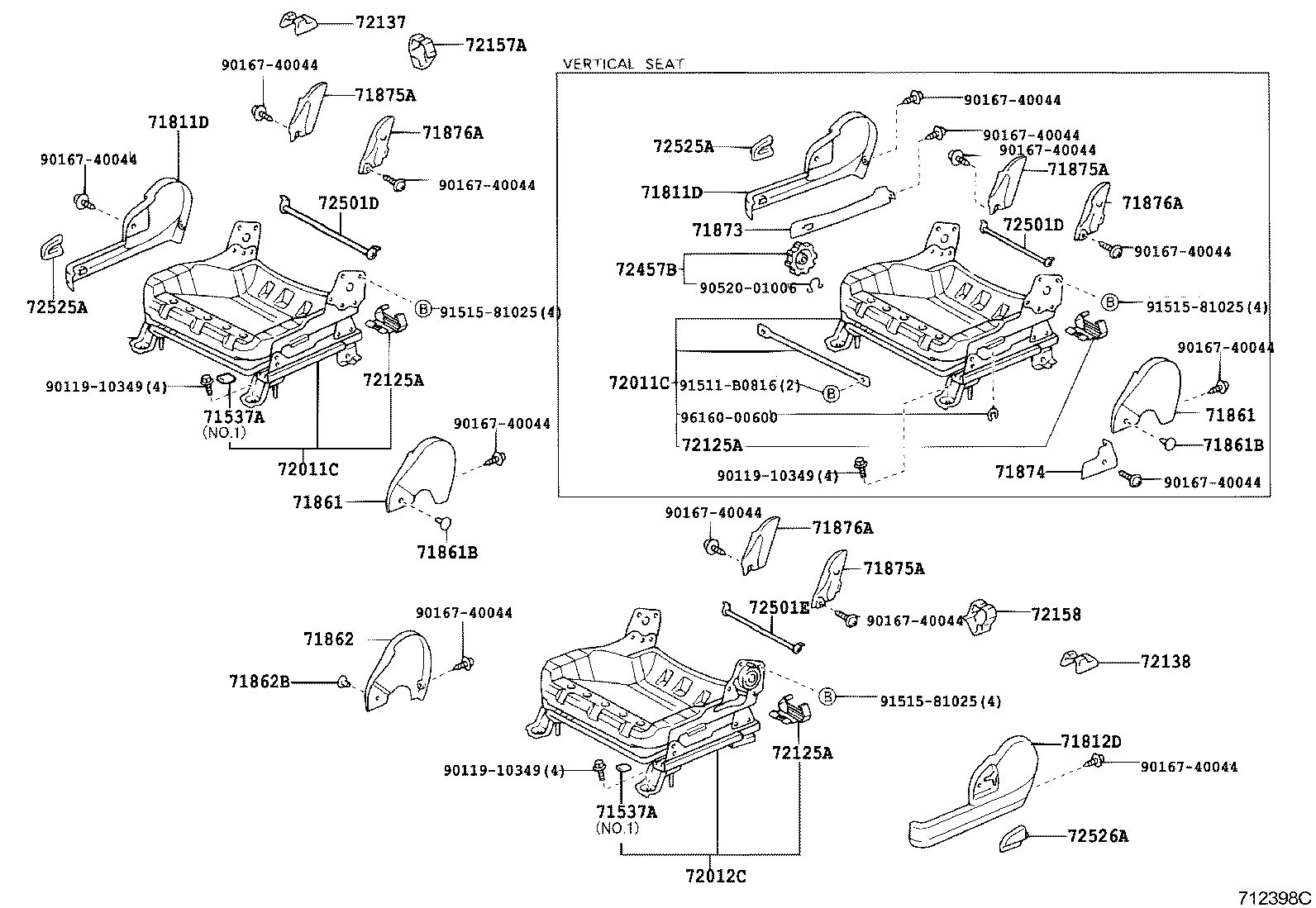

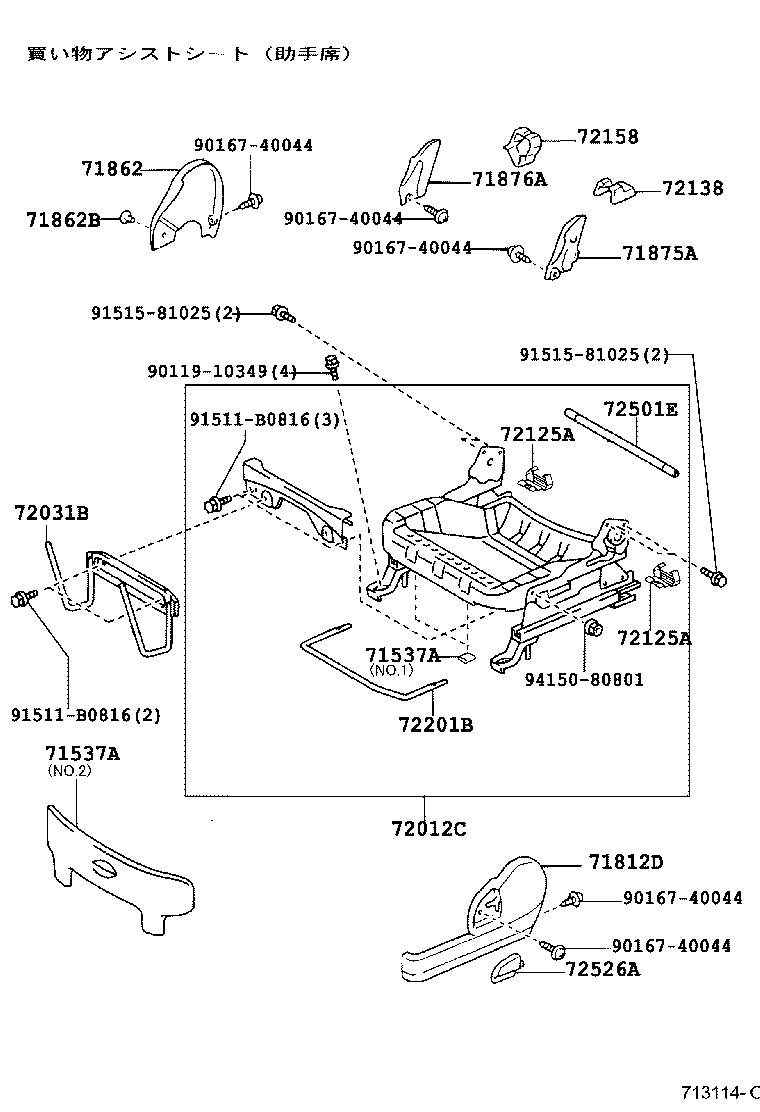

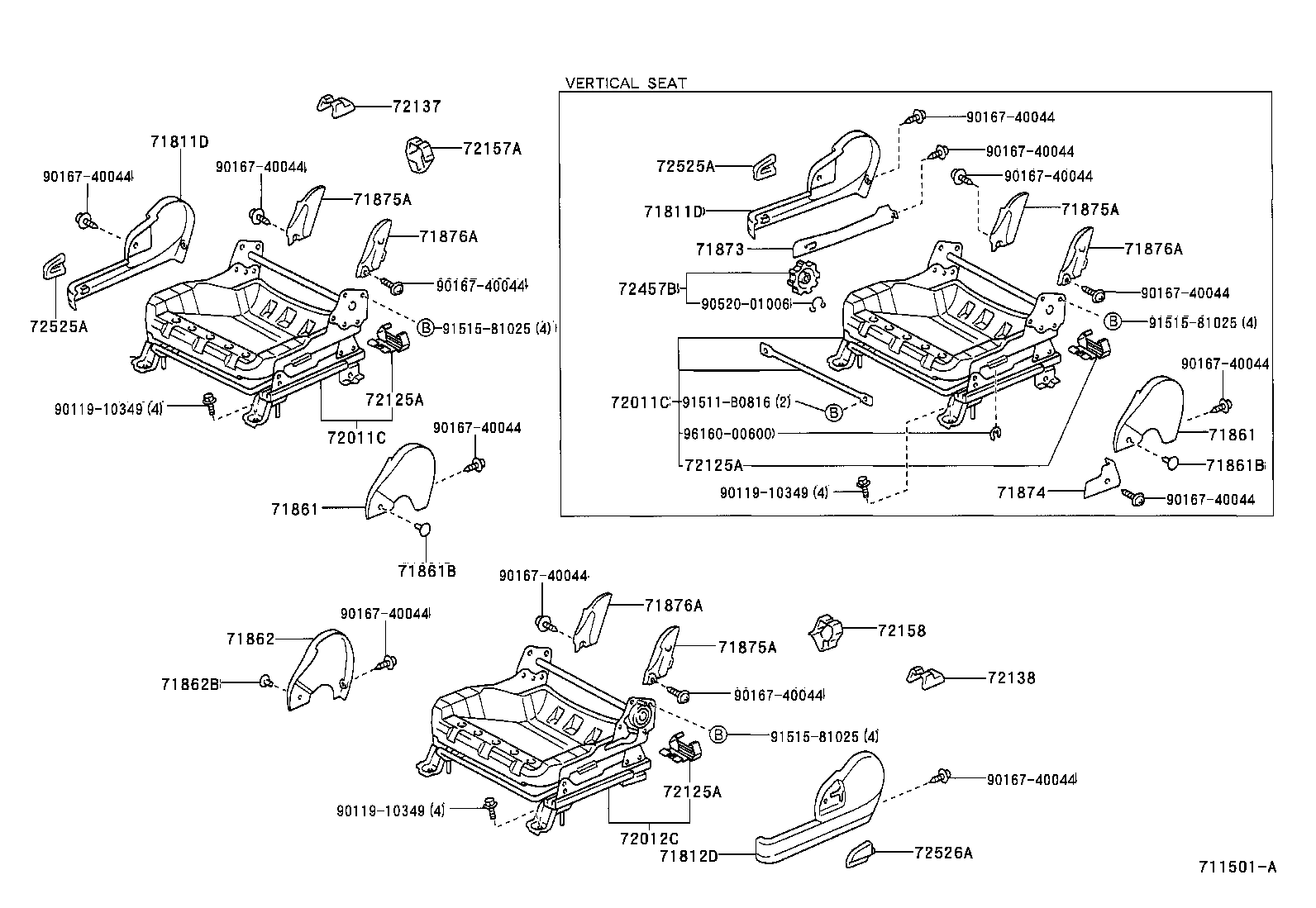

ILLUST NO. 2 OF 2(9908-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52010B1 |
NCP1#,SCP11..F AMETHYST,TRIM9# |
1 | ||
| 71811-52020B1 |
NCP12..X;NCP16,SCP11 ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),AMETHYST,TRIM9# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52010B1 |
NCP1#,SCP11..F AMETHYST,TRIM9# |
1 | ||
| 71811-52020B1 |
NCP12..X;NCP16,SCP11 ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),AMETHYST,TRIM9# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71812-52010E0 |
NCP12..F MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71812-52010E0 |
NCP12..X;NCP16,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52010B1 |
NCP12,SCP11..F AMETHYST,TRIM9# |
1 | ||
| 71861-52020B1 |
NCP16;NCP12..X AMETHYST,TRIM9# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52010B1 |
NCP12,SCP11..F AMETHYST,TRIM9# |
1 | ||
| 71861-52020B1 |
NCP16;NCP12..X AMETHYST,TRIM9# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 90467-06085E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 90467-06085B0 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 90467-06085E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 90467-06085B0 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52010E0 |
NCP12..X;NCP16,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71862-52010E0 |
NCP12..F MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71862-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 90467-06085B0 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 90467-06085E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52010B1 |
NCP12..X;NCP16,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52020B1 |
SCP11;NCP12..X AMETHYST,TRIM9# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52010E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71875-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71875-52010B1 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
1 | ||
| 71875-52010E0 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52010E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71875-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71875-52010B1 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
1 | ||
| 71875-52010E0 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52010E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71875-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71875-52010B1 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
1 | ||
| 71875-52010E0 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52010B1 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
1 | ||
| 71876-52010E0 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71876-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71876-52010E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52010B1 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
1 | ||
| 71876-52010E0 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71876-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71876-52010E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52010B1 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
1 | ||
| 71876-52010E0 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71876-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71876-52010E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-52090 |
NCP12,SCP11..F |
1 | ||
| 72010-52090 |
NCP12,SCP11..F |
1 | ||
| 72010-52110 |
NCP12..X |
1 | ||
| 72010-52110 |
NCP12..X |
1 | ||
| 72010-52091 |
NCP12,SCP11..F |
1 | ||
| 72010-52111 |
NCP12..X |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-52090 |
NCP12,SCP11..F |
1 | ||
| 72010-52090 |
NCP12,SCP11..F |
1 | ||
| 72010-52110 |
NCP12..X |
1 | ||
| 72010-52110 |
NCP12..X |
1 | ||
| 72010-52091 |
NCP12,SCP11..F |
1 | ||
| 72010-52111 |
NCP12..X |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-52121 |
NCP1#..X |
1 | ||
| 72020-52120 |
NCP1#..X |
1 | ||
| 72020-52120 |
SCP11;NCP1#..X |
1 | ||
| 72020-52141 |
NCP1#,SCP11..F ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72020-52760 |
NCP16;NCP12..X |
1 | ||
| 72020-52140 |
NCP1#,SCP11..F ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125-28030 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125-28030 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125-28030 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 72137-52010 |
NCP1#,SCP11 |
1 | ||
| 72137-52010 |
NCP1#,SCP11 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-52010 |
NCP1#,SCP11 |
1 | ||
| 72137-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 72137-52010 |
NCP1#,SCP11 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-52010 |
NCP12,SCP11 |
1 | ||
| 72157-52010 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 72157-52010 |
NCP12,SCP11 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-52010 |
NCP1#,SCP11 |
1 | ||
| 72158-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 72158-52010 |
NCP1#,SCP11 |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010P5 |
NCP12..X;NCP16,SCP11 AMETHYST,TRIM9# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010P5 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 72525-16010E4 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010P5 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 72525-16010E4 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010E4 |
NCP12..X;NCP16,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 72526-16010E4 |
NCP12..F MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 72526-16010P5 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91511-B0816 | ||||
| 91515-81025 | ||||
| 96160-00600 | ||||
ILLUST NO. 1 OF 2(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52620B0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71518-52230B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71518-5C180E1 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
1 | ||
| 71518-52621B1 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71518-52240B1 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52820B0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9#,TACHIESU |
1 | ||
| 71528-52810B0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9#,ARACO |
1 | ||
| 71528-5C470E1 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
1 | ||
| 71528-52291B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71528-52811B1 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71528-52301B1 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52640B0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71558-52120B1 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71558-5C070E1 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
1 | ||
| 71558-52110B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71558-52641B1 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52170B0 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71568-52180B1 |
NCP1#,SCP11..F ｼ-ﾄ = TYPE B-*104,LT. AMETHYST,TRIM9# |
1 | ||
| 71568-52860E1 |
NCP1#..X ｼ-ﾄ = TYPE A-*104,NEUTRAL BONE,TRIM4# |
1 | ||
| 71568-52640B0 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71568-52641B1 |
NCP12..X;NCP16,SCP11 ｼ-ﾄ = TYPE C-*104,AMETHYST,TRIM9# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52010 |
NCP1#,SCP11 |
1 | ||
| 71630-52250 |
NCP1#,SCP11 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-52020 |
NCP1#,SCP11 |
1 | ||
| 71630-52240 |
NCP1#,SCP11 |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52030 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F |
1 | ||
| 71753-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 71753-52010 |
NCP1#..X |
1 | ||
| 71753-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52050B0 |
NCP1#..X LT. AMETHYST,TRIM9# |
2 | ||
| 71910-52100B2 |
NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
2 | ||
| 71910-52010B3 |
NCP1#,SCP11..F AMETHYST,TRIM9# |
2 | ||
| 71910-52050B0 |
NCP12..ATM..X ｳｴﾙｷﾔﾌﾞ,LT. AMETHYST,TRIM9# |
2 | ||
| 71910-52290E0 |
NCP12..X;NCP16,SCP11 NEUTRAL BONE,TRIM4# |
2 | ||
| 71910-52010B3 |
NCP1#,SCP11..ATM..F ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
2 | ||
| 71910-52290E0 |
NCP12..ATM..X;NCP16,SCP11..ATM..F ｳｴﾙｷﾔﾌﾞ,NEUTRAL BONE,TRIM4# |
1 | ||
| 71910-52230B0 |
NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(P),AMETHYST,TRIM9# |
2 | ||
| 71910-52011E0 |
NCP12,SCP11..F MD.NEUTRAL BONE,TRIM40 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52010B2 |
NCP1#,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
4 | ||
| 71931-52010B2 |
NCP12,SCP11..ATM ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
4 | ||
| 71931-52010B2 |
NCP1#,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
4 | ||
| 71930-52010B2 |
NCP12,SCP11..ATM ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52010B2 |
NCP1#,SCP11 ﾛｯｸ付,AMETHYST,TRIM9# |
4 | ||
| 71931-52010B2 |
NCP12,SCP11..ATM ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
4 | ||
| 71931-52010B2 |
NCP1#,SCP11 ﾛｯｸ無,AMETHYST,TRIM9# |
4 | ||
| 71930-52010B2 |
NCP12,SCP11..ATM ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
4 | ||
| Common parts | ||||
| 93530-55016 | ||||
ILLUST NO. 2 OF 2(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NCP1#,SCP11..ATM..F ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 71537-26010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F NO.1 |
2 | ||
| 71537-52010E0 |
NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NCP1#,SCP11..ATM..F ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 71537-26010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F NO.1 |
2 | ||
| 71537-52010E0 |
NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52010B1 |
NCP1#,SCP11..F AMETHYST,TRIM9# |
1 | ||
| 71811-52020B1 |
NCP12..X;NCP16,SCP11 ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),AMETHYST,TRIM9# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52010B1 |
NCP1#,SCP11..F AMETHYST,TRIM9# |
1 | ||
| 71811-52020B1 |
NCP12..X;NCP16,SCP11 ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),AMETHYST,TRIM9# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71812-52010E0 |
NCP12..F MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71812-52010E0 |
NCP12..X;NCP16,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52010B1 |
NCP12,SCP11..F AMETHYST,TRIM9# |
1 | ||
| 71861-52020B1 |
NCP16;NCP12..X AMETHYST,TRIM9# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52010B1 |
NCP12,SCP11..F AMETHYST,TRIM9# |
1 | ||
| 71861-52020B1 |
NCP16;NCP12..X AMETHYST,TRIM9# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 90467-06085E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 90467-06085B0 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 90467-06085E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 90467-06085B0 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52010E0 |
NCP12..X;NCP16,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71862-52010E0 |
NCP12..F MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71862-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 90467-06085B0 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 90467-06085E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52010B1 |
NCP12..X;NCP16,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52020B1 |
SCP11;NCP12..X AMETHYST,TRIM9# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52010E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71875-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71875-52010B1 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
1 | ||
| 71875-52010E0 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52010E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71875-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71875-52010B1 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
1 | ||
| 71875-52010E0 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52010E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71875-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71875-52010B1 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
1 | ||
| 71875-52010E0 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52010B1 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
1 | ||
| 71876-52010E0 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71876-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71876-52010E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52010B1 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
1 | ||
| 71876-52010E0 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71876-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71876-52010E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52010B1 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
1 | ||
| 71876-52010E0 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71876-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71876-52010E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-52090 |
NCP12,SCP11..F |
1 | ||
| 72010-52090 |
NCP12,SCP11..F |
1 | ||
| 72010-52110 |
NCP12..X |
1 | ||
| 72010-52110 |
NCP12..X |
1 | ||
| 72010-52091 |
NCP12,SCP11..F |
1 | ||
| 72010-52111 |
NCP12..X |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-52090 |
NCP12,SCP11..F |
1 | ||
| 72010-52090 |
NCP12,SCP11..F |
1 | ||
| 72010-52110 |
NCP12..X |
1 | ||
| 72010-52110 |
NCP12..X |
1 | ||
| 72010-52091 |
NCP12,SCP11..F |
1 | ||
| 72010-52111 |
NCP12..X |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-52121 |
NCP1#..X |
1 | ||
| 72020-52120 |
NCP1#..X |
1 | ||
| 72020-52120 |
SCP11;NCP1#..X |
1 | ||
| 72020-52141 |
NCP1#,SCP11..F ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72020-52760 |
NCP16;NCP12..X |
1 | ||
| 72020-52140 |
NCP1#,SCP11..F ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125-28030 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125-28030 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125-28030 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 72137-52010 |
NCP1#,SCP11 |
1 | ||
| 72137-52010 |
NCP1#,SCP11 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-52010 |
NCP1#,SCP11 |
1 | ||
| 72137-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 72137-52010 |
NCP1#,SCP11 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-52010 |
NCP12,SCP11 |
1 | ||
| 72157-52010 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 72157-52010 |
NCP12,SCP11 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-52010 |
NCP1#,SCP11 |
1 | ||
| 72158-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 72158-52010 |
NCP1#,SCP11 |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010P5 |
NCP12..X;NCP16,SCP11 AMETHYST,TRIM9# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-47010 |
NCP1#,SCP11 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-47010 |
NCP1#,SCP11 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-47010 |
NCP1#,SCP11 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010P5 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 72525-16010E4 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010P5 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 72525-16010E4 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010E4 |
NCP12..X;NCP16,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 72526-16010E4 |
NCP12..F MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 72526-16010P5 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91511-B0816 | ||||
| 91515-81025 | ||||
| 96160-00600 | ||||
ILLUST NO. 2 OF 2(0308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NCP1#,SCP11..ATM..F ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 71537-26010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F NO.1 |
2 | ||
| 71537-52010E0 |
NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NCP1#,SCP11..ATM..F ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 71537-26010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F NO.1 |
2 | ||
| 71537-52010E0 |
NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71812-52010E0 |
NCP12..F MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71812-52010E0 |
NCP12..X;NCP16,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52010E0 |
NCP12..X;NCP16,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71862-52010E0 |
NCP12..F MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71862-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 90467-06085B0 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 90467-06085E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52010E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71875-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71875-52010B1 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
1 | ||
| 71875-52010E0 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52010B1 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,AMETHYST,TRIM9# |
1 | ||
| 71876-52010E0 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 71876-52010B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| 71876-52010E0 |
NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-52121 |
NCP1#..X |
1 | ||
| 72020-52120 |
NCP1#..X |
1 | ||
| 72020-52120 |
SCP11;NCP1#..X |
1 | ||
| 72020-52141 |
NCP1#,SCP11..F ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72020-52760 |
NCP16;NCP12..X |
1 | ||
| 72020-52140 |
NCP1#,SCP11..F ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72031B - LEG, FRONT SEAT SET | ||||
| 72031-52010 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125-28030 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125-28030 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 72125-28030 |
NCP16..ATM..F;NCP12,SCP11..ATM ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-52010 |
NCP1#,SCP11 |
1 | ||
| 72137-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 72137-52010 |
NCP1#,SCP11 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-52010 |
NCP1#,SCP11 |
1 | ||
| 72158-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 72158-52010 |
NCP1#,SCP11 |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-52050 |
NCP12..X;NCP16,SCP11 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-47010 |
NCP1#,SCP11 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010E4 |
NCP12..X;NCP16,SCP11 MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 72526-16010E4 |
NCP12..F MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 72526-16010P5 |
NCP1#,SCP11 AMETHYST,TRIM9# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 91511-B0816 | ||||
| 91515-81025 | ||||
| 94150-80801 | ||||
(9908- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
