NCP12-BEPEK (1999)
Toyota Platz

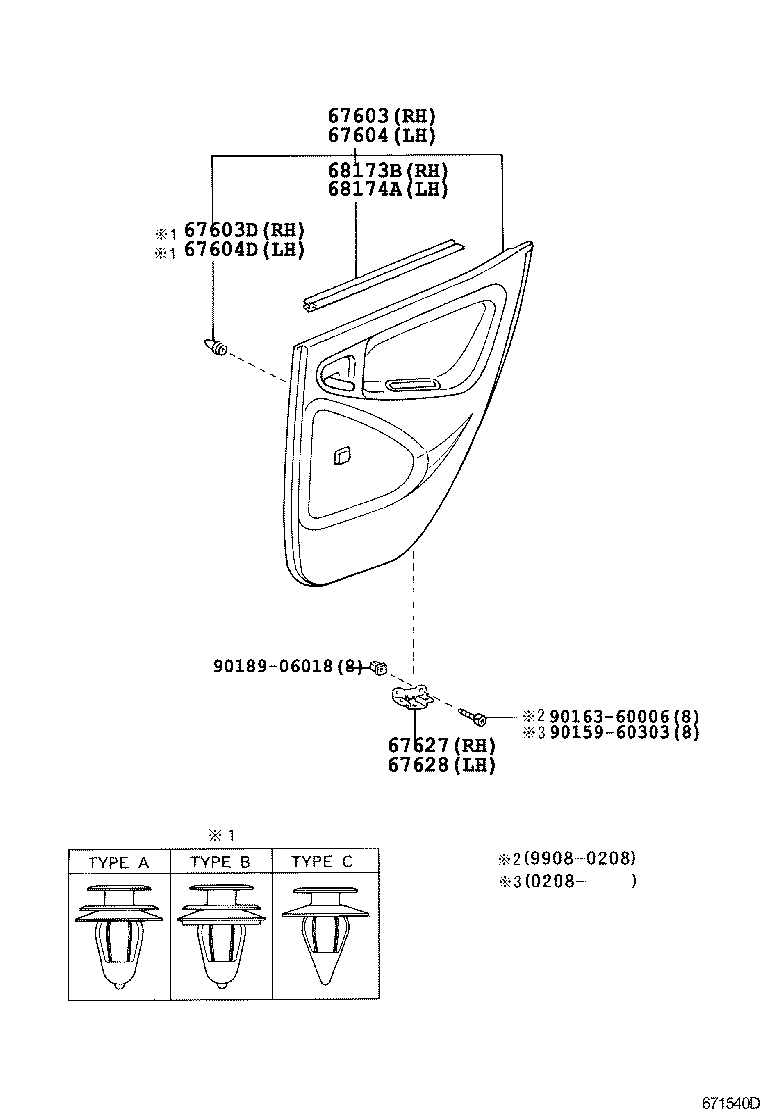

ILLUST NO. 1 OF 2(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-52370B0 |
NCP12..X;NCP16,SCP11 ﾄﾞｱﾄﾘﾑ=TYPE D-*104,AMETHYST,TRIM9# |
1 | ||
| 67630-52100B0 |
NCP1#..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104,AMETHYST,TRIM9# |
1 | ||
| 67630-52440B0 |
NCP12..X;NCP16,SCP11 ﾄﾞｱﾄﾘﾑ=TYPE D-*104,AMETHYST,TRIM9# |
1 | ||
| 67630-52280B0 |
NCP1#..F ﾄﾞｱﾄﾘﾑ=TYPE B-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),AMETHYST,TRIM9# |
1 | ||
| 67630-52480E0 |
NCP12..X;NCP16,SCP11 ﾄﾞｱﾄﾘﾑ=TYPE A-*104,SANDAL WOOD,TRIM4# |
1 | ||
| 67630-52280E0 |
NCP1#..F ﾄﾞｱﾄﾘﾑ=TYPE B-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),SANDAL WOOD,TRIM4# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 67771-28020 |
NCP1#,SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 67771-12050 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 67771-16170 |
NCP1#,SCP11 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 67771-16170 |
NCP1#,SCP11 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 67771-28020 |
NCP1#,SCP11 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 67771-16170 |
NCP1#,SCP11 TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 67771-12050 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-52370B0 |
NCP12..X;NCP16,SCP11 ﾄﾞｱﾄﾘﾑ=TYPE D-*104,AMETHYST,TRIM9# |
1 | ||
| 67640-52100B0 |
NCP1#..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104,AMETHYST,TRIM9# |
1 | ||
| 67640-52280B0 |
NCP1#..F ﾄﾞｱﾄﾘﾑ=TYPE B-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),AMETHYST,TRIM9# |
1 | ||
| 67640-52280E0 |
NCP1#..F ﾄﾞｱﾄﾘﾑ=TYPE B-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),SANDAL WOOD,TRIM4# |
1 | ||
| 67640-52490E0 |
NCP12..X;NCP16,SCP11 ﾄﾞｱﾄﾘﾑ=TYPE A-*104,SANDAL WOOD,TRIM4# |
1 | ||
| 67640-52450B0 |
NCP12..X;NCP16,SCP11 ﾄﾞｱﾄﾘﾑ=TYPE D-*104,AMETHYST,TRIM9# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 67771-16170 |
NCP1#,SCP11 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 67771-12050 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 67771-28020 |
NCP1#,SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 67771-28020 |
NCP1#,SCP11 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 67771-16170 |
NCP1#,SCP11 TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 67771-12050 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 67771-16170 |
NCP1#,SCP11 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67625-52010 |
NCP1#,SCP11 |
1 | ||
| 67625-52010 |
NCP1#,SCP11 |
1 | ||
| 67625-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67625-52010 |
NCP1#,SCP11 |
1 | ||
| 67625-52010 |
NCP1#,SCP11 |
1 | ||
| 67625-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-52050 |
NCP1#,SCP11 |
1 | ||
| 68173-52051 |
NCP1#,SCP11 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-52050 |
NCP1#,SCP11 |
1 | ||
| 68174-52051 |
NCP1#,SCP11 |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90163-60006 | ||||
| 90189-06018 | ||||

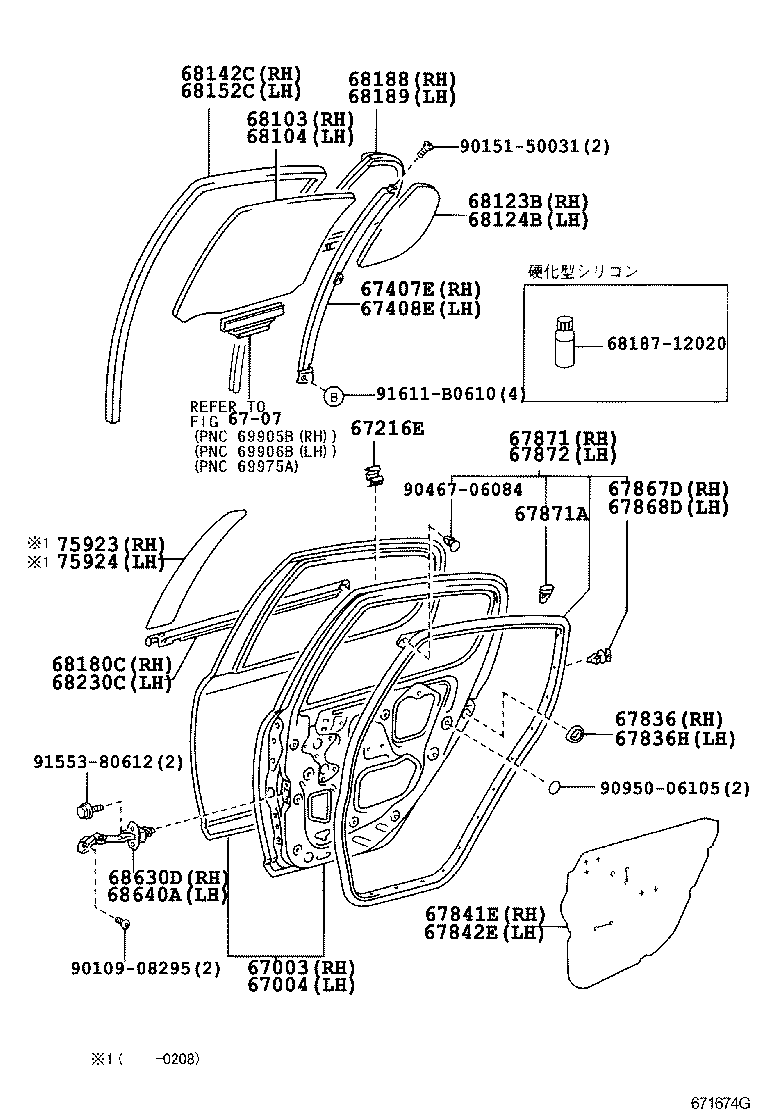

ILLUST NO. 2 OF 2(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-52071 |
NCP1#,SCP11 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 67003-52070 |
NCP1#,SCP11 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 67003-52071 |
NCP1#,SCP11 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-52070 |
NCP1#,SCP11 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 67004-52071 |
NCP1#,SCP11 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 67004-52071 |
NCP1#,SCP11 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 67216E - STOPPER, REAR DOOR GLASS, UPPER NO.2 | ||||
| 67216-52010 |
NCP1#,SCP11 |
2 | ||
| 67216-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 67216-52010 |
NCP1#,SCP11 |
2 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-52040 |
NCP1#,SCP11 |
1 | ||
| 67407-52040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67407-52040 |
NCP1#,SCP11 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-52040 |
NCP1#,SCP11 |
1 | ||
| 67408-52040 |
NCP1#,SCP11 |
1 | ||
| 67408-52040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-52010 |
NCP1#,SCP11 |
1 | ||
| 67836-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67836-52010 |
NCP1#,SCP11 |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67846-52010 |
NCP1#,SCP11 |
1 | ||
| 67846-52010 |
NCP1#,SCP11 |
1 | ||
| 67846-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-52010 |
NCP1#,SCP11 |
1 | ||
| 67841-52010 |
NCP1#,SCP11 |
1 | ||
| 67841-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-52010 |
NCP1#,SCP11 |
1 | ||
| 67841-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67841-52010 |
NCP1#,SCP11 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NCP1#,SCP11 |
22 | ||
| 67867-12150 |
NCP1#,SCP11 |
22 | ||
| 67867-12150 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
22 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NCP1#,SCP11 |
22 | ||
| 67867-12150 |
NCP1#,SCP11 |
22 | ||
| 67867-12150 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
22 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-52040 |
NCP1#,SCP11 |
1 | ||
| 67871-52040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67871-52040 |
NCP1#,SCP11 |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-52010 |
NCP1#,SCP11 右側 |
10 | ||
| 67867-52010 |
NCP1#,SCP11 右側 |
10 | ||
| 67867-52040 |
NCP1#,SCP11 左側 |
10 | ||
| 67867-52040 |
NCP1#,SCP11 左側 |
10 | ||
| 67867-52040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 左側 |
10 | ||
| 67867-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 右側 |
10 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-52040 |
NCP1#,SCP11 |
1 | ||
| 67872-52040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67872-52040 |
NCP1#,SCP11 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-52070 |
NCP12..X;NCP16,SCP11 *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68113-52060 |
NCP1#,SCP11..F *TEM,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68113-52070 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68113-52060 |
NCP1#,SCP11..F *TEM,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68113-52070 |
NCP12..X;NCP16,SCP11 *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-52060 |
NCP1#,SCP11..F *TEM,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68114-52060 |
NCP1#,SCP11..F *TEM,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68114-52070 |
NCP12..X;NCP16,SCP11 *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68114-52070 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68114-52070 |
NCP12..X;NCP16,SCP11 *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-52050 |
NCP1#,SCP11..F *TEM,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68123-52050 |
NCP1#,SCP11..F *TEM,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68123-52060 |
NCP12..X;NCP16,SCP11 *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68123-52060 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68123-52060 |
NCP12..X;NCP16,SCP11 *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-52050 |
NCP1#,SCP11..F *TEM,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68124-52060 |
SCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68124-52060 |
NCP12..X;NCP16,SCP11 *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68124-52060 |
NCP12..X;NCP16,SCP11 *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68124-52050 |
NCP1#,SCP11..F *TEM,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-52040 |
NCP1#,SCP11 |
1 | ||
| 68142-52040 |
NCP1#,SCP11 |
1 | ||
| 68142-52040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-52040 |
NCP1#,SCP11 |
1 | ||
| 68152-52040 |
NCP1#,SCP11 |
1 | ||
| 68152-52040 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68180-52010 |
NCP1#,SCP11 |
1 | ||
| 68180-52010 |
NCP1#,SCP11 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-52030 |
NCP1#,SCP11 |
1 | ||
| 68188-52030 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68188-52030 |
NCP1#,SCP11 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-52030 |
NCP1#,SCP11 |
1 | ||
| 68189-52030 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68189-52030 |
NCP1#,SCP11 |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68230-52010 |
NCP1#,SCP11 |
1 | ||
| 68230-52010 |
NCP1#,SCP11 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68630-52010 |
NCP1#,SCP11 |
1 | ||
| 68630-52010 |
NCP1#,SCP11 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-52010 |
NCP1#,SCP11 |
1 | ||
| 68640-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68640-52010 |
NCP1#,SCP11 |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-52010 |
NCP1#,SCP11 |
1 | ||
| 75923-52011 |
NCP1#,SCP11 |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-52010 |
NCP1#,SCP11 |
1 | ||
| 75924-52011 |
NCP1#,SCP11 |
1 | ||
| Common parts | ||||
| 68187-12020 | ||||
| 90109-08295 | ||||
| 90151-50031 | ||||
| 90467-06084 | ||||
| 90950-06105 | ||||
| 91553-80612 | ||||
| 91611-B0610 | ||||
| Linked diagrams | ||||
| 6707 | ||||
