NCP12-BEPEK (1999)
Toyota Platz

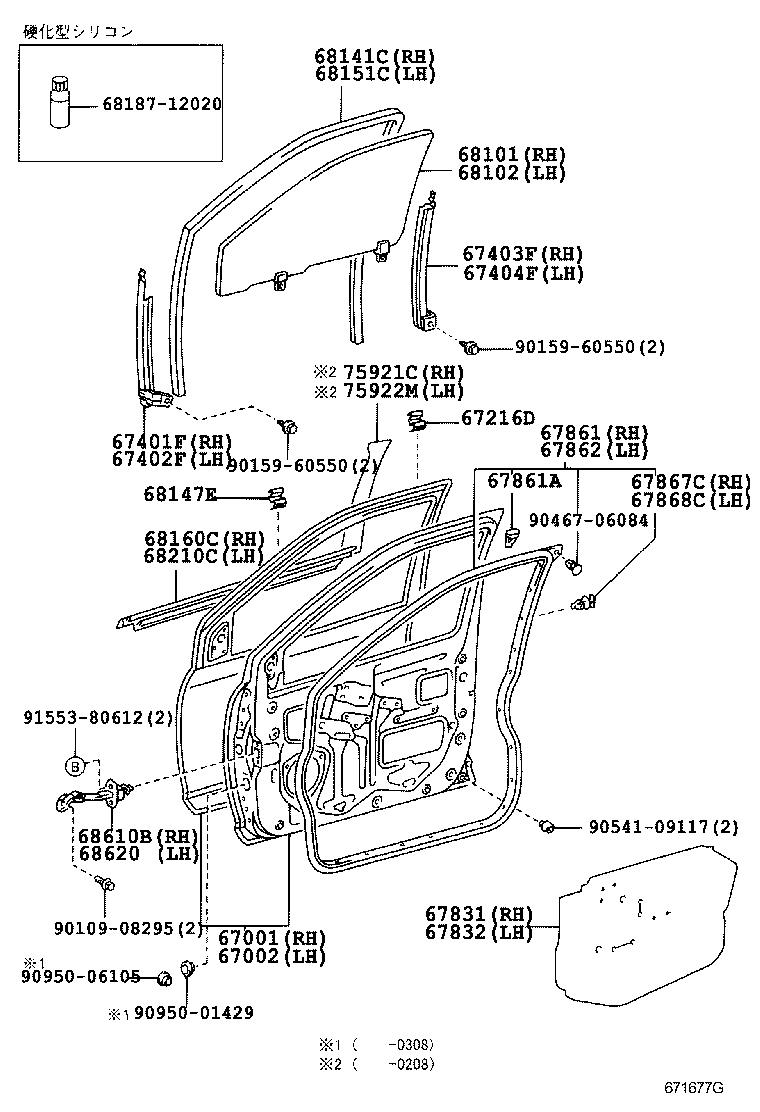

ILLUST NO. 1 OF 3(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67491-52010 |
NCP1#,SCP11 |
1 | ||
| 67491-52010 |
NCP1#,SCP11 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67492-52010 |
NCP1#,SCP11 |
1 | ||
| 67492-52010 |
NCP1#,SCP11 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-52260B0 |
NCP12..X;NCP16,SCP11 ﾄﾞｱﾄﾘﾑ=TYPE D-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),AMETHYST,TRIM9# |
1 | ||
| 67610-52590B0 |
NCP1#..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104,AMETHYST,TRIM9# |
1 | ||
| 67610-52860B0 |
NCP1#..F ﾄﾞｱﾄﾘﾑ=TYPE B-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),AMETHYST,TRIM9# |
1 | ||
| 67610-52860E0 |
NCP1#..F ﾄﾞｱﾄﾘﾑ=TYPE B-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),SANDAL WOOD,TRIM4# |
1 | ||
| 67610-5C050E0 |
NCP12..X;NCP16,SCP11 ﾄﾘﾑ = TYPE A-*104,SANDAL WOOD,TRIM4# |
1 | ||
| 67650-52380B0 |
NCP12..X;NCP16,SCP11 ﾄﾞｱﾄﾘﾑ=TYPE D-*104,AMETHYST,TRIM9# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07190B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
6 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07190B1 |
NCP1#,SCP11 AMETHYST,TRIM9# |
6 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-28020 |
NCP1#,SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 67771-12050 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67660-52250B0 |
NCP12..X;NCP16,SCP11 ﾄﾞｱﾄﾘﾑ=TYPE D-*104,AMETHYST,TRIM9# |
1 | ||
| 67660-52370B0 |
NCP12..X;NCP16,SCP11 ﾄﾞｱﾄﾘﾑ=TYPE D-*104,AMETHYST,TRIM9# |
1 | ||
| 67620-52590B0 |
NCP1#..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104,AMETHYST,TRIM9# |
1 | ||
| 67620-5C060E0 |
NCP12..X;NCP16,SCP11 ﾄﾘﾑ = TYPE A-*104,SANDAL WOOD,TRIM4# |
1 | ||
| 67620-52850B0 |
NCP1#..F ﾄﾞｱﾄﾘﾑ=TYPE B-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),AMETHYST,TRIM9# |
1 | ||
| 67620-52850E0 |
NCP1#..F ﾄﾞｱﾄﾘﾑ=TYPE B-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),SANDAL WOOD,TRIM4# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-28020 |
NCP1#,SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 67771-12050 |
NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 67625 - BRACKET, FRONT DOOR TRIM, RH | ||||
| 67625-52010 |
NCP1#,SCP11 |
1 | ||
| 67625-52010 |
NCP1#,SCP11 |
1 | ||
| 67625-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67626 - BRACKET, FRONT DOOR TRIM, LH | ||||
| 67625-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67625-52010 |
NCP1#,SCP11 |
1 | ||
| 67625-52010 |
NCP1#,SCP11 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-52080 |
NCP1#,SCP11 |
1 | ||
| 68171-52081 |
NCP1#,SCP11 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-52080 |
NCP1#,SCP11 |
1 | ||
| 68172-52081 |
NCP1#,SCP11 |
1 | ||
| Common parts | ||||
| 67771-30070 | ||||
| 90159-60303 | ||||
| 90163-60006 | ||||
| 90189-06018 | ||||
| 90467-10192 | ||||
ILLUST NO. 2 OF 3(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-52010 |
NCP1#,SCP11 |
1 | ||
| 67001-52011 |
NCP1#,SCP11 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-52010 |
NCP1#,SCP11 |
1 | ||
| 67002-52011 |
NCP1#,SCP11 |
1 | ||
| 67216D - STOPPER, FRONT DOOR GLASS, UPPER NO.2 | ||||
| 67216-52010 |
NCP1#,SCP11 |
2 | ||
| 67216-52010 |
NCP1#,SCP11 |
2 | ||
| 67216-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67401-52011 |
NCP1#,SCP11 |
1 | ||
| 67401-52010 |
NCP1#,SCP11 |
1 | ||
| 67401-52011 |
NCP1#,SCP11 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-52011 |
NCP1#,SCP11 |
1 | ||
| 67402-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67402-52010 |
NCP1#,SCP11 |
1 | ||
| 67402-52011 |
NCP1#,SCP11 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-52010 |
NCP1#,SCP11 |
1 | ||
| 67403-52010 |
NCP1#,SCP11 |
1 | ||
| 67403-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-52010 |
NCP1#,SCP11 |
1 | ||
| 67404-52010 |
NCP1#,SCP11 |
1 | ||
| 67404-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-52010 |
NCP1#,SCP11 |
1 | ||
| 67831-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67831-52010 |
NCP1#,SCP11 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67831-52010 |
NCP1#,SCP11 |
1 | ||
| 67831-52010 |
NCP1#,SCP11 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-52010 |
NCP1#,SCP11 |
1 | ||
| 67861-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67861-52010 |
NCP1#,SCP11 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67867-52010 |
NCP1#,SCP11 |
20 | ||
| 67867-52020 |
NCP1#,SCP11 右側 |
11 | ||
| 67867-52030 |
NCP1#,SCP11 左側 |
11 | ||
| 67867-52030 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 左側 |
11 | ||
| 67867-52030 |
NCP1#,SCP11 左側 |
10 | ||
| 67867-52020 |
NCP1#,SCP11 右側 |
10 | ||
| 67867-52020 |
NCP1#,SCP11 右側 |
11 | ||
| 67867-52030 |
NCP1#,SCP11 左側 |
11 | ||
| 67867-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 右側 |
11 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-52010 |
NCP1#,SCP11 |
1 | ||
| 67862-52010 |
NCP1#,SCP11 |
1 | ||
| 67862-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NCP1#,SCP11 |
22 | ||
| 67867-12150 |
NCP1#,SCP11 |
21 | ||
| 67867-12150 |
NCP1#,SCP11 |
21 | ||
| 67867-12150 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
21 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NCP1#,SCP11 |
21 | ||
| 67867-12150 |
NCP1#,SCP11 |
21 | ||
| 67867-12150 |
NCP1#,SCP11 |
22 | ||
| 67867-12150 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
21 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-52020 |
NCP1#,SCP11 *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68110-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-52020 |
NCP1#,SCP11 *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68120-52020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-52011 |
NCP1#,SCP11 |
1 | ||
| 68141-52010 |
NCP1#,SCP11 |
1 | ||
| 68141-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68141-52011 |
NCP1#,SCP11 |
1 | ||
| 68147E - STOP, FRONT DOOR GLASS, UPPER | ||||
| 68147-52010 |
NCP1#,SCP11 |
2 | ||
| 68147-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 68147-52010 |
NCP1#,SCP11 |
2 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-52011 |
NCP1#,SCP11 |
1 | ||
| 68151-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68151-52011 |
NCP1#,SCP11 |
1 | ||
| 68151-52010 |
NCP1#,SCP11 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68160-52010 |
NCP1#,SCP11 |
1 | ||
| 68160-52010 |
NCP1#,SCP11 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-52010 |
NCP1#,SCP11 |
1 | ||
| 68210-52010 |
NCP1#,SCP11 |
1 | ||
| 68210-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-52010 |
NCP1#,SCP11 |
1 | ||
| 68610-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68610-52010 |
NCP1#,SCP11 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-52010 |
NCP1#,SCP11 |
1 | ||
| 68620-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 68620-52010 |
NCP1#,SCP11 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-52020 |
NCP1#,SCP11 |
1 | ||
| 75921-52021 |
NCP1#,SCP11 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-52021 |
NCP1#,SCP11 |
1 | ||
| 75922-52020 |
NCP1#,SCP11 |
1 | ||
| Common parts | ||||
| 68187-12020 | ||||
| 90109-08295 | ||||
| 90159-60550 | ||||
| 90467-06084 | ||||
| 90541-09117 | ||||
| 90950-01429 | ||||
| 90950-06105 | ||||
| 91553-80612 | ||||
ILLUST NO. 3 OF 3(9908-0208)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(0208- )
| Part # | Description | Qty | Price |
|---|
