NCP12-BEPEK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

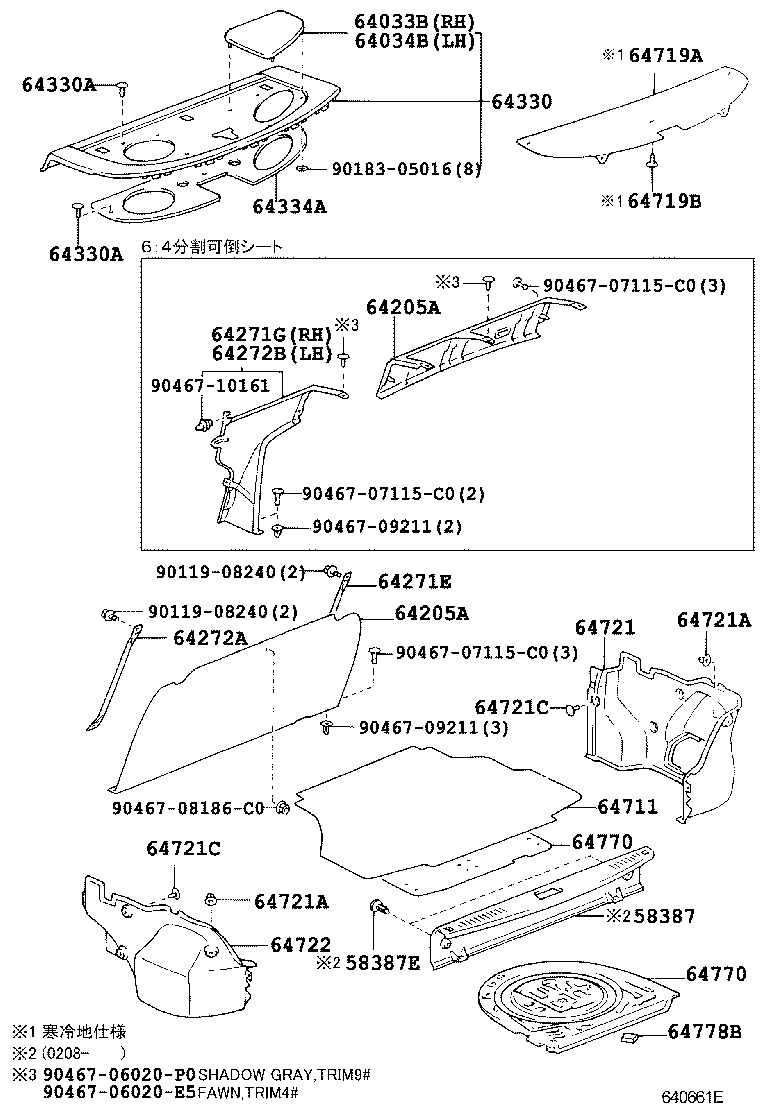

Click highlighted areas on diagram

diagram 58387 58387E 64033B 64034B 64205A 64205A 64271E 64271G 64272A 64272B 64330 64330A 64330A 64334A 64711 64719A 64719B 64721 64721A 64721A 64721C 64721C 64722 64770 64770 64778B 9011908240 9011908240 9018305016 9046706020E5 9046706020P0 9046707115C0 9046707115C0 9046707115C0 9046708186C0 9046709211 9046709211 9046710161
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-52010B0

NCP1#,SCP11

SHADOW GRAY,TRIM4#

 1
58387E - CLIP(FOR REAR FLOOR FINISH PLATE)
90467-08186C0

NCP1#,SCP11

BLACK,TRIM4#

 2
90467-08186B4

NCP1#,SCP11

DK.GRAY

 2
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64383-52010B0

NCP1#..X

SHADOW GRAY,TRIM9#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64384-52010B0

NCP1#..X

SHADOW GRAY,TRIM9#

 1
64205A - COVER SUB-ASSY, ROOM PARTITION
64275-52010

NCP12,SCP11..F

 1
64275-52011

NCP12..F

 1
64275-52020B0

NCP12..X

ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),SHADOW GRAY,TRIM9#

 1
64275-52020B0

NCP12..X

ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),SHADOW GRAY,TRIM4#

 1
64275-52020B0

SCP11;NCP12..X

ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),SHADOW GRAY,TRIM9#

 1
64205A - COVER SUB-ASSY, ROOM PARTITION
64275-52010

NCP12,SCP11..F

 1
64275-52011

NCP12..F

 1
64275-52020B0

NCP12..X

ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),SHADOW GRAY,TRIM9#

 1
64275-52020B0

NCP12..X

ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),SHADOW GRAY,TRIM4#

 1
64275-52020B0

SCP11;NCP12..X

ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),SHADOW GRAY,TRIM9#

 1
64271E - PANEL, ROOM PARTITION
64241-52010

NCP12,SCP11..F

 1
64241-52010

NCP12,SCP11..F

 1
64271G - BOARD, ROOM PARTITION, RH
64271-52010B0

NCP12..X

SHADOW GRAY,TRIM9#

 1
64271-52010B0

SCP11;NCP12..X

SHADOW GRAY,TRIM9#

 1
64271-52010B0

NCP12..X

SHADOW GRAY,TRIM4#

 1
64272A - PANEL, ROOM PARTITION, LH
64242-52010

NCP12,SCP11..F

 1
64242-52010

NCP12,SCP11..F

 1
64272B - BOARD, ROOM PARTITION, LH
64272-52010B0

NCP12..X

SHADOW GRAY,TRIM4#

 1
64272-52010B0

SCP11;NCP12..X

SHADOW GRAY,TRIM9#

 1
64272-52010B0

NCP12..X

SHADOW GRAY,TRIM9#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-52040C0

NCP1#,SCP11..F

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM9#

 1
64330-52090C0

NCP12..X;NCP16,SCP11

ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM9#

 1
64330-52080C0

NCP1#..X

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ｽﾋﾟ-ｶ),BLACK,TRIM9#

 1
64330-52050C0

NCP1#,SCP11..F

BLACK,TRIM9#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-06020P0

NCP1#,SCP11

SHADOW GRAY,TRIM9#

 5
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-06020P0

NCP1#,SCP11

SHADOW GRAY,TRIM9#

 5
64334A - PAD, PACKAGE TRAY TRIM
64334-52010

NCP1#..X

ｱﾘ(ｽﾋﾟ-ｶ)

 1
64334-52020

NCP1#,SCP11..F

 1
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-52010C0

NCP12,SCP11..F

ｱﾘ(ｺﾃｲｼｷ ﾘﾔ ｼ-ﾄ ),BLACK,TRIM9#

 1
64711-52021C0

NCP12..X

ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),BLACK,TRIM9#

 1
64711-52020C0

NCP12..X

ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),BLACK,TRIM9#

 1
64711-52021C0

SCP11;NCP12..X

ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),BLACK,TRIM9#

 1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-52010C0

NCP1#,SCP11

BLACK,TRIM9#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-08186C0

NCP1#,SCP11

BLACK,TRIM9#

 5
90467-08186C0

NCP1#,SCP11

BLACK,TRIM4#

 5
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64710-52010C0

NCP12,SCP11

BLACK,TRIM9#

 1
64710-52011C0

NCP12,SCP11

BLACK,TRIM9#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-06155

NCP1#,SCP11

 2
90467-06155

NCP1#,SCP11

 2
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-06155

NCP1#,SCP11

 2
90467-06155

NCP1#,SCP11

 2
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

NCP1#,SCP11

BLACK,TRIM9#

 10
90467-08186B4

NCP1#,SCP11

DK.GRAY

 10
90467-08186C0

NCP1#,SCP11

BLACK,TRIM4#

 10
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

NCP1#,SCP11

BLACK,TRIM9#

 10
90467-08186B4

NCP1#,SCP11

DK.GRAY

 10
90467-08186C0

NCP1#,SCP11

BLACK,TRIM4#

 10
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-52011C0

NCP12,SCP11

BLACK,TRIM9#

 1
64722-52010C0

NCP12,SCP11

BLACK,TRIM9#

 1
64770 - COVER ASSY, SPARE WHEEL
64771-52070

NCP12,SCP11

 1
64771-52070

SCP11;NCP12..ATM;NCP12..MTM..F

 1
64771-52070

NCP12,SCP11

 1
64770 - COVER ASSY, SPARE WHEEL
64771-52070

NCP12,SCP11

 1
64771-52070

SCP11;NCP12..ATM;NCP12..MTM..F

 1
64771-52070

NCP12,SCP11

 1
64778B - PROTECTOR, SPARE WHEEL
64778-52020

NCP12,SCP11

 4
64778-52020

NCP12,SCP11

 4
64778-52020

SCP11;NCP12..ATM;NCP12..MTM..F

 4
Common parts
90119-08240
90183-05016
90467-06020E5
90467-06020P0
90467-07115C0
90467-08186C0
90467-09211
90467-10161
