NCP12-BEPEK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

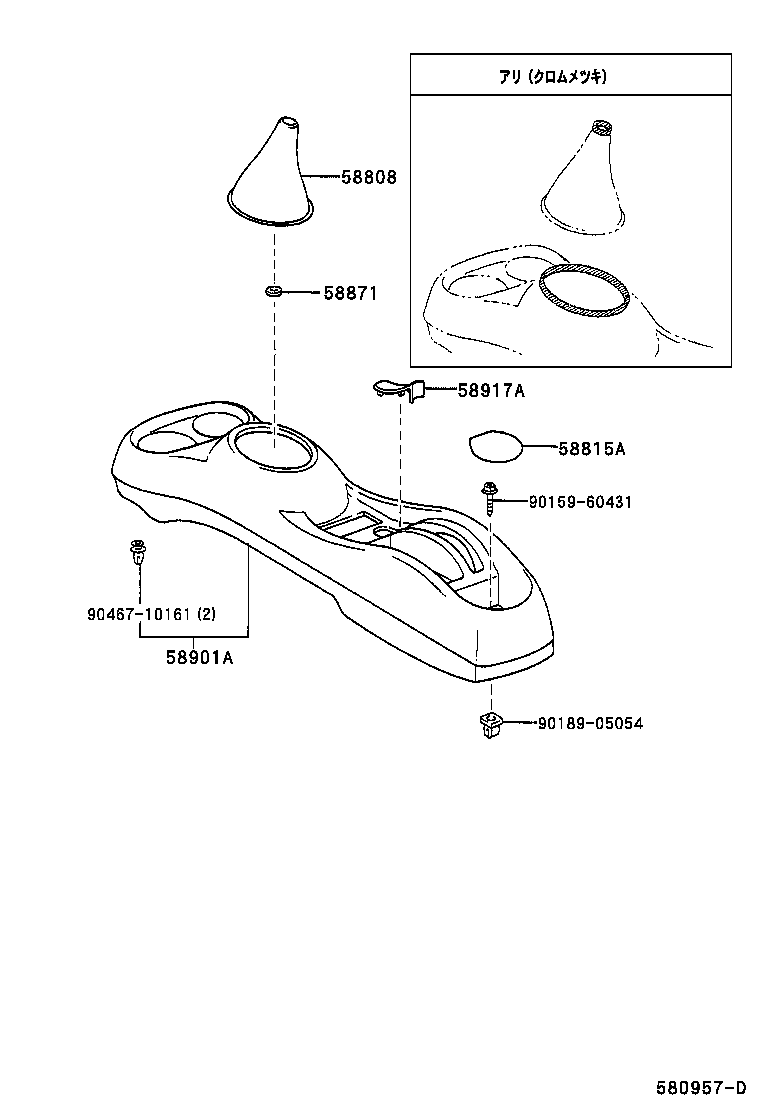

Click highlighted areas on diagram

diagram 58808 58815A 58871 58901A 58917A 9015960431 9018905054 9046710161
Part # Description Qty Price
58815A - CARPET, CONSOLE BOX
58815-52010

SCP11;NCP1#..ATM;NCP1#..MTM..F

 1
58815-52010

NCP1#,SCP11

 1
58815-52010

NCP1#,SCP11

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58911-52010B1

NCP1#,SCP11

LT.AMETHYST,TRIM9#

 1
58917A - COVER, CONSOLE BOX, REAR
58917-52010B1

NCP1#,SCP11

LT.AMETHYST,TRIM9#

 1
Common parts
90159-60431
90189-05054
90467-10161
