NCP12-BEPEK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

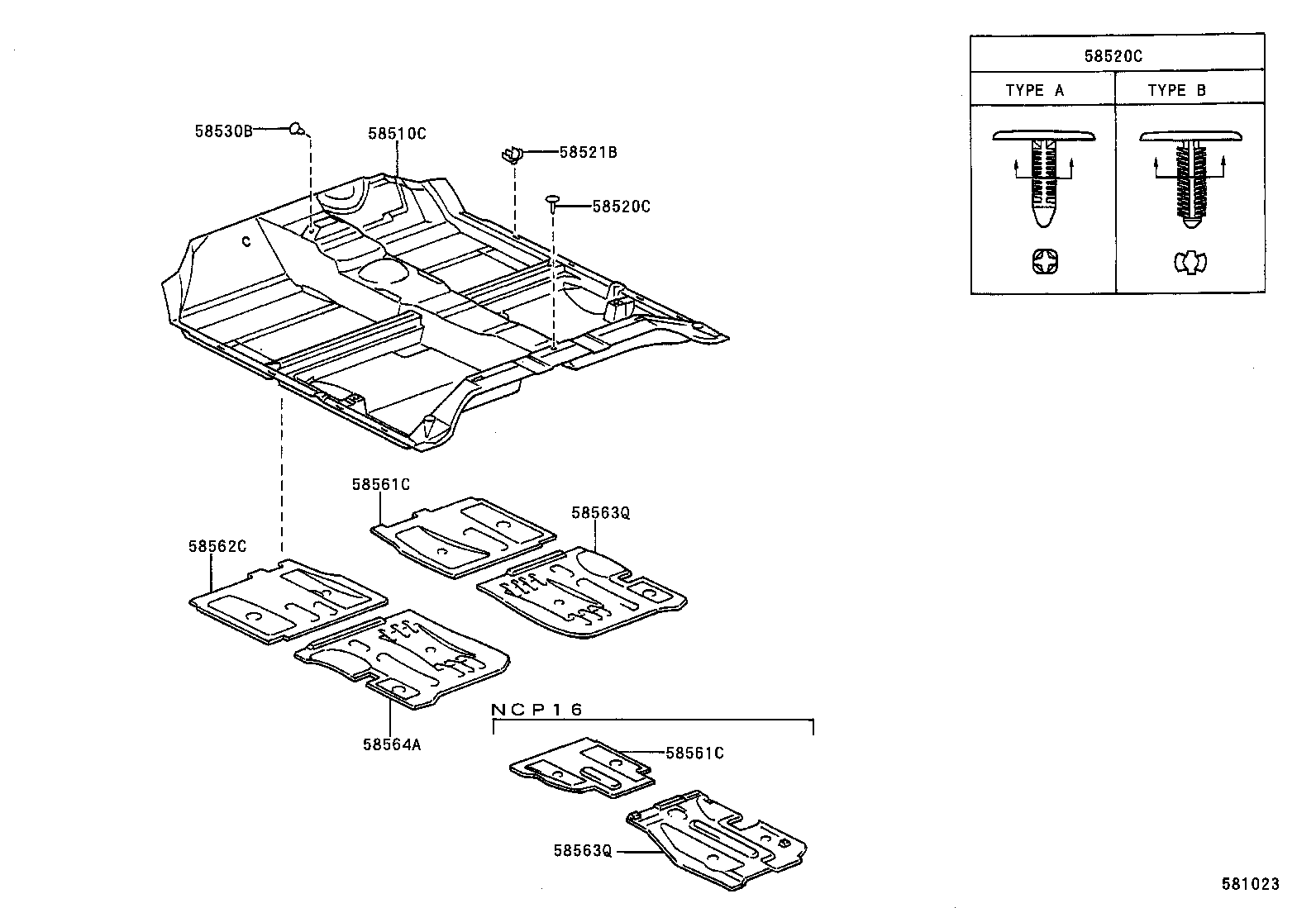

Click highlighted areas on diagram

diagram 58510C 58520C 58520C 58521B 58530B 58561C 58561C 58562C 58563Q 58563Q 58564A
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-52240B0

NCP12,SCP11

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM9#

 1
58510-52241B0

NCP12,SCP11

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM9#

 1
58510-52230B0

NCP12,SCP11

GRAY,TRIM9#

 1
58510-52232B0

NCP12,SCP11

GRAY,TRIM9#

 1
58510-52231B0

NCP12,SCP11

GRAY,TRIM9#

 1
58510-52243A0

NCP12,SCP11

ｱﾘ(ﾘﾔ ﾋ-ﾀ),IVORY,TRIM4#

 1
58510-52242B0

NCP12,SCP11

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM9#

 1
58510-52233A0

NCP12,SCP11

IVORY,TRIM4#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049B7

NCP1#,SCP11

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM9#

 1
90467-06016P2

NCP1#,SCP11

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM9#

 1
90467-07049P0

NCP1#,SCP11

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM9#

 1
90467-06016P0

NCP1#,SCP11

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM9#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049B7

NCP1#,SCP11

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM9#

 1
90467-06016P2

NCP1#,SCP11

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM9#

 1
90467-07049P0

NCP1#,SCP11

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM9#

 1
90467-06016P0

NCP1#,SCP11

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM9#

 1
58521B - HOOK, FLOOR CARPET
58521-52010

NCP1#,SCP11

 8
58521-52010

NCP1#,SCP11

 8
58521-52010

SCP11;NCP1#..ATM;NCP1#..MTM..F

 8
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-10091

SCP11;NCP1#..ATM;NCP1#..MTM..F

 1
90467-10091

NCP1#,SCP11

 1
90467-10091

NCP1#,SCP11

 1
58561C - SILENCER, FRONT FLOOR, NO.1
58561-52010

NCP12,SCP11

 1
58561-52010

NCP12,SCP11

 1
58561-52110

NCP12,SCP11

 1
58561-52110

SCP11;NCP12..ATM;NCP12..MTM..F

 1
58561C - SILENCER, FRONT FLOOR, NO.1
58561-52010

NCP12,SCP11

 1
58561-52010

NCP12,SCP11

 1
58561-52110

NCP12,SCP11

 1
58561-52110

SCP11;NCP12..ATM;NCP12..MTM..F

 1
58562C - SILENCER, FRONT FLOOR, NO.2
58562-52010

NCP1#,SCP11

 1
58562-52070

NCP12,SCP11

 1
58562-52070

SCP11;NCP12..ATM;NCP12..MTM..F

 1
58562-52010

NCP1#,SCP11

 1
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-52010

NCP12,SCP11

 1
58563-52010

NCP12,SCP11

 1
58563-52010

SCP11;NCP12..ATM;NCP12..MTM..F

 1
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-52010

NCP12,SCP11

 1
58563-52010

NCP12,SCP11

 1
58563-52010

SCP11;NCP12..ATM;NCP12..MTM..F

 1
58564A - SILENCER, FRONT FLOOR, NO.4
58564-52010

NCP1#,SCP11

 1
58564-52010

NCP1#,SCP11

 1
58564-52040

NCP1#,SCP11

 1
58564-52040

SCP11;NCP1#..ATM;NCP1#..MTM..F

 1
