NCP12-BEPEK (1999)
Toyota Platz
(9908- )

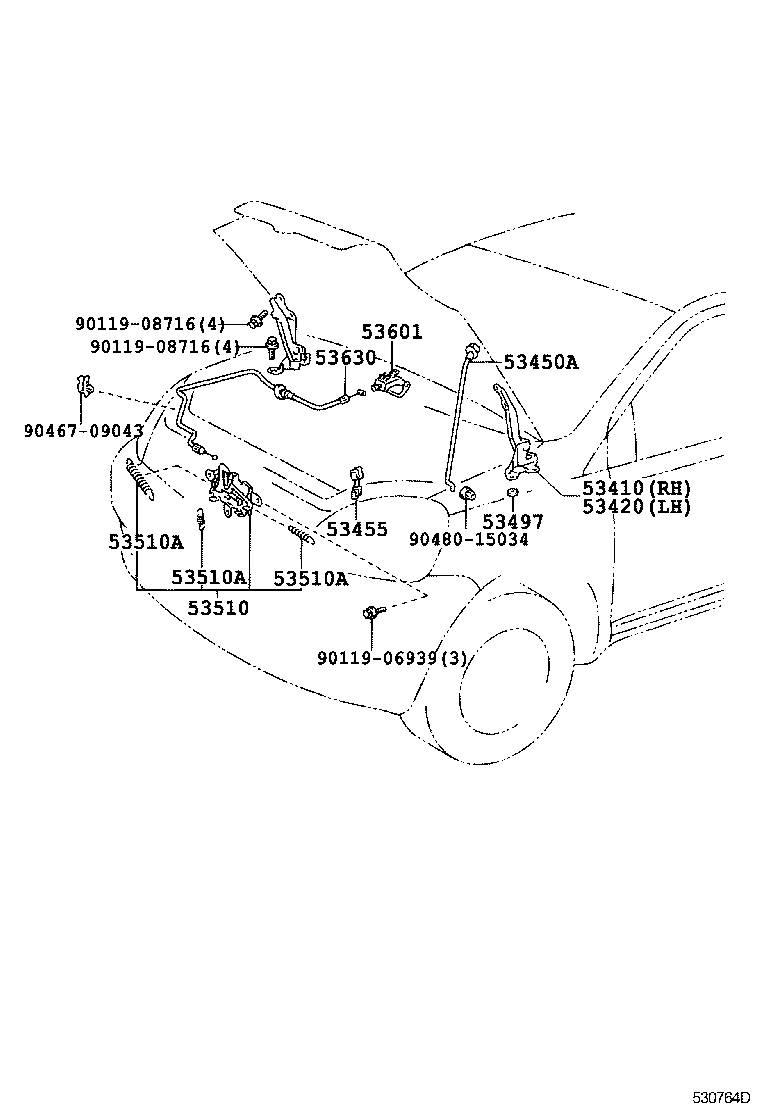

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-52010 |
NCP1#,SCP11 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-52010 |
NCP1#,SCP11 |
1 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53440-52080 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 53440-52010 |
NCP1#,SCP11 |
1 | ||
| 53440-52080 |
NCP1#,SCP11 |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 53455-52010 |
NCP1#,SCP11 |
1 | ||
| 53455-52010 |
NCP1#,SCP11 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12050 |
NCP1#,SCP11 厚さ=1.0 |
4 | ||
| 53497-10020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 厚さ=1.5 |
4 | ||
| 53497-42010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 厚さ=0.5 |
4 | ||
| 53497-10020 |
NCP1#,SCP11 厚さ=1.5 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-52050 |
NCP1#,SCP11 |
1 | ||
| 53510-52120 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 53510-52120 |
NCP1#,SCP11 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-18067 |
NCP1#,SCP11 線径=1.8,ｺｲﾙ巻数=13 |
1 | ||
| 90506-16077 |
NCP1#,SCP11 線径=1.6,ｺｲﾙ巻数=12 |
1 | ||
| 90506-12063 |
NCP1#,SCP11 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 90506-09052 |
NCP1#,SCP11 線径=0.9,ｺｲﾙ巻数=20.75 |
1 | ||
| 90506-16077 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 線径=1.6,ｺｲﾙ巻数=12 |
1 | ||
| 90506-09055 |
NCP1#,SCP11 線径=0.9,ｺｲﾙ巻数=21 |
1 | ||
| 90506-12063 |
NCP1#,SCP11 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 90506-16077 |
NCP1#,SCP11 線径=1.6,ｺｲﾙ巻数=12 |
1 | ||
| 90506-09055 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 線径=0.9,ｺｲﾙ巻数=21 |
1 | ||
| 90506-12063 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-18067 |
NCP1#,SCP11 線径=1.8,ｺｲﾙ巻数=13 |
1 | ||
| 90506-16077 |
NCP1#,SCP11 線径=1.6,ｺｲﾙ巻数=12 |
1 | ||
| 90506-12063 |
NCP1#,SCP11 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 90506-09052 |
NCP1#,SCP11 線径=0.9,ｺｲﾙ巻数=20.75 |
1 | ||
| 90506-16077 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 線径=1.6,ｺｲﾙ巻数=12 |
1 | ||
| 90506-09055 |
NCP1#,SCP11 線径=0.9,ｺｲﾙ巻数=21 |
1 | ||
| 90506-12063 |
NCP1#,SCP11 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 90506-16077 |
NCP1#,SCP11 線径=1.6,ｺｲﾙ巻数=12 |
1 | ||
| 90506-09055 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 線径=0.9,ｺｲﾙ巻数=21 |
1 | ||
| 90506-12063 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-18067 |
NCP1#,SCP11 線径=1.8,ｺｲﾙ巻数=13 |
1 | ||
| 90506-16077 |
NCP1#,SCP11 線径=1.6,ｺｲﾙ巻数=12 |
1 | ||
| 90506-12063 |
NCP1#,SCP11 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 90506-09052 |
NCP1#,SCP11 線径=0.9,ｺｲﾙ巻数=20.75 |
1 | ||
| 90506-16077 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 線径=1.6,ｺｲﾙ巻数=12 |
1 | ||
| 90506-09055 |
NCP1#,SCP11 線径=0.9,ｺｲﾙ巻数=21 |
1 | ||
| 90506-12063 |
NCP1#,SCP11 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 90506-16077 |
NCP1#,SCP11 線径=1.6,ｺｲﾙ巻数=12 |
1 | ||
| 90506-09055 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 線径=0.9,ｺｲﾙ巻数=21 |
1 | ||
| 90506-12063 |
SCP11;NCP1#..ATM;NCP1#..MTM..F 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010B1 |
NCP1#,SCP11 MD.CHARCOAL,TRIM9# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-52090 |
NCP1#,SCP11 |
1 | ||
| 53630-52090 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 53630-52010 |
NCP1#,SCP11 |
1 | ||
| Common parts | ||||
| 90119-06939 | ||||
| 90119-08716 | ||||
| 90467-09043 | ||||
| 90480-15034 | ||||
