NCP12-BEPEK (1999)
Toyota Platz
(9908- )NCP12,SCP11

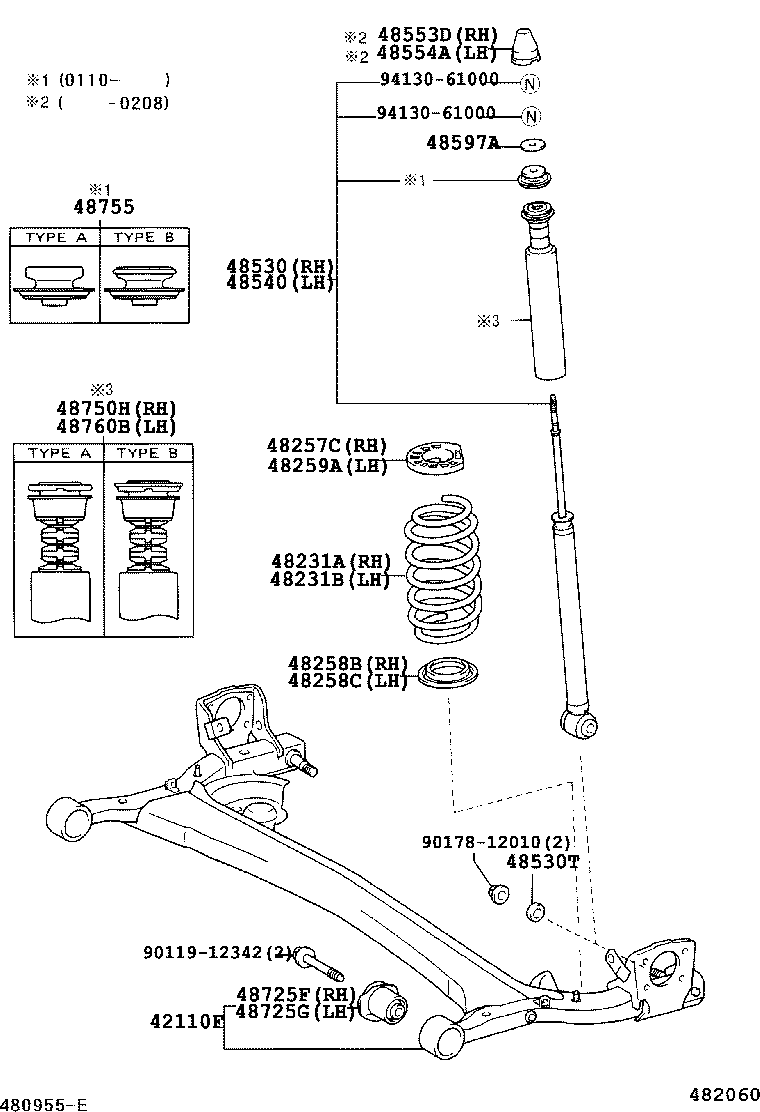

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-52010 |
NCP12,SCP11 |
1 | ||
| 42110-52130 |
NCP12..X ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 42110-52042 |
NCP12..X ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 42110-52120 |
NCP12,SCP11 |
1 | ||
| 42110-52120 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 42110-52041 |
NCP12..X ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 42110-52130 |
NCP12..X ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-52120 |
NCP12,SCP11 |
1 | ||
| 48231-52690 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 48231-52120 |
NCP12,SCP11 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-52120 |
NCP12,SCP11 |
1 | ||
| 48231-52690 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 48231-52120 |
NCP12,SCP11 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-52010 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 48257-52010 |
NCP12,SCP11 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-52010 |
NCP12,SCP11 |
1 | ||
| 48258-52010 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-52010 |
NCP12,SCP11 |
1 | ||
| 48258-52010 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-52010 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 48257-52010 |
NCP12,SCP11 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-59305 |
NCP12,SCP11 ﾏｰｸ 48530−52190 |
1 | ||
| 48530-59306 |
NCP12,SCP11 ﾏｰｸ 48530−52191 |
1 | ||
| 48530-59835 |
NCP12..X ﾏｰｸ 48530−52790,S ﾊﾟﾂｹ-ｼﾞ *(S) & ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48530-59386 |
NCP12..X ﾏｰｸ 48530−52350,S ﾊﾟﾂｹ-ｼﾞ *(S) & ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48530-59385 |
NCP12..X ﾏｰｸ 48530−52350,S ﾊﾟﾂｹ-ｼﾞ *(S) & ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48530-59335 |
NCP12..X ﾏｰｸ 48530−52240,S ﾊﾟﾂｹ-ｼﾞ *(S) & ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48530-80229 |
NCP12 ﾏｰｸ 48530−52680,PNC 48755=TYPE B |
1 | ||
| 48530-59148 |
NCP12,SCP11 ﾏｰｸ 48530−52012 |
1 | ||
| 48530-59386 |
NCP12..X ﾏｰｸ 48530−52350,S ﾊﾟﾂｹ-ｼﾞ *(S) & ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48530-59725 |
NCP12 ﾏｰｸ 48530−52680,PNC 48755=TYPE A |
1 | ||
| 48530-80229 |
NCP12 ﾏｰｸ 48530−52680,ｱﾘ(165/65R15 ﾀｲﾔ) |
1 | ||
| 48530-59705 |
NCP12,SCP11 ﾏｰｸ 48530−52660 |
1 | ||
| 48530-59735 |
NCP12,SCP11 ﾏｰｸ 48530−52700 |
1 | ||
| 48530T - SPACER(FOR REAR SHOCK ABSORBER) | ||||
| 90560-12065 |
NCP12,SCP11 |
2 | ||
| 90560-12065 |
SCP11;NCP12..ATM;NCP12..MTM..F |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-59335 |
NCP12..X ﾏｰｸ 48530−52240,S ﾊﾟﾂｹ-ｼﾞ *(S) & ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48530-59305 |
NCP12,SCP11 |
1 | ||
| 48530-59735 |
NCP12,SCP11 ﾏｰｸ 48530−52700 |
1 | ||
| 48530-80229 |
NCP12 ﾏｰｸ 48530−52680,PNC 48755=TYPE B |
1 | ||
| 48530-59385 |
NCP12..X ﾏｰｸ 48530−52350,S ﾊﾟﾂｹ-ｼﾞ *(S) & ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48530-59148 |
NCP12,SCP11 ﾏｰｸ 48530−52012 |
1 | ||
| 48530-59705 |
NCP12,SCP11 ﾏｰｸ 48530−52660 |
1 | ||
| 48530-59306 |
NCP12,SCP11 ﾏｰｸ 48530−52191 |
1 | ||
| 48530-80229 |
NCP12 ﾏｰｸ 48530−52680,ｱﾘ(165/65R15 ﾀｲﾔ) |
1 | ||
| 48530-59386 |
NCP12..X ﾏｰｸ 48530−52350,S ﾊﾟﾂｹ-ｼﾞ *(S) & ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48530-59725 |
NCP12 ﾏｰｸ 48530−52680,PNC 48755=TYPE A |
1 | ||
| 48530-59835 |
NCP12..X ﾏｰｸ 48530−52790,S ﾊﾟﾂｹ-ｼﾞ *(S) & ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48530-59386 |
NCP12..X ﾏｰｸ 48530−52350,S ﾊﾟﾂｹ-ｼﾞ *(S) & ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-52010 |
NCP12,SCP11 |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-52010 |
NCP12,SCP11 |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 90201-10320 |
NCP12,SCP11 |
2 | ||
| 90201-10320 |
SCP11;NCP12..ATM;NCP12..MTM..F |
2 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-52020 |
NCP12..X ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48725-52011 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 48725-52020 |
NCP12..X ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48725-52010 |
NCP12,SCP11 |
1 | ||
| 48725-52010 |
NCP12,SCP11 |
1 | ||
| 48725-52021 |
NCP12..X ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-52020 |
NCP12..X ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48725-52020 |
NCP12..X ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48725-52010 |
NCP12,SCP11 |
1 | ||
| 48725-52010 |
NCP12,SCP11 |
1 | ||
| 48725-52011 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 48725-52021 |
NCP12..X ｱﾘ(ﾌﾛﾝﾄ ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-52090 |
NCP12,SCP11 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48750-52090 |
NCP12,SCP11 |
1 | ||
| 48750-52010 |
NCP12,SCP11 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48750-52090 |
NCP12,SCP11 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48750-52010 |
NCP12,SCP11 |
1 | ||
| 48750-52010 |
NCP12,SCP11 |
1 | ||
| 48750-52010 |
NCP12,SCP11 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-52010 |
NCP12,SCP11 |
2 | ||
| 48755-52070 |
SCP11;NCP12..ATM;NCP12..MTM..F |
2 | ||
| 48755-52070 |
NCP12,SCP11 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48755-52010 |
NCP12,SCP11 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-52090 |
NCP12,SCP11 |
1 | ||
| 48750-52010 |
NCP12,SCP11 |
1 | ||
| 48750-52090 |
NCP12,SCP11 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48750-52010 |
NCP12,SCP11 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48750-52090 |
NCP12,SCP11 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48750-52010 |
NCP12,SCP11 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48750-52010 |
NCP12,SCP11 |
1 | ||
| Common parts | ||||
| 90119-12342 | ||||
| 90178-12010 | ||||
| 94130-61000 | ||||
