NCP12-BEPEK (1999)
Toyota Platz

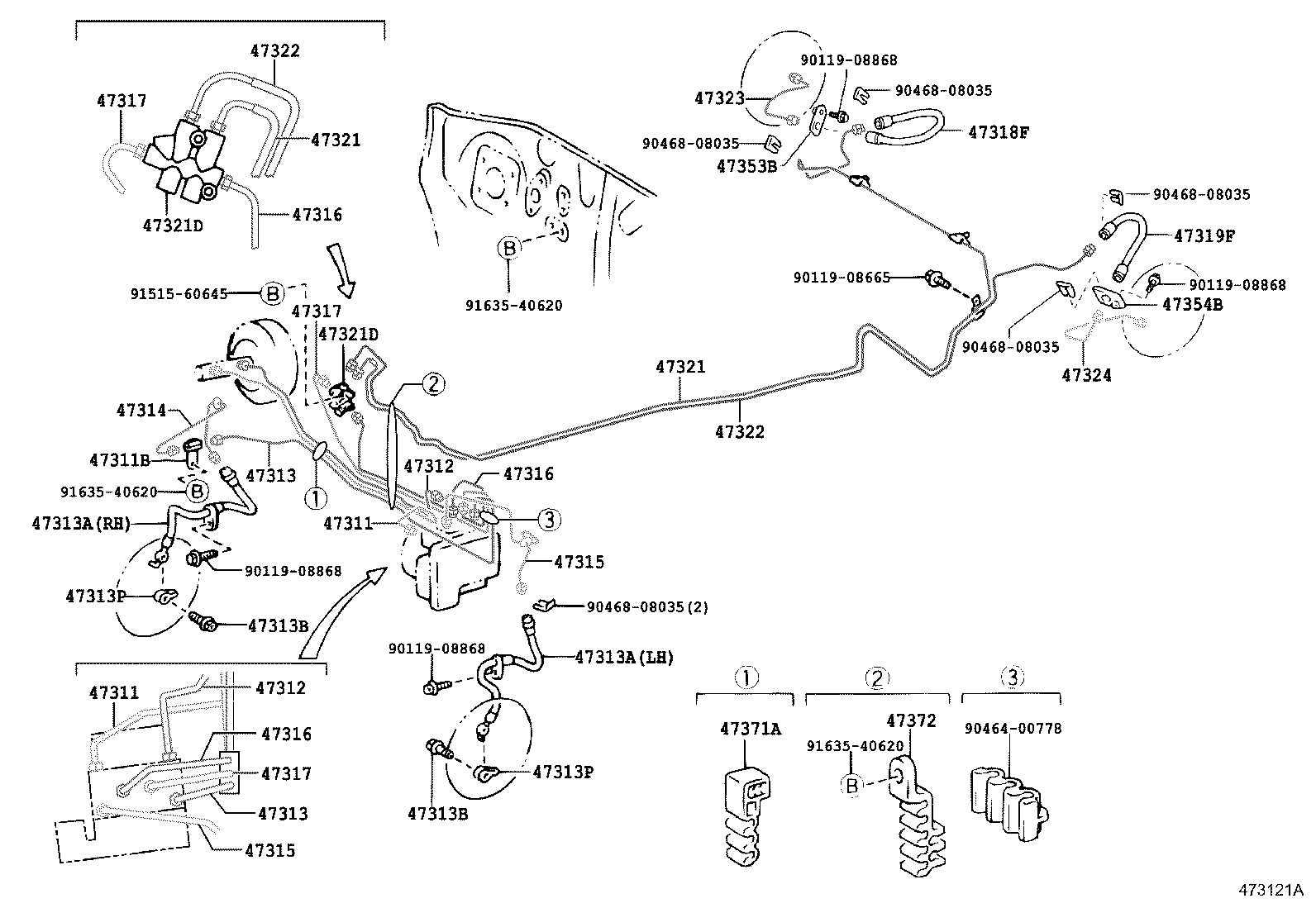

ILLUST NO. 1 OF 2(9908-0010)NCP12,SCP11
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52011 |
NCP1#,SCP11 |
1 | ||
| 47311-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47311-52091 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10235 |
NCP1#,SCP11 |
1 | ||
| 90412-10235 |
NCP1#,SCP11 |
1 | ||
| 90412-10235 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52011 |
NCP1#,SCP11 |
1 | ||
| 47312-52091 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47312-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52011 |
NCP1#,SCP11 |
1 | ||
| 47313-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47313-52041 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C31 |
NCP12,SCP11 右側 |
1 | ||
| 90947-02C32 |
NCP12,SCP11 左側 |
1 | ||
| 90947-02C32 |
NCP12,SCP11 左側 |
1 | ||
| 90947-02D76 |
SCP11;NCP12..ATM;NCP12..MTM..F 右側 |
1 | ||
| 90947-02C31 |
NCP12,SCP11 右側 |
1 | ||
| 90947-02D77 |
SCP11;NCP12..ATM;NCP12..MTM..F 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C31 |
NCP12,SCP11 右側 |
1 | ||
| 90947-02C32 |
NCP12,SCP11 左側 |
1 | ||
| 90947-02C32 |
NCP12,SCP11 左側 |
1 | ||
| 90947-02D76 |
SCP11;NCP12..ATM;NCP12..MTM..F 右側 |
1 | ||
| 90947-02C31 |
NCP12,SCP11 右側 |
1 | ||
| 90947-02D77 |
SCP11;NCP12..ATM;NCP12..MTM..F 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,SCP11 |
2 | ||
| 90401-10058 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 90401-10058 |
NCP1#,SCP11 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,SCP11 |
2 | ||
| 90401-10058 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 90401-10058 |
NCP1#,SCP11 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47389-50020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47389-50020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F ｱﾘ(ABS) |
1 | ||
| 47314-52011 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47314-52011 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52051 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47315-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47315-52011 |
NCP1#,SCP11 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47316-52031 |
NCP1#,SCP11 |
1 | ||
| 47316-52011 |
NCP1#,SCP11 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52011 |
NCP1#,SCP11 |
1 | ||
| 47317-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47317-52031 |
NCP1#,SCP11 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C30 |
NCP12,SCP11 |
1 | ||
| 90947-02C30 |
NCP12,SCP11 |
1 | ||
| 90947-02C30 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C30 |
NCP12,SCP11 |
1 | ||
| 90947-02C30 |
NCP12,SCP11 |
1 | ||
| 90947-02C30 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52011 |
NCP12,SCP11 |
1 | ||
| 47321-52012 |
NCP12,SCP11 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCP1#,SCP11 NISSIN KOGYO |
1 | ||
| 90904-12088 |
NCP1#,SCP11 |
1 | ||
| 90412-10140 |
NCP1#,SCP11 AISIN SEIKI |
1 | ||
| 90904-12088 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 90904-12088 |
NCP1#,SCP11 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
NCP12,SCP11 |
1 | ||
| 47322-52012 |
NCP12,SCP11 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52012 |
NCP12,SCP11 |
1 | ||
| 47323-52011 |
NCP12,SCP11 |
1 | ||
| 47323-52080 |
NCP12,SCP11 |
1 | ||
| 47323-52080 |
NCP12,SCP11 |
1 | ||
| 47323-52080 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52070 |
NCP12,SCP11 |
1 | ||
| 47324-52011 |
NCP12,SCP11 |
1 | ||
| 47324-52012 |
NCP12,SCP11 |
1 | ||
| 47324-52070 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47324-52070 |
NCP12,SCP11 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47371-52010 |
NCP1#,SCP11 |
1 | ||
| 47371-52010 |
NCP1#,SCP11 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47372-52010 |
NCP1#,SCP11 |
1 | ||
| 47372-52010 |
NCP1#,SCP11 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-52030 |
NCP12,SCP11 |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01A18 |
NCP1#,SCP11 |
1 | ||
| Common parts | ||||
| 47371-52020 | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 91515-60645 | ||||
| 91635-40620 | ||||

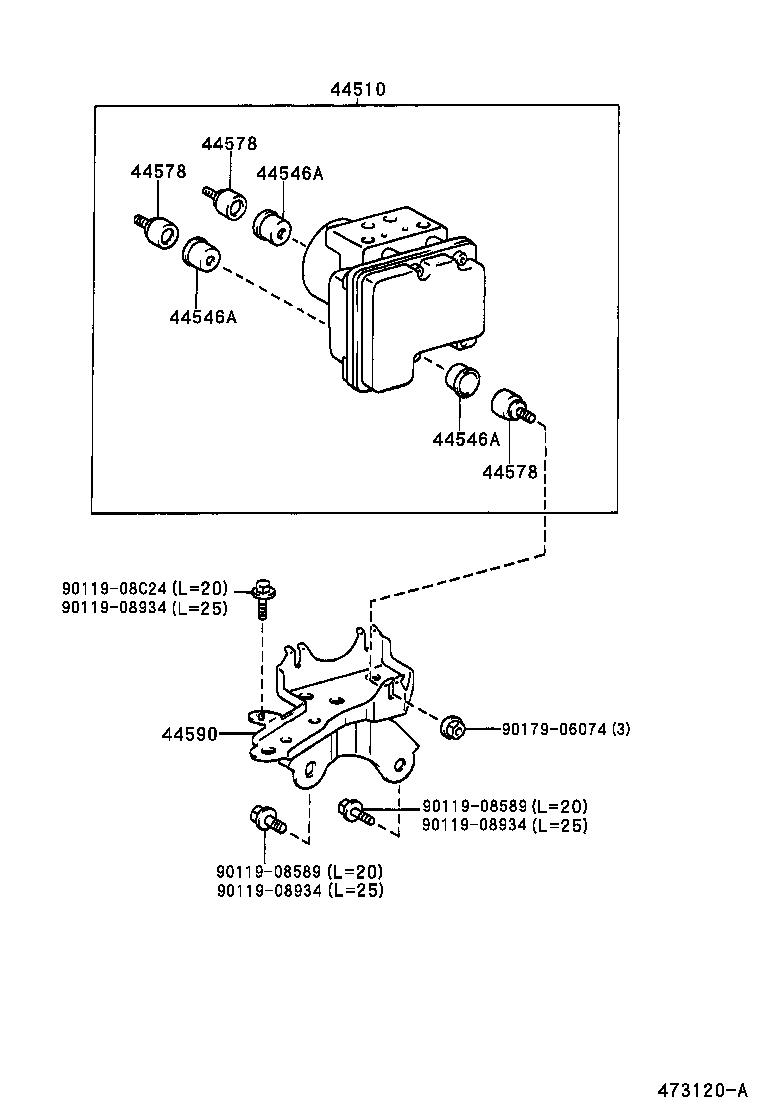

ILLUST NO. 2 OF 2(9908-0208)
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478R - CAP, BLEEDER PLUG(FOR BRAKE ACTUATOR) | ||||
| 31478-30010 |
NCP1#,SCP11 |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52150 |
NCP12;SCP11..MTM |
1 | ||
| 44050-52131 |
NCP12,SCP11 |
1 | ||
| 44050-52300 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 44050-52300 |
NCP12,SCP11 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-52010 |
NCP1#,SCP11 |
3 | ||
| 44546-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
3 | ||
| 44546-12100 |
NCP1#,SCP11 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 44590-52030 |
NCP1#,SCP11 |
1 | ||
| 44590-52011 |
NCP1#,SCP11 |
1 | ||
| 47547M - PLUG, BLEEDER(FOR BRAKE ACTUATOR) | ||||
| 47547-22020 |
NCP1#,SCP11 |
1 | ||
| Common parts | ||||
| 90119-06834 | ||||
| 90119-08589 | ||||
| 90119-08934 | ||||
| 90119-08C24 | ||||
| 90561-06013 | ||||

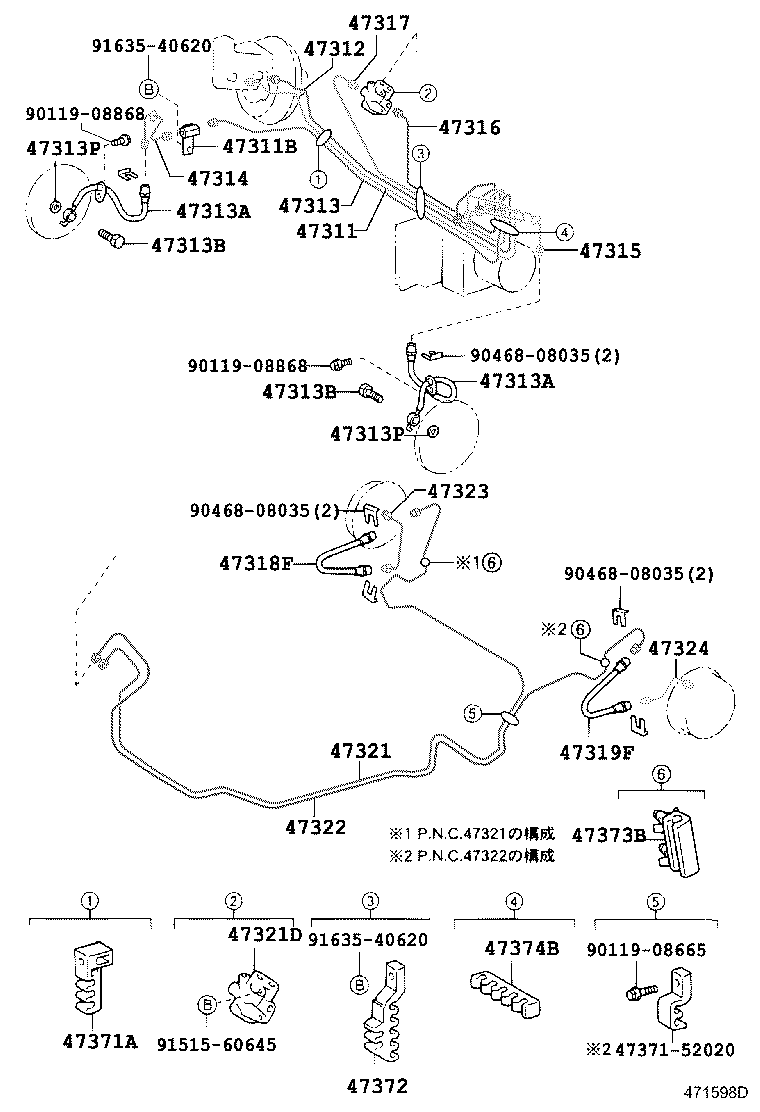

ILLUST NO. 1 OF 2(0010-0208)NCP12,SCP11
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52011 |
NCP1#,SCP11 |
1 | ||
| 47311-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47311-52091 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10235 |
NCP1#,SCP11 |
1 | ||
| 90412-10235 |
NCP1#,SCP11 |
1 | ||
| 90412-10235 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52011 |
NCP1#,SCP11 |
1 | ||
| 47312-52091 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47312-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52011 |
NCP1#,SCP11 |
1 | ||
| 47313-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47313-52041 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C31 |
NCP12,SCP11 右側 |
1 | ||
| 90947-02C32 |
NCP12,SCP11 左側 |
1 | ||
| 90947-02C32 |
NCP12,SCP11 左側 |
1 | ||
| 90947-02D76 |
SCP11;NCP12..ATM;NCP12..MTM..F 右側 |
1 | ||
| 90947-02C31 |
NCP12,SCP11 右側 |
1 | ||
| 90947-02D77 |
SCP11;NCP12..ATM;NCP12..MTM..F 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C31 |
NCP12,SCP11 右側 |
1 | ||
| 90947-02C32 |
NCP12,SCP11 左側 |
1 | ||
| 90947-02C32 |
NCP12,SCP11 左側 |
1 | ||
| 90947-02D76 |
SCP11;NCP12..ATM;NCP12..MTM..F 右側 |
1 | ||
| 90947-02C31 |
NCP12,SCP11 右側 |
1 | ||
| 90947-02D77 |
SCP11;NCP12..ATM;NCP12..MTM..F 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,SCP11 |
2 | ||
| 90401-10058 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 90401-10058 |
NCP1#,SCP11 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,SCP11 |
2 | ||
| 90401-10058 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 90401-10058 |
NCP1#,SCP11 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47389-50020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47389-50020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47389-50020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47389-50020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F ｱﾘ(ABS) |
1 | ||
| 47314-52011 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47314-52011 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52051 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47315-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47315-52011 |
NCP1#,SCP11 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47316-52031 |
NCP1#,SCP11 |
1 | ||
| 47316-52011 |
NCP1#,SCP11 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52011 |
NCP1#,SCP11 |
1 | ||
| 47317-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47317-52031 |
NCP1#,SCP11 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C30 |
NCP12,SCP11 |
1 | ||
| 90947-02C30 |
NCP12,SCP11 |
1 | ||
| 90947-02C30 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C30 |
NCP12,SCP11 |
1 | ||
| 90947-02C30 |
NCP12,SCP11 |
1 | ||
| 90947-02C30 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52011 |
NCP12,SCP11 |
1 | ||
| 47321-52012 |
NCP12,SCP11 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCP1#,SCP11 NISSIN KOGYO |
1 | ||
| 90904-12088 |
NCP1#,SCP11 |
1 | ||
| 90412-10140 |
NCP1#,SCP11 AISIN SEIKI |
1 | ||
| 90904-12088 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 90904-12088 |
NCP1#,SCP11 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
NCP12,SCP11 |
1 | ||
| 47322-52012 |
NCP12,SCP11 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52012 |
NCP12,SCP11 |
1 | ||
| 47323-52011 |
NCP12,SCP11 |
1 | ||
| 47323-52080 |
NCP12,SCP11 |
1 | ||
| 47323-52080 |
NCP12,SCP11 |
1 | ||
| 47323-52080 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52070 |
NCP12,SCP11 |
1 | ||
| 47324-52011 |
NCP12,SCP11 |
1 | ||
| 47324-52012 |
NCP12,SCP11 |
1 | ||
| 47324-52070 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47324-52070 |
NCP12,SCP11 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-52010 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47353-52010 |
NCP12,SCP11 |
1 | ||
| 47353-52010 |
NCP12,SCP11 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-52010 |
NCP12,SCP11 |
1 | ||
| 47354-52010 |
NCP12,SCP11 |
1 | ||
| 47354-52010 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47371-52010 |
NCP1#,SCP11 |
1 | ||
| 47371-52010 |
NCP1#,SCP11 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47372-52010 |
NCP1#,SCP11 |
1 | ||
| 47372-52010 |
NCP1#,SCP11 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01A18 |
NCP1#,SCP11 |
1 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 91515-60645 | ||||
| 91635-40620 | ||||

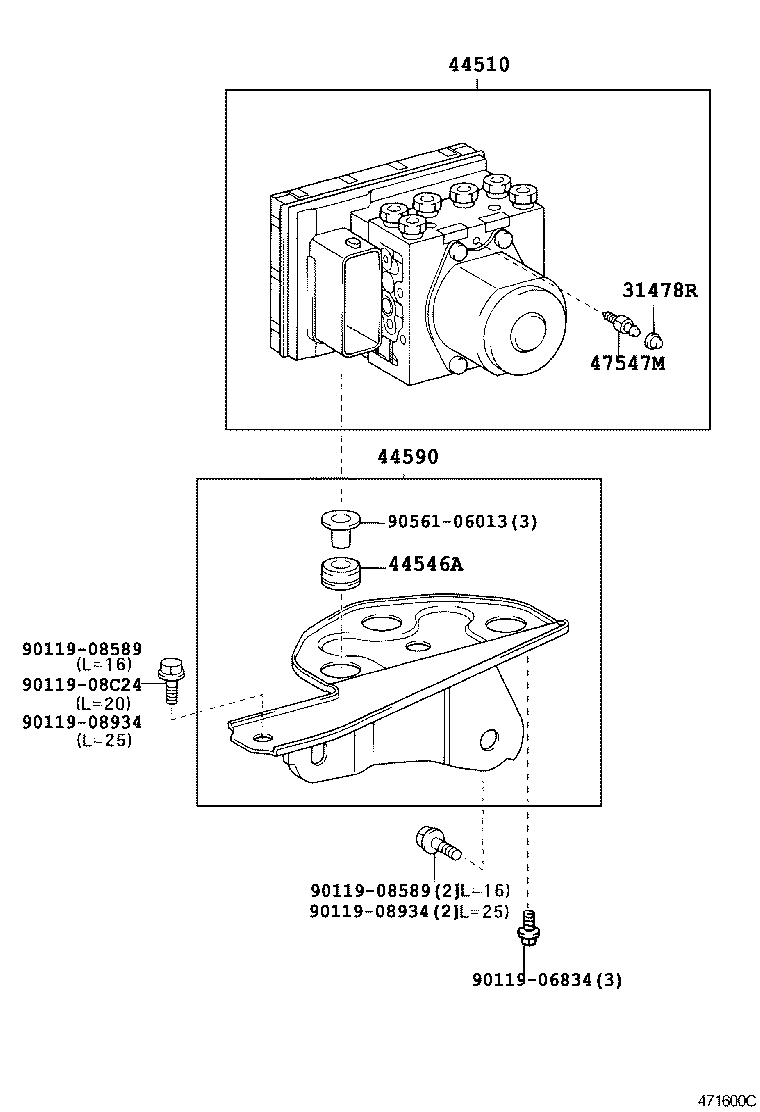

ILLUST NO. 2 OF 2(0208- )
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52150 |
NCP12;SCP11..MTM |
1 | ||
| 44050-52131 |
NCP12,SCP11 |
1 | ||
| 44050-52300 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 44050-52300 |
NCP12,SCP11 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-52010 |
NCP1#,SCP11 |
3 | ||
| 44546-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
3 | ||
| 44546-12100 |
NCP1#,SCP11 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-52010 |
NCP1#,SCP11 |
3 | ||
| 44546-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
3 | ||
| 44546-12100 |
NCP1#,SCP11 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-52010 |
NCP1#,SCP11 |
3 | ||
| 44546-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
3 | ||
| 44546-12100 |
NCP1#,SCP11 |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-52010 |
NCP1#,SCP11 |
3 | ||
| 44578-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-52010 |
NCP1#,SCP11 |
3 | ||
| 44578-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-52010 |
NCP1#,SCP11 |
3 | ||
| 44578-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 44590-52030 |
NCP1#,SCP11 |
1 | ||
| 44590-52011 |
NCP1#,SCP11 |
1 | ||
| Common parts | ||||
| 90119-08589 | ||||
| 90119-08934 | ||||
| 90119-08C24 | ||||
| 90179-06074 | ||||

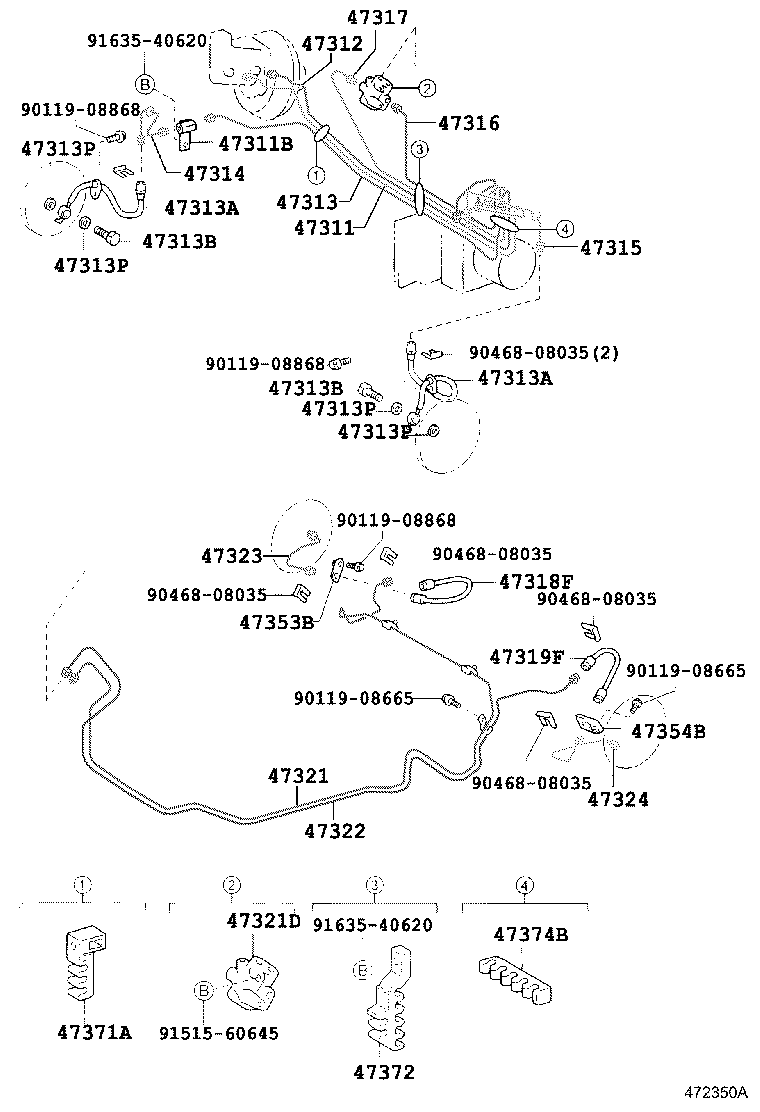

ILLUST NO. 1 OF 2(0208- )NCP12,SCP11
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52011 |
NCP1#,SCP11 |
1 | ||
| 47311-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47311-52091 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52011 |
NCP1#,SCP11 |
1 | ||
| 47311-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47311-52091 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10235 |
NCP1#,SCP11 |
1 | ||
| 90412-10235 |
NCP1#,SCP11 |
1 | ||
| 90412-10235 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52011 |
NCP1#,SCP11 |
1 | ||
| 47312-52091 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47312-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52011 |
NCP1#,SCP11 |
1 | ||
| 47312-52091 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47312-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52011 |
NCP1#,SCP11 |
1 | ||
| 47313-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47313-52041 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52011 |
NCP1#,SCP11 |
1 | ||
| 47313-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47313-52041 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C31 |
NCP12,SCP11 右側 |
1 | ||
| 90947-02C32 |
NCP12,SCP11 左側 |
1 | ||
| 90947-02C32 |
NCP12,SCP11 左側 |
1 | ||
| 90947-02D76 |
SCP11;NCP12..ATM;NCP12..MTM..F 右側 |
1 | ||
| 90947-02C31 |
NCP12,SCP11 右側 |
1 | ||
| 90947-02D77 |
SCP11;NCP12..ATM;NCP12..MTM..F 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C31 |
NCP12,SCP11 右側 |
1 | ||
| 90947-02C32 |
NCP12,SCP11 左側 |
1 | ||
| 90947-02C32 |
NCP12,SCP11 左側 |
1 | ||
| 90947-02D76 |
SCP11;NCP12..ATM;NCP12..MTM..F 右側 |
1 | ||
| 90947-02C31 |
NCP12,SCP11 右側 |
1 | ||
| 90947-02D77 |
SCP11;NCP12..ATM;NCP12..MTM..F 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,SCP11 |
2 | ||
| 90401-10058 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 90401-10058 |
NCP1#,SCP11 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,SCP11 |
2 | ||
| 90401-10058 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 90401-10058 |
NCP1#,SCP11 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47389-50020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47389-50020 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 47389-50020 |
NCP1#,SCP11 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F ｱﾘ(ABS) |
1 | ||
| 47314-52011 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47314-52011 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52051 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47315-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47315-52011 |
NCP1#,SCP11 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52051 |
NCP1#,SCP11 ｱﾘ(ABS) |
1 | ||
| 47315-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47315-52011 |
NCP1#,SCP11 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47316-52031 |
NCP1#,SCP11 |
1 | ||
| 47316-52011 |
NCP1#,SCP11 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47316-52031 |
NCP1#,SCP11 |
1 | ||
| 47316-52011 |
NCP1#,SCP11 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47316-52031 |
NCP1#,SCP11 |
1 | ||
| 47316-52011 |
NCP1#,SCP11 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52011 |
NCP1#,SCP11 |
1 | ||
| 47317-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47317-52031 |
NCP1#,SCP11 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52011 |
NCP1#,SCP11 |
1 | ||
| 47317-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47317-52031 |
NCP1#,SCP11 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52011 |
NCP1#,SCP11 |
1 | ||
| 47317-52011 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47317-52031 |
NCP1#,SCP11 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C30 |
NCP12,SCP11 |
1 | ||
| 90947-02C30 |
NCP12,SCP11 |
1 | ||
| 90947-02C30 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C30 |
NCP12,SCP11 |
1 | ||
| 90947-02C30 |
NCP12,SCP11 |
1 | ||
| 90947-02C30 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52011 |
NCP12,SCP11 |
1 | ||
| 47321-52012 |
NCP12,SCP11 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52011 |
NCP12,SCP11 |
1 | ||
| 47321-52012 |
NCP12,SCP11 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCP1#,SCP11 NISSIN KOGYO |
1 | ||
| 90904-12088 |
NCP1#,SCP11 |
1 | ||
| 90412-10140 |
NCP1#,SCP11 AISIN SEIKI |
1 | ||
| 90904-12088 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 90904-12088 |
NCP1#,SCP11 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCP1#,SCP11 NISSIN KOGYO |
1 | ||
| 90904-12088 |
NCP1#,SCP11 |
1 | ||
| 90412-10140 |
NCP1#,SCP11 AISIN SEIKI |
1 | ||
| 90904-12088 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 90904-12088 |
NCP1#,SCP11 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
NCP12,SCP11 |
1 | ||
| 47322-52012 |
NCP12,SCP11 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
NCP12,SCP11 |
1 | ||
| 47322-52012 |
NCP12,SCP11 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52012 |
NCP12,SCP11 |
1 | ||
| 47323-52011 |
NCP12,SCP11 |
1 | ||
| 47323-52080 |
NCP12,SCP11 |
1 | ||
| 47323-52080 |
NCP12,SCP11 |
1 | ||
| 47323-52080 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52070 |
NCP12,SCP11 |
1 | ||
| 47324-52011 |
NCP12,SCP11 |
1 | ||
| 47324-52012 |
NCP12,SCP11 |
1 | ||
| 47324-52070 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47324-52070 |
NCP12,SCP11 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-52010 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47353-52010 |
NCP12,SCP11 |
1 | ||
| 47353-52010 |
NCP12,SCP11 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-52010 |
NCP12,SCP11 |
1 | ||
| 47354-52010 |
NCP12,SCP11 |
1 | ||
| 47354-52010 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47371-52010 |
NCP1#,SCP11 |
1 | ||
| 47371-52010 |
NCP1#,SCP11 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47372-52010 |
NCP1#,SCP11 |
1 | ||
| 47372-52010 |
NCP1#,SCP11 |
1 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90464-00778 | ||||
| 90468-08035 | ||||
| 91515-60645 | ||||
| 91635-40620 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
