NCP12-BEPEK (1999)
Toyota Platz
(9908- )

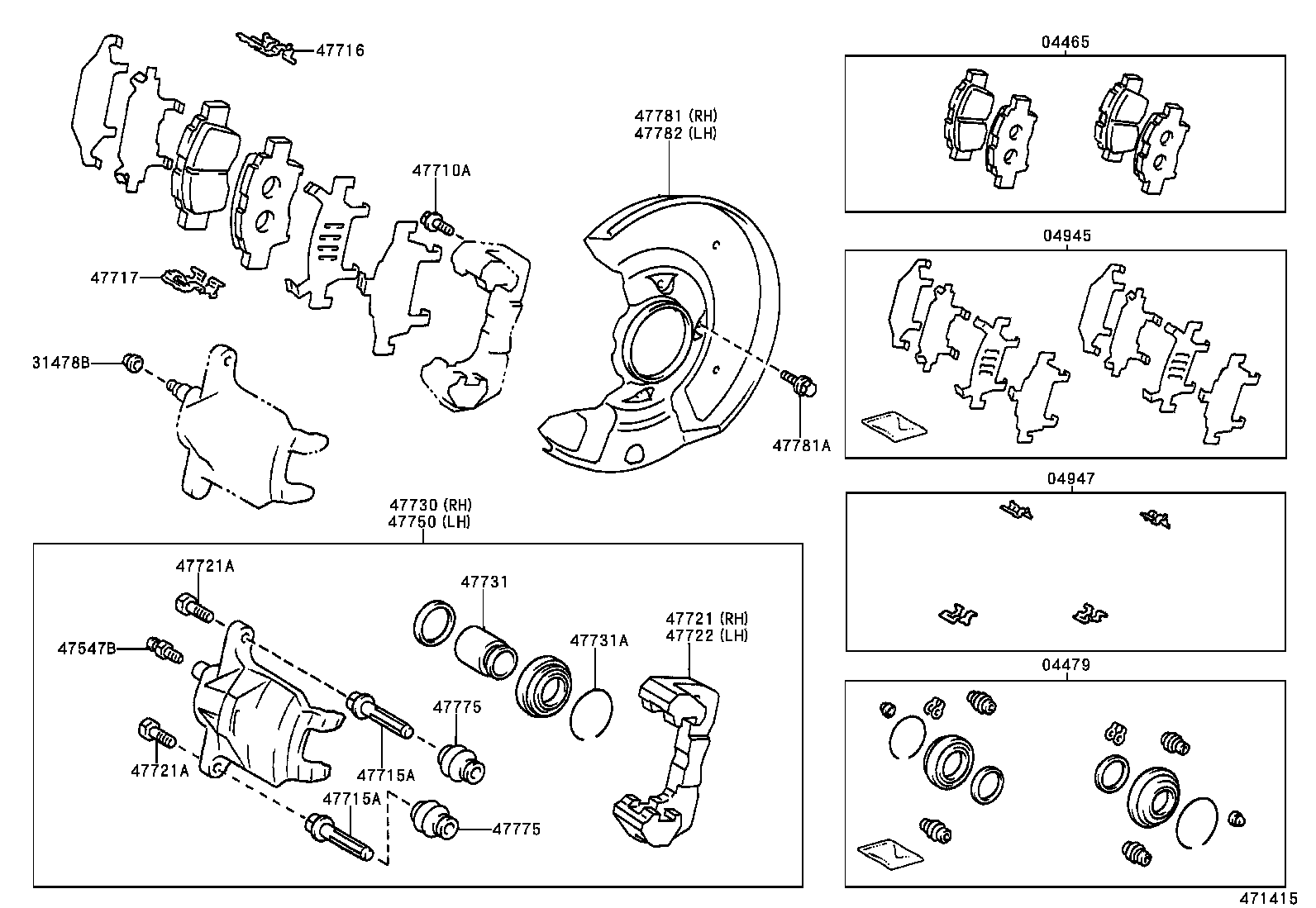

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-52041 |
NCP1#,SCP11 ﾏｰｸ AISIN PC543 |
1 | ||
| 04465-52041 |
NCP1#,SCP11 ﾏｰｸ AISIN PC543 |
1 | ||
| 04465-52040 |
NCP1#,SCP11 ﾏｰｸ AISIN PC543 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-52020 |
NCP1#,SCP11 |
1 | ||
| 04479-52020 |
NCP1#,SCP11 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-52010 |
NCP1#,SCP11 |
1 | ||
| 04945-52010 |
NCP1#,SCP11 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-52020 |
NCP1#,SCP11 |
1 | ||
| 04947-52020 |
NCP1#,SCP11 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
NCP1#,SCP11 |
2 | ||
| 31478-30010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 47547-20010 |
NCP1#,SCP11 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12314 |
NCP1#,SCP11 *12−1.25PX27.5−23.8 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-52010 |
NCP1#,SCP11 |
4 | ||
| 47715-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-52010 |
NCP1#,SCP11 |
4 | ||
| 47715-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-52010 |
NCP1#,SCP11 |
2 | ||
| 47716-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-52010 |
NCP1#,SCP11 |
2 | ||
| 47717-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47721-52010 |
NCP1#,SCP11 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
SCP11;NCP1#..ATM;NCP1#..MTM..F *8−1.00PX23−15 |
4 | ||
| 90105-08164 |
NCP1#,SCP11 *8−1.00PX23−15 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
SCP11;NCP1#..ATM;NCP1#..MTM..F *8−1.00PX23−15 |
4 | ||
| 90105-08164 |
NCP1#,SCP11 *8−1.00PX23−15 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47722-52010 |
NCP1#,SCP11 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-52010 |
NCP1#,SCP11 |
1 | ||
| 47730-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-52010 |
NCP1#,SCP11 |
2 | ||
| 47731-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-64003 |
NCP1#,SCP11 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-52010 |
SCP11;NCP1#..ATM;NCP1#..MTM..F |
1 | ||
| 47750-52010 |
NCP1#,SCP11 |
1 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-52010 |
NCP1#,SCP11 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-52010 |
NCP1#,SCP11 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-52010 |
NCP1#,SCP11 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
NCP1#,SCP11 |
6 | ||
| 90119-06227 |
NCP1#,SCP11 |
6 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-52010 |
NCP1#,SCP11 |
1 | ||
