NCP12-BEPEK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

Click highlighted areas on diagram

3-SPOKE

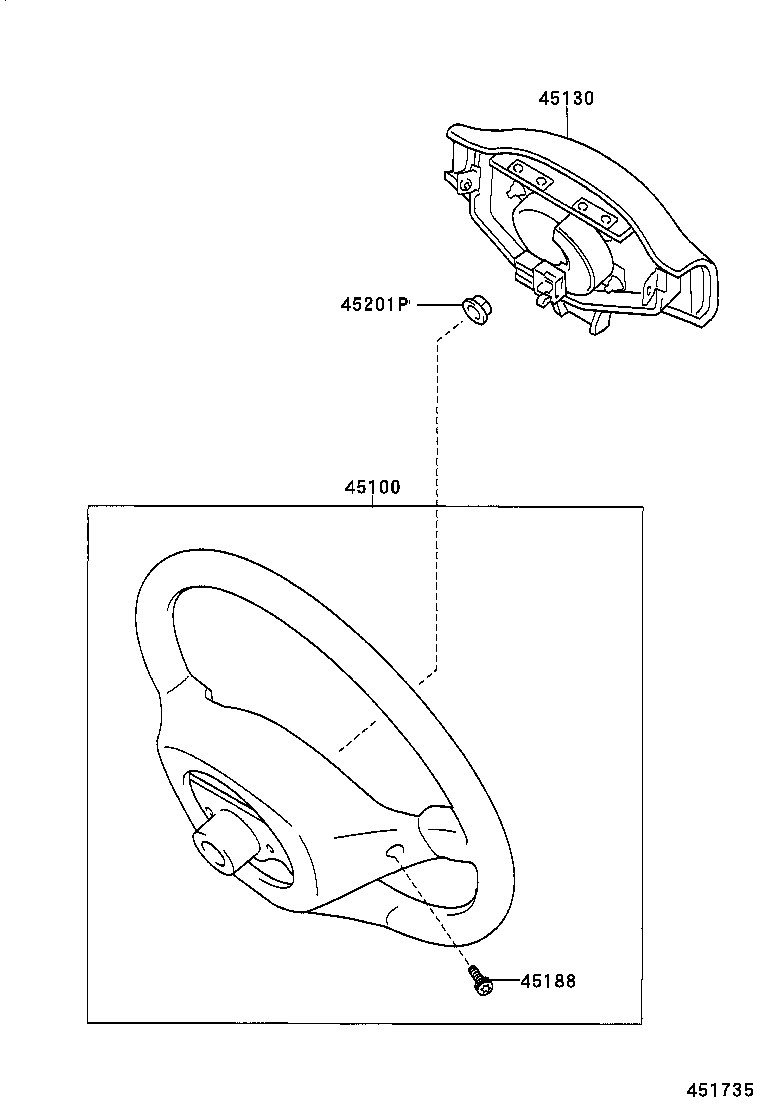

diagram 45100 45130 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-52010B1

NCP1#,SCP11

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,LT.AMETHYST,TRIM9#

 1
45130 - BUTTON ASSY, HORN
45130-52170E0

NCP1#,SCP11

SANDAL WOOD,TRIM4#

 1
45130-52020B1

NCP1#,SCP11

LT.AMETHYST,TRIM9#

 1
45130-52021B1

NCP1#,SCP11

LT.AMETHYST,TRIM9#

 1
45130-52090B1

NCP1#,SCP11

LT.AMETHYST,TRIM9#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60026

NCP1#,SCP11

長さ=19.0

 2
90148-60026

NCP1#,SCP11

長さ=19.0

 2
90148-60026

SCP11;NCP1#..ATM;NCP1#..MTM..F

長さ=19.0

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

NCP1#,SCP11

 1
90179-12071

SCP11;NCP1#..ATM;NCP1#..MTM..F

 1
90179-12071

NCP1#,SCP11

 1
