Toyota Platz NCP12 DISC WHEEL & WHEEL CAP

NCP12-BEPEK (1999)

Toyota Platz

Production Aug 1999 - Nov 2005

Engine 1NZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

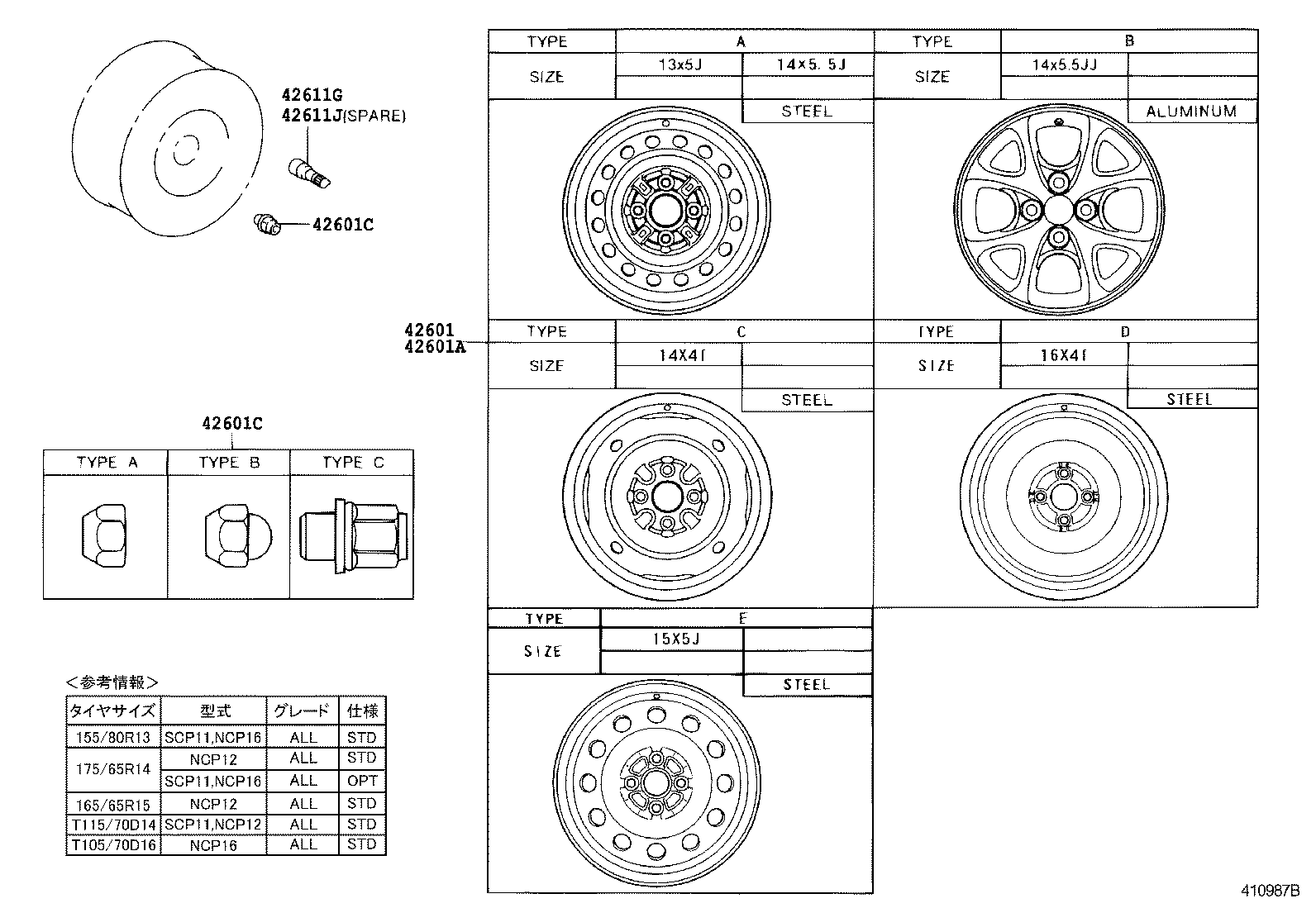

ILLUST NO. 1 OF 3(9908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-52030	NCP12 14X5.5J,#,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 08/2002	4
42611-52040	NCP1#,SCP11 14X5.5JJ,ｵﾌｾｯﾄ 45,#,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/2002 - 11/2005	4
42611-52040	NCP1#,SCP11 14X5.5JJ,ｵﾌｾｯﾄ 45,#,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 08/2002	4
42611-52330	NCP12 15X5J,TYPE E:ｲﾗｽﾄ参照	08/2002 - 11/2005	4
42601A - WHEEL, DISC (FOR SPARE)
42611-16310	NCP12,SCP11 14X4T,ｵﾌｾｯﾄ 45,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 08/2002	1
42611-16310	NCP12,SCP11 14X4T,ｵﾌｾｯﾄ 45,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/2002 - 11/2005	1
42601C - NUT, HUB (FOR AXLE)
90942-01033	NCP1#,SCP11 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 08/2002	16
90942-01033	SCP11;NCP1#..ATM;NCP1#..MTM..F TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/2002 - 12/2999	16
90942-01007	NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 08/2002	16
90942-01007	SCP11;NCP1#..ATM;NCP1#..MTM..F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2002 - 12/2999	16
42601C - NUT, HUB (FOR AXLE)
90942-01033	NCP1#,SCP11 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 08/2002	16
90942-01033	SCP11;NCP1#..ATM;NCP1#..MTM..F TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/2002 - 12/2999	16
90942-01007	NCP1#,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 08/2002	16
90942-01007	SCP11;NCP1#..ATM;NCP1#..MTM..F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2002 - 12/2999	16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	NCP1#,SCP11	08/1999 - 08/2002	4
90942-05009	SCP11;NCP1#..ATM;NCP1#..MTM..F	08/2002 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	SCP11;NCP1#..ATM;NCP1#..MTM..F	08/2002 - 12/2999	1
90942-05009	NCP1#,SCP11	08/1999 - 08/2002	1

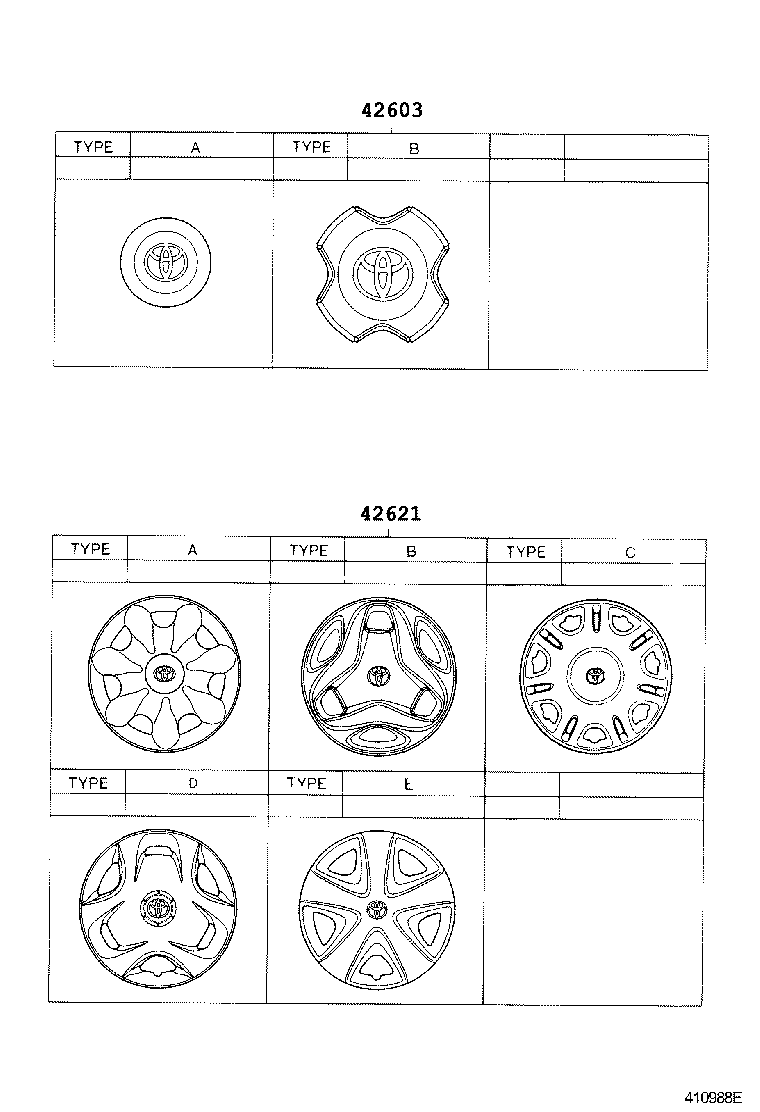

ILLUST NO. 2 OF 3(9908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-52010	SCP11;NCP1#..ATM;NCP1#..MTM..F *ALU,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2002 - 12/2999	4
42603-52010	NCP1#,SCP11 *ALU,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 08/2002	4
42621 - CAP, WHEEL
42602-52070	NCP12..X;NCP16,SCP11 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 08/2002	4
42602-12500	NCP12 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 08/2002	4
42602-52170	NCP12..ATM;NCP12..MTM..F TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	08/2002 - 12/2999	4

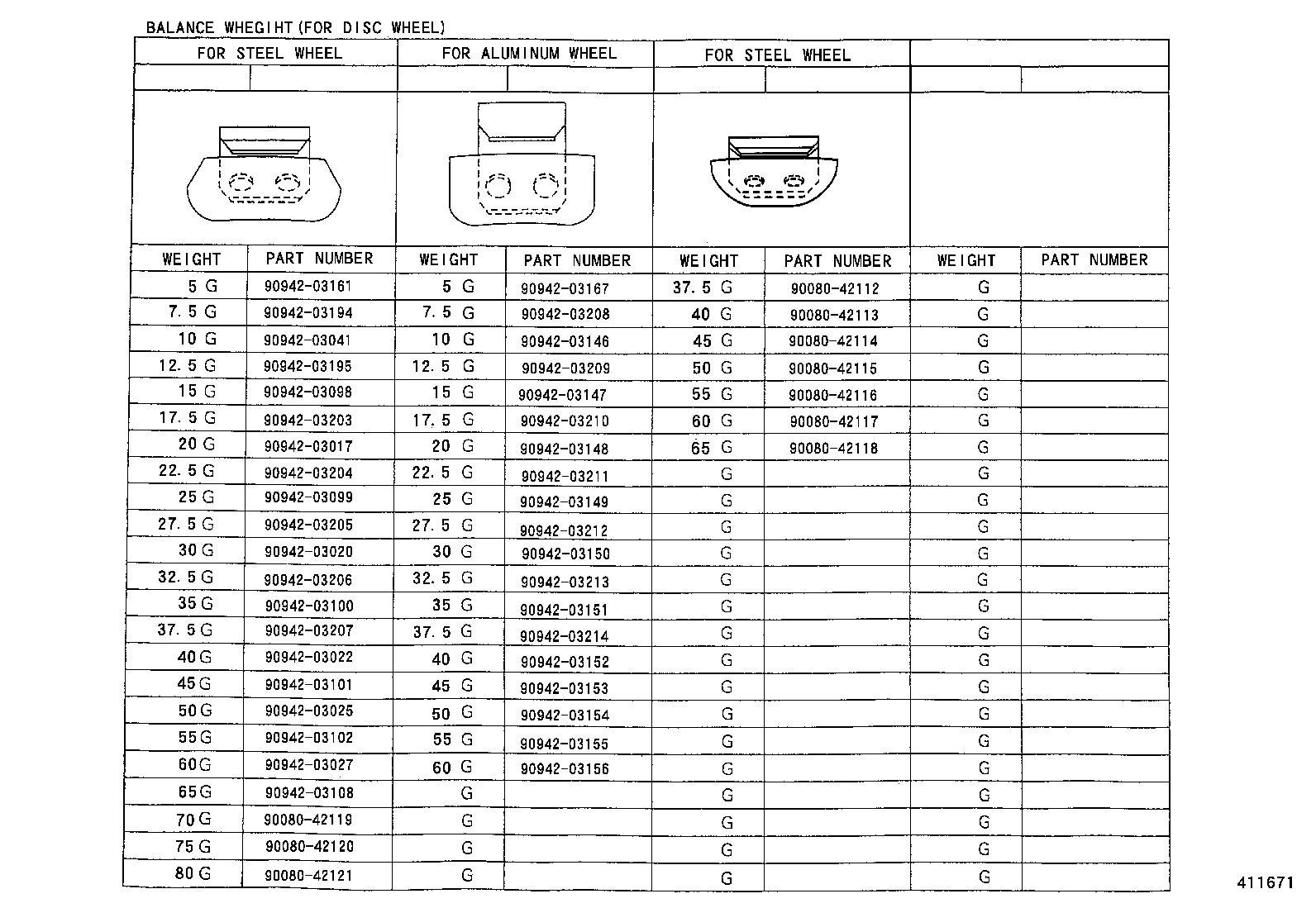

ILLUST NO. 3 OF 3(9908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90080-42112
90080-42113
90080-42114
90080-42115
90080-42116
90080-42117
90080-42118
90080-42119
90080-42120
90080-42121
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
