NCP12-BEPEK (1999)
Toyota Platz
Production
Aug 1999
-
Nov 2005
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )NCP12,SCP11

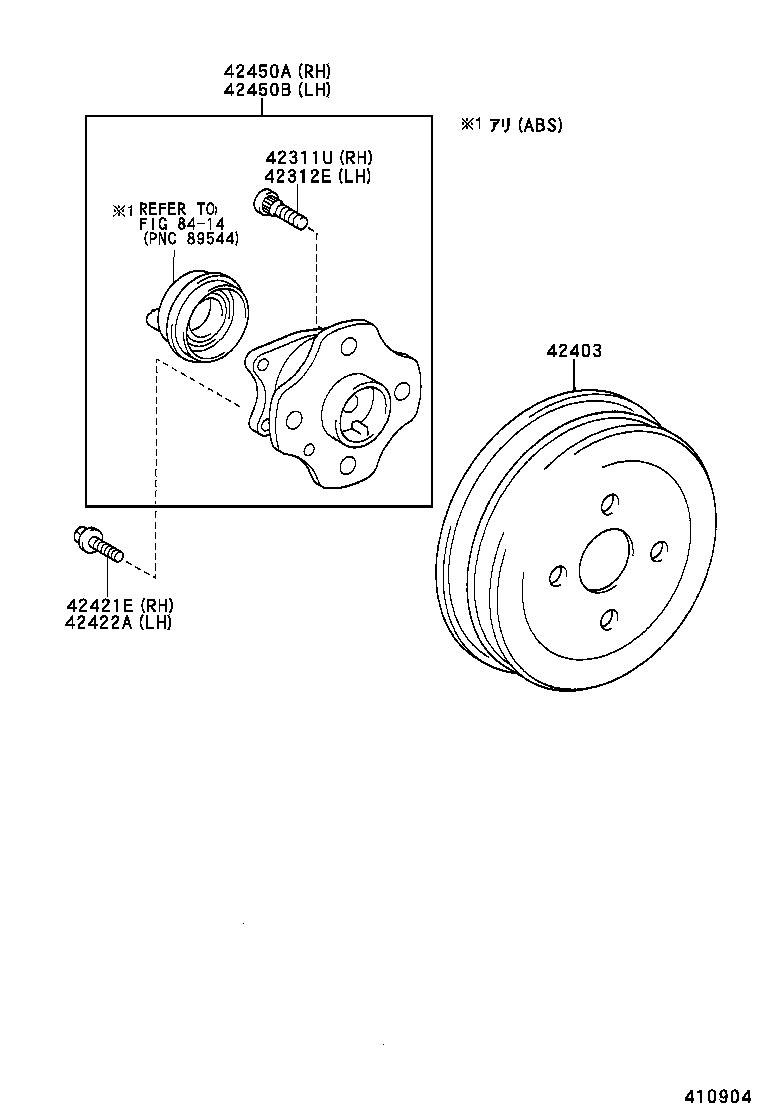

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
SCP11;NCP12..ATM;NCP12..MTM..F |
4 | ||
| 90942-02047 |
NCP12,SCP11 |
4 | ||
| 90942-02047 |
NCP12,SCP11 |
4 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02047 |
NCP12,SCP11 |
4 | ||
| 90942-02047 |
SCP11;NCP12..ATM;NCP12..MTM..F |
4 | ||
| 90942-02047 |
NCP12,SCP11 |
4 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-52011 |
NCP12,SCP11 |
2 | ||
| 42431-52010 |
NCP12,SCP11 |
2 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-10507 |
NCP12,SCP11 |
4 | ||
| 90105-10470 |
NCP12,SCP11 |
4 | ||
| 90105-10507 |
NCP12,SCP11 |
4 | ||
| 90105-10507 |
SCP11;NCP12..ATM;NCP12..MTM..F |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-10507 |
SCP11;NCP12..ATM;NCP12..MTM..F |
4 | ||
| 90105-10470 |
NCP12,SCP11 |
4 | ||
| 90105-10507 |
NCP12,SCP11 |
4 | ||
| 90105-10507 |
NCP12,SCP11 |
4 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42450-52020 |
NCP12,SCP11 |
1 | ||
| 42450-52021 |
NCP12,SCP11 |
1 | ||
| 42450-52020 |
NCP12,SCP11 |
1 | ||
| 42450-52021 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42450-52021 |
SCP11;NCP12..ATM;NCP12..MTM..F |
1 | ||
| 42450-52020 |
NCP12,SCP11 |
1 | ||
| 42450-52020 |
NCP12,SCP11 |
1 | ||
| 42450-52021 |
NCP12,SCP11 |
1 | ||
| Linked diagrams | ||||
| 8414 | ||||
