NCP12-BEPEK (1999)
Toyota Platz
Production
Aug 1999
-
Nov 2005
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )NCP12..ATM

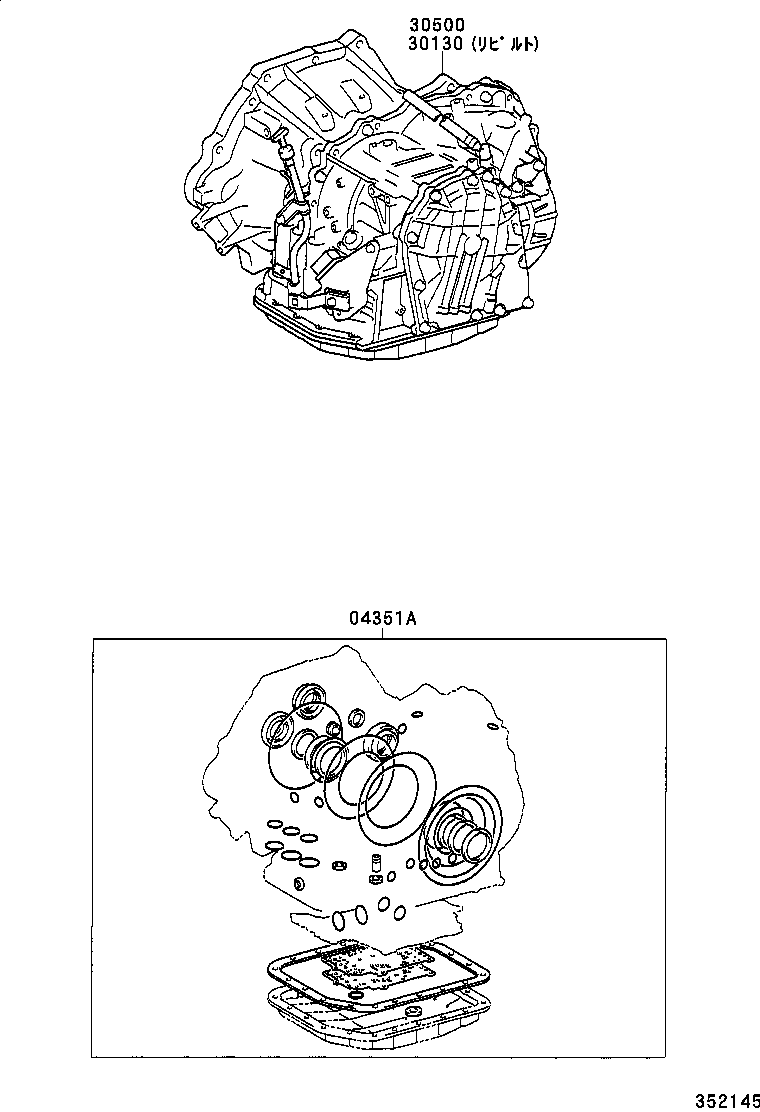

Click highlighted areas on diagram
U340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM) | ||||
| 04351-52040 |
NCP12..ATM |
1 | ||
| 04351-52270 |
NCP12..ATM |
1 | ||
| 04351-52040 |
NCP12..ATM |
1 | ||
| 30130 - TRANSAXLE ASSY, REBUILT | ||||
| 30130-52100 |
NCP12..ATM |
1 | ||
| 30130-52100 |
NCP12..ATM |
1 | ||
| 30130-52101 |
NCP12..ATM |
1 | ||
| 30500 - TRANSAXLE ASSY, AUTOMATIC | ||||
| 30500-52100 |
NCP12..ATM U340E |
1 | ||
| 30500-52100 |
NCP12..ATM U340E |
1 | ||
| 30500-52101 |
NCP12..ATM U340E |
1 | ||
| 30500-52102 |
NCP12..ATM U340E |
1 | ||
