NCP12-BEPEK (1999)
Toyota Platz
Production
Aug 1999
-
Nov 2005
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )1NZFE

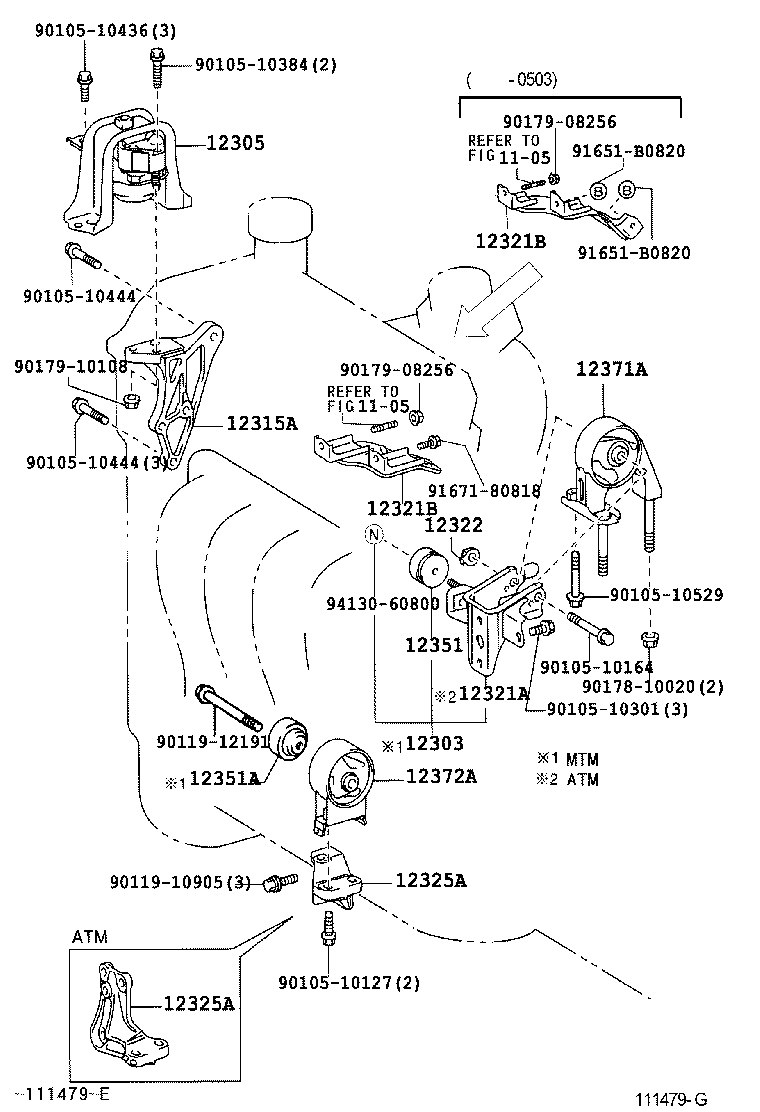

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-21020 |
1NZFE..NCP12 |
1 | ||
| 12305-33020 |
1NZFE..NCP12..ATM |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-21041 |
1NZFE..NCP12 |
1 | ||
| 12315-21040 |
1NZFE..NCP12 |
1 | ||
| 12315-21040 |
1NZFE..NCP12 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-21150 |
1NZFE..NCP12..ATM |
1 | ||
| 12321-21090 |
1NZFE..NCP12..ATM |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-52010 |
1NZFE..NCP12 |
1 | ||
| 43409-52010 |
1NZFE..NCP12..ATM;1NZFE..NCP12..MTM..F |
1 | ||
| 43409-52020 |
1NZFE..NCP12 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-52010 |
1NZFE..NCP12 |
1 | ||
| 43409-52010 |
1NZFE..NCP12..ATM;1NZFE..NCP12..MTM..F |
1 | ||
| 43409-52020 |
1NZFE..NCP12 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-23020 |
1NZFE..NCP12 |
1 | ||
| 12322-23020 |
1NZFE..NCP12 |
1 | ||
| 12322-23020 |
1NZFE..NCP12..ATM;1NZFE..NCP12..MTM..F |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-21060 |
1NZFE..NCP12..ATM |
1 | ||
| 12325-21060 |
1NZFE..NCP12..ATM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-21060 |
1NZFE..NCP12..ATM |
1 | ||
| 12325-21060 |
1NZFE..NCP12..ATM |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-23010 |
1NZFE..NCP12..ATM |
1 | ||
| 12351-23010 |
1NZFE..NCP12..ATM |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-23010 |
1NZFE..NCP12..ATM |
1 | ||
| 12371-23011 |
1NZFE..NCP12..ATM |
1 | ||
| 12371-23011 |
1NZFE..NCP12..ATM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-21100 |
1NZFE..NCP12..ATM |
1 | ||
| 12372-21060 |
1NZFE..NCP12..ATM |
1 | ||
| Common parts | ||||
| 90105-10127 | ||||
| 90105-10164 | ||||
| 90105-10301 | ||||
| 90105-10384 | ||||
| 90105-10436 | ||||
| 90105-10444 | ||||
| 90105-10529 | ||||
| 90119-10905 | ||||
| 90119-12191 | ||||
| 90178-10020 | ||||
| 90179-08256 | ||||
| 90179-10108 | ||||
| 91651-B0820 | ||||
| 91671-80818 | ||||
| 94130-60800 | ||||
| Linked diagrams | ||||
| 1105 | ||||
