S331M-ZQRFU3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)

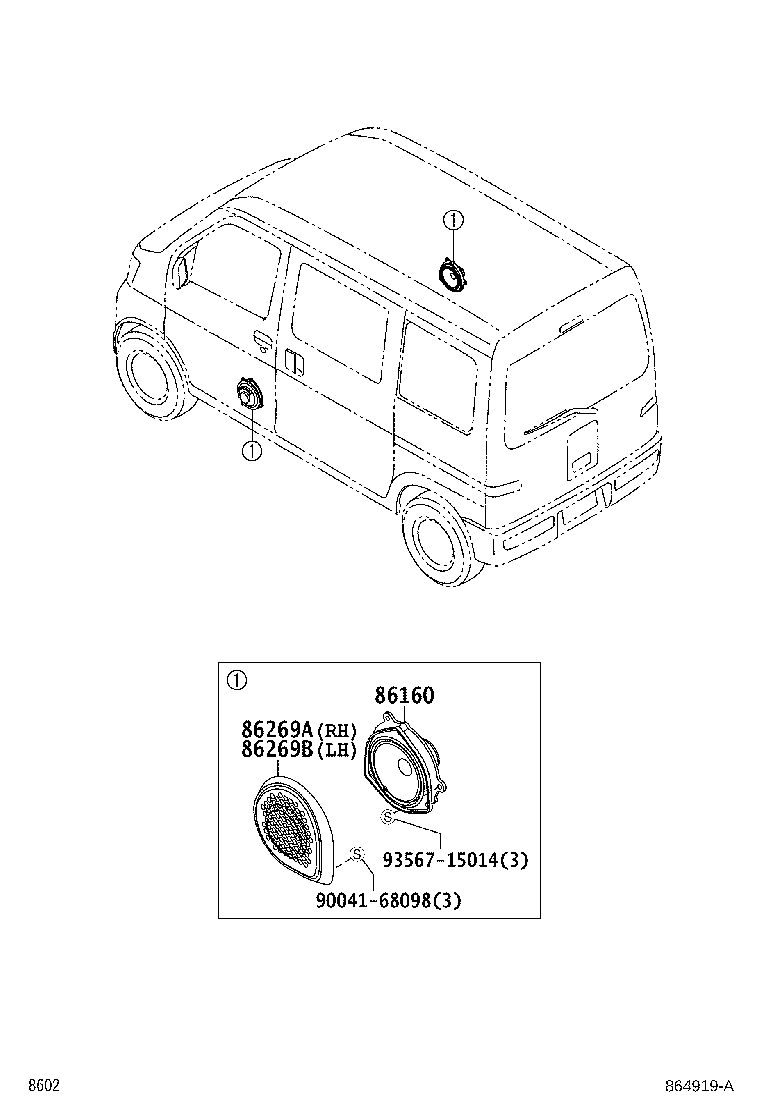

Click highlighted areas on diagram

diagram 86160 86269A 86269B 9004168098 9356715014
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-B5030

S321,331..DLX,SPL

ｵｰﾃﾞｨｵﾚｽ 2SP(16CM)

 2
86160-B5010

S321,331..(DLX,SPL)..PS2

ｵｰﾃﾞｨｵﾚｽ 2SP(10CM)

 2
86269A - GRILLE, SPEAKER
67651-97501B0

S321,331..DLX,SPL

ｵｰﾃﾞｨｵﾚｽ 2SP(16CM),GRAY,TRIM1#,右側

 1
67651-97501B0

S321,331..DLX,SPL

ｵｰﾃﾞｨｵﾚｽ 2SP(10CM),GRAY,TRIM1#,右側

 1
86269B - GRILLE, SPEAKER
67652-97501B0

S321,331..DLX,SPL

ｵｰﾃﾞｨｵﾚｽ 2SP(16CM),GRAY,TRIM1#,左側

 1
67652-97501B0

S321,331..DLX,SPL

ｵｰﾃﾞｨｵﾚｽ 2SP(10CM),GRAY,TRIM1#,左側

 1
Common parts
90041-68098
93567-15014
