S331M-ZQRF3 (2015)

Toyota Pixis Van

Production Mar 2015 - Nov 2017
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1711)

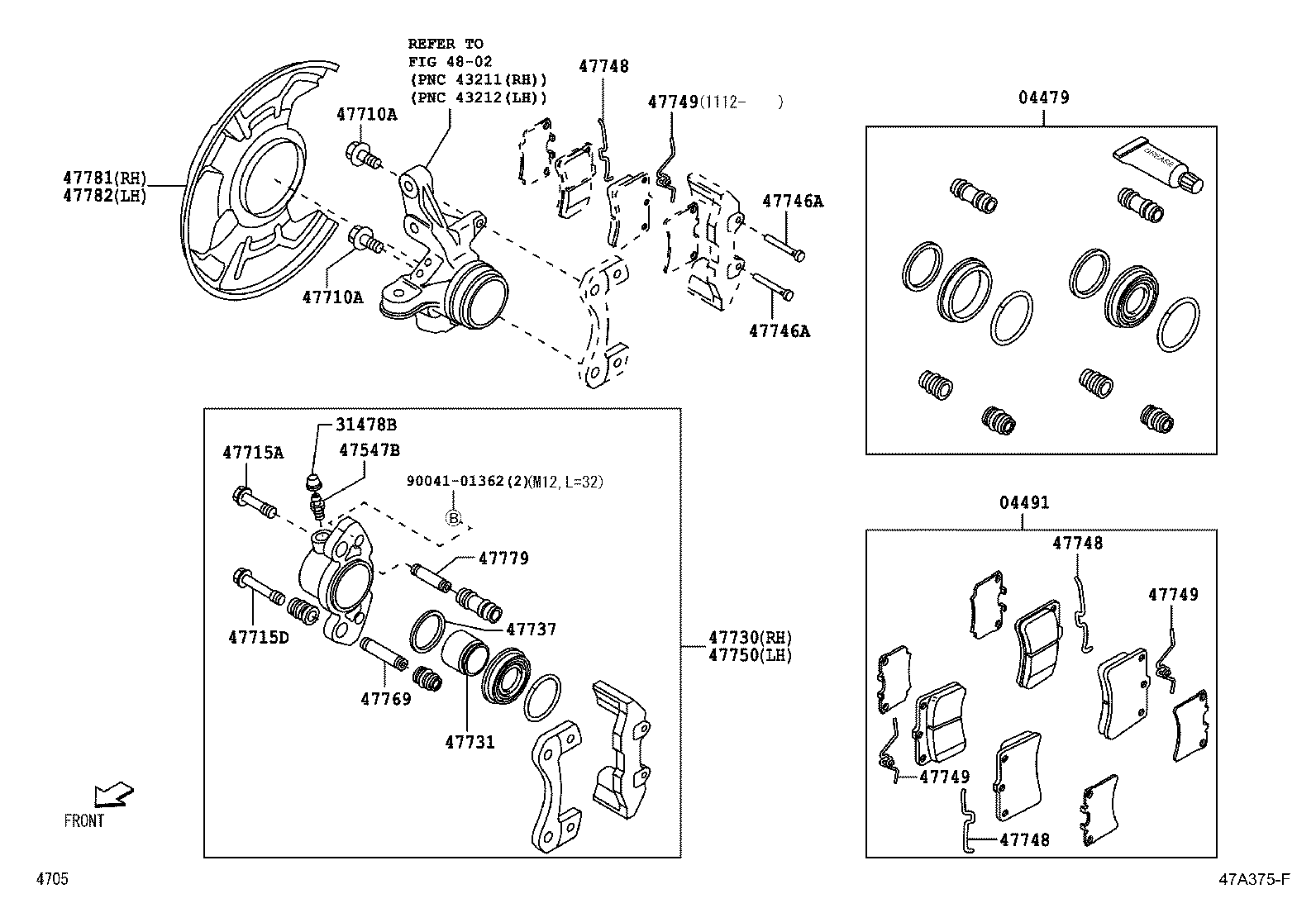

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47710A 47710A 47715A 47715D 47730 47731 47737 47746A 47746A 47748 47748 47748 47749 47749 47749 47750 47769 47779 47781 47782 4802 9004101362
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-B5020

S321,331..PS2

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04465-B5070

S321,331..PS2

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47548-87501

S321,331..PS2

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-87206

S321,331..PS2

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90041-05242

S321,331..PS2

M12,L=22

 4
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90041-05242

S321,331..PS2

M12,L=22

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-97204

S321,331..PS2

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-97501

S321,331..PS2

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-B5011

S321,331..PS2

 1
47731 - PISTON, FRONT DISC BRAKE
47731-B5010

S321,331..PS2

 2
47737 - SEAL, FRONT DISC BRAKE CYLINDER PISTON
47737-97202

S321,331..PS2

 2
47746A - PIN, W/HOLE(FOR DISC BRAKE PAD, FRONT)
90042-40149

S321,331..PS2

 4
47746A - PIN, W/HOLE(FOR DISC BRAKE PAD, FRONT)
90042-40149

S321,331..PS2

 4
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-87501

S321,331..PS2

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-87501

S321,331..PS2

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-87501

S321,331..PS2

 2
47749 - CLIP, PIN HOLD
47749-87501

S321,331..PS2

 2
47749 - CLIP, PIN HOLD
47749-87501

S321,331..PS2

 2
47749 - CLIP, PIN HOLD
47749-87501

S321,331..PS2

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-B5011

S321,331..PS2

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-B5010

S321,331..PS2

 2
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-87202

S321,331..PS2

 2
Common parts
90041-01362
Linked diagrams
4802
