S331M-ZQGZ7 (2020)

Toyota Pixis Van

Production Sep 2020 - Sep 9999
Engine KFDET
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2009- )KFDET

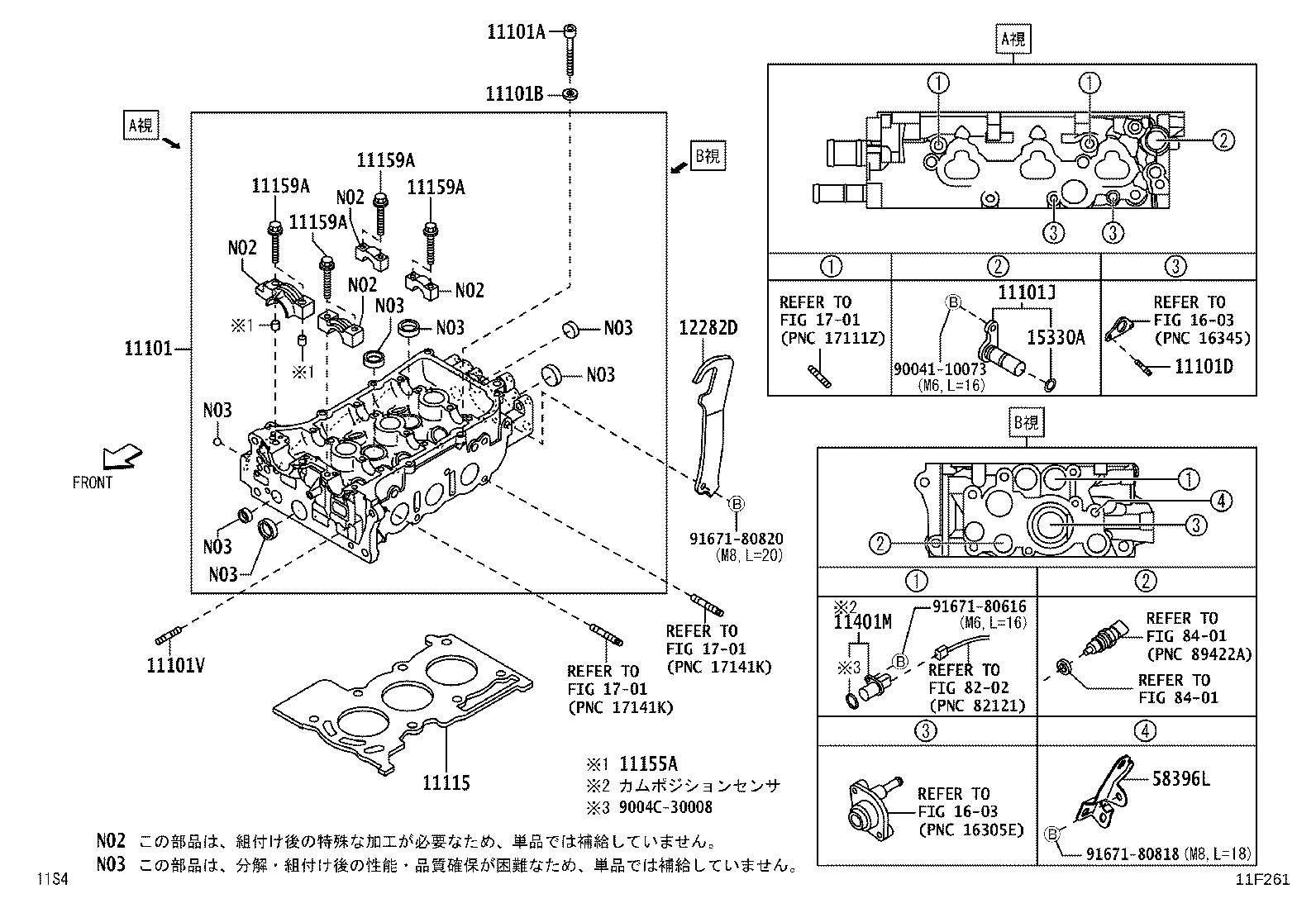

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101D 11101J 11101V 11115 11155A 11159A 11159A 11159A 11159A 11401M 12282D 15330A 1603 1603 1701 1701 1701 58396L 8202 8401 8401 9004110073 9004C30008 9167180616 9167180818 9167180820
Part # Description Qty Price
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-B5010

KF#..S321,331

 1
Common parts
90041-10073
9004C-30008
91671-80616
91671-80818
91671-80820
Linked diagrams
1603
1701
8202
8401
