S331M-ZPRFU (2011)
Toyota Pixis Van
(1112- )
ﾗｼﾞｴｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-B5020 |
KF#..S321,331..PS1 TYPE B(ｲﾗｽﾄ参照) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-B5020 |
KF#..S321,331..PS1 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-B5130 |
KFVE..S321,331..4FC |
1 | ||
| 16400-B5131 |
KFVE..S321,331..4FC..PS1 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-87101 |
KF#..S321,331..PS1 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16442-97201 |
KF#..S321,331..PS1 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-87211 |
KFVE..S321,331..PS1 開弁圧:1.1 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-B5010 |
KF#..S321,331..PS1 |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 53211-B5011 |
KFVE..S321,331..PS1 外径=152 |
1 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80621 |
KF#..S321,331..PS1 |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80621 |
KF#..S321,331..PS1 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
KF#..S321,331..PS1 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
KF#..S321,331..PS1 |
2 | ||
| 16565A - CLIP | ||||
| 90044-68149 |
KF#..S321,331..PS1 |
2 | ||
| 16565A - CLIP | ||||
| 90044-68149 |
KF#..S321,331..PS1 |
2 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 53152-B5010 |
KF#..S321,331..PS1 |
1 | ||
| 16593A - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 53153-B5040 |
KF#..S321,331..PS1 |
1 | ||
| 16595A - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 53154-B5040 |
KF#..S321,331..PS1 |
1 | ||
| Common parts | ||||
| 16672-87201 | ||||
| 51442-B5010 | ||||
| 53228-97201 | ||||
| 82711-16830 | ||||
| 90041-79141 | ||||
| 90041-79291 | ||||
| 91631-60616 | ||||
| 91635-60620 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 5355 | ||||
| 5851 | ||||
| 7455 | ||||
(1112-1504)KFVE..PS1
ﾎｰｽ(ﾘﾔﾋｰﾀﾅｼ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-B2090 |
KF#..S321,331..PS1 NO.1,外径=21,内径=13 |
1 | ||
| 16261-B2060 |
KF#..S321,331..PS1 NO.2,外径=12,内径=5.8 |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-B2090 |
KF#..S321,331..PS1 NO.1,外径=21,内径=13 |
1 | ||
| 16261-B2060 |
KF#..S321,331..PS1 NO.2,外径=12,内径=5.8 |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-B2090 |
KF#..S321,331..PS1 NO.1,外径=21,内径=13 |
1 | ||
| 16261-B2060 |
KF#..S321,331..PS1 NO.2,外径=12,内径=5.8 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-B2030 |
KF#..S321,331..PS1 NO.1 |
1 | ||
| 16262-B2010 |
KF#..S321,331 NO.1 |
1 | ||
| 16262-B2020 |
KF#..S321,331..PS1 NO.2 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-B2030 |
KF#..S321,331..PS1 NO.1 |
1 | ||
| 16262-B2010 |
KF#..S321,331 NO.1 |
1 | ||
| 16262-B2020 |
KF#..S321,331..PS1 NO.2 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-B2040 |
KF#..S321,331..PS1 L=340 |
1 | ||
| 16264-B2040 |
KF#..S321,331..PS1 L=340,ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-B2030 |
KF#..S321,331..PS1 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-B2030 |
KF#..S321,331..PS1 |
1 | ||
| 16268-B2010 |
KF#..S321,331 |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFVE..S321,331..PS1 |
2 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFVE..S321,331..PS1 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-B2020 |
KF#..S321,331..PS1 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-B2010 |
KF#..S321,331..PS1 |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 47546-87202 |
KF#..S321,331..PS1 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-B2031 |
KF#..S321,331..PS1 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-B2070 |
KFVE..S321,331..PS1 |
1 | ||
| 16332-B2050 |
KFVE..S321,331 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-B2020 |
KF#..S321,331..PS1 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-B2010 |
KF#..S321,331..PS1 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-B2020 |
KFVE..S321,331..PS1 |
1 | ||
| 16400P - PLUG(FOR RADIATOR) | ||||
| 12118-B5010 |
KFVE..S321,331..PS1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-B5010 |
KF#..S321,331..PS1 NO.1 |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-B2021 |
KFVE..S321,331..PS1 |
1 | ||
| 16507-B2030 |
KFVE..S321,331 ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16507-B2031 |
KFVE..S321,331..PS1 ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16507-B2020 |
KFVE..S321,331 |
1 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 90044-66037 |
KFVE..S321,331..PS1 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-67191 |
KF#..S321,331..PS1 NO.2 |
1 | ||
| 90044-66037 |
KFVE..S321,331..PS1 NO.1 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-67191 |
KF#..S321,331..PS1 NO.2 |
1 | ||
| 90044-66037 |
KFVE..S321,331..PS1 NO.1 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-B5010 |
KF#..S321,331..PS1 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-B5010 |
KF#..S321,331..PS1 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16571-B2130 |
KF#..S321,331..PS1 |
1 | ||
| 16571-B2090 |
KF#..S321,331 |
1 | ||
| 16597 - HOSE, RESERVE TANK OUTLET, NO.2 | ||||
| 16503-B5010 |
KFVE..S321,331..PS1 |
1 | ||
| Common parts | ||||
| 90041-79338 | ||||
| 90044-64580 | ||||
| 90044-66030 | ||||
| 90044-66032 | ||||
| 90044-66033 | ||||
| 90044-67029 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80625 | ||||
| 91671-80630 | ||||
| 96761-24053 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 8401 | ||||

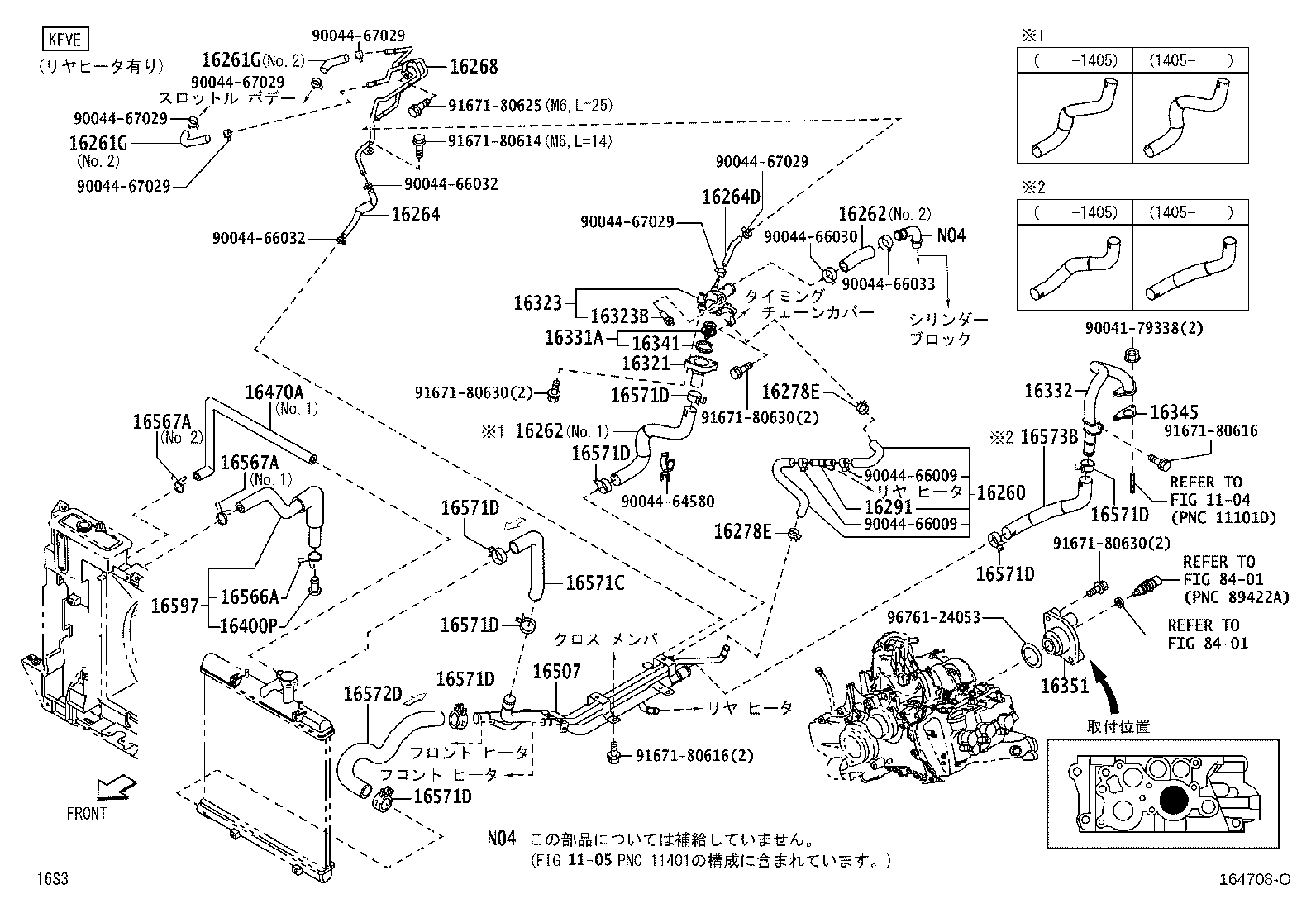

(1112-1504)KFVE..PS1
ﾎｰｽ(ﾘﾔﾋｰﾀｱﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-B2030 |
KF#..S321,331..PS1 ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-B2090 |
KF#..S321,331..PS1 NO.1,外径=21,内径=13 |
1 | ||
| 16261-B2060 |
KF#..S321,331..PS1 NO.2,外径=12,内径=5.8 |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-B2090 |
KF#..S321,331..PS1 NO.1,外径=21,内径=13 |
1 | ||
| 16261-B2060 |
KF#..S321,331..PS1 NO.2,外径=12,内径=5.8 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-B2030 |
KF#..S321,331..PS1 NO.1 |
1 | ||
| 16262-B2010 |
KF#..S321,331 NO.1 |
1 | ||
| 16262-B2020 |
KF#..S321,331..PS1 NO.2 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-B2030 |
KF#..S321,331..PS1 NO.1 |
1 | ||
| 16262-B2010 |
KF#..S321,331 NO.1 |
1 | ||
| 16262-B2020 |
KF#..S321,331..PS1 NO.2 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-B2040 |
KF#..S321,331..PS1 L=340 |
1 | ||
| 16264-B2040 |
KF#..S321,331..PS1 L=340,ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-B2030 |
KF#..S321,331..PS1 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-B2030 |
KF#..S321,331..PS1 |
1 | ||
| 16268-B2010 |
KF#..S321,331 |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFVE..S321,331..PS1 |
2 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFVE..S321,331..PS1 |
2 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-B2020 |
KF#..S321,331..PS1 ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-B2020 |
KF#..S321,331..PS1 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-B2010 |
KF#..S321,331..PS1 |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 47546-87202 |
KF#..S321,331..PS1 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-B2031 |
KF#..S321,331..PS1 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-B2070 |
KFVE..S321,331..PS1 |
1 | ||
| 16332-B2050 |
KFVE..S321,331 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-B2020 |
KF#..S321,331..PS1 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-B2010 |
KF#..S321,331..PS1 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-B2020 |
KFVE..S321,331..PS1 |
1 | ||
| 16400P - PLUG(FOR RADIATOR) | ||||
| 12118-B5010 |
KFVE..S321,331..PS1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-B5010 |
KF#..S321,331..PS1 NO.1 |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-B2021 |
KFVE..S321,331..PS1 |
1 | ||
| 16507-B2030 |
KFVE..S321,331 ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16507-B2031 |
KFVE..S321,331..PS1 ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16507-B2020 |
KFVE..S321,331 |
1 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 90044-66037 |
KFVE..S321,331..PS1 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-67191 |
KF#..S321,331..PS1 NO.2 |
1 | ||
| 90044-66037 |
KFVE..S321,331..PS1 NO.1 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-67191 |
KF#..S321,331..PS1 NO.2 |
1 | ||
| 90044-66037 |
KFVE..S321,331..PS1 NO.1 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-B5010 |
KF#..S321,331..PS1 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS1 |
8 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-B5010 |
KF#..S321,331..PS1 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16571-B2130 |
KF#..S321,331..PS1 |
1 | ||
| 16571-B2090 |
KF#..S321,331 |
1 | ||
| 16597 - HOSE, RESERVE TANK OUTLET, NO.2 | ||||
| 16503-B5010 |
KFVE..S321,331..PS1 |
1 | ||
| Common parts | ||||
| 90041-79338 | ||||
| 90044-64580 | ||||
| 90044-66009 | ||||
| 90044-66030 | ||||
| 90044-66032 | ||||
| 90044-66033 | ||||
| 90044-67029 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80625 | ||||
| 91671-80630 | ||||
| 96761-24053 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
