S331M-ZPDF (2011)
Toyota Pixis Van
Production
Dec 2011
-
Apr 2015
Engine
KFVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

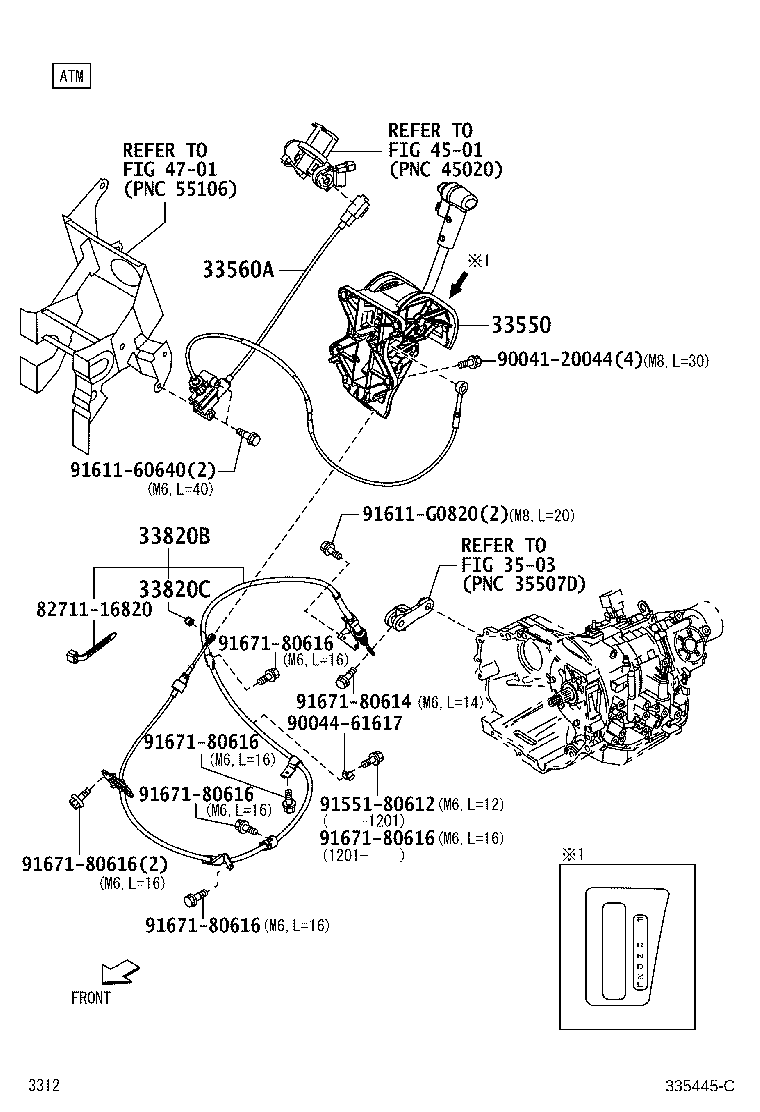

(1112-1212)4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-B5030B0 |
S321,331..4FC GRAY,TRIM1# |
1 | ||
| 33550-B5140B0 |
S321,331..4FC..PS1 GRAY,TRIM1# |
1 | ||
| 33560A - CABLE ASSY, SHIFT LOCK RELEASE | ||||
| 33560-B5011 |
S321,331..4FC..PS1 ｸﾗﾝﾌﾟ(黒)付き |
1 | ||
| 33560-B5010 |
S321,331..4FC ｸﾗﾝﾌﾟ(黒)付き |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-B5071 |
S321,331..4FC..PS1 |
1 | ||
| 33820C - BUSH (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33835-B1010 |
S321,331..4FC..PS1 |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 90041-20044 | ||||
| 90044-61617 | ||||
| 91551-80612 | ||||
| 91611-60640 | ||||
| 91611-G0820 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 3503 | ||||
| 4501 | ||||
| 4701 | ||||

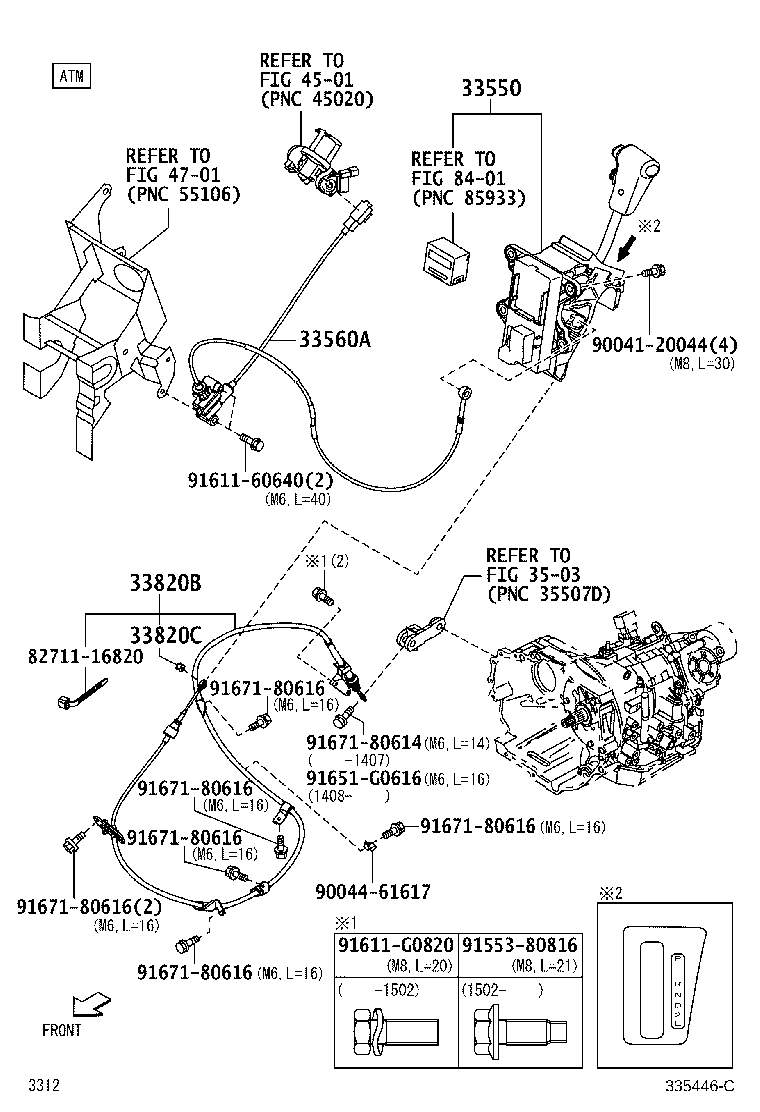

(1212-1504)4FC..PS1
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-B5030B0 |
S321,331..4FC GRAY,TRIM1# |
1 | ||
| 33550-B5140B0 |
S321,331..4FC..PS1 GRAY,TRIM1# |
1 | ||
| 33560A - CABLE ASSY, SHIFT LOCK RELEASE | ||||
| 33560-B5011 |
S321,331..4FC..PS1 ｸﾗﾝﾌﾟ(黒)付き |
1 | ||
| 33560-B5010 |
S321,331..4FC ｸﾗﾝﾌﾟ(黒)付き |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-B5071 |
S321,331..4FC..PS1 |
1 | ||
| 33820C - BUSH (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33835-B1010 |
S321,331..4FC..PS1 |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 90041-20044 | ||||
| 90044-61617 | ||||
| 91553-80816 | ||||
| 91611-60640 | ||||
| 91611-G0820 | ||||
| 91651-G0616 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 3503 | ||||
| 4501 | ||||
| 4701 | ||||
| 8401 | ||||
