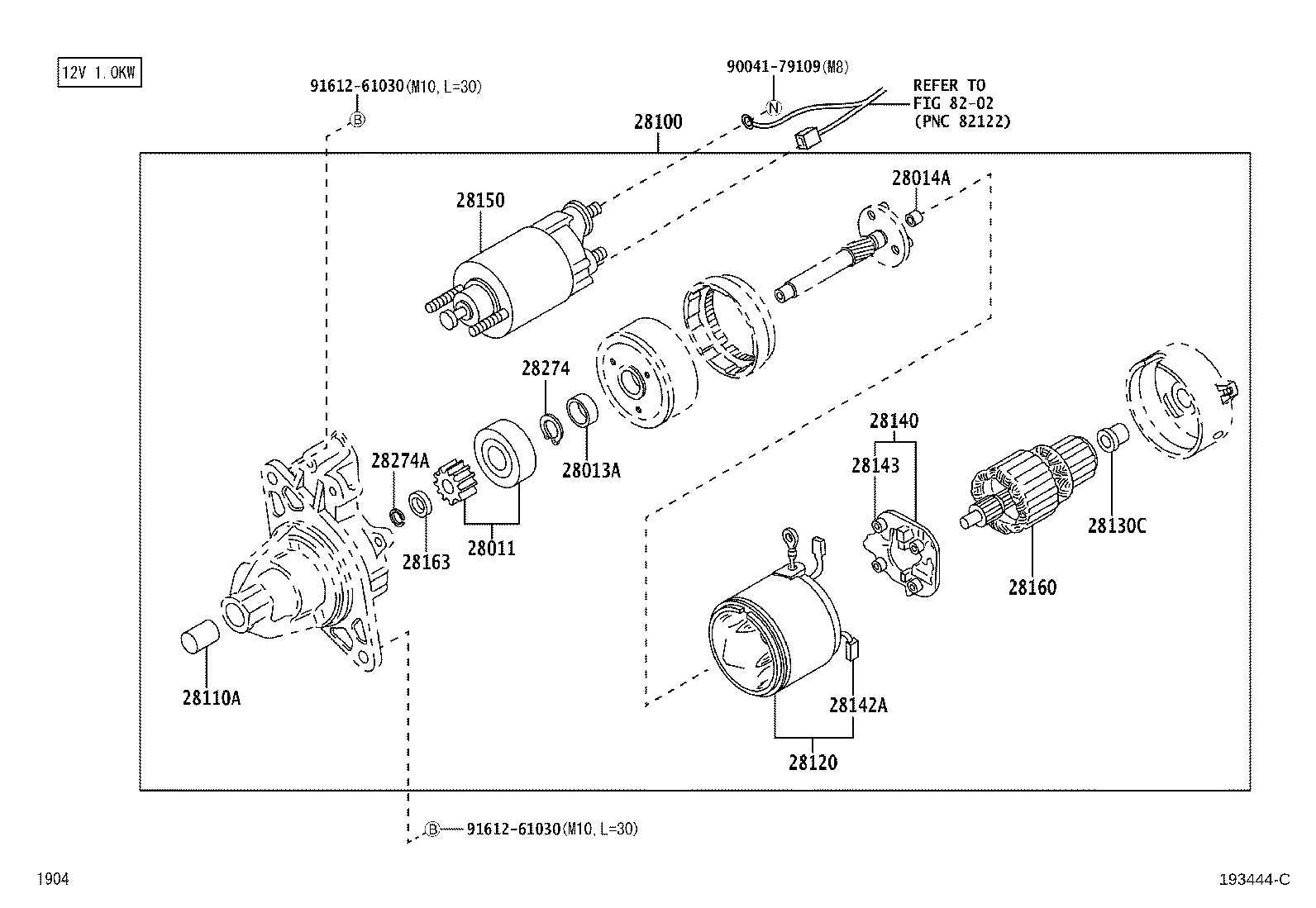

Click highlighted areas on diagram

12V 1.0KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-87208	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1	12/2011 - 04/2015	1
28011-87213	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
90099-10181	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28014A - BUSH OR BEARING, PLANET CARRIER SHAFT
90099-10180	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28100 - STARTER ASSY
28100-87544	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 12V 1.0KW,寒冷地仕様	12/2011 - 04/2015	1
28100-87547	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 12V 0.6KW	12/2011 - 04/2015	1
28110A - BEARING(FOR STARTER HOUSING)
28271-87502	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1	12/2011 - 04/2015	1
28277-87201	KF#..S321,331..PS1 寒冷地仕様	12/2011 - 04/2015	1
28120 - YOKE ASSY, STARTER
28120-87507	KF#..S321,331..PS1	12/2011 - 04/2015	1
28120-97201	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28130C - BEARING, STARTER FLANGE
90099-10183	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28271-87502	KF#..S321,331..PS1	12/2011 - 04/2015	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-87203	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28149-87501	KF#..S321,331..PS1	12/2011 - 04/2015	1
28142A - STARTER KIT
28142-87204	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様,ﾌﾞﾗｼ	12/2011 - 04/2015	2
28142-87504	KF#..S321,331..PS1 ﾌﾞﾗｼ	12/2011 - 04/2015	4
28143 - SPRING, STARTER BRUSH
28143-87202	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	4
28143-10020	KF#..S321,331..PS1	12/2011 - 04/2015	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-87536	KF#..S321,331..PS1	12/2011 - 04/2015	1
28160 - ARMATURE ASSY, STARTER
28160-87208	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28160-87503	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1	12/2011 - 04/2015	1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-87202	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28142-87505	KF#..S321,331..PS1	12/2011 - 04/2015	1
28274 - SNAP RING, STARTER, NO.1
90096-90030	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28274A - SNAP RING, STARTER, NO.2
28274-87503	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
Common parts
90041-79109
91612-61030
Linked diagrams
8202

(1112-1711)KF#..5F ; (1504-1711)KF#..4FC

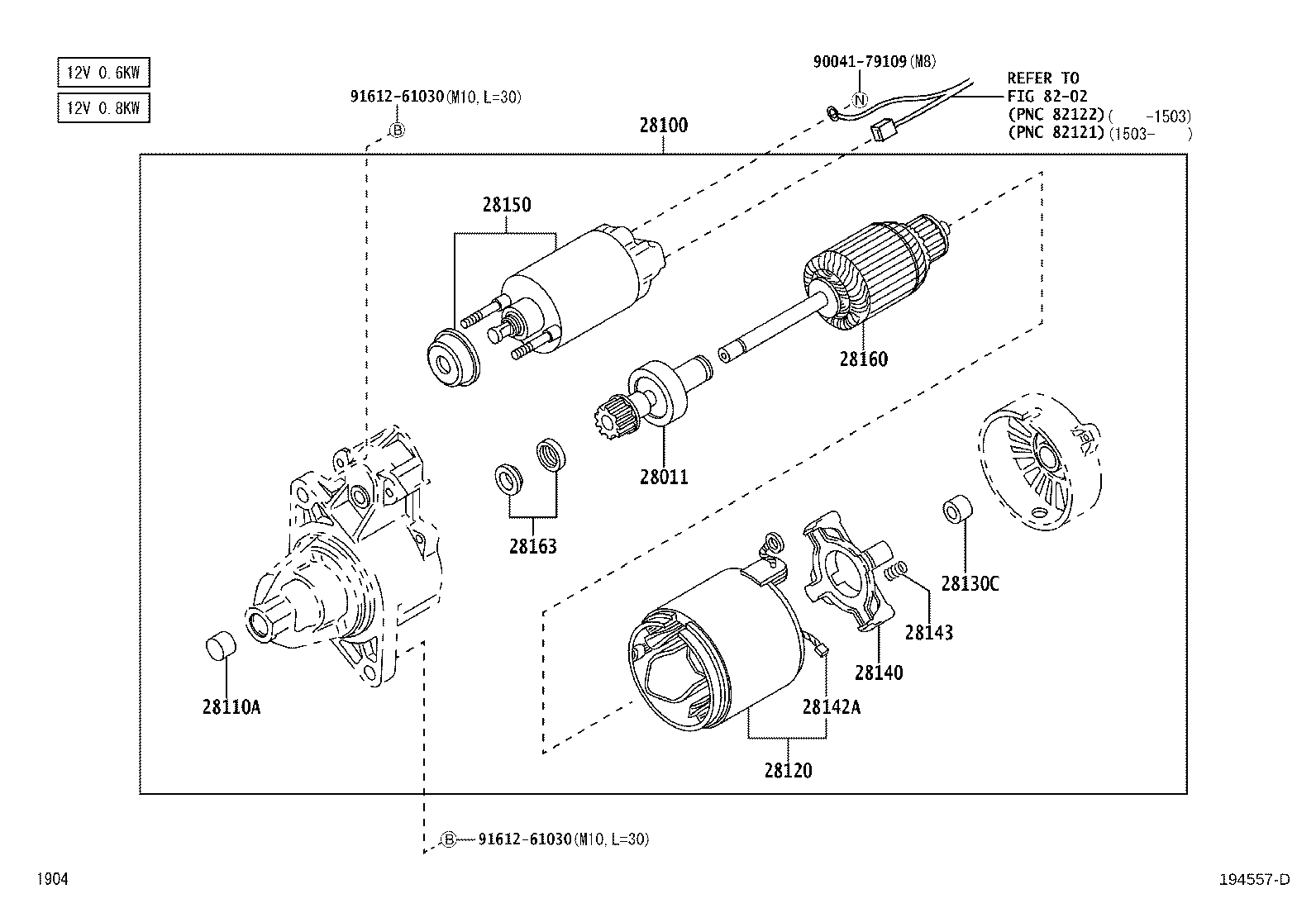

Click highlighted areas on diagram

12V 0.6KW, 12V 0.8KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-87208	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1	12/2011 - 04/2015	1
28011-87213	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28100 - STARTER ASSY
28100-87544	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 12V 1.0KW,寒冷地仕様	12/2011 - 04/2015	1
28100-87547	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 12V 0.6KW	12/2011 - 04/2015	1
28110A - BEARING(FOR STARTER HOUSING)
28271-87502	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1	12/2011 - 04/2015	1
28277-87201	KF#..S321,331..PS1 寒冷地仕様	12/2011 - 04/2015	1
28120 - YOKE ASSY, STARTER
28120-87507	KF#..S321,331..PS1	12/2011 - 04/2015	1
28120-97201	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28130C - BEARING, STARTER FLANGE
90099-10183	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28271-87502	KF#..S321,331..PS1	12/2011 - 04/2015	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-87203	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28149-87501	KF#..S321,331..PS1	12/2011 - 04/2015	1
28142A - STARTER KIT
28142-87204	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様,ﾌﾞﾗｼ	12/2011 - 04/2015	2
28142-87504	KF#..S321,331..PS1 ﾌﾞﾗｼ	12/2011 - 04/2015	4
28143 - SPRING, STARTER BRUSH
28143-87202	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	4
28143-10020	KF#..S321,331..PS1	12/2011 - 04/2015	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-87536	KF#..S321,331..PS1	12/2011 - 04/2015	1
28160 - ARMATURE ASSY, STARTER
28160-87208	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28160-87503	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1	12/2011 - 04/2015	1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-87202	KF#..S321..4FC..PS1;KF#..S331..4FC..PS1 寒冷地仕様	12/2011 - 04/2015	1
28142-87505	KF#..S321,331..PS1	12/2011 - 04/2015	1
Common parts
90041-79109
91612-61030
Linked diagrams
8202
