Toyota Pixis van S331M CYLINDER HEAD

Part #	Description	Period	Qty
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-B2101	KF#..S321,331..PS1	07/2013 - 04/2015	1
11201-B2100	KF#..S321,331	12/2011 - 07/2013	1
11201H - BOLT(FOR CYLINDER HEAD COVER)
91551-80620	KF#..S321,331..PS1	12/2011 - 04/2015	10
11213 - GASKET, CYLINDER HEAD COVER
11213-B2050	KF#..S321,331..PS1	12/2011 - 04/2015	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-97401	KF#..S321,331..PS1	12/2011 - 04/2015	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	KF#..S321,331..PS1	12/2011 - 04/2015	1
Linked diagrams
1201
8202

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-B2073	KF#..S321,331..PS1	07/2014 - 04/2015	1
11101-B2071	KF#..S321,331 ENGINE NO.= −G352437	12/2011 - 07/2013	1
11101-B2072	KF#..S321,331 ENGINE NO.=G352438−	07/2013 - 07/2014	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90041-09258	KF#..S321,331..PS1	12/2011 - 04/2015	8
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90042-01637	KF#..S321,331..PS1	12/2011 - 04/2015	8
11101D - BOLT, STUD(FOR WATER OUTLET)
90041-26001	KF#..S321,331..PS1	12/2011 - 05/2015	2
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-B2030	KFVE..S321,331..PS1	12/2011 - 04/2015	1
11101V - BOLT(FOR CYLINDER HEAD SET SUB)
92132-81040	KF#..S321,331..PS1 M10	07/2013 - 04/2015	1
92122-80840	KF#..S321,331 M8	12/2011 - 07/2013	1
11101X - BOLT(FOR CYLINDER HEAD SET SUB)
92122-80630	KF#..S321,331..PS1	12/2011 - 04/2015	2
11101X - BOLT(FOR CYLINDER HEAD SET SUB)
92122-80630	KF#..S321,331..PS1	12/2011 - 04/2015	2
11115 - GASKET, CYLINDER HEAD
11115-B2034	KF#..S321,331..PS1	07/2013 - 04/2015	1
11115-B2033	KF#..S321,331	12/2011 - 07/2013	1
11155A - PIN, RING W/HEAD
90042-53010	KF#..S321,331..PS1	12/2011 - 04/2015	2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90041-19911	KF#..S321,331..PS1	12/2011 - 04/2015	16
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90041-19911	KF#..S321,331..PS1	12/2011 - 04/2015	16
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90041-19911	KF#..S321,331..PS1	12/2011 - 04/2015	16
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90041-19911	KF#..S321,331..PS1	12/2011 - 04/2015	16
11401M - SENSOR, CRANK POSITION, NO.2
19311-B2011	KF#..S321,331..PS1	12/2011 - 04/2015	1
12282D - HANGER, ENGINE, NO.2
12282-B2040	KF#..S321,331..PS1	12/2011 - 04/2015	1
15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90043-01262	KFVE..S321,331..PS1	12/2011 - 04/2015	1
15678A - FILTER, OIL CONTROL VALVE
15678-B2020	KFVE..S321,331..PS1	07/2014 - 04/2015	1
15678-B2010	KFVE..S321,331	12/2011 - 07/2014	1
Common parts
90041-10073
9004C-30008
91671-80616
91671-80820
Linked diagrams
1603
1701
8202
8401

S331M-ZPDF (2011)

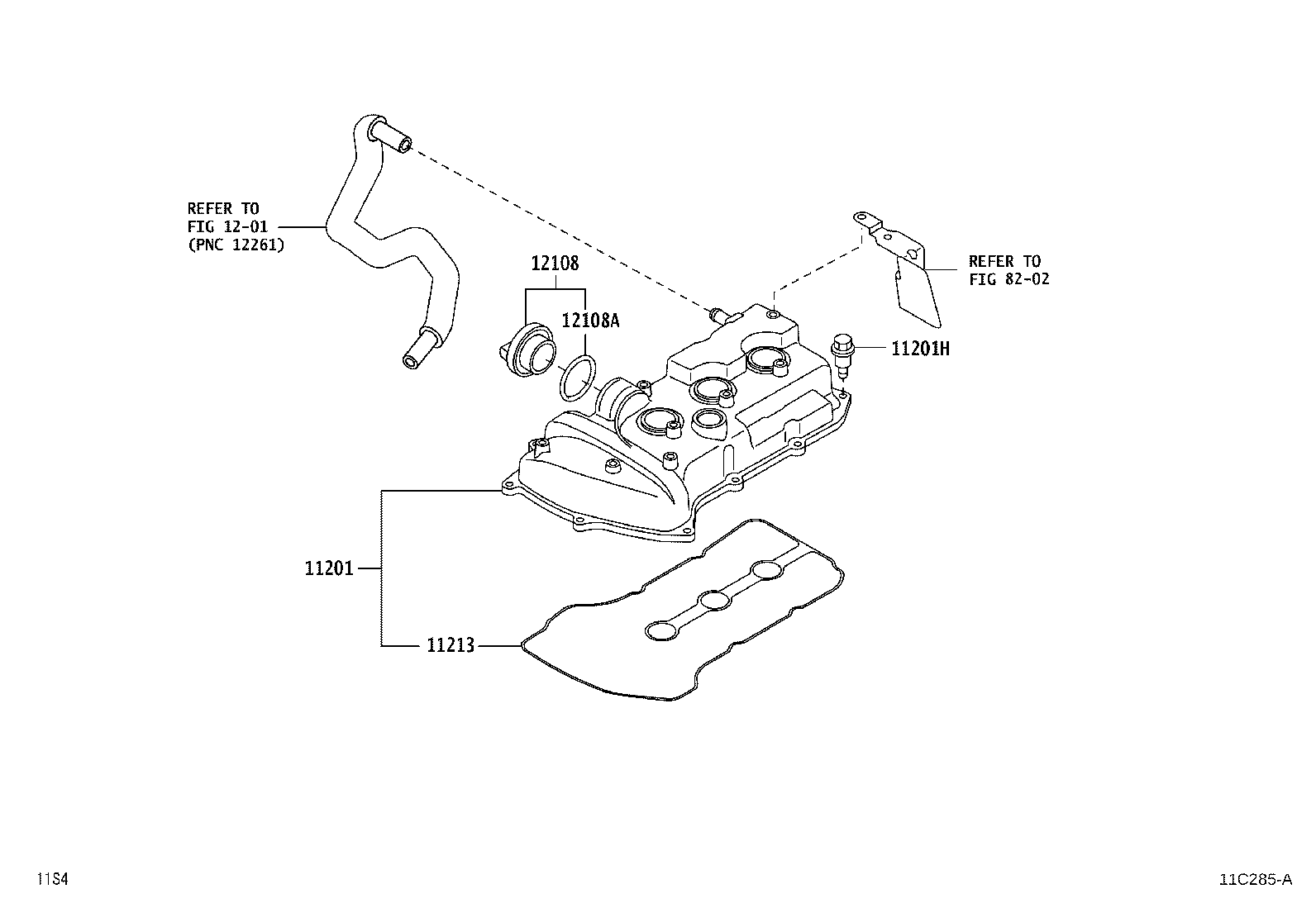

ILLUST NO. 1 OF 2(1112-1504)KFVE..PS1

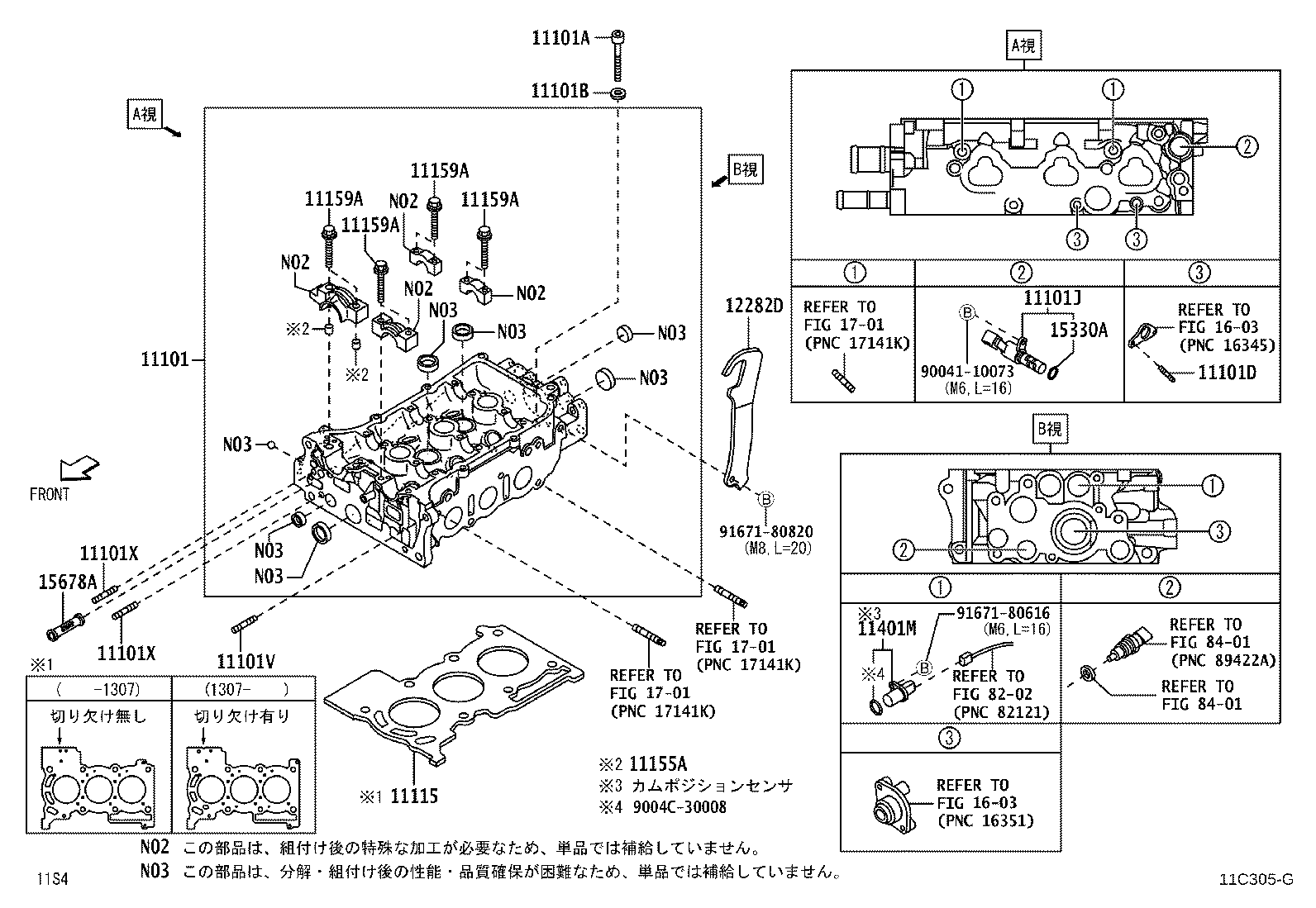

ILLUST NO. 2 OF 2(1112-1504)KFVE..PS1
