Toyota Pixis van S331M WIRING & CLAMP

S331M-ZMRF (2011)

Toyota Pixis Van

Production Dec 2011 - Apr 2015

Engine KFVE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1112-1504)PS1

Click highlighted areas on diagram

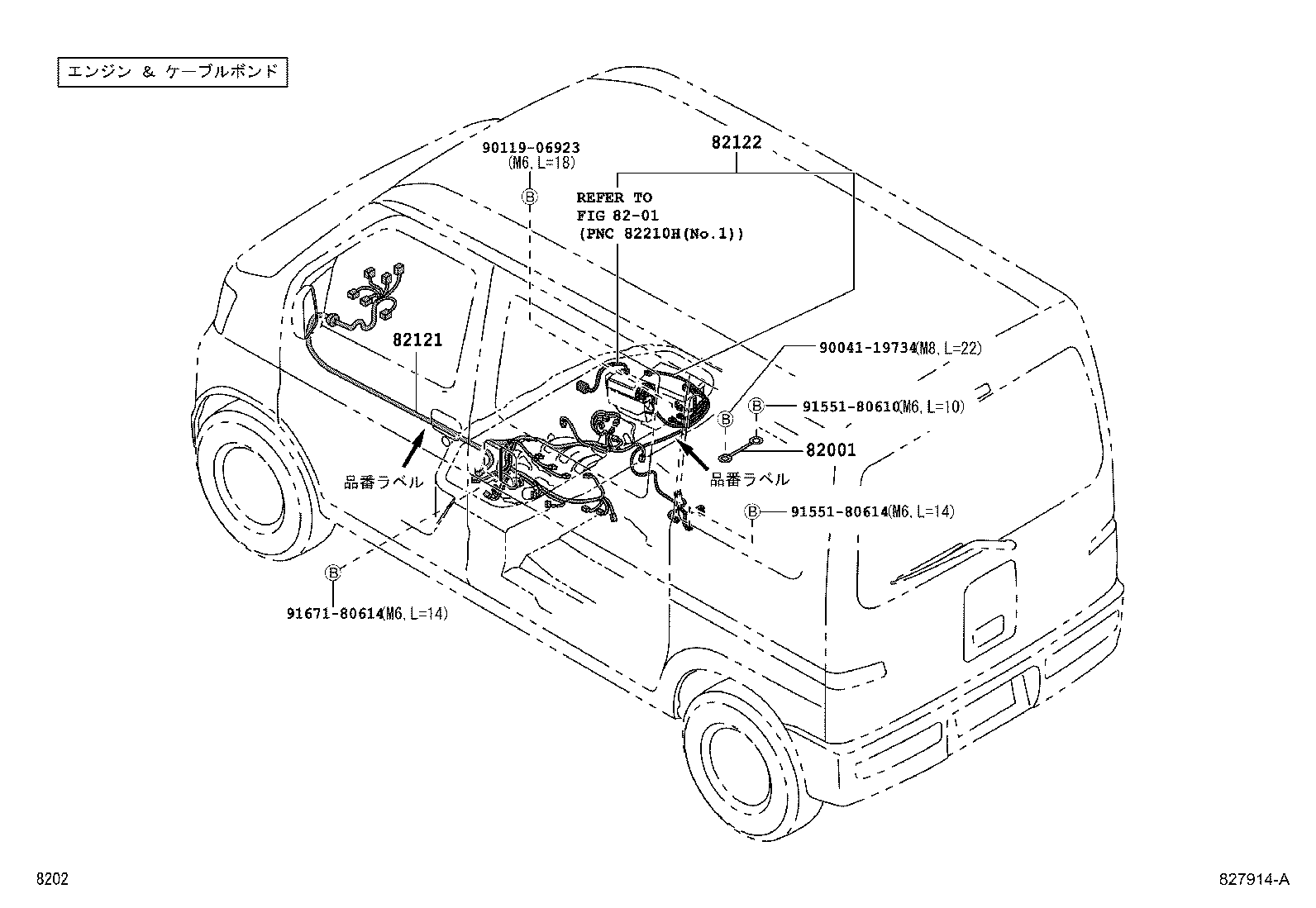

ｴﾝｼﾞﾝ & ｹｰﾌﾞﾙﾎﾞﾝﾄﾞ

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
82046-B2010	S321,331	12/2011 - 02/2015	1
82046-B2011	S321,331..PS1	03/2015 - 04/2015	1
82121 - WIRE, ENGINE
82121-B5340	S321,331..TBO..PS1 品番ﾗﾍﾞﾙ有り	05/2014 - 04/2015	1
82121-B5242	S321,331..TBO 品番ﾗﾍﾞﾙ有り	12/2011 - 05/2014	1
82121-B5330	S321,331..NTBO..PS1 品番ﾗﾍﾞﾙ有り	05/2014 - 04/2015	1
82121-B5290	S321,331..NTBO 品番ﾗﾍﾞﾙ有り	12/2011 - 05/2014	1
82122 - WIRE, ENGINE, NO.2
82122-B5280	S331..5F..NTBO..PS1 品番ﾗﾍﾞﾙ有り	12/2011 - 04/2015	1
82122-B5310	S331..5F..TBO..PS1 品番ﾗﾍﾞﾙ有り	12/2011 - 04/2015	1
Common parts
90041-19734
90119-06923
91551-80610
91551-80614
91671-80614
Linked diagrams
8201

(1112-1711)

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-B5851	S331..5F..SPL 品番ﾗﾍﾞﾙ有り	12/2011 - 04/2012	1
82141-B5852	S331..5F..SPL 品番ﾗﾍﾞﾙ有り	04/2012 - 05/2014	1
82141-B5E50	S331..5F..SPL..PS1 品番ﾗﾍﾞﾙ有り	05/2014 - 04/2015	1
Common parts
91551-80618
Linked diagrams
8401

(1112-1711)

Click highlighted areas on diagram

ﾌﾛｱ & ﾙｰﾌ

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-B5K60	S321,331..5F..(DLX,SPL) ABS 有り,品番ﾗﾍﾞﾙ有り	12/2011 - 03/2012	1
82161-B5831	S321,331..5F..(DLX,SPL) ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	12/2011 - 05/2014	1
82161-B5K60	S321,331..5F..(DLX,SPL) ABS 有り&ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	12/2011 - 03/2012	1
82161-B5821	S331..5F..(DLX,SPL) 品番ﾗﾍﾞﾙ有り	12/2011 - 05/2014	1
82161-B5K61	S321,331..5F..(DLX,SPL) ABS 有り,品番ﾗﾍﾞﾙ有り	04/2012 - 05/2014	1
82161-B5881	S321,331..5F..TBO 品番ﾗﾍﾞﾙ有り	12/2011 - 05/2014	1
82161-B5L30	S321,331..5F..(DLX,SPL) ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	05/2014 - 02/2015	1
82161-B5L20	S331..5F..(DLX,SPL) 品番ﾗﾍﾞﾙ有り	05/2014 - 02/2015	1
82161-B5L40	S321,331..5F..(DLX,SPL)..PS1 ABS 有り,品番ﾗﾍﾞﾙ有り	05/2014 - 04/2015	1
82161-B5K61	S321,331..5F..(DLX,SPL) ABS 有り&ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	04/2012 - 05/2014	1
82161-B5L40	S321,331..5F..(DLX,SPL) ABS 有り&ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	05/2014 - 02/2015	1
82161-B5M10	S321,331..5F..TBO..PS1 品番ﾗﾍﾞﾙ有り	05/2014 - 04/2015	1
82161-B5L30	S321,331..5F..(DLX,SPL)..PS1 品番ﾗﾍﾞﾙ有り	02/2015 - 04/2015	1
82161 - WIRE, FLOOR
82161-B5K60	S321,331..5F..(DLX,SPL) ABS 有り,品番ﾗﾍﾞﾙ有り	12/2011 - 03/2012	1
82161-B5831	S321,331..5F..(DLX,SPL) ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	12/2011 - 05/2014	1
82161-B5K60	S321,331..5F..(DLX,SPL) ABS 有り&ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	12/2011 - 03/2012	1
82161-B5821	S331..5F..(DLX,SPL) 品番ﾗﾍﾞﾙ有り	12/2011 - 05/2014	1
82161-B5K61	S321,331..5F..(DLX,SPL) ABS 有り,品番ﾗﾍﾞﾙ有り	04/2012 - 05/2014	1
82161-B5881	S321,331..5F..TBO 品番ﾗﾍﾞﾙ有り	12/2011 - 05/2014	1
82161-B5L30	S321,331..5F..(DLX,SPL) ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	05/2014 - 02/2015	1
82161-B5L20	S331..5F..(DLX,SPL) 品番ﾗﾍﾞﾙ有り	05/2014 - 02/2015	1
82161-B5L40	S321,331..5F..(DLX,SPL)..PS1 ABS 有り,品番ﾗﾍﾞﾙ有り	05/2014 - 04/2015	1
82161-B5K61	S321,331..5F..(DLX,SPL) ABS 有り&ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	04/2012 - 05/2014	1
82161-B5L40	S321,331..5F..(DLX,SPL) ABS 有り&ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	05/2014 - 02/2015	1
82161-B5M10	S321,331..5F..TBO..PS1 品番ﾗﾍﾞﾙ有り	05/2014 - 04/2015	1
82161-B5L30	S321,331..5F..(DLX,SPL)..PS1 品番ﾗﾍﾞﾙ有り	02/2015 - 04/2015	1
82171 - WIRE, ROOF, NO.1
82171-B5021	S321,331..(DLX,SPL)..PS1	12/2011 - 04/2015	1
Common parts
90119-06923

(1112-1711)

Click highlighted areas on diagram

ﾄﾞｱ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-B5080	S321,331..SPL..PS1	12/2011 - 04/2015	1
82152 - WIRE, FRONT DOOR, LH
82152-B5040	S321,331..SPL..PS1	12/2011 - 04/2015	1
82153 - WIRE, REAR DOOR, NO.1
82153-B5010	S321,331..(DLX,SPL)..PS1 品番ﾗﾍﾞﾙ有り	12/2011 - 04/2015	2
82153 - WIRE, REAR DOOR, NO.1
82153-B5010	S321,331..(DLX,SPL)..PS1 品番ﾗﾍﾞﾙ有り	12/2011 - 04/2015	2
82184 - WIRE, BACK DOOR, NO.1
82184-B5010	S321,331..PS1	12/2011 - 04/2015	1
82185 - WIRE, BACK DOOR, NO.2
82185-B5050	S321,331..HRF..PS1	12/2011 - 04/2015	1
82186 - WIRE, REAR WINDOW, NO.1
82186-B5010	S321,331..PS1 ﾃﾞﾌｫｯｶﾞ(+)	12/2011 - 04/2015	1
82187 - WIRE, REAR WINDOW, NO.2
82187-B5010	S321,331..PS1 ﾃﾞﾌｫｯｶﾞ(−)	12/2011 - 04/2015	1
Common parts
90119-06923
Linked diagrams
8401

(1112-1711)

Click highlighted areas on diagram

ﾌｭｰｴﾙ

Part #	Description	Period	Qty	Price
82415 - WIRE, FUEL PUMP
82415-B5010	S321,331..PS1	12/2011 - 04/2015	1

Part #

Description

Qty

Price

82415 - WIRE, FUEL PUMP

82415-B5010

S321,331..PS1

(1112-1504)PS1

Click highlighted areas on diagram

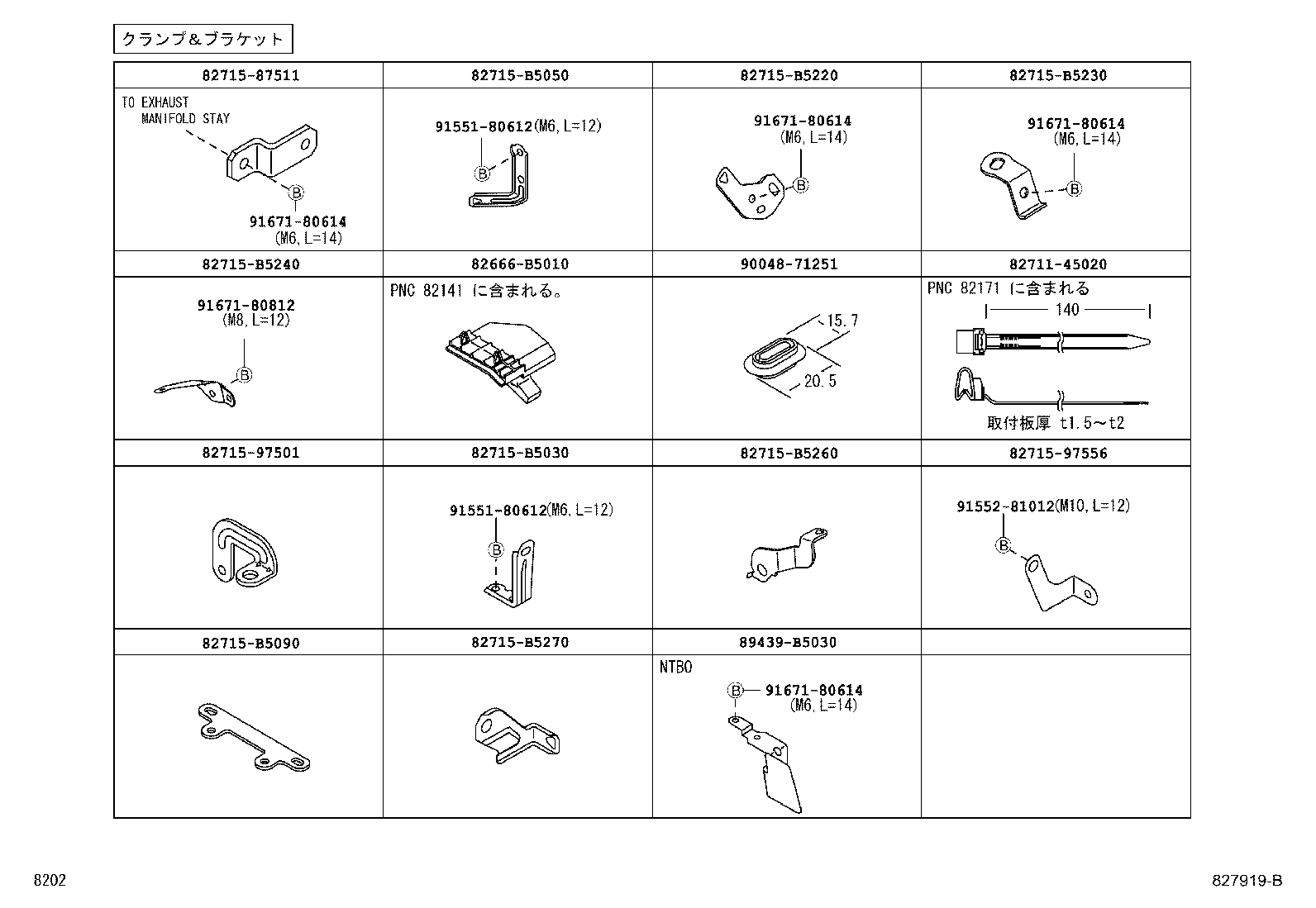

ｸﾗﾝﾌﾟ&ﾌﾞﾗｹｯﾄ

Part #	Description	Period	Qty	Price
Common parts
82666-B5010
82711-45020
82715-87511
82715-97501
82715-97556
82715-B5030
82715-B5050
82715-B5090
82715-B5220
82715-B5230
82715-B5240
82715-B5260
82715-B5270
89439-B5030
90048-71251
91551-80612
91552-81012
91671-80614
91671-80812

(1112- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-B5340	S321,331..TBO..PS1 品番ﾗﾍﾞﾙ有り	05/2014 - 04/2015	1
82121-B5242	S321,331..TBO 品番ﾗﾍﾞﾙ有り	12/2011 - 05/2014	1
82121-B5330	S321,331..NTBO..PS1 品番ﾗﾍﾞﾙ有り	05/2014 - 04/2015	1
82121-B5290	S321,331..NTBO 品番ﾗﾍﾞﾙ有り	12/2011 - 05/2014	1
82141 - WIRE, INSTRUMENT PANEL
82141-B5851	S331..5F..SPL 品番ﾗﾍﾞﾙ有り	12/2011 - 04/2012	1
82141-B5852	S331..5F..SPL 品番ﾗﾍﾞﾙ有り	04/2012 - 05/2014	1
82141-B5E50	S331..5F..SPL..PS1 品番ﾗﾍﾞﾙ有り	05/2014 - 04/2015	1
82161 - WIRE, FLOOR
82161-B5K60	S321,331..5F..(DLX,SPL) ABS 有り,品番ﾗﾍﾞﾙ有り	12/2011 - 03/2012	1
82161-B5831	S321,331..5F..(DLX,SPL) ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	12/2011 - 05/2014	1
82161-B5K60	S321,331..5F..(DLX,SPL) ABS 有り&ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	12/2011 - 03/2012	1
82161-B5821	S331..5F..(DLX,SPL) 品番ﾗﾍﾞﾙ有り	12/2011 - 05/2014	1
82161-B5K61	S321,331..5F..(DLX,SPL) ABS 有り,品番ﾗﾍﾞﾙ有り	04/2012 - 05/2014	1
82161-B5881	S321,331..5F..TBO 品番ﾗﾍﾞﾙ有り	12/2011 - 05/2014	1
82161-B5L30	S321,331..5F..(DLX,SPL) ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	05/2014 - 02/2015	1
82161-B5L20	S331..5F..(DLX,SPL) 品番ﾗﾍﾞﾙ有り	05/2014 - 02/2015	1
82161-B5L40	S321,331..5F..(DLX,SPL)..PS1 ABS 有り,品番ﾗﾍﾞﾙ有り	05/2014 - 04/2015	1
82161-B5K61	S321,331..5F..(DLX,SPL) ABS 有り&ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	04/2012 - 05/2014	1
82161-B5L40	S321,331..5F..(DLX,SPL) ABS 有り&ﾘﾔﾋｰﾀｰ有り,品番ﾗﾍﾞﾙ有り	05/2014 - 02/2015	1
82161-B5M10	S321,331..5F..TBO..PS1 品番ﾗﾍﾞﾙ有り	05/2014 - 04/2015	1
82161-B5L30	S321,331..5F..(DLX,SPL)..PS1 品番ﾗﾍﾞﾙ有り	02/2015 - 04/2015	1

(1112-1711)

Click highlighted areas on diagram

ｺﾈｸﾀ

Part #	Description	Period	Qty	Price
Common parts
90980-11885

(1112-1711)

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ&ﾌﾞﾗｹｯﾄ

Part #	Description	Period	Qty	Price
Common parts
82711-16820
82711-16830
82711-17280
82711-21080
82711-2D370
82711-3A540
82711-3F240
82711-3F400
82711-3F440
82711-45030
82711-58030
82711-95D04
