S331M-ZMGZ4 (2017)
Toyota Pixis Van
Production
Nov 2017
-
Dec 2018
Engine
KFDET
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

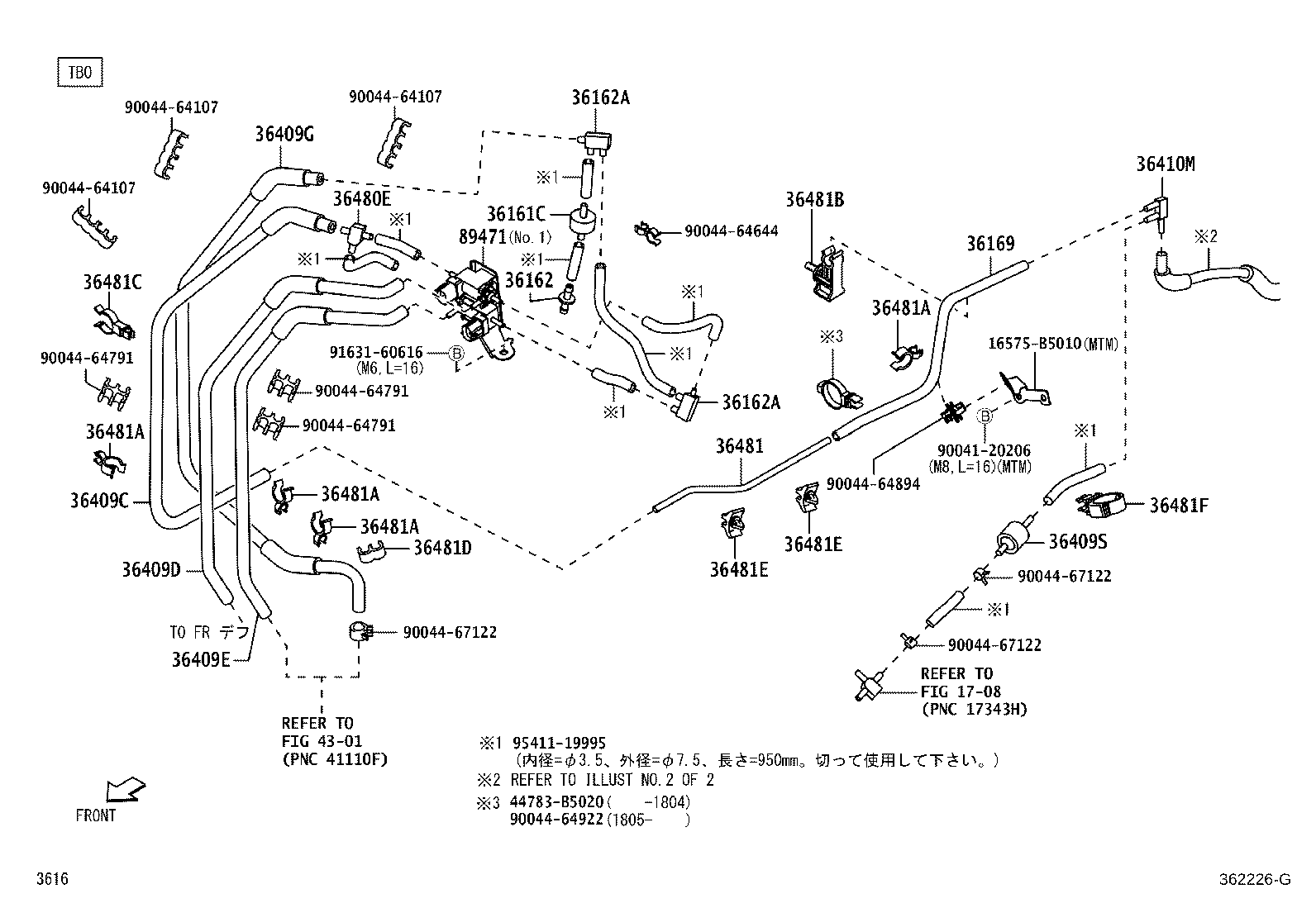

ILLUST NO. 1 OF 2(1711- )S331..TBO
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36161C - FILTER ASSY, AIR(FOR 2WAY) | ||||
| 90048-24005 |
S331 |
2 | ||
| 36162 - WAY, 2(FOR FRONT CHECK VALVE) | ||||
| 90044-12061 |
S331 |
2 | ||
| 36162A - WAY,3(FOR VACUUM HOSE) | ||||
| 90044-13034 |
S331 |
2 | ||
| 36162A - WAY,3(FOR VACUUM HOSE) | ||||
| 90044-13034 |
S331 |
2 | ||
| 36169 - HOSE | ||||
| 31432-B5050 |
S331 |
1 | ||
| 36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT) | ||||
| 44750-B5410 |
S331 ﾘﾔﾋｰﾀｰ有り |
1 | ||
| 44750-B5411 |
S331 ﾘﾔﾋｰﾀｰ有り |
1 | ||
| 44750-B5411 |
S331 |
1 | ||
| 44750-B5410 |
S331 |
1 | ||
| 36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT) | ||||
| 44750-B5420 |
S331 |
1 | ||
| 44750-B5420 |
S331 ﾘﾔﾋｰﾀｰ有り |
1 | ||
| 36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT) | ||||
| 44750-B5441 |
S331 |
1 | ||
| 44750-B5440 |
S331 |
1 | ||
| 44750-B5441 |
S331 ﾘﾔﾋｰﾀｰ有り |
1 | ||
| 44750-B5440 |
S331 ﾘﾔﾋｰﾀｰ有り |
1 | ||
| 36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT) | ||||
| 44750-B5431 |
S331 ﾘﾔﾋｰﾀｰ有り |
1 | ||
| 44750-B5430 |
S331 ﾘﾔﾋｰﾀｰ有り |
1 | ||
| 44750-B5430 |
S331 |
1 | ||
| 44750-B5431 |
S331 |
1 | ||
| 36409S - VALVE, CHECK (FOR FRONT DRIVE SHIFT) | ||||
| 90048-20008 |
S331 |
1 | ||
| 36410M - WAY, 3 (FOR TRANSFER VACUUM) | ||||
| 90044-13034 |
S331..TBO |
1 | ||
| 36480E - WAY, 3 (FOR TRANSFER VACUUM TUBE) | ||||
| 90044-13060 |
S331 |
2 | ||
| 36481 - TUBE, FRONT DRIVE VACUUM, NO.1 | ||||
| 36481-B5030 |
S331 |
1 | ||
| 36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE) | ||||
| 90044-64706 |
S331..TBO |
4 | ||
| 36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE) | ||||
| 90044-64706 |
S331..TBO |
4 | ||
| 36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE) | ||||
| 90044-64706 |
S331..TBO |
4 | ||
| 36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE) | ||||
| 90044-64706 |
S331..TBO |
4 | ||
| 36481B - CLAMP, FRONT DRIVE VACUUM TUBE, NO.1 | ||||
| 90044-64916 |
S331 |
1 | ||
| 36481C - CLAMP, FRONT DRIVE VACUUM TUBE, NO.2 | ||||
| 90044-64912 |
S331 |
1 | ||
| 36481D - CLAMP, NO.1 (FOR TRANSFER VACUUM) | ||||
| 90044-64108 |
S331 |
2 | ||
| 36481E - CLAMP, NO.2 (FOR TRANSFER VACUUM) | ||||
| 90044-64826 |
S331 |
2 | ||
| 36481E - CLAMP, NO.2 (FOR TRANSFER VACUUM) | ||||
| 90044-64826 |
S331 |
2 | ||
| 36481F - CLAMP, NO.3(FOR TRANSFER VACUUM) | ||||
| 90044-64761 |
S331 |
1 | ||
| 89471 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89470-B5120 |
S331 NO.1 |
1 | ||
| 89470-B5130 |
S331 NO.2 |
1 | ||
| Common parts | ||||
| 16575-B5010 | ||||
| 44783-B5020 | ||||
| 90041-20206 | ||||
| 90044-64107 | ||||
| 90044-64644 | ||||
| 90044-64791 | ||||
| 90044-64894 | ||||
| 90044-64922 | ||||
| 90044-67122 | ||||
| 91631-60616 | ||||
| 95411-19995 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 4301 | ||||

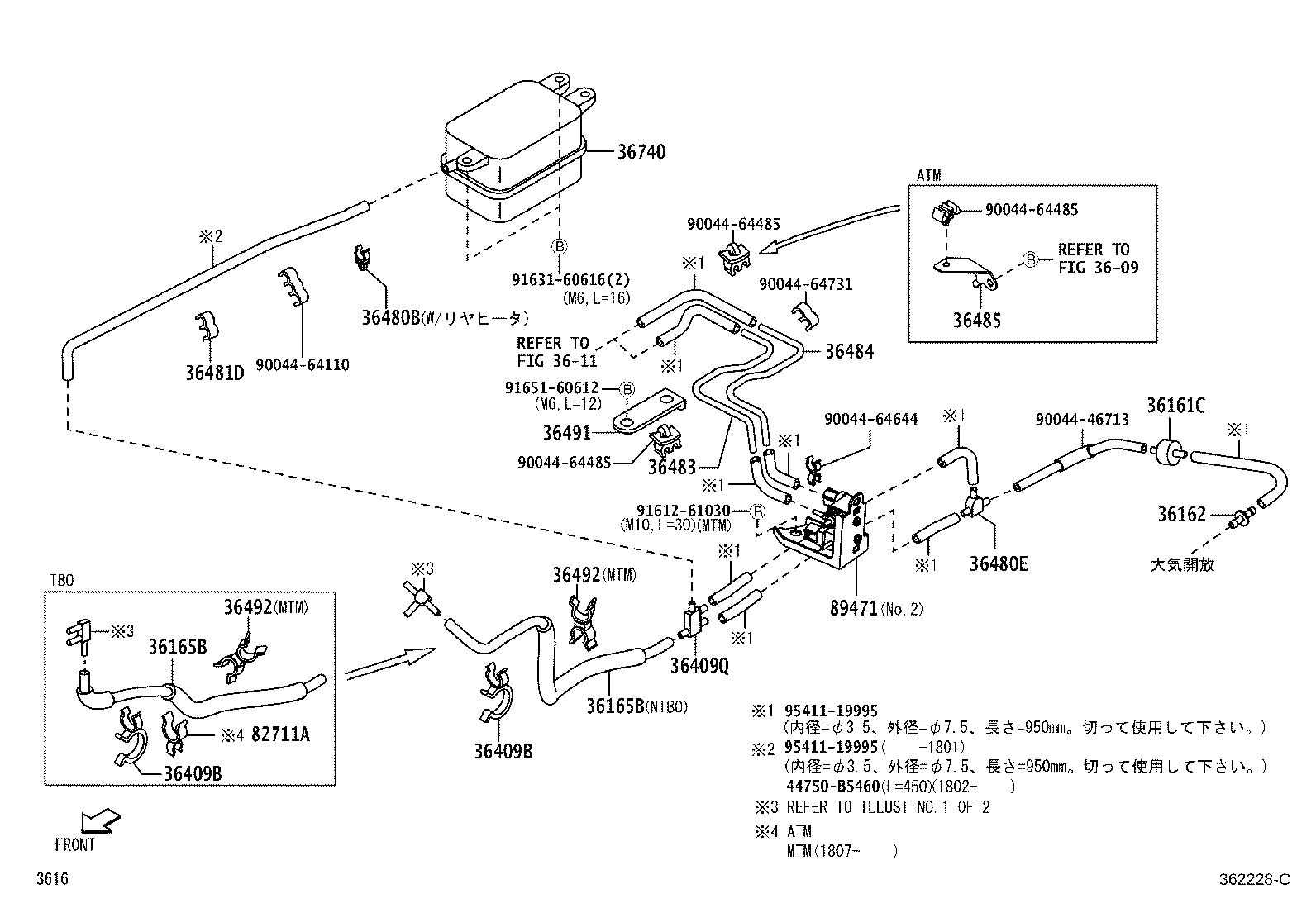

ILLUST NO. 2 OF 2(1711- )S331
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36161C - FILTER ASSY, AIR(FOR 2WAY) | ||||
| 90048-24005 |
S331 |
2 | ||
| 36162 - WAY, 2(FOR FRONT CHECK VALVE) | ||||
| 90044-12061 |
S331 |
2 | ||
| 36165B - HOSE(CHECK VALVE, NO.2) | ||||
| 44750-B5401 |
S331..TBO |
1 | ||
| 36165B - HOSE(CHECK VALVE, NO.2) | ||||
| 44750-B5401 |
S331..TBO |
1 | ||
| 36409B - CLAMP, VACUUM TUBE | ||||
| 90044-64898 |
S331..TBO |
1 | ||
| 36409B - CLAMP, VACUUM TUBE | ||||
| 90044-64898 |
S331..TBO |
1 | ||
| 36409Q - WAY, 4 (FOR FRONT DRIVE SHIFT) | ||||
| 90044-14015 |
S331 |
1 | ||
| 36480B - CLAMP (FOR VACUUM CHECK VALVE) | ||||
| 90044-64456 |
S331 ﾘﾔﾋｰﾀｰ有り |
1 | ||
| 36480E - WAY, 3 (FOR TRANSFER VACUUM TUBE) | ||||
| 90044-13060 |
S331 |
2 | ||
| 36481D - CLAMP, NO.1 (FOR TRANSFER VACUUM) | ||||
| 90044-64108 |
S331 |
2 | ||
| 36483 - TUBE, FRONT DRIVE VACUUM, NO.3 | ||||
| 36483-B5011 |
S331..5F |
1 | ||
| 36484 - TUBE, FRONT DRIVE VACUUM, NO.4 | ||||
| 36484-B5010 |
S331..5F |
1 | ||
| 36491 - CLAMP, TRANSFER VACUUM TUBE, N0.1 | ||||
| 90044-62335 |
S331 |
1 | ||
| 36492 - CLAMP, TRANSFER VACUM TUBE, NO.2 | ||||
| 90044-64902 |
S331..5F |
1 | ||
| 36492 - CLAMP, TRANSFER VACUM TUBE, NO.2 | ||||
| 90044-64902 |
S331..5F |
1 | ||
| 36740 - TANK ASSY, TRANSFER VACUUM | ||||
| 36751-97501 |
S331 |
1 | ||
| 82711A - CLAMP(FOR TRANSFER VACUUM TUBE) | ||||
| 90044-64883 |
S331..5F..TBO..PS3 |
1 | ||
| 89471 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89470-B5120 |
S331 NO.1 |
1 | ||
| 89470-B5130 |
S331 NO.2 |
1 | ||
| Common parts | ||||
| 44750-B5460 | ||||
| 90044-46713 | ||||
| 90044-64110 | ||||
| 90044-64485 | ||||
| 90044-64644 | ||||
| 90044-64731 | ||||
| 91612-61030 | ||||
| 91631-60616 | ||||
| 91651-60612 | ||||
| 95411-19995 | ||||
| Linked diagrams | ||||
| 3609 | ||||
| 3611 | ||||
