S331M-ZMGZ3 (2015)
Toyota Pixis Van
(1504-1711)KFDET

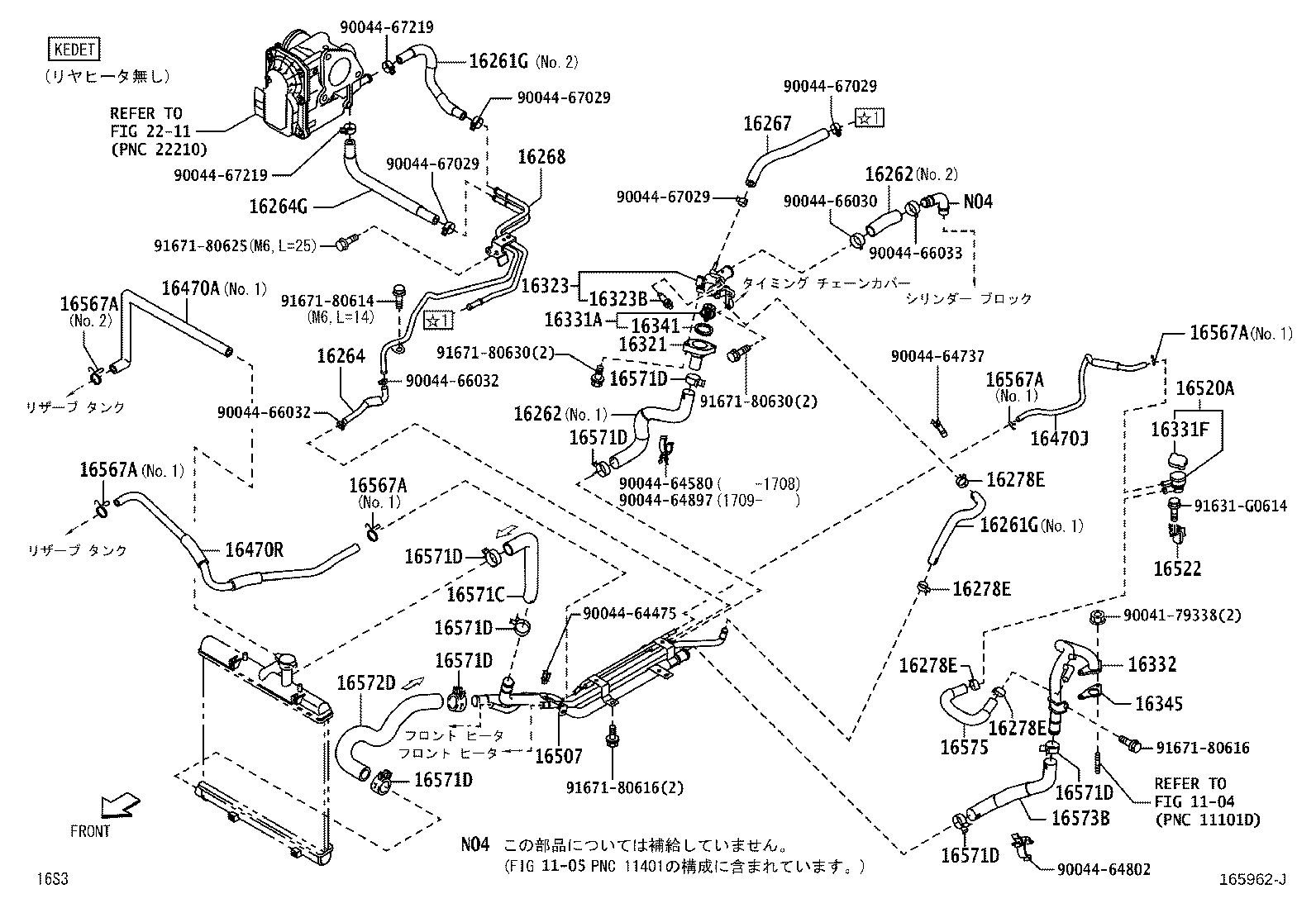

ﾎｰｽ(ﾘﾔﾋｰﾀﾅｼ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-B5040 |
KF#..S321,331 NO.2 |
1 | ||
| 16261-B2090 |
KF#..S321,331..PS2 NO.1,外径=21,内径=13 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-B5040 |
KF#..S321,331 NO.2 |
1 | ||
| 16261-B2090 |
KF#..S321,331..PS2 NO.1,外径=21,内径=13 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-B2020 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-B2020 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-B2040 |
KFDET..S321,331..PS2 L=340,ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16264-B2040 |
KFDET..S321,331..PS2 L=340 |
1 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-B5010 |
KF#..S321,331 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-B5010 |
KF#..S321,331 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-B5010 |
KFDET..S321,331 |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFDET..S321,331..PS2 |
4 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFDET..S321,331..PS2 |
4 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFDET..S321,331..PS2 |
4 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFDET..S321,331..PS2 |
4 | ||
| 16321 - INLET, WATER | ||||
| 16321-B2020 |
KF#..S321,331..PS2 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-B2010 |
KF#..S321,331..PS2 |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 47546-87202 |
KF#..S321,331 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-B2031 |
KF#..S321,331 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-B5041 |
KFDET..S321,331..PS2 開弁圧:1.1 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-B2030 |
KFDET..S321,331..PS2 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-B2020 |
KF#..S321,331..PS2 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-B2010 |
KF#..S321,331..PS2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-B5010 |
KF#..S321,331..PS2 NO.1 |
1 | ||
| 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) | ||||
| 16472-B2030 |
KFDET..S321,331..PS2 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16472-B5020 |
KFDET..S321,331..PS2 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16501-B5011 |
KFDET..S321,331..PS2 |
1 | ||
| 16522 - BRACKET, WATER FILLER | ||||
| 16522-B5010 |
KFDET..S321,331..PS2 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-66037 |
KFDET..S321,331..PS2 NO.1 |
4 | ||
| 90044-67191 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 90044-66032 |
KFDET..S321,331 NO.1 |
4 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-66037 |
KFDET..S321,331..PS2 NO.1 |
4 | ||
| 90044-67191 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 90044-66032 |
KFDET..S321,331 NO.1 |
4 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-66037 |
KFDET..S321,331..PS2 NO.1 |
4 | ||
| 90044-67191 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 90044-66032 |
KFDET..S321,331 NO.1 |
4 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-66037 |
KFDET..S321,331..PS2 NO.1 |
4 | ||
| 90044-67191 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 90044-66032 |
KFDET..S321,331 NO.1 |
4 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-66037 |
KFDET..S321,331..PS2 NO.1 |
4 | ||
| 90044-67191 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 90044-66032 |
KFDET..S321,331 NO.1 |
4 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-B5010 |
KF#..S321,331..PS2 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-B5010 |
KF#..S321,331..PS2 |
1 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16571-B2110 |
KFDET..S321,331..PS2 |
1 | ||
| Common parts | ||||
| 90041-79338 | ||||
| 90044-64475 | ||||
| 90044-64580 | ||||
| 90044-64737 | ||||
| 90044-64802 | ||||
| 90044-64897 | ||||
| 90044-66030 | ||||
| 90044-66032 | ||||
| 90044-66033 | ||||
| 90044-67029 | ||||
| 90044-67219 | ||||
| 91631-G0614 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80625 | ||||
| 91671-80630 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 2211 | ||||
(1504-1711)KFDET
ﾎｰｽ(ﾘﾔﾋｰﾀｱﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-B2030 |
KF#..S321,331..PS2 ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-B5040 |
KF#..S321,331 NO.2 |
1 | ||
| 16261-B2090 |
KF#..S321,331..PS2 NO.1,外径=21,内径=13 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-B2020 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-B2020 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-B2040 |
KFDET..S321,331..PS2 L=340,ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16264-B2040 |
KFDET..S321,331..PS2 L=340 |
1 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-B5010 |
KF#..S321,331 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-B5010 |
KF#..S321,331 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-B5010 |
KFDET..S321,331 |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFDET..S321,331..PS2 |
4 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFDET..S321,331..PS2 |
4 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFDET..S321,331..PS2 |
4 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-66009 |
KFDET..S321,331..PS2 |
4 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-B2020 |
KF#..S321,331..PS2 ﾘﾔ ﾋｰﾀｰ 有り |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-B2020 |
KF#..S321,331..PS2 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-B2010 |
KF#..S321,331..PS2 |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 47546-87202 |
KF#..S321,331 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-B2031 |
KF#..S321,331 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-B5041 |
KFDET..S321,331..PS2 開弁圧:1.1 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-B2030 |
KFDET..S321,331..PS2 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-B2020 |
KF#..S321,331..PS2 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-B2010 |
KF#..S321,331..PS2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-B5010 |
KF#..S321,331..PS2 NO.1 |
1 | ||
| 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) | ||||
| 16472-B2030 |
KFDET..S321,331..PS2 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16472-B5020 |
KFDET..S321,331..PS2 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16501-B5011 |
KFDET..S321,331..PS2 |
1 | ||
| 16522 - BRACKET, WATER FILLER | ||||
| 16522-B5010 |
KFDET..S321,331..PS2 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-66037 |
KFDET..S321,331..PS2 NO.1 |
4 | ||
| 90044-67191 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 90044-66032 |
KFDET..S321,331 NO.1 |
4 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-66037 |
KFDET..S321,331..PS2 NO.1 |
4 | ||
| 90044-67191 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 90044-66032 |
KFDET..S321,331 NO.1 |
4 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-66037 |
KFDET..S321,331..PS2 NO.1 |
4 | ||
| 90044-67191 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 90044-66032 |
KFDET..S321,331 NO.1 |
4 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-66037 |
KFDET..S321,331..PS2 NO.1 |
4 | ||
| 90044-67191 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 90044-66032 |
KFDET..S321,331 NO.1 |
4 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90044-66037 |
KFDET..S321,331..PS2 NO.1 |
4 | ||
| 90044-67191 |
KF#..S321,331..PS2 NO.2 |
1 | ||
| 90044-66032 |
KFDET..S321,331 NO.1 |
4 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-B5010 |
KF#..S321,331..PS2 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KF#..S321,331..PS2 |
8 | ||
| 90044-67626 |
KF#..S321,331 |
8 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-B5010 |
KF#..S321,331..PS2 |
1 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16571-B2110 |
KFDET..S321,331..PS2 |
1 | ||
| Common parts | ||||
| 90041-79338 | ||||
| 90044-64475 | ||||
| 90044-64580 | ||||
| 90044-64737 | ||||
| 90044-64802 | ||||
| 90044-64897 | ||||
| 90044-66009 | ||||
| 90044-66030 | ||||
| 90044-66032 | ||||
| 90044-66033 | ||||
| 90044-67029 | ||||
| 90044-67219 | ||||
| 91631-G0614 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80625 | ||||
| 91671-80630 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
