Toyota Pixis van S331M AIR CLEANER

S331M-ZMGZ (2011)

Toyota Pixis Van

Production Dec 2011 - Apr 2015

Engine KFDET

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

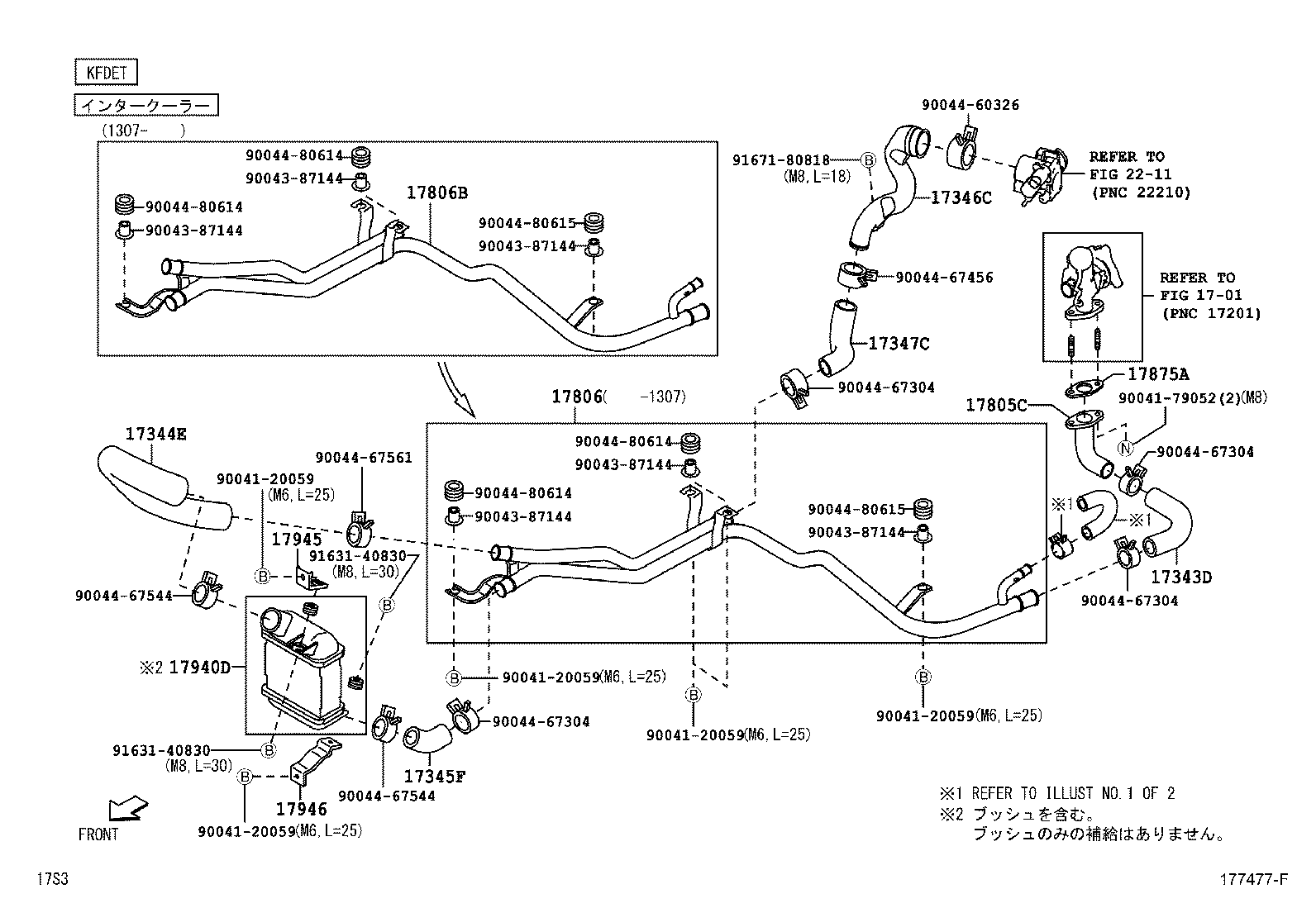

ILLUST NO. 2 OF 2(1112-1504)KFDET..PS1

Click highlighted areas on diagram

ｲﾝﾀｰｸｰﾗ

Part #	Description	Period	Qty
17343D - HOSE, AIR, NO.3
17343-B5010	KFDET..S321,331..PS1	12/2011 - 04/2015	1
17344E - HOSE, AIR, NO.4
17344-B5021	KFDET..S321,331..PS1	07/2014 - 04/2015	1
17344-B5020	KFDET..S321,331	12/2011 - 06/2014	1
17345F - HOSE, AIR, NO.5
17345-B5020	KFDET..S321,331..PS1	12/2011 - 04/2015	1
17346C - HOSE, NO.6
17346-B2010	KFDET..S321,331	12/2011 - 11/2012	1
17346-B2011	KFDET..S321,331	12/2012 - 03/2015	1
17347C - HOSE, AIR, NO.7
17347-B2010	KFDET..S321,331..PS1	12/2011 - 04/2015	1
17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1
17805-B2010	KFDET..S321,331..PS1	12/2011 - 04/2015	1
17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2
17806-B2010	KFDET..S321,331	12/2011 - 10/2012	1
17806-B2011	KFDET..S321,331	11/2012 - 07/2013	1
17806B - PIPE SUB-ASSY, AIR CLEANER, NO.3
17886-B5011	KFDET..S321,331..PS1	07/2013 - 04/2015	1
17875A - GASKET, INTAKE PIPE
17171-87205	KFDET..S321,331..PS1	12/2011 - 04/2015	1
17940D - INTERCOOLER ASSY
17940-B5020	KFDET..S321,331	12/2011 - 09/2012	1
17940-BW010	KFDET..S321,331..PS1	10/2012 - 04/2015	1
17945 - BRACKET, INTERCOOLER SUPPORT
17945-B5010	KFDET..S321,331..PS1	12/2011 - 04/2015	1
17946 - BRACKET, INTERCOOLER SUPPORT, NO.2
17946-B5010	KFDET..S321,331..PS1	12/2011 - 04/2015	1
Common parts
90041-20059
90041-79052
90043-87144
90044-60326
90044-67304
90044-67456
90044-67544
90044-67561
90044-80614
90044-80615
91631-40830
91671-80818
Linked diagrams
1701
2211

ILLUST NO. 1 OF 2(1112-1711)KFDET

Click highlighted areas on diagram

ｴｱｸﾘｰﾅ

Part #	Description	Period	Qty
12268C - CLIP, HOSE
90044-67103	KFDET..S321,331..PS1	12/2011 - 04/2015	4
12268C - CLIP, HOSE
90044-67103	KFDET..S321,331..PS1	12/2011 - 04/2015	4
12268C - CLIP, HOSE
90044-67103	KFDET..S321,331..PS1	12/2011 - 04/2015	4
12268C - CLIP, HOSE
90044-67103	KFDET..S321,331..PS1	12/2011 - 04/2015	4
17341F - HOSE, AIR, NO.1
17341-B5010	KFDET..S321,331..PS1	12/2011 - 04/2015	1
17342D - HOSE, AIR, NO.2
17342-B5010	KFDET..S321,331..PS1	12/2011 - 04/2015	1
17344K - CLIP(FOR AIR HOSE, NO.4)
90044-67457	KFDET..S321,331..PS1	12/2011 - 04/2015	2
17344K - CLIP(FOR AIR HOSE, NO.4)
90044-67457	KFDET..S321,331..PS1	12/2011 - 04/2015	2
17670C - VALVE ASSY, AIR BY-PASS
17670-B2010	KFDET..S321,331..PS1	12/2011 - 04/2015	1
17700 - CLEANER ASSY, AIR
17700-B2131	KFDET..S321,331..PS1	12/2011 - 04/2015	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-B2091	KFDET..S321,331..PS1	12/2011 - 04/2015	1
17709 - INLET SUB-ASSY, AIR CLEANER
17709-B5011	KFDET..S321,331..PS1	12/2011 - 04/2015	1
17710K - COLLAR(FOR AIR CLEANER)
90043-87144	KFDET..S321,331..PS1 NO.1	12/2011 - 04/2015	3
17710K - COLLAR(FOR AIR CLEANER)
90043-87144	KFDET..S321,331..PS1 NO.1	12/2011 - 04/2015	3
17710K - COLLAR(FOR AIR CLEANER)
90043-87144	KFDET..S321,331..PS1 NO.1	12/2011 - 04/2015	3
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-97203	KFDET..S321,331..PS1	12/2011 - 11/2017	1
17875C - CLIP(FOR HOSE, NO.1)
90044-67115	KFDET..S321,331..PS1	12/2011 - 04/2015	1
17881 - HOSE, AIR CLEANER, NO.1
17881-B2091	KFDET..S321,331..PS1	03/2015 - 04/2015	1
17881-B2090	KFDET..S321,331	12/2011 - 03/2015	1
17882 - HOSE, AIR CLEANER, NO.2
17882-97502	KFDET..S321,331..PS1	12/2011 - 04/2015	1
17883B - GROMMET, AIR CLEANER HOSE
90044-80614	KFDET..S321,331..PS1	12/2011 - 04/2015	3
17883B - GROMMET, AIR CLEANER HOSE
90044-80614	KFDET..S321,331..PS1	12/2011 - 04/2015	3
17883B - GROMMET, AIR CLEANER HOSE
90044-80614	KFDET..S321,331..PS1	12/2011 - 04/2015	3
Common parts
90041-19359
90041-20059
90044-66004
Linked diagrams
1701
1708
