S331M-ZMGF5 (2018)
Toyota Pixis Van
Production
Dec 2018
-
Nov 2019
Engine
KFVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1907- )

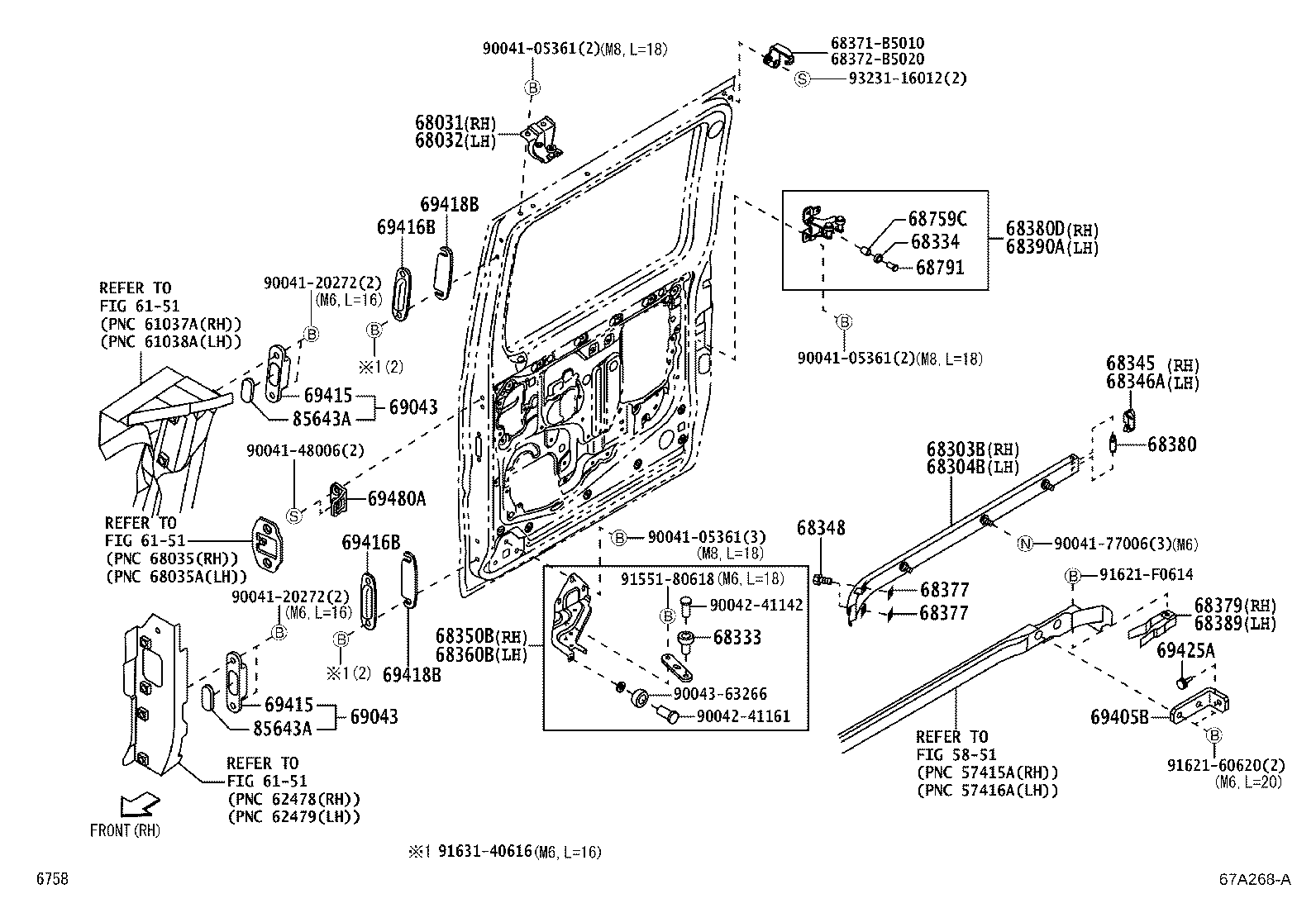

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68379 - SPRING, SLIDE DOOR CATCH, RH | ||||
| 68379-B5032 |
S321,331 |
1 | ||
| 69043 - STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE | ||||
| 69043-B5010 |
S321,331 |
4 | ||
| 69043 - STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE | ||||
| 69043-B5010 |
S321,331 |
4 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-B5040 |
S321,331 |
4 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-B5040 |
S321,331 |
4 | ||
| 85643A - CUSHION, STOPPER | ||||
| 23249-B5030 |
S321,331 |
4 | ||
| 85643A - CUSHION, STOPPER | ||||
| 23249-B5030 |
S321,331 |
4 | ||
| Common parts | ||||
| 68371-B5010 | ||||
| 68372-B5020 | ||||
| 90041-05361 | ||||
| 90041-20272 | ||||
| 90041-48006 | ||||
| 90041-77006 | ||||
| 90042-41142 | ||||
| 90042-41161 | ||||
| 90043-63266 | ||||
| 91551-80618 | ||||
| 91621-60620 | ||||
| 91621-F0614 | ||||
| 91631-40616 | ||||
| 93231-16012 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 6151 | ||||
(1112-1907)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68379 - SPRING, SLIDE DOOR CATCH, RH | ||||
| 68379-B5032 |
S321,331 |
1 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-B5040 |
S321,331 |
4 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-B5040 |
S321,331 |
4 | ||
| Common parts | ||||
| 68371-B5010 | ||||
| 68372-B5020 | ||||
| 90041-05361 | ||||
| 90041-05469 | ||||
| 90041-20272 | ||||
| 90041-48006 | ||||
| 90041-77006 | ||||
| 90042-41142 | ||||
| 90042-41161 | ||||
| 90043-63266 | ||||
| 91551-80618 | ||||
| 91621-60620 | ||||
| 91621-F0614 | ||||
| 91631-40616 | ||||
| 93231-16012 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 6151 | ||||
